Super400 servo Mount

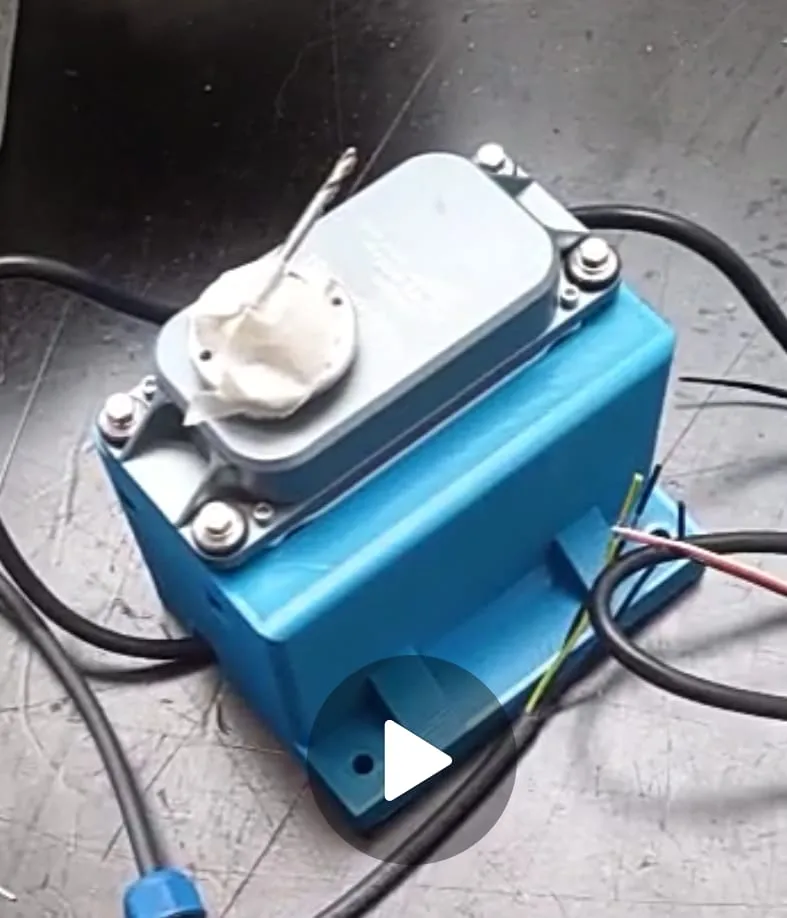

Here is an simple servo mount for the super400 servo from happymodel/any other that is the same size.

i had trouble finding anything so here is a base to begin with

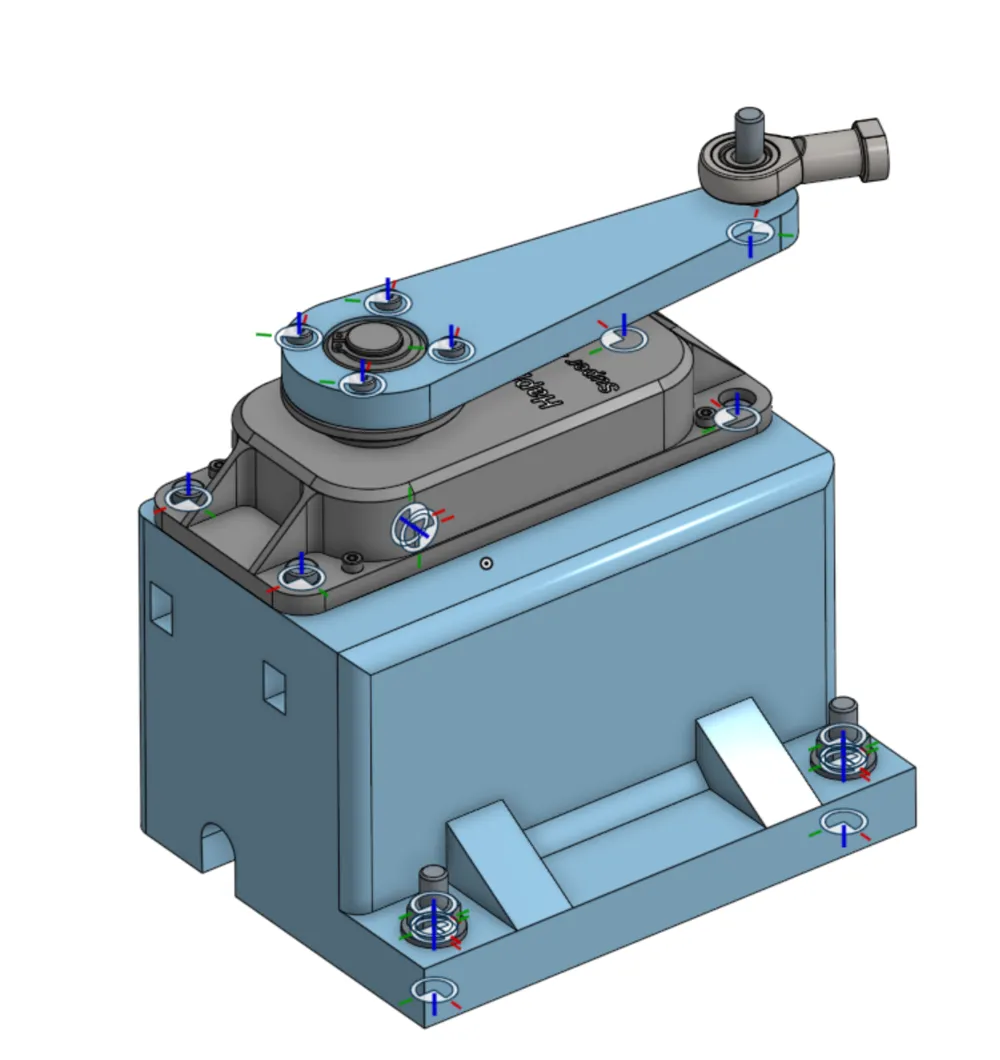

and here is the onshape url to modify if needed or to verify dimensions   onshape: https://cad.onshape.com/documents/6b919dda0b60d1c95d7ab0fd/w/4a0b77e8e0f0ed6fa7d3a9d3/e/0cfbadf5a7423216ef28e181

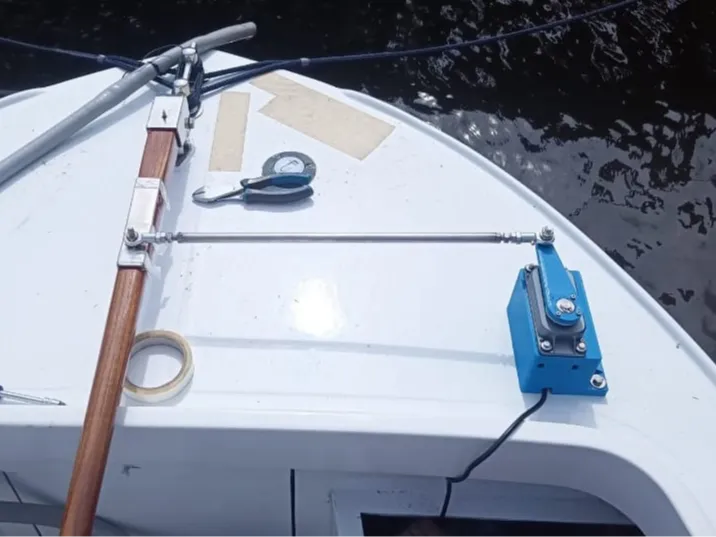

the leverarm is more than strong enough to control the tiller of a decent sized boat. mine is a 6m inboard diesel

just buy 2 rodends and some threaded rod  and a bit of steel or stainless tubing and glue it in  then you can still adjust it a bit without adjusting servo 0-point
