4-tier Planter in Stepped Design - LED Optional

4-tier Flowerpot in Step Design - LED Optional

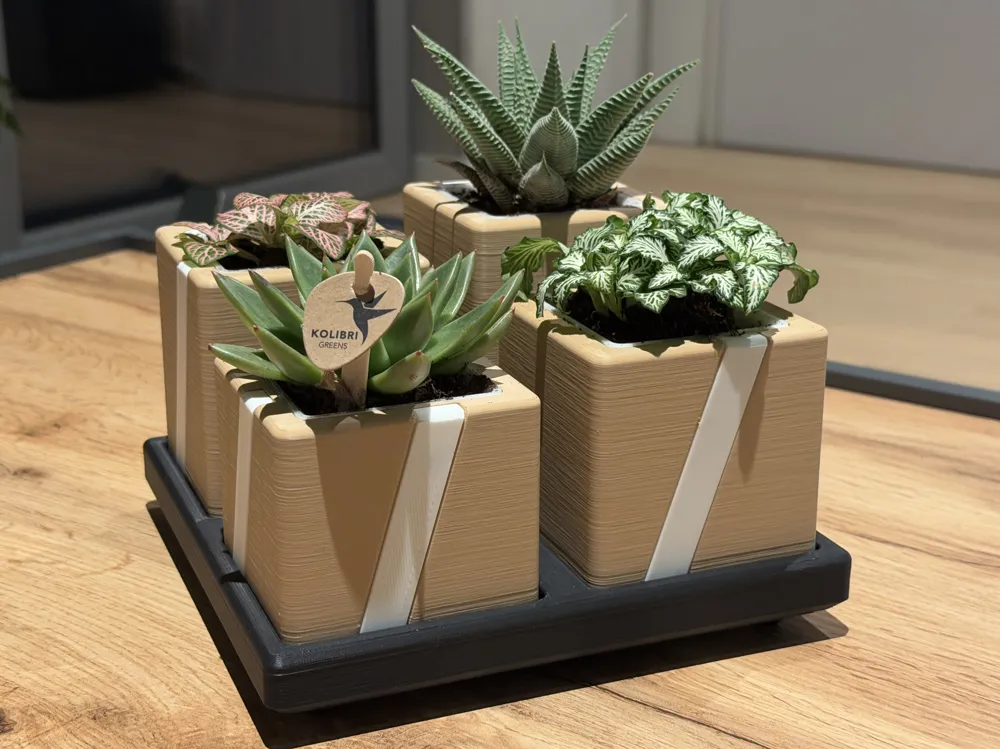

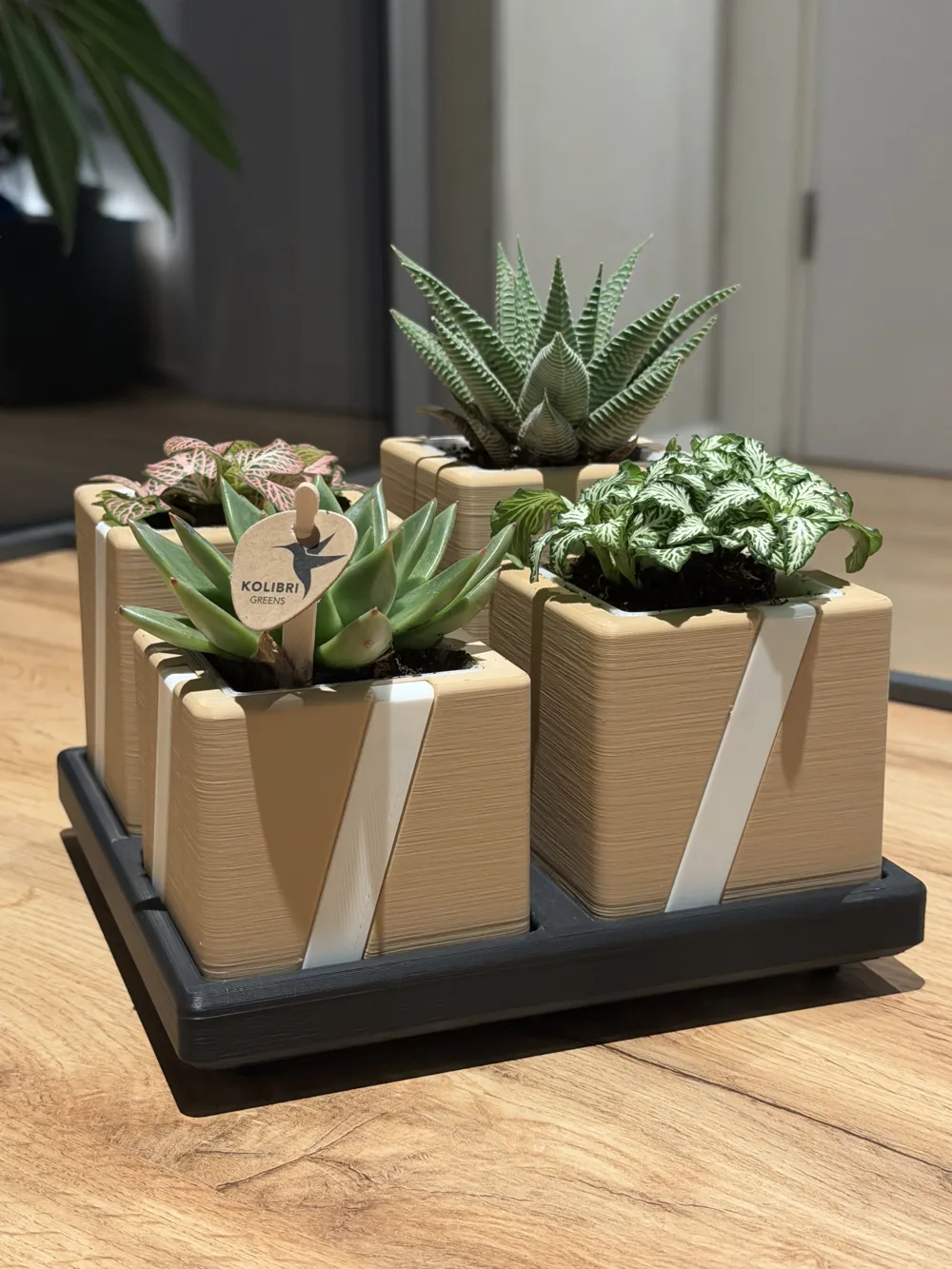

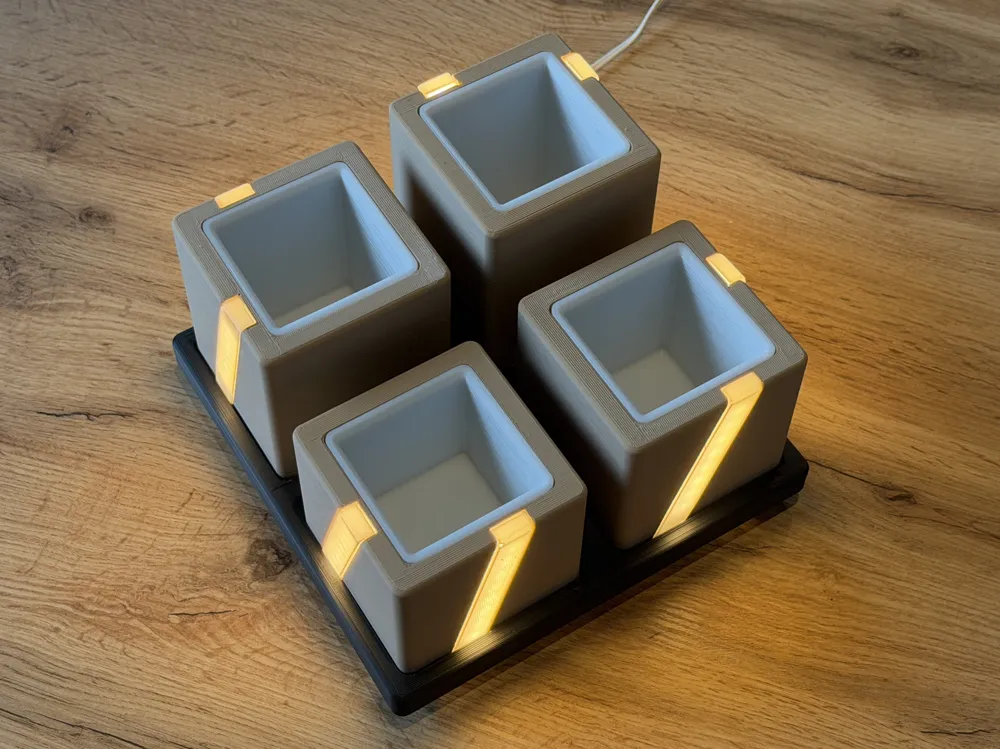

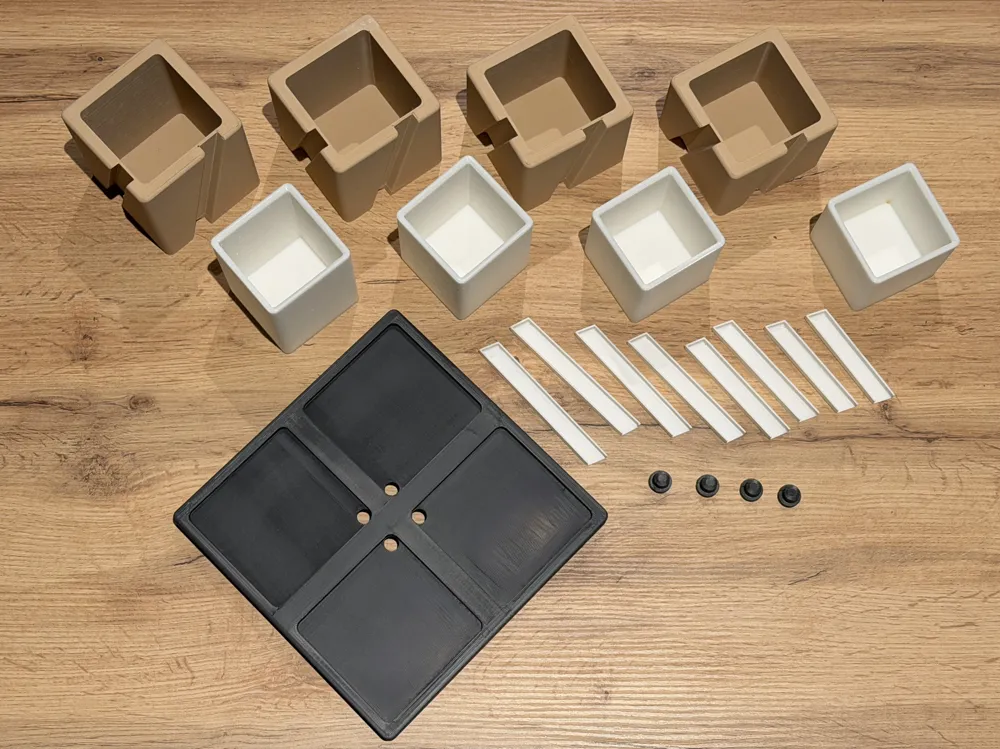

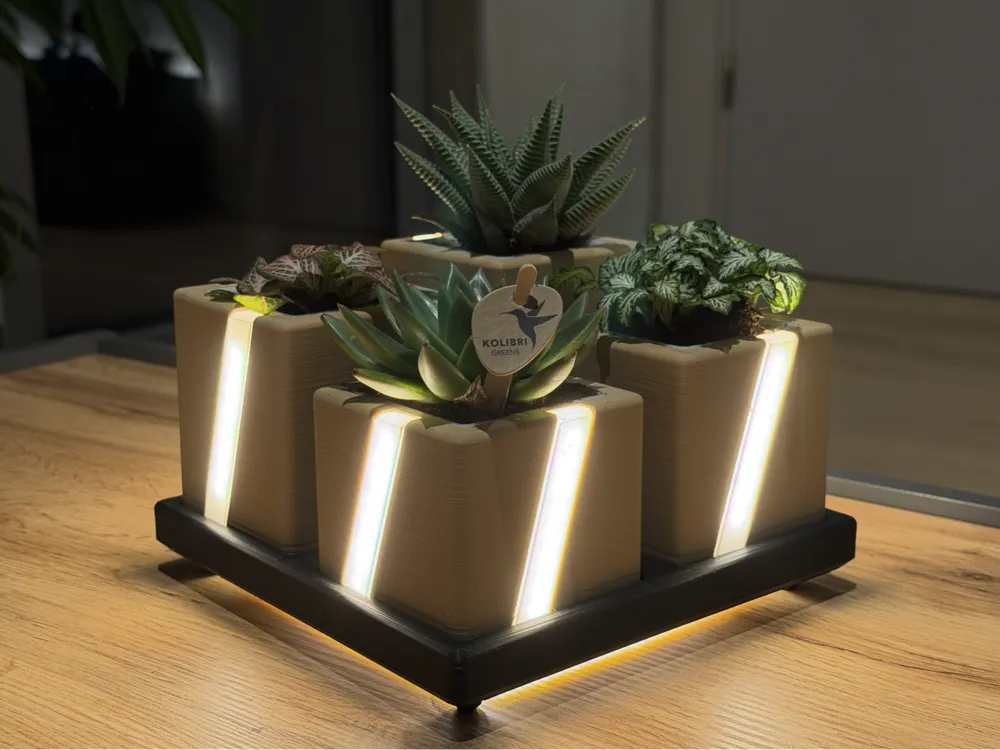

Today I would like to present my latest creation a flowerpot in a step design (optionally with LED lighting as shown in the pictures above, The flowerpot is completely modularly constructed so that NO AMS is needed for printing, there are no limits to creativity in terms of color selection I have chosen Matte filaments here

The inner pots were waterproof in my tests if there should be problems increase the **flow rate** of your printer, The pre-made print profile from me has been completely adapted to how I printed it

Cable cutouts are present everywhere so this should work smoothly, I installed 12V LEDs in my flowerpot at the top and let them light up for a longer period and the plastic only got slightly warm, WS2812B LEDs can also be installed if someone perhaps wants to build something a little more playful

Attached are a few more pictures regarding the LED lighting, The cables of the 4 illuminated pots can be easily routed through the 4 holes in the base plate

The LED strips shown in the picture here have a **width of 10mm** but LED strips with a **maximum width of 11.8mm** can be installed

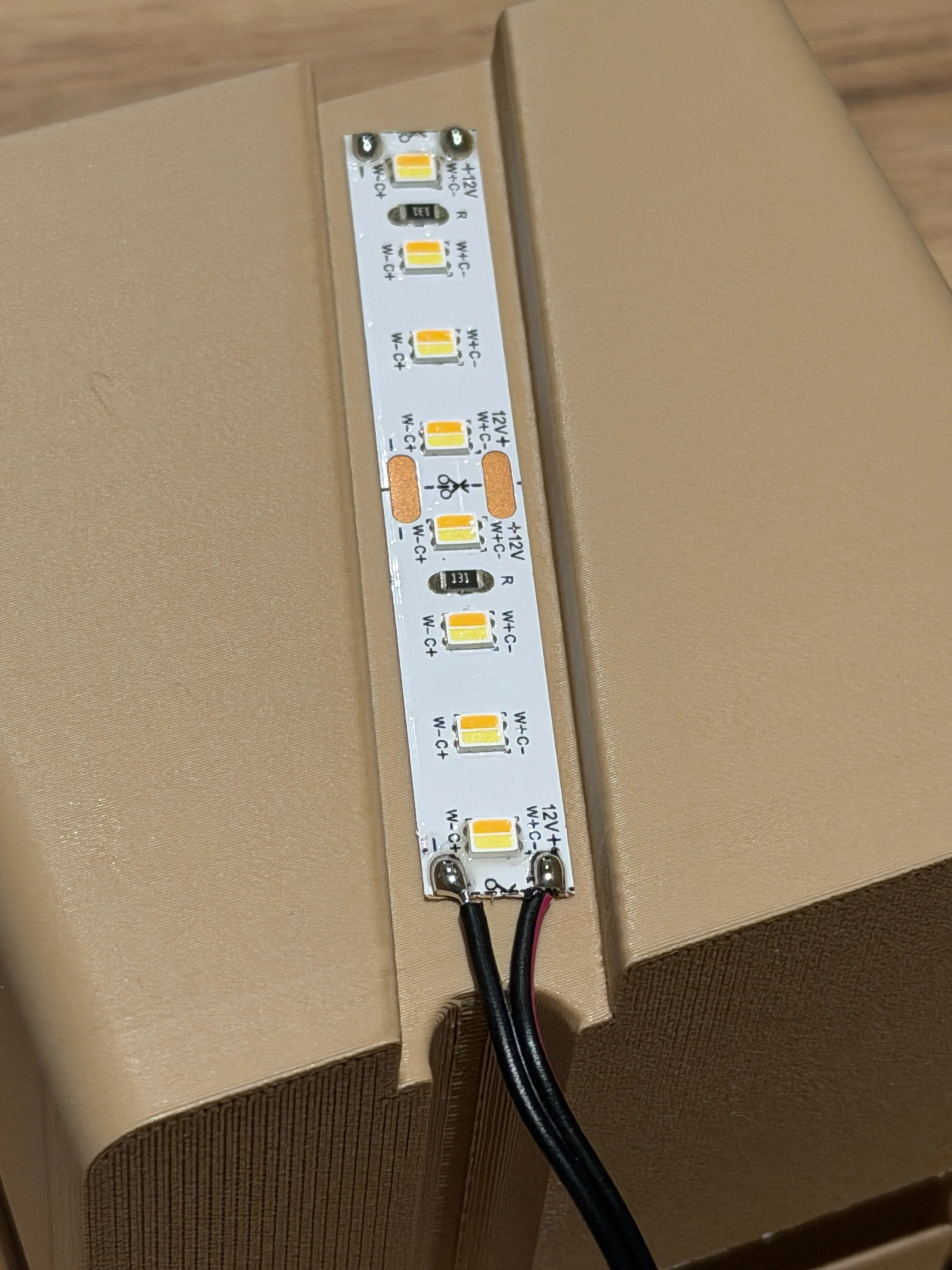

-LED Strip Outer Pot-

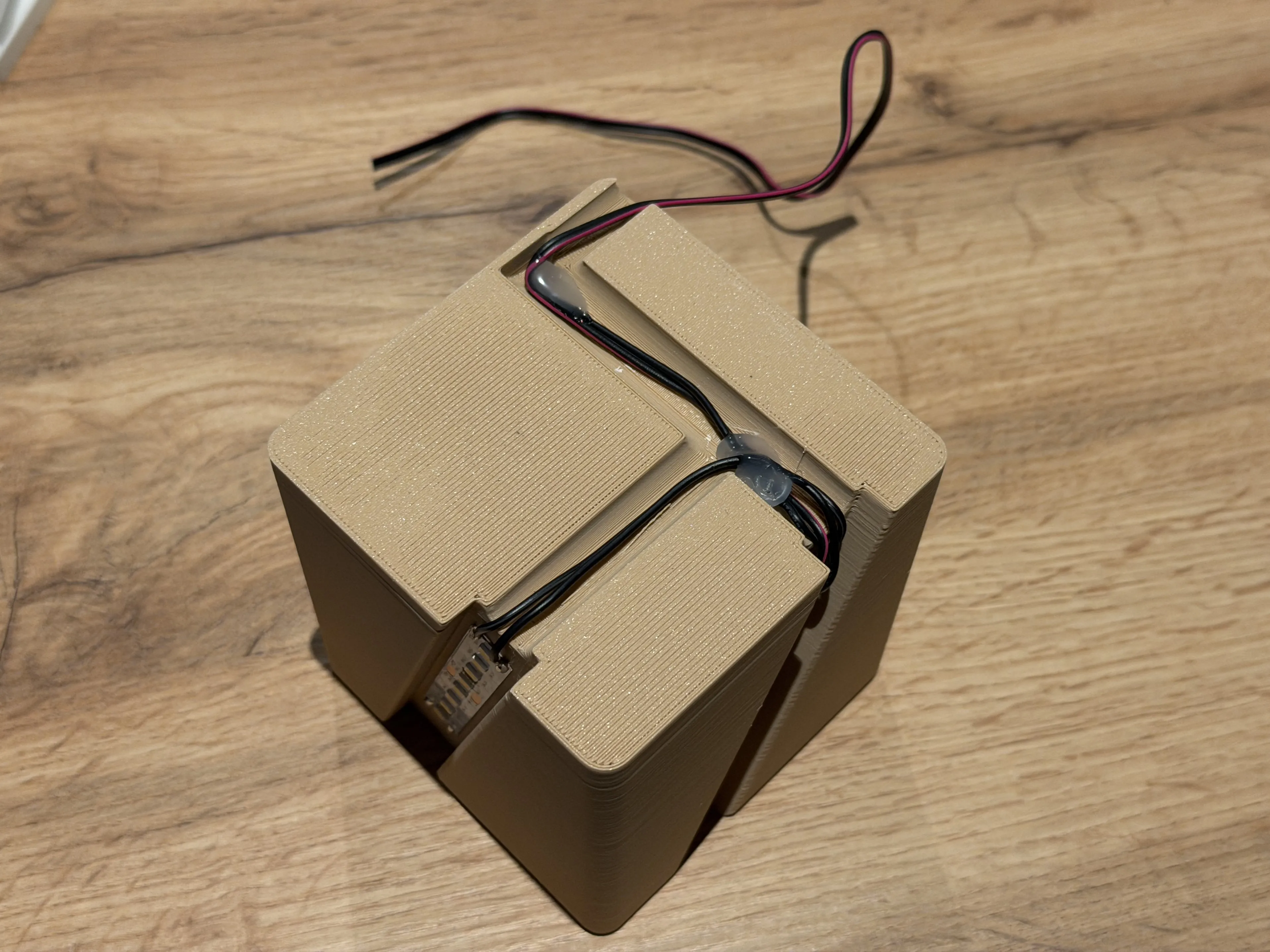

 -Wiring Underside-

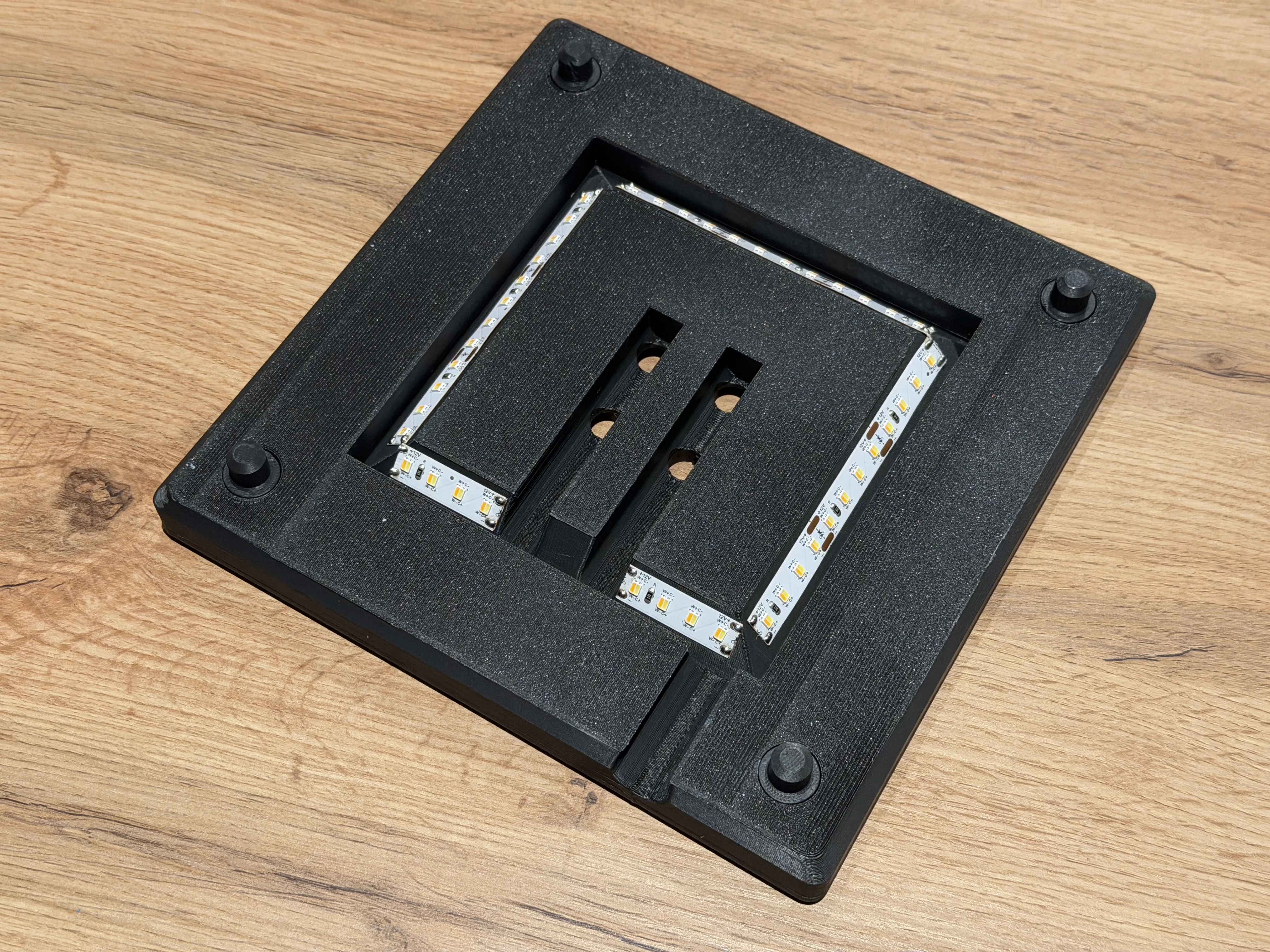

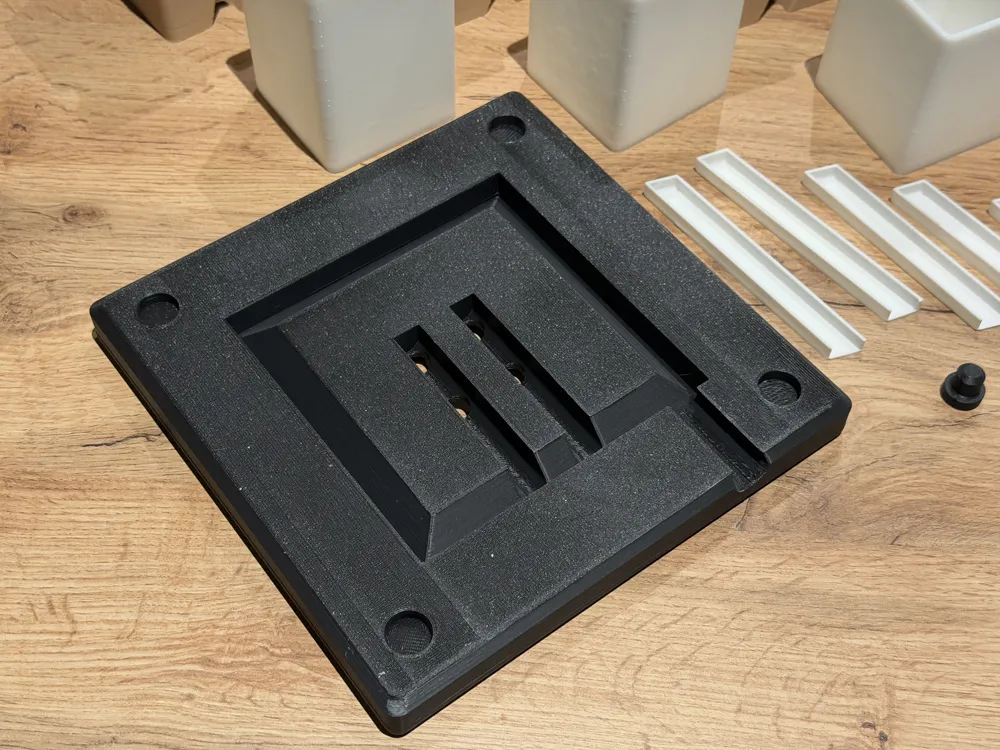

-LED Arrangement Base Plate-

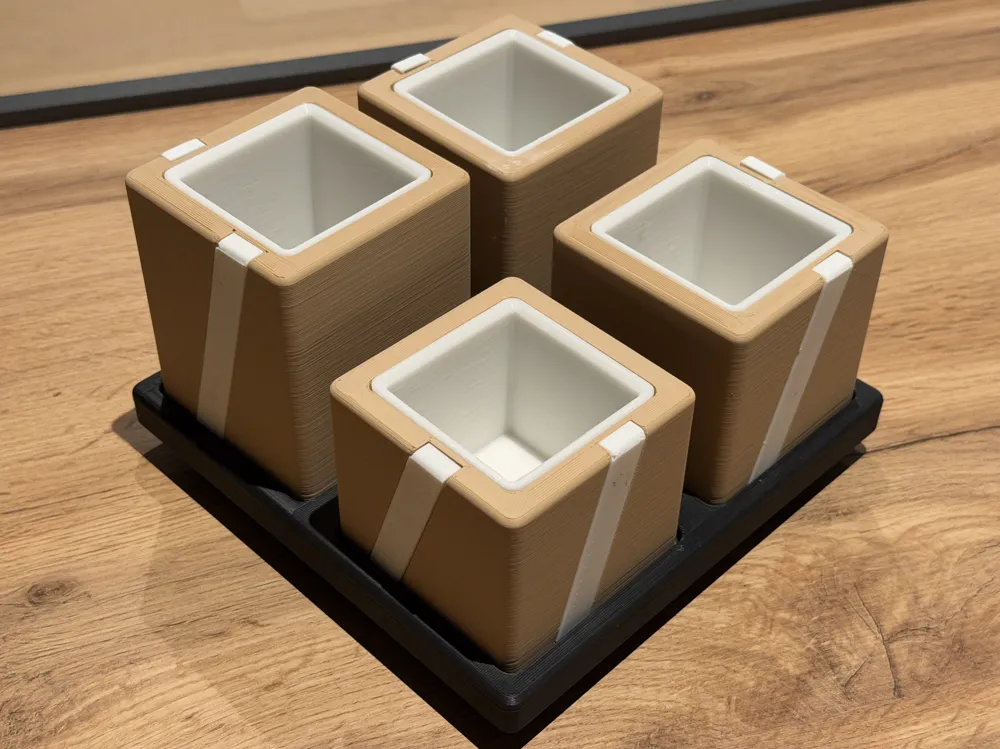

The covers for the LEDs are simply pushed on, alternatively if they are a little too loose they can be fixed with a drop of glue, each cover is different please pay close attention they should be **flush everywhere**

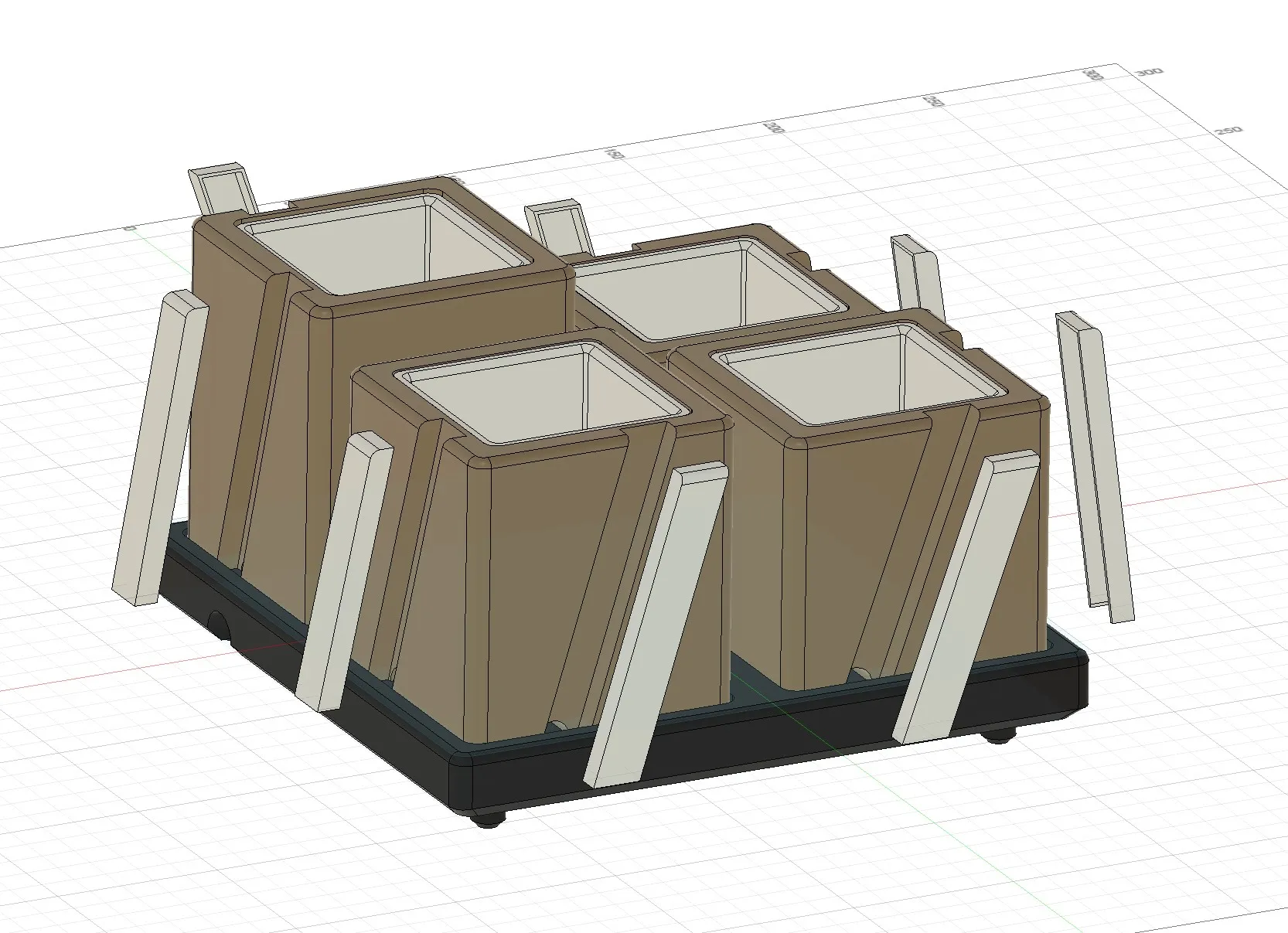

Attached is another picture from Fusion 360 to perhaps clarify the construction again, especially with regard to the white cover caps

The dimensions of the model are 200x200x125mm for the largest pot

If further questions arise please write a message I will try to answer them as quickly as possible
