Bike Fork Stand for M12x100mm for thruough axle

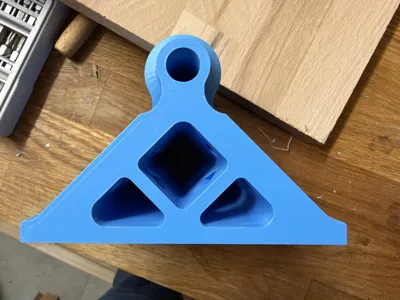

This is a fork support / storage block designed for road bikes with a 12 mm thru-axle and 100 mm fork spacing.

Originally designed for my Cube Litening Aero, but it should fit any bike with the same axle standard.

My problem is that the outer diameter of the fork mounts available on the market is too large for the fork of my Cube Litening. The fork has a raised section in that area, so the outer diameter must be limited to 20 mm in order for the mount to sit flush against it.

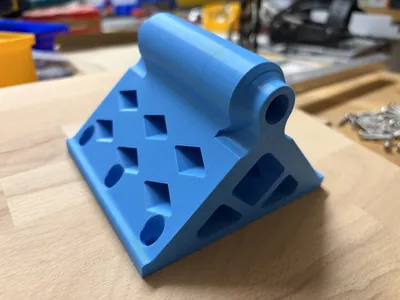

The design is solid and printed with strong infill structures for good stiffness and load stability.

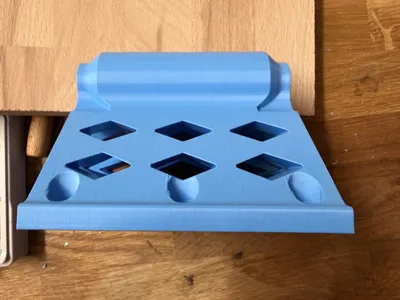

I printed my version with ABS. I screwed it on a wooden board which I can position in the transport rails of my VW Multivan (T7). Six holes with a diameter of 6mm.

I don't think PLA would be appropiate if you'll use it for transport. Use at own risk.

⚙️ Compatibility

✔ 12 mm thru-axle
✔ 100 mm fork spacing

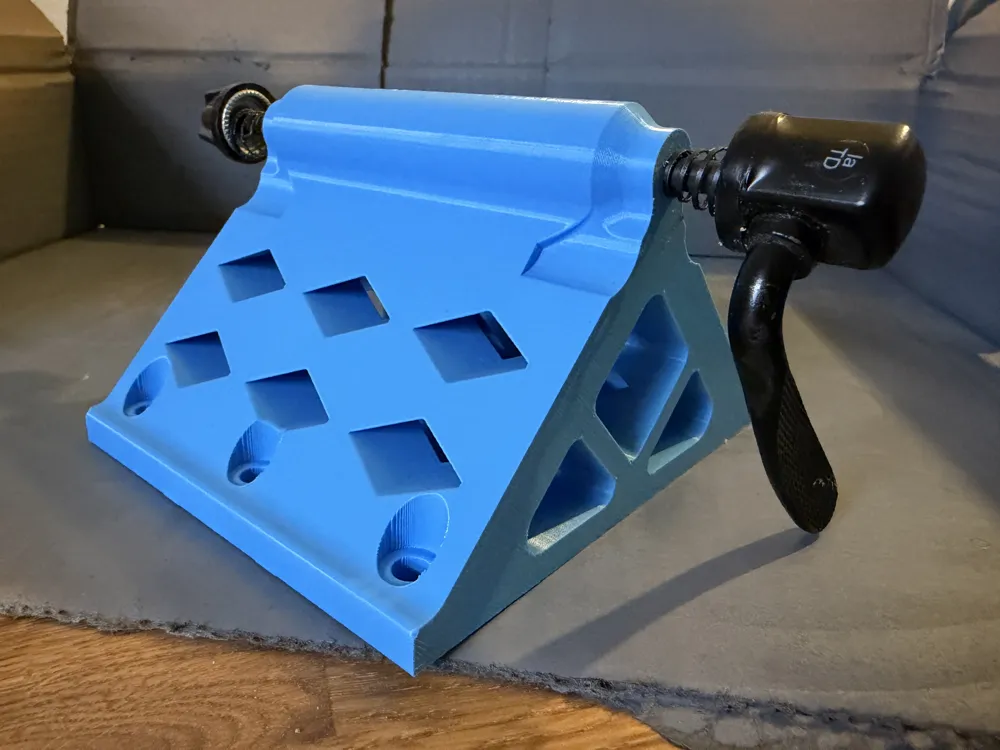

✔ tested on Cube Litening Aero (which uses a thru-axle from NEWMEN)

May also fit other road bikes with the same axle spec.

I'll publish a version for quick release. (My wife has one and I think the axle diameter is just 5mm)
