Description
DIY UNIVERSAL BASE PLATE
!! 5mm Wide Cable Channels !!

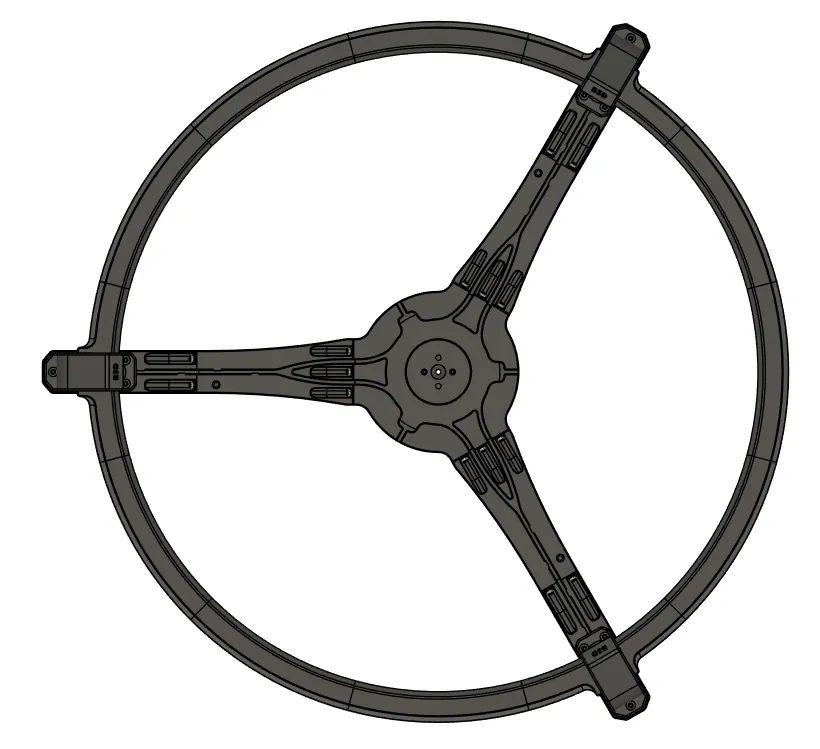

The first universal base plate available on the market. This base plate ensures the perfect positioning of the camera arms

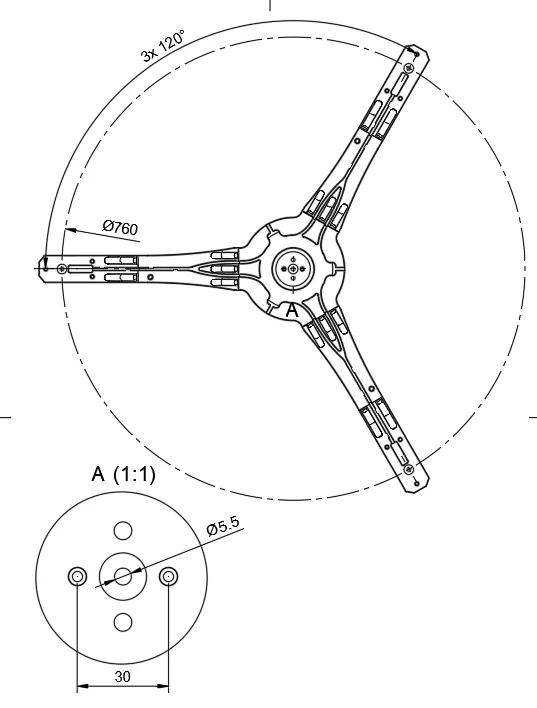

4 drill holes in the wall, and the base plate takes care of the remaining positions
Features:
- Mounts for various systems
- Top-mounted cable channels for easy installation and maintenance
- No cable clips necessary

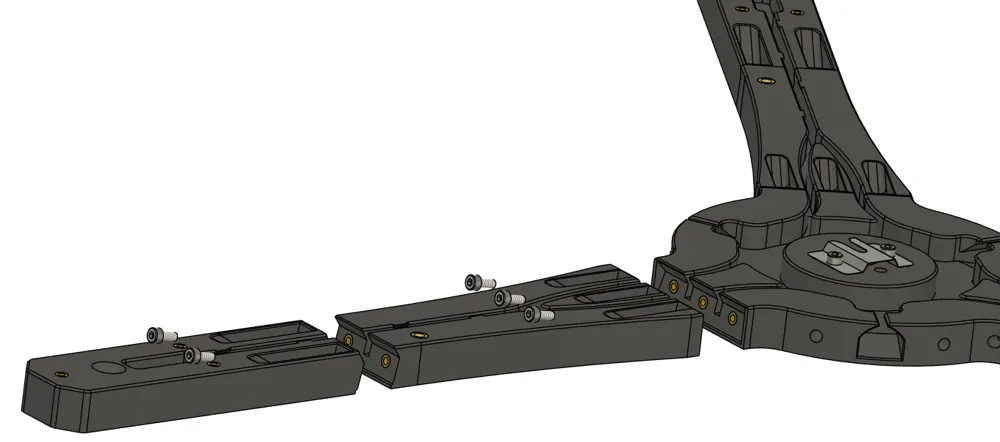

- Solid construction, all connections with M4 screws
- Rotolock mount (M6) to clamp the dartboard
- Mounting holes for a Karella soundproofing system
- Support for Bulls quick-change devices
Currently Supported Systems:
- BOTH3D
- RUPPILAB3D
- VIPERMAN
- BEN ENGELEN
- ------------------
- AUTODARTS ORIGINAL VISION KIT
- AUTODARTS ORIGINAL VANTAGE
- ------------------
- CKNDLHC Standard
- CKNDLHC Slim
- CKNDLHC SFF (foldable)
- ------------------
- Robbel90
No printer available? Then visit my online shop at www.both3d.de

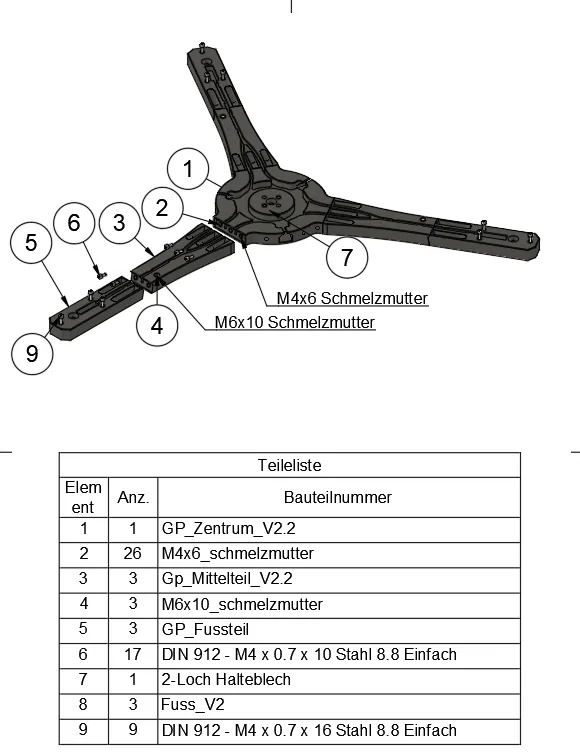

Required Materials:
| Quantity | Item |
| 26-30x | M4x6 heat set inserts |
| 3x | M6x10 heat set inserts |
| 17x | M4x10 DIN 912 screws |
| 9x | M4x14(16) DIN 912 screws |
Update
21.02.2026 - Fixed SFF errors and added additional holes for Karella soundproofing
24.01.2026 - Added Karella mounting holes, Modified center plate for Bulls quick-change device
