Drill Bit Box V2 1mm-10mm
Print Profile(1)
Description
Boost Me (for free)
You can also make the creator happy with small things. Thank you :-)
Although I liked my first drill bit box, I didn't like how difficult it was to remove the drill bits, so I revised my first design https://makerworld.com/de/models/603644-bohrer-box#profileId-526203 here

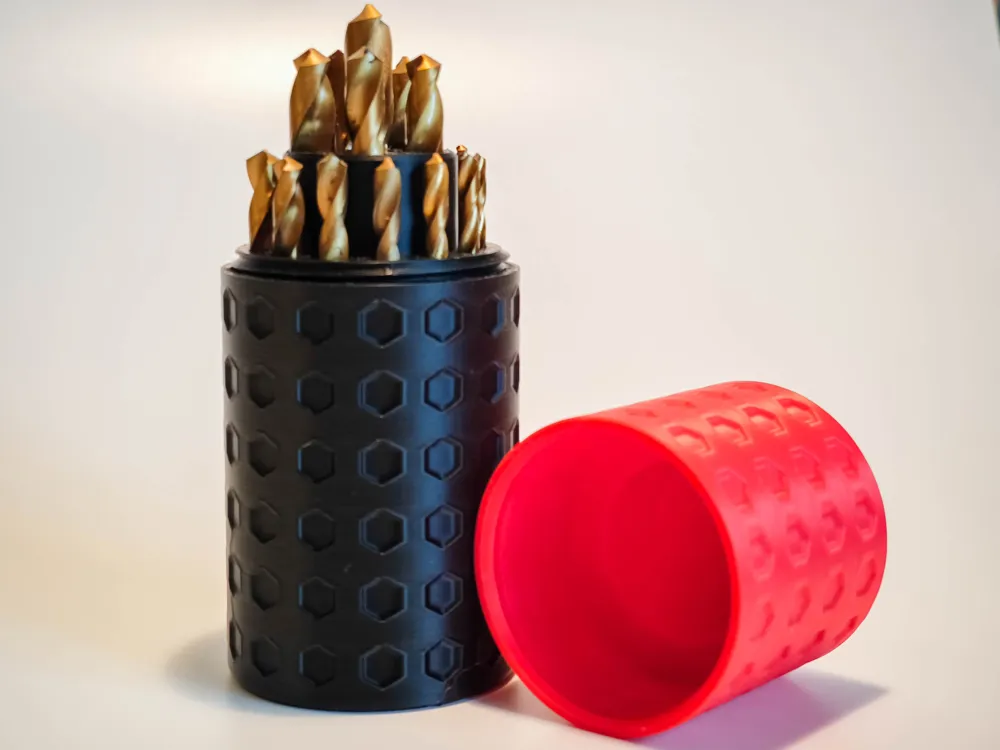

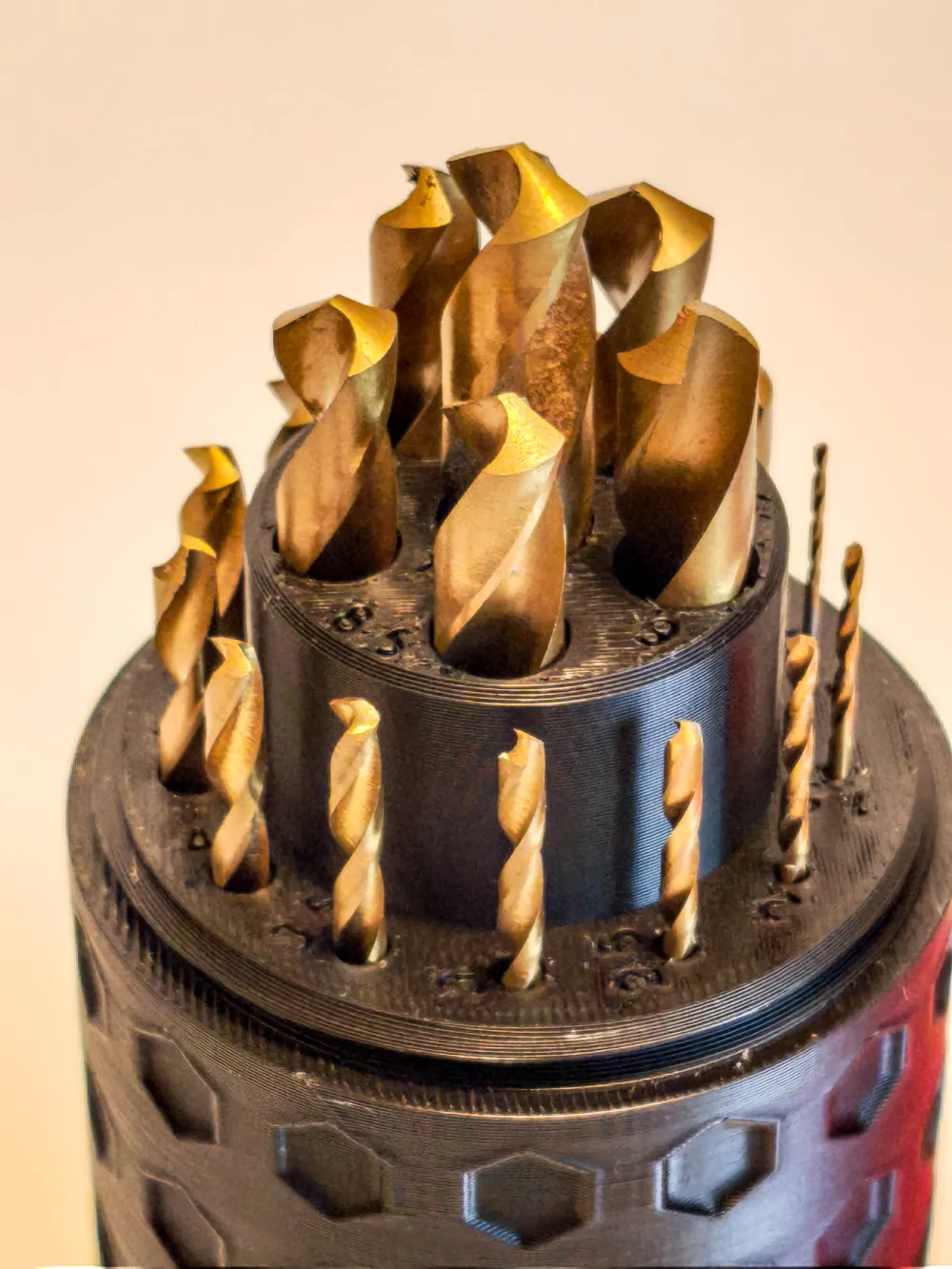

The drill bits are now arranged at different heights, which simplifies removal. The 13mm drill bit has been omitted in this version; I plan to create another version that will also include sizes from 10.5mm to 13mm
Sizes and lengths at a glance:
Diameter / Length
1,0mm / 34mm
1,5mm / 40mm
2,0mm / 49mm
2,5mm / 57mm
3,0mm / 61mm
3,5mm / 70mm
4,0mm / 75mm
4,5mm / 80mm
5,0mm / 86mm
5,5mm / 93mm
6,0mm / 93mm
6,5mm / 101mm
7,0mm / 109mm
7,5mm / 109mm
8,0mm / 117mm
8,5mm / 117mm
9,0mm / 125mm
9,5mm / 125mm
10mm / 133mm
I experimented with variable layer height to reduce print time. If this causes any aesthetic issues for you, a continuous layer height of 0.12mm is recommended
