Wall-Mounted Toothbrush Holder
Print Profile(2)
Bill of Materials
Description

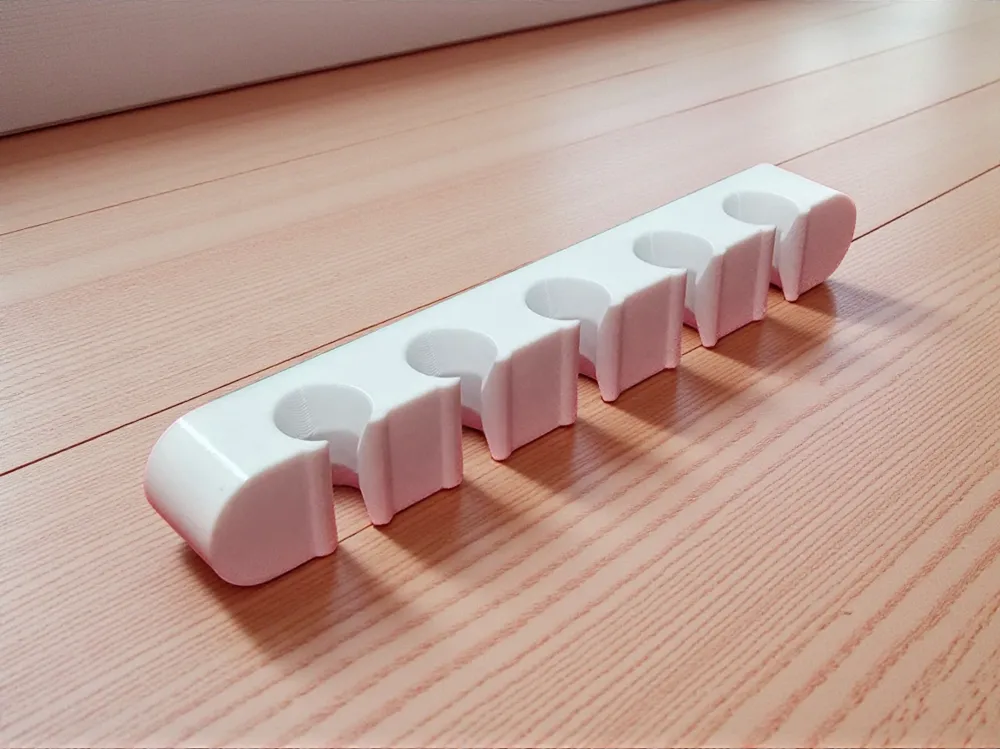

A Minimalist wall-mounted toothbrush holder designed to prevent moisture buildup and mold.

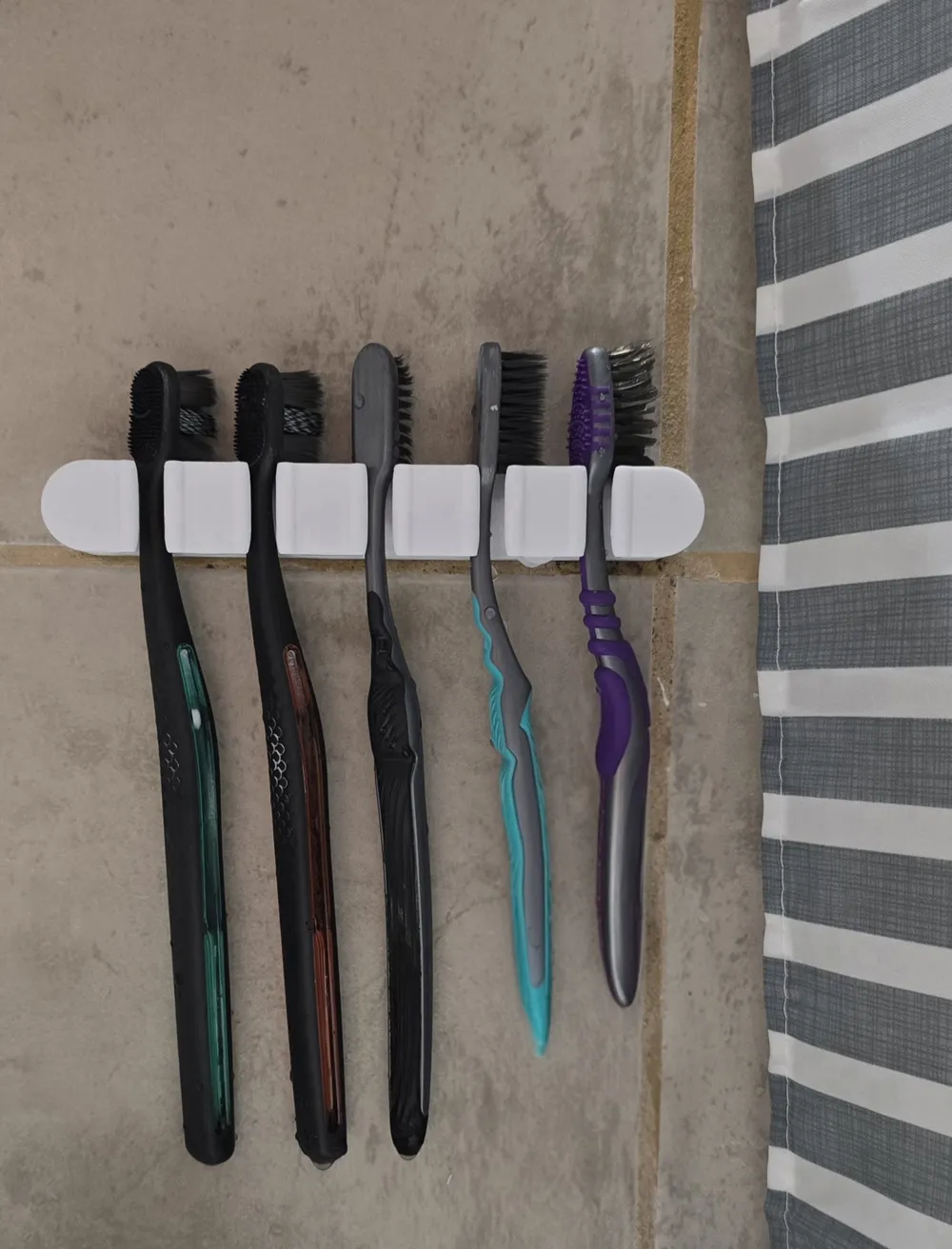

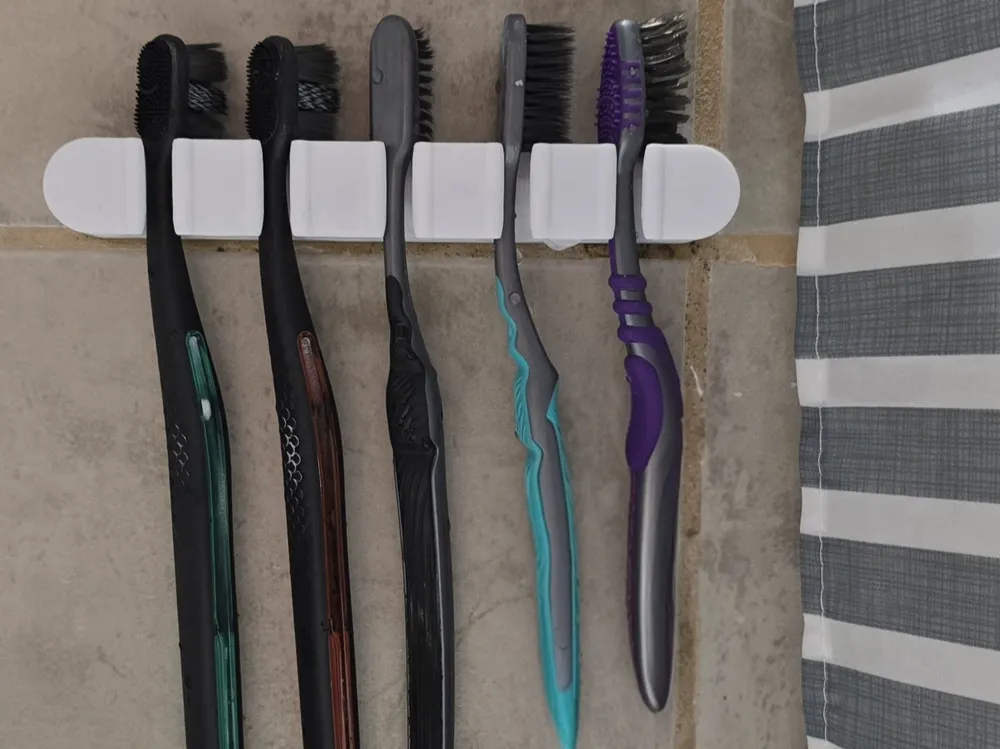

This holder supports 5 toothbrushes of different brands and handle shapes, keeping them separated, ventilated, and hanging downward so water drains naturally by gravity.
Each slot features a conical internal slope with a subtle drainage escape, avoiding water retention without compromising stability. The open hanging design improves airflow and keeps brush heads dry.
The back surface is sized exactly for 19 mm double-sided tape, allowing secure installation without drilling or damaging ceramic tiles.
Easy to clean, no containers, no hidden cavities.
Changes
- Added a new profile for 2, 3, and 4 brushes.
Key Features
- Holds 5 toothbrushes
- Wall-mounted, no drilling required
- Open hanging design for maximum ventilation
- Conical internal slope to prevent water accumulation
- Compatible with different toothbrush brands and handle sizes
- Easy to clean, hygienic design
Dimensions
- Length: 150 mm
- Width: 20 mm
- Height: 26 mm
Printing Settings (Tested)
- Material: PLA
- Layer height: 0.16 mm
- Wall loops: 3
- Infill: 10% Gyroid
- Supports: None
Mounting

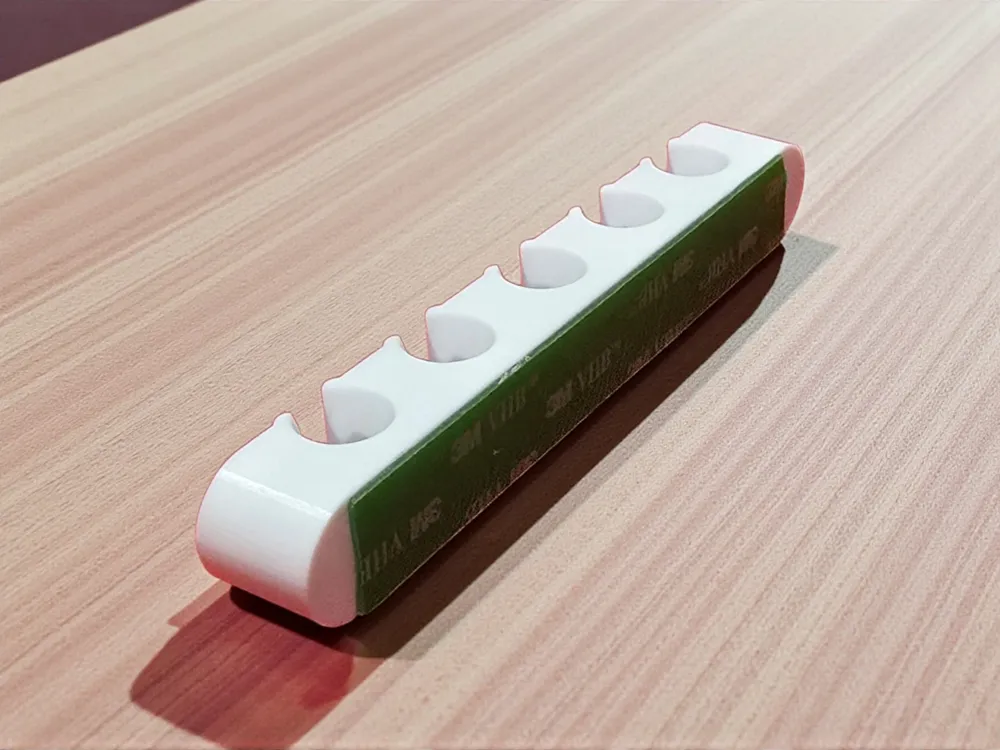

- Designed for 19 mm double-sided tape
- Tested with 3M VHB
- Clean surface before installation for best adhesion
