Modular Drawer Divider – Low Material
Print Profile(1)
Description

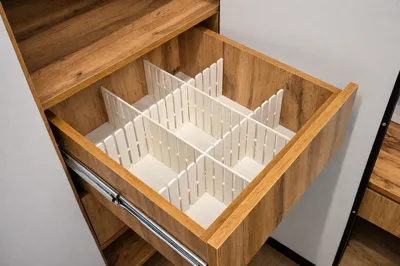

This is a modular drawer divider system.

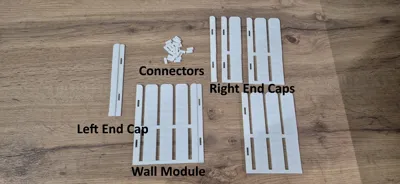

The divider has a height of 120 mm and consists of:
- repeatable main wall modules
- 1 left end cap
- 4 right end caps
- connector insert

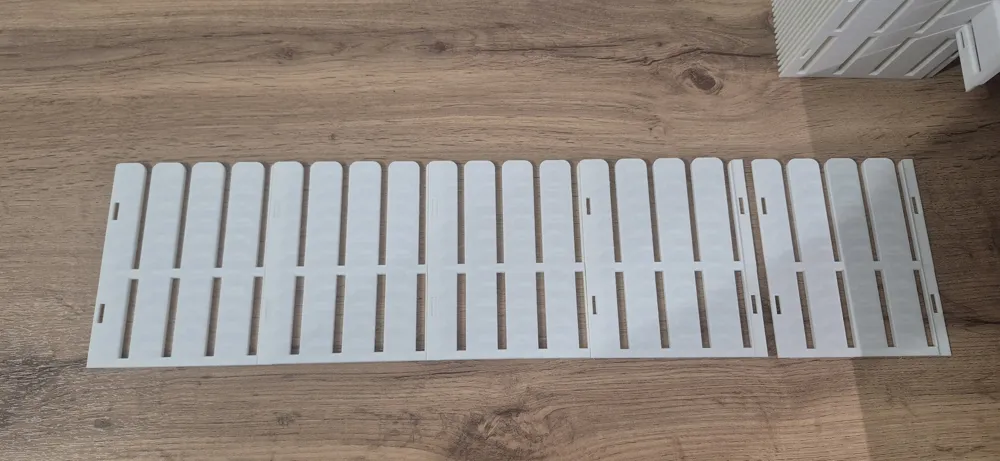

All parts connect without glue and can be assembled in different lengths.
Key Features
- Modular design – easily extend the divider by adding more modules

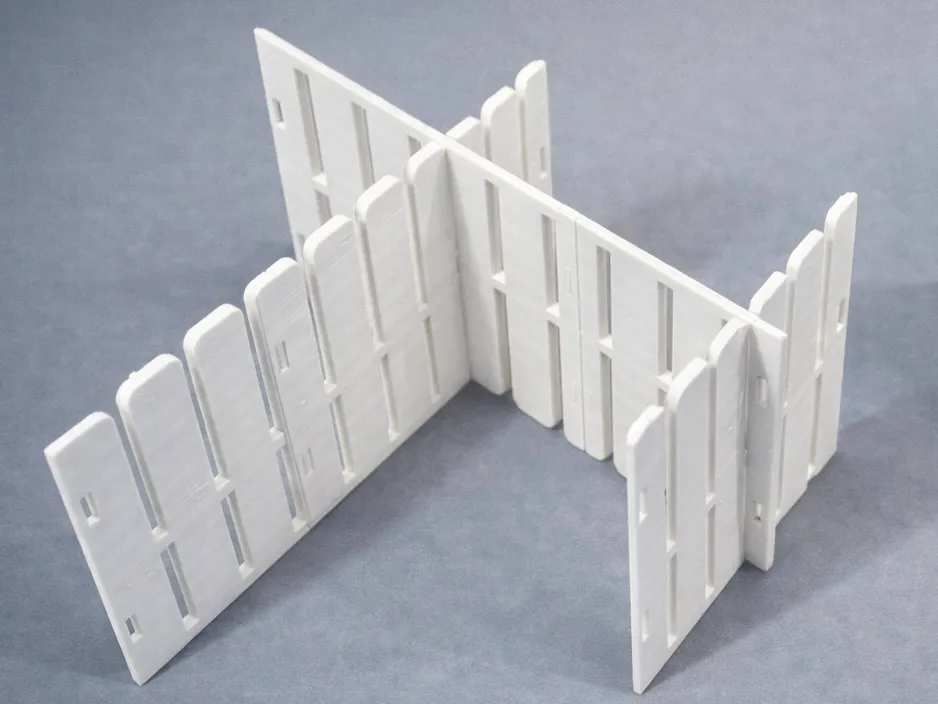

- Precision comb joint – tooth spacing remains consistent regardless of the number of modules
- Strong mechanical connection – stepped overlap with top and bottom locking inserts
- No glue required
- Optimized for low material usage and fast printing
PS:
The main goal was to reduce filament consumption, so wall infill and internal structure were optimized.
Feedback and printing tips are very welcome!
