JWA Keycaps for MX Low Profile Mechanical Keyboard

JWA Keycap Set (MX Low-Profile)

A clean, modern keycap profile designed for MX Low-Profile switches and custom mechanical keyboards. The JWA profile features soft rounded corners and a slightly concave top for a comfortable fingertip feel during long typing or gaming sessions. The low height and smooth contour give boards a streamlined, minimalist look while still feeling ergonomic.

Highlights

• Designed for MX Low-Profile switches
• Rounded edges + gentle dish for comfort
• Low-profile silhouette for a modern keyboard aesthetic
• Great for custom builds, low-profile keycap sets, and minimalist / gaming setups

Important Printing Notes (FDM)

These files were not originally designed with FDM printing as the primary target. I tested multiple slicing approaches, but getting consistently clean results on FDM was challenging without post-processing.

With the setup that worked best for me, I got decent keycaps with one main compromise:

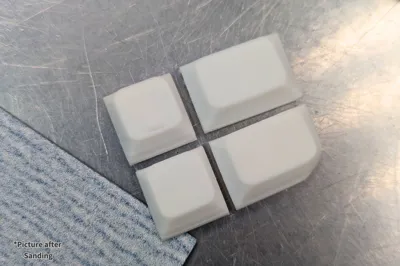

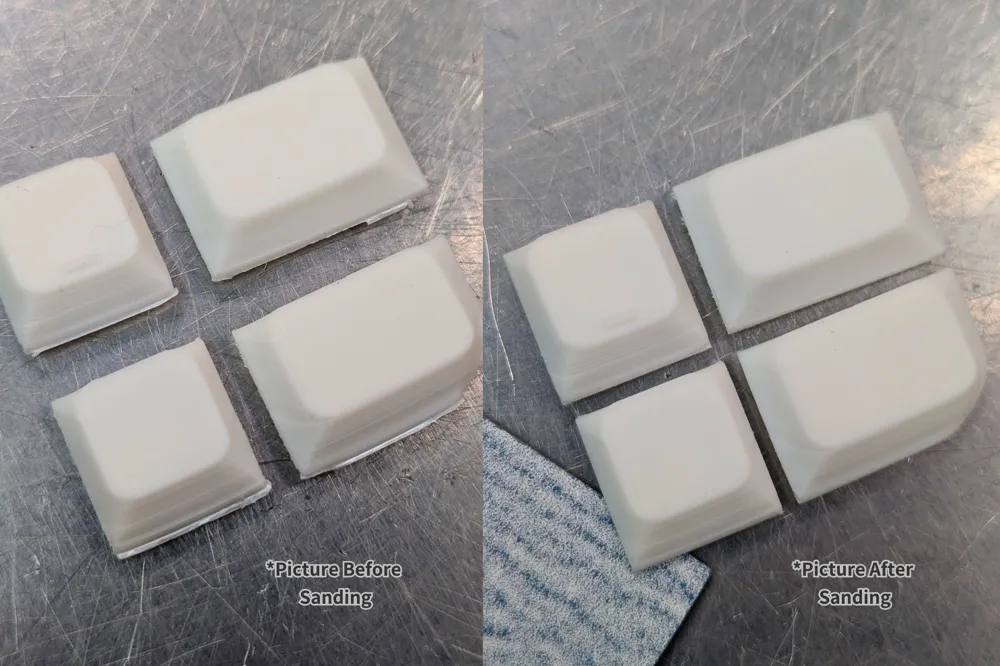

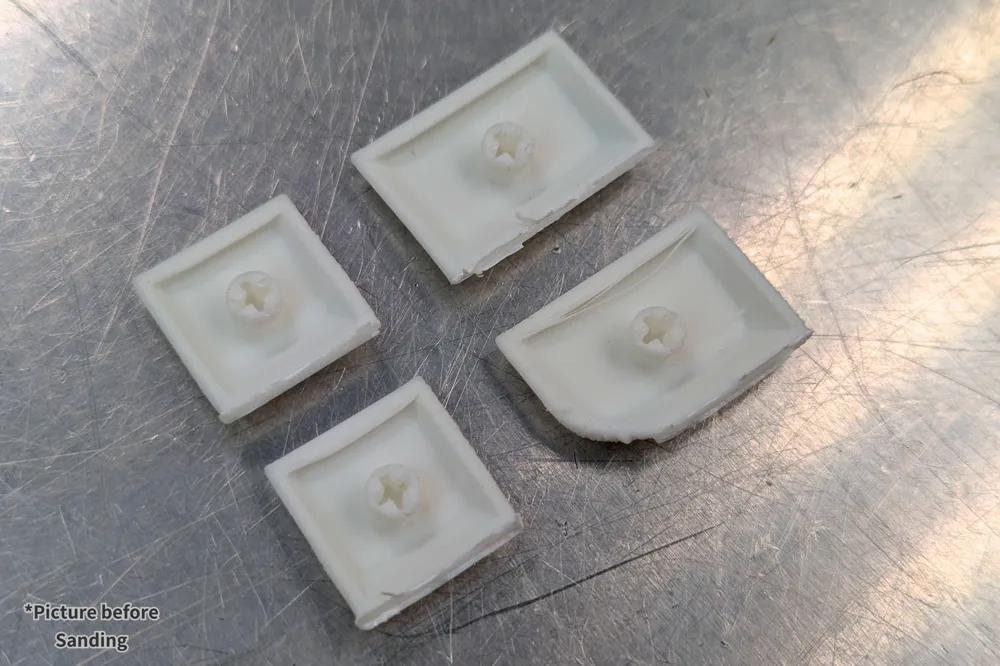

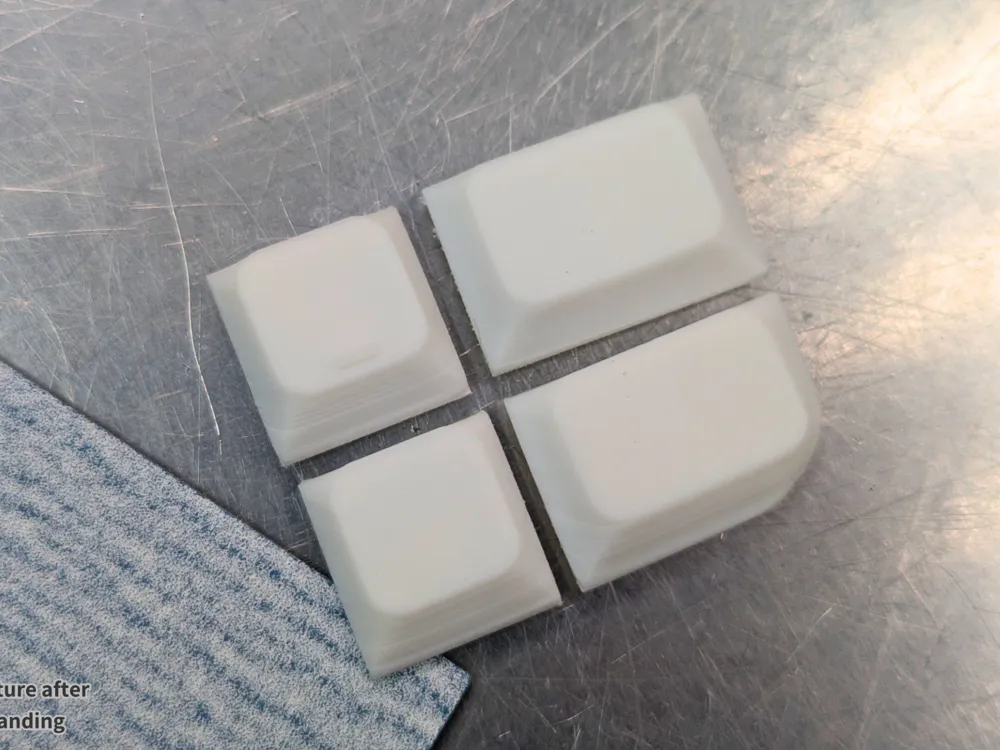

• You’ll likely need to sand the front edge, where the brim helps hold the part in place during printing.

If you want a “no-sanding” finish, resin printing will typically be easier for this type of geometry and surface quality.

Suggested FDM Approach (what worked best for me)

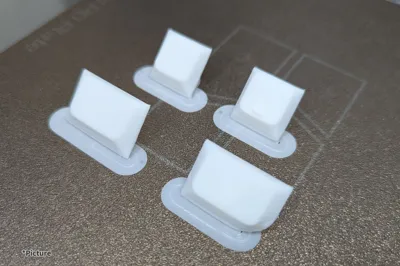

• Use a brim for stability (helps prevent lifting / wobble on small parts)
• Expect to do light sanding on the front edge after removal
• Print slower / with finer layers if you’re chasing a smoother top surface

(Your exact results will vary depending on filament, cooling, and printer tuning.)

Profile Reference

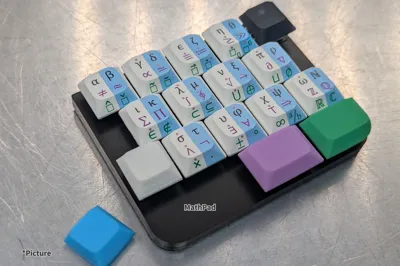

This is the same keycap profile used in the Mathpad project:
https://www.crowdsupply.com/summa-cogni/mathpad

Learn more about keycap profiles here (visual comparator):
https://3dkeycap.com/pages/keycap-profiles-comparator
