Johnnie Walker Collection: Red, Black & Blue Edition

Elevate your bar setup with the ultimate display trio. Following the success of my Jack Daniel’s box collection, I’ve designed a dedicated series for the world’s most famous Scotch whisky: Johnnie Walker.

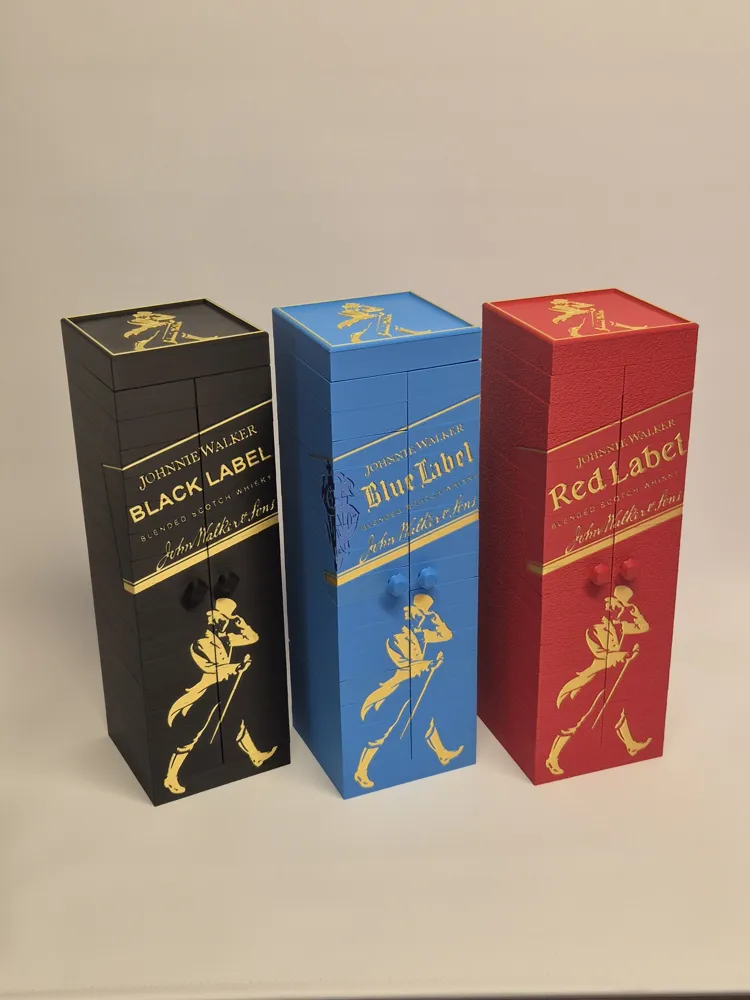

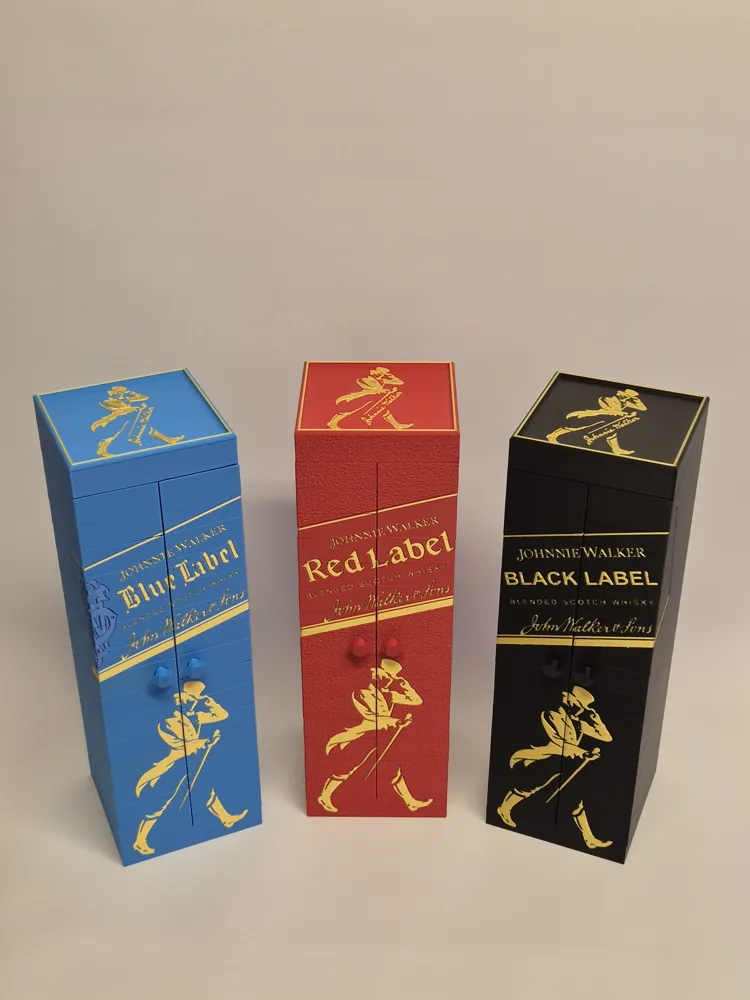

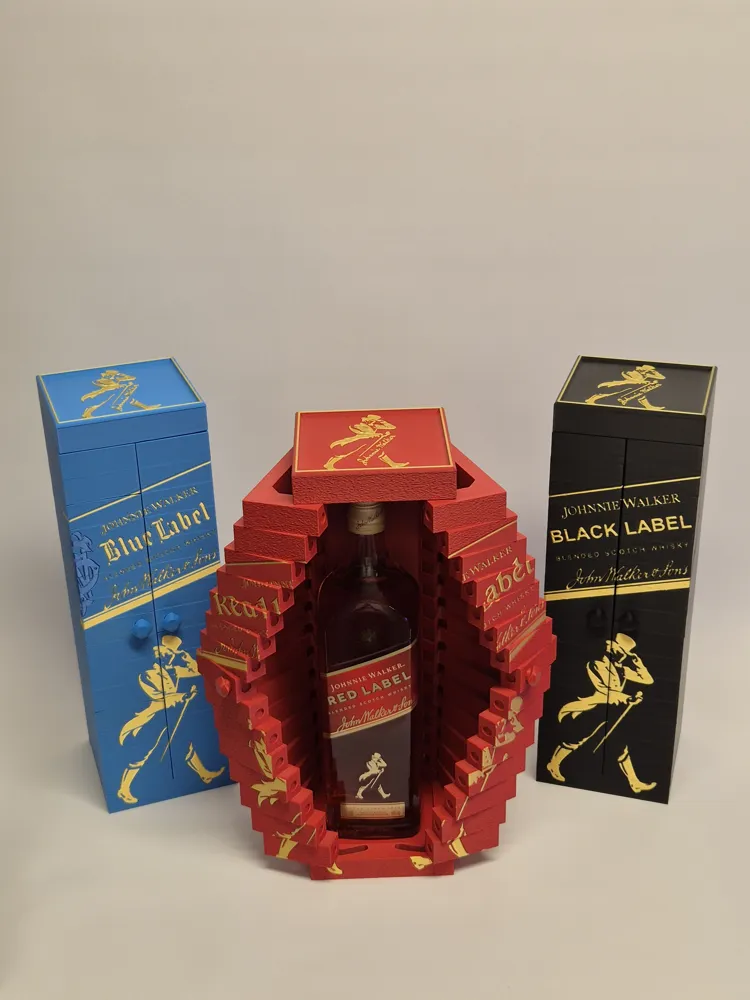

This collection includes three distinct designs tailored for Red Label, Black Label, and Blue Label. While the internal geometry is consistent across all three—fitting standard Johnnie Walker bottles—the exterior patterns have been customized to reflect the character of each label.

Choose Your Style

• The Red Label: Bold and classic.
• The Black Label: Sophisticated and deep.
• The Blue Label: The pinnacle of the collection.

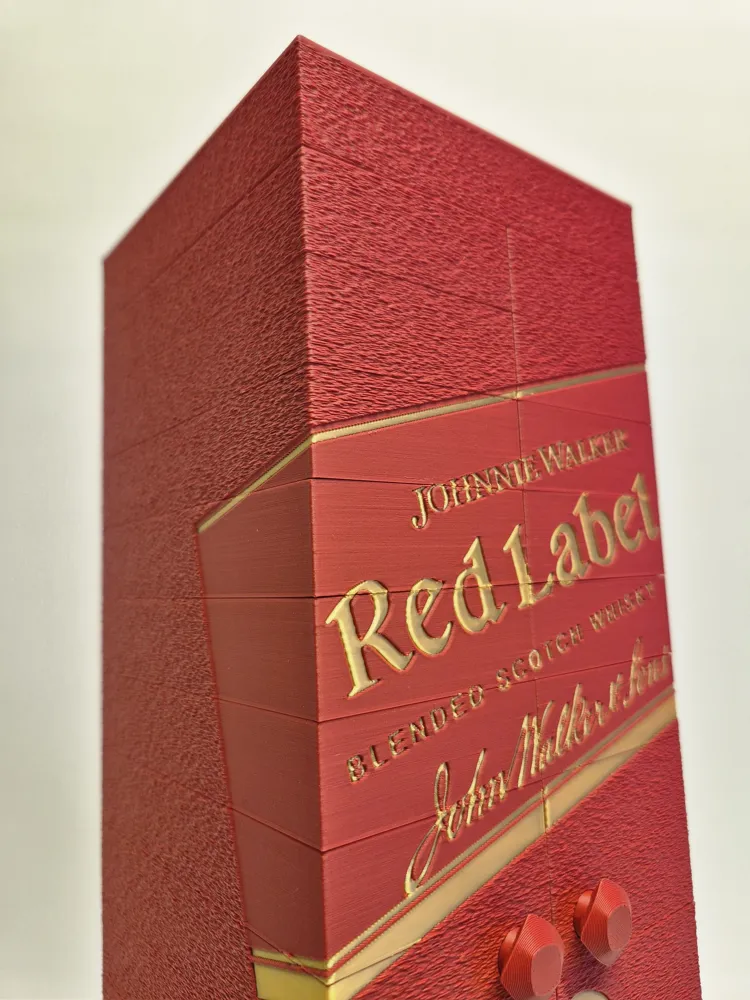

• Fuzzy vs. Smooth: Every model comes with two print profiles. Choose the Fuzzy Skin profile for a high-end, textured fabric feel, or the Standard profile for a sleek, technical look.

Features

• Universal Fit: Designed to house and display the signature square Johnnie Walker bottles.
• LED Compatible: Includes an alternative base specifically for the LED Lamp Kit 001 to give your Scotch a golden glow.
• Magnetic Snap: Optimized for 8x2mm magnets to provide a satisfying, secure "click" when closing the doors.
• Improved Mechanics: Based on the V2 architecture for easy assembly and high durability.
• Profiles: I have provided pre-configured profiles. If you want a "premium grip" feel, I highly recommend the Fuzzy Skin version.

Technical Specifications

Hardware Required

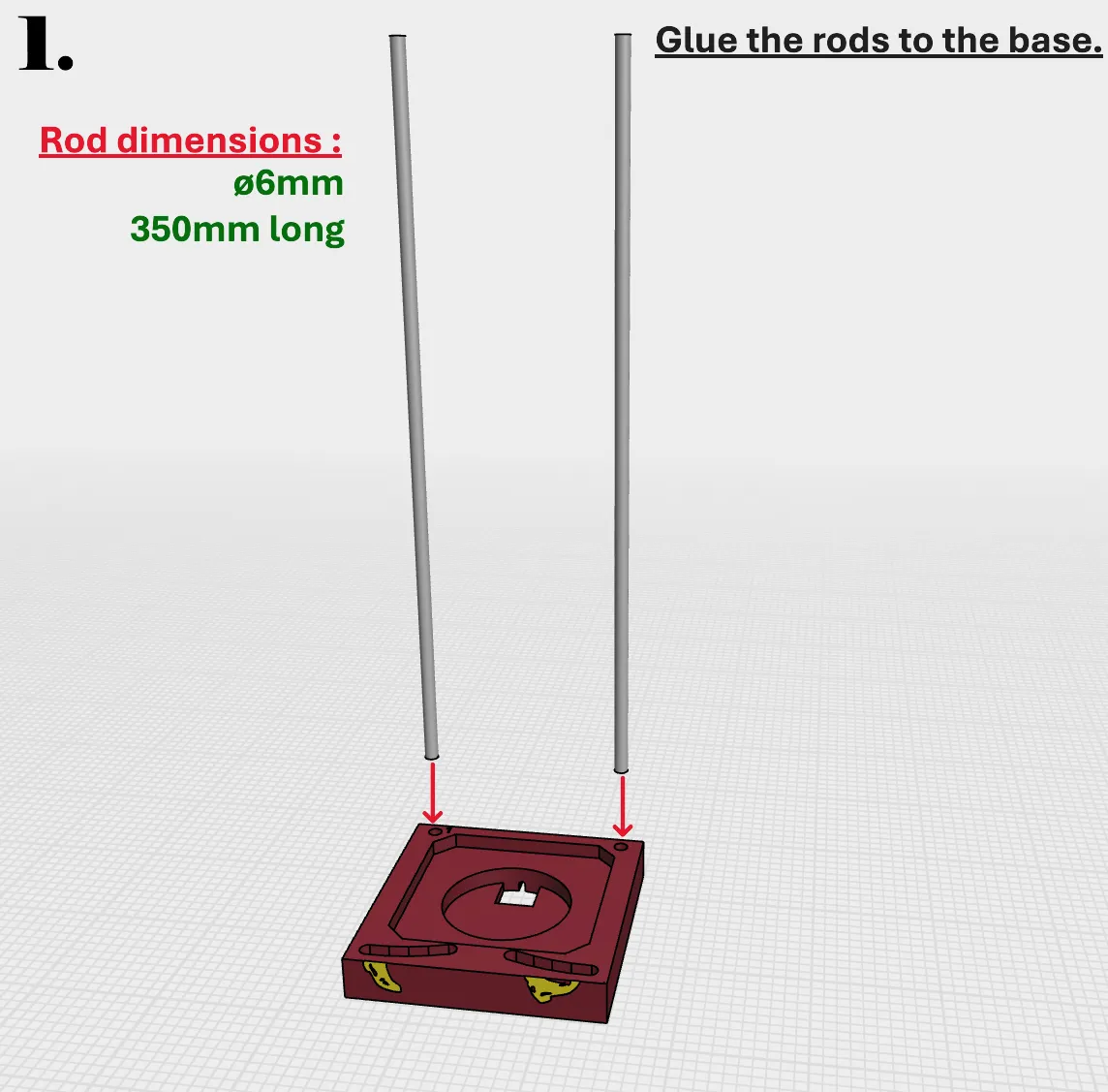

• Steel Rods: 2 pcs (ø6mm x 350mm long)
• Magnets: 30 pcs Round 8x2mm (Required for door closure)
• Adhesive: CA Glue (Superglue) for magnets and final assembly.
• Lighting: Optional LED Lamp Kit 001.
• Filament : I used Bambu's filament for this project. All the colors can be found in BOM.

You can find the steel rods you need here  →    (affiliate link)

If Bambu i out of stock, buy LED here → (affiliate link)

Bambu's 8x2mm magnets are out of stock! In the meantime you can find some here → (affiliate link)

Assembly Tips

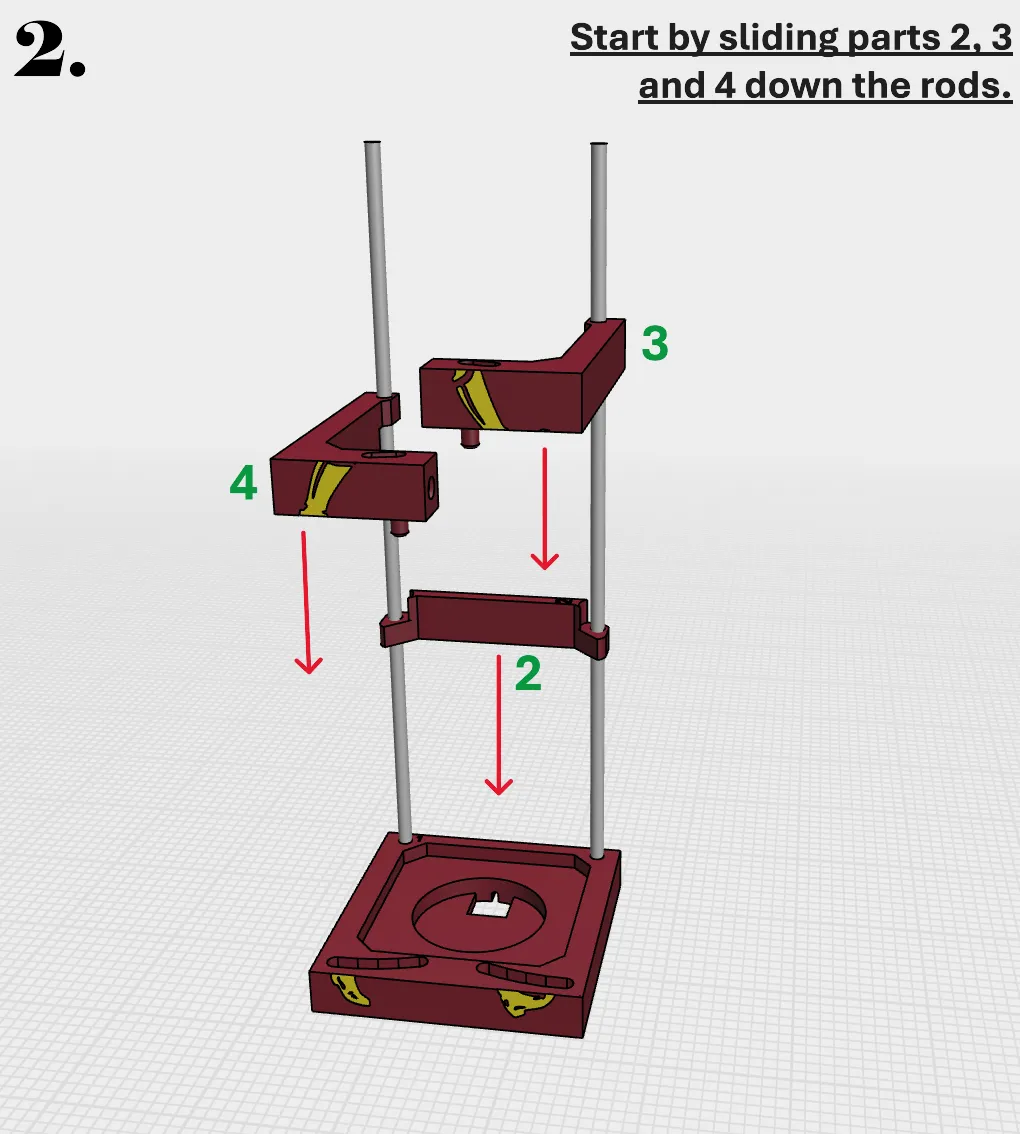

• Alignment: Ensure your steel rods are clean and straight for the smoothest door rotation.
• Supports :  Make sure all the supports are removed before assembly.

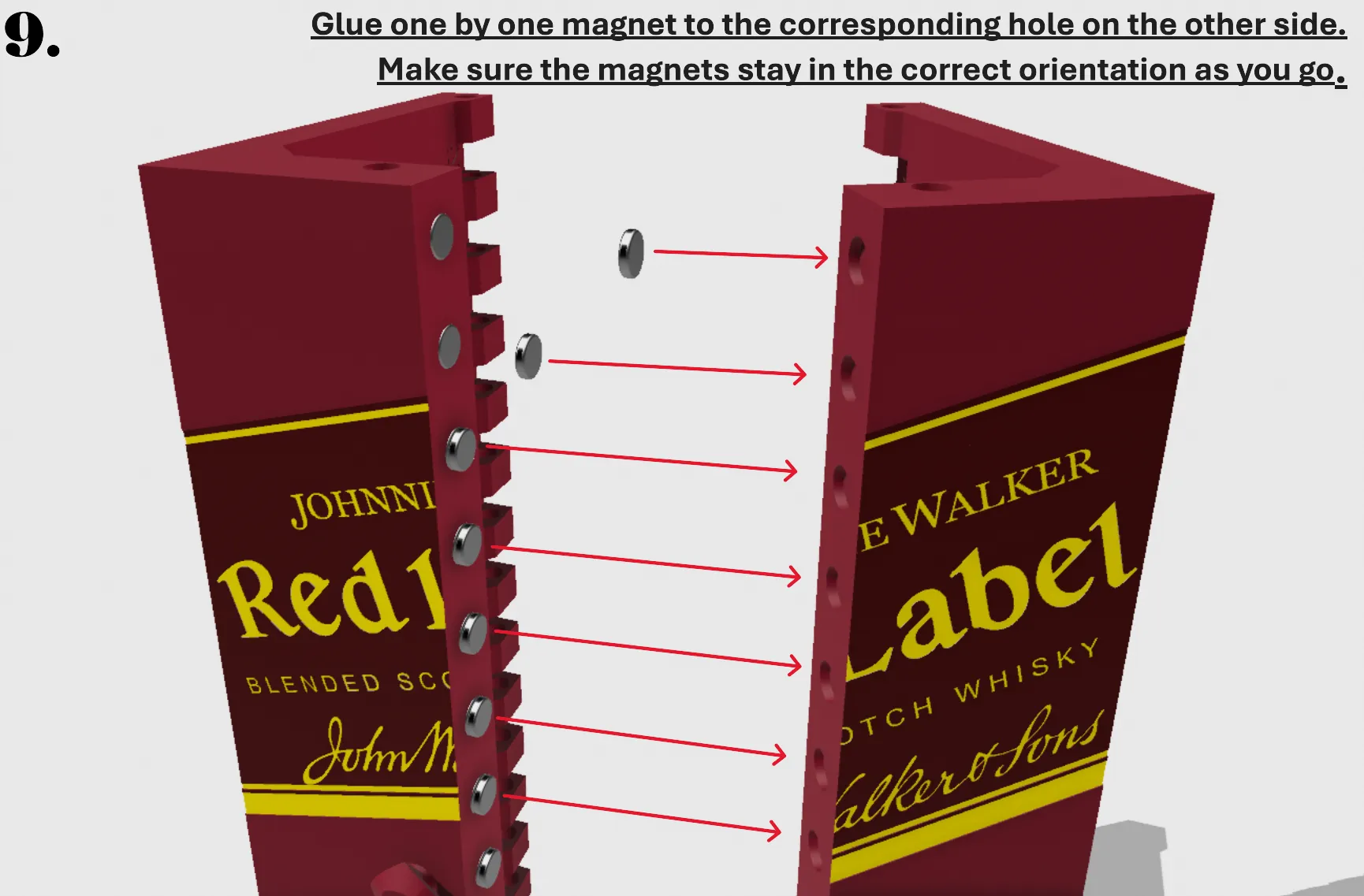

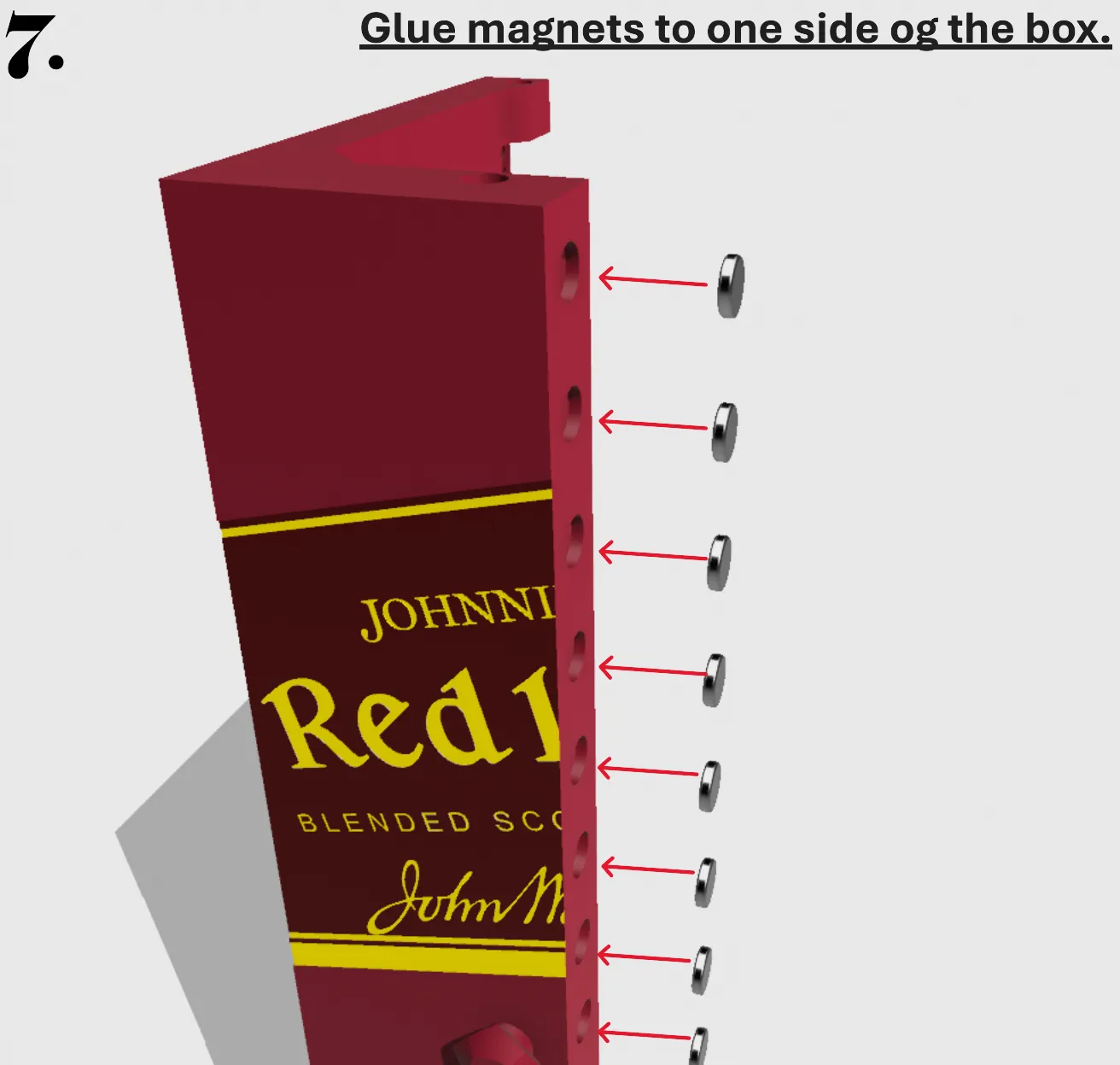

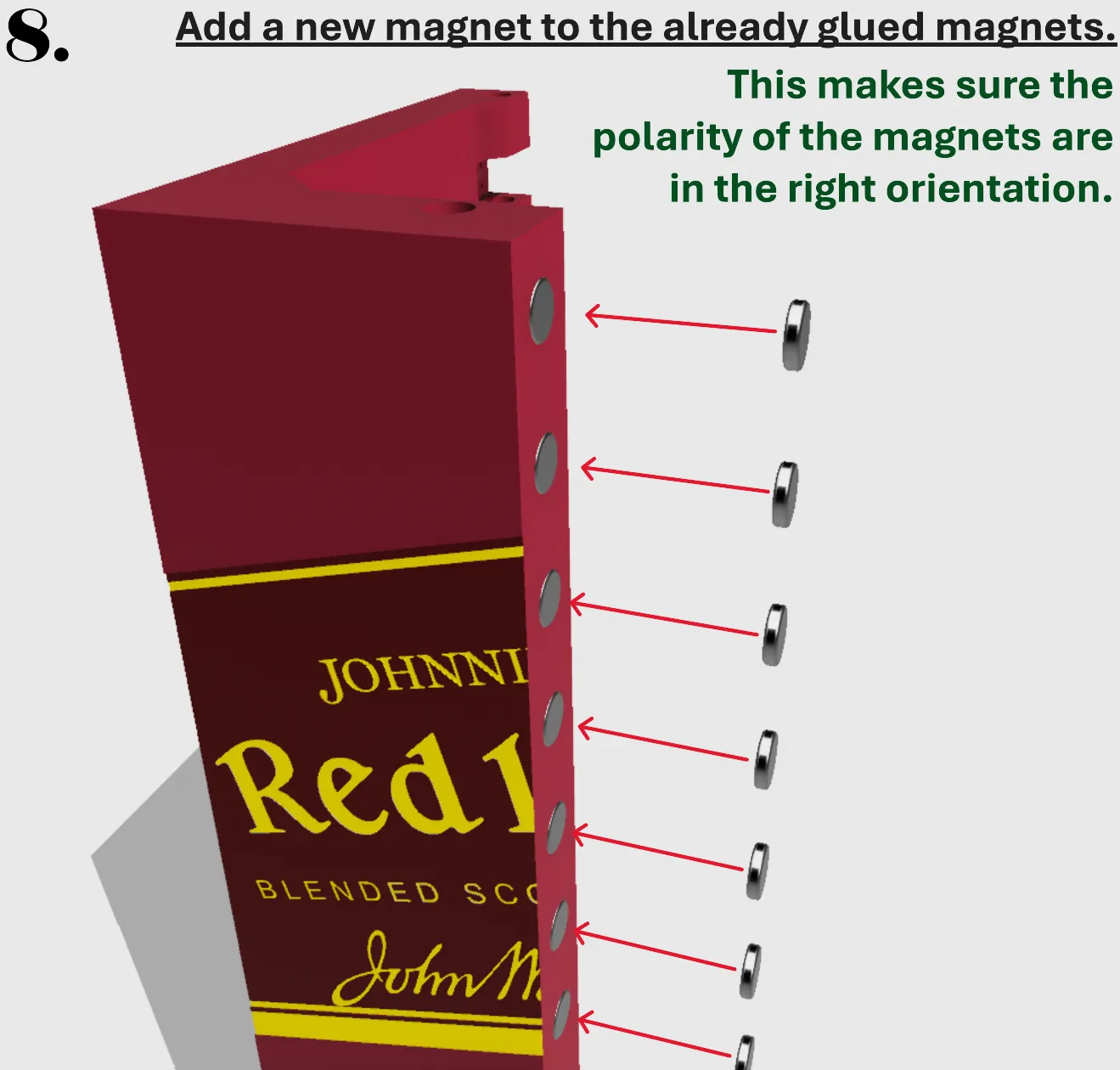

• Magnets : Be sure to orient the polarity of the magnets under assembly.

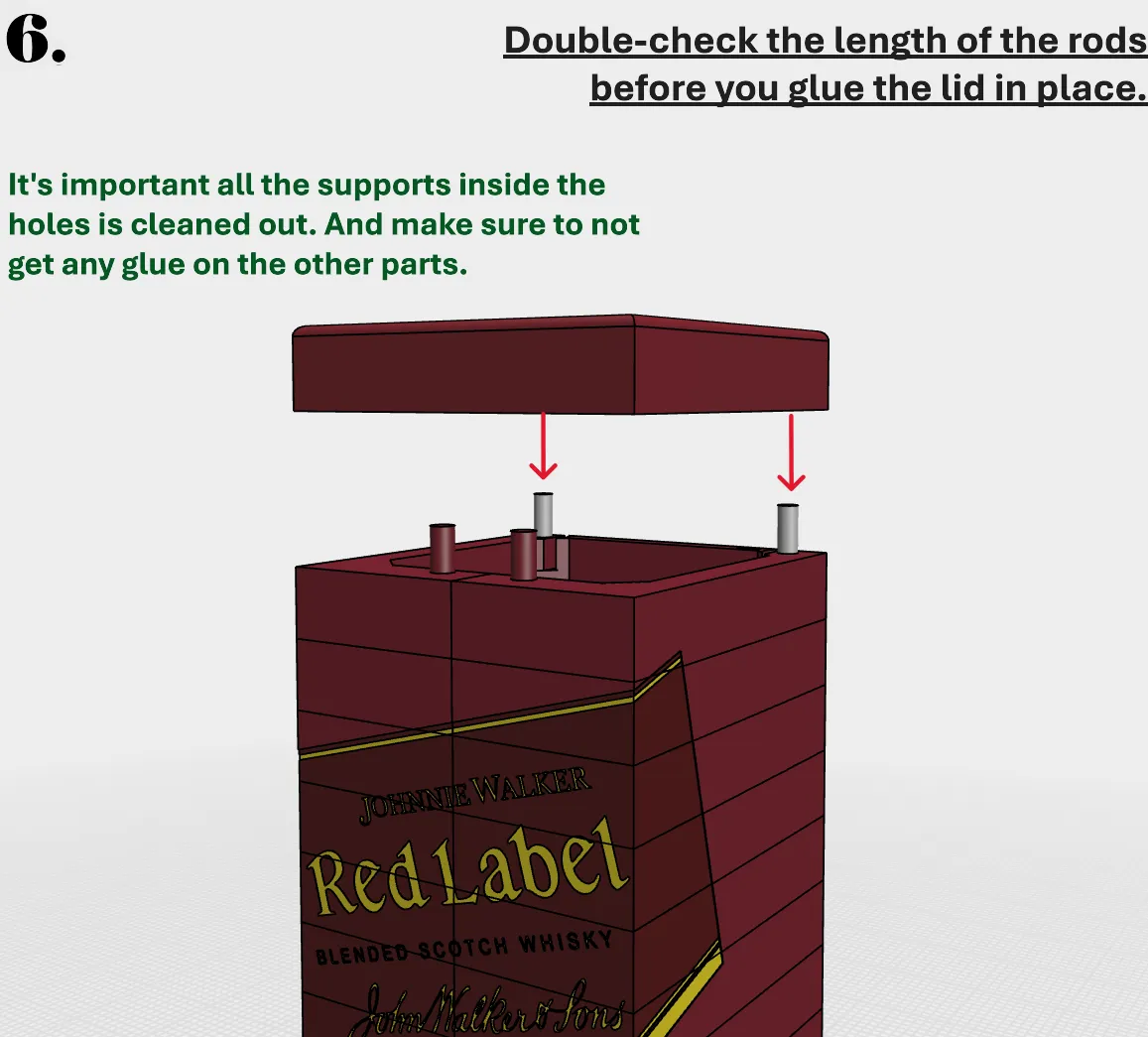

• Rod length : Before gluing the top on, double check that the rods aren't to long.

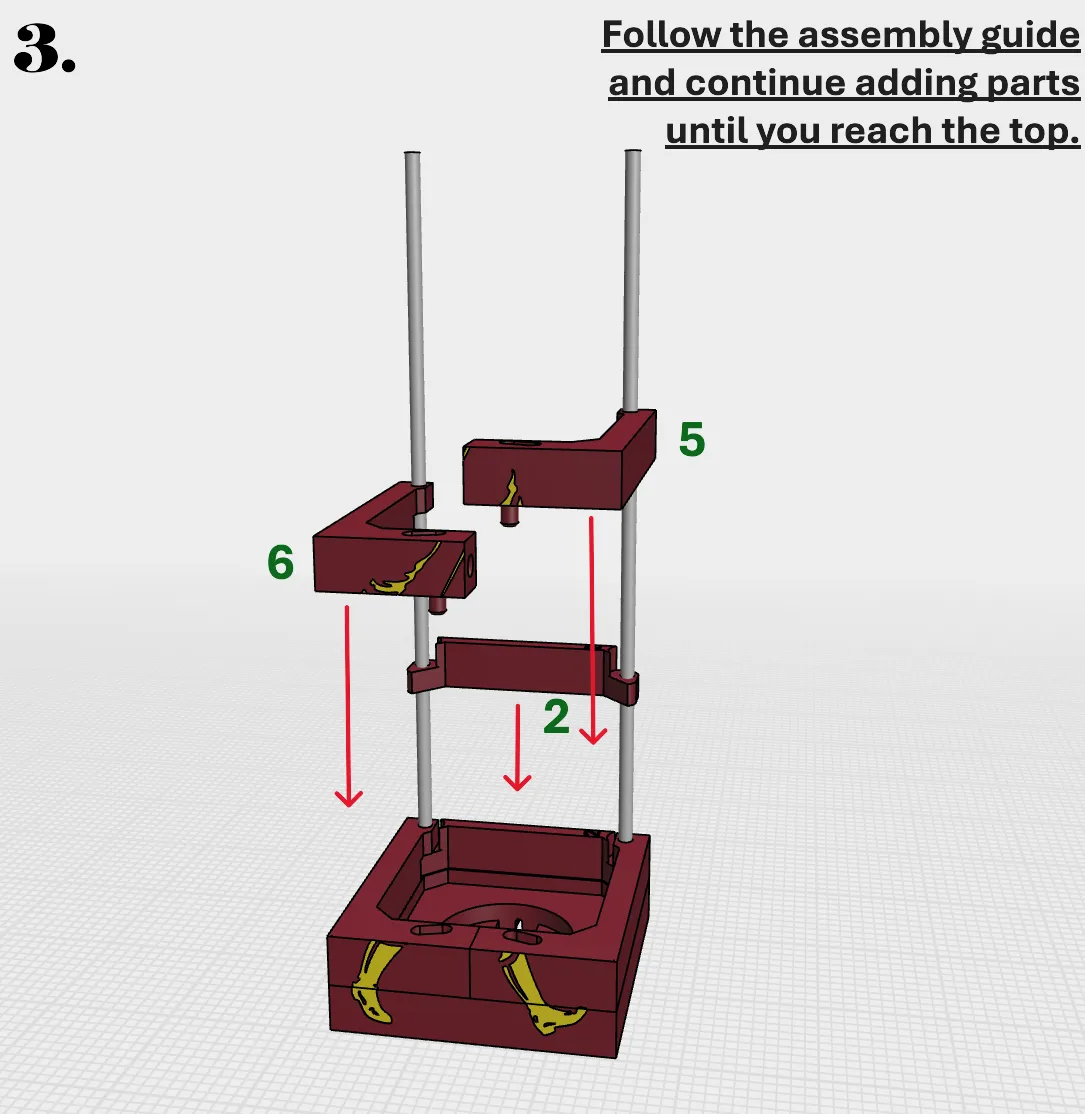

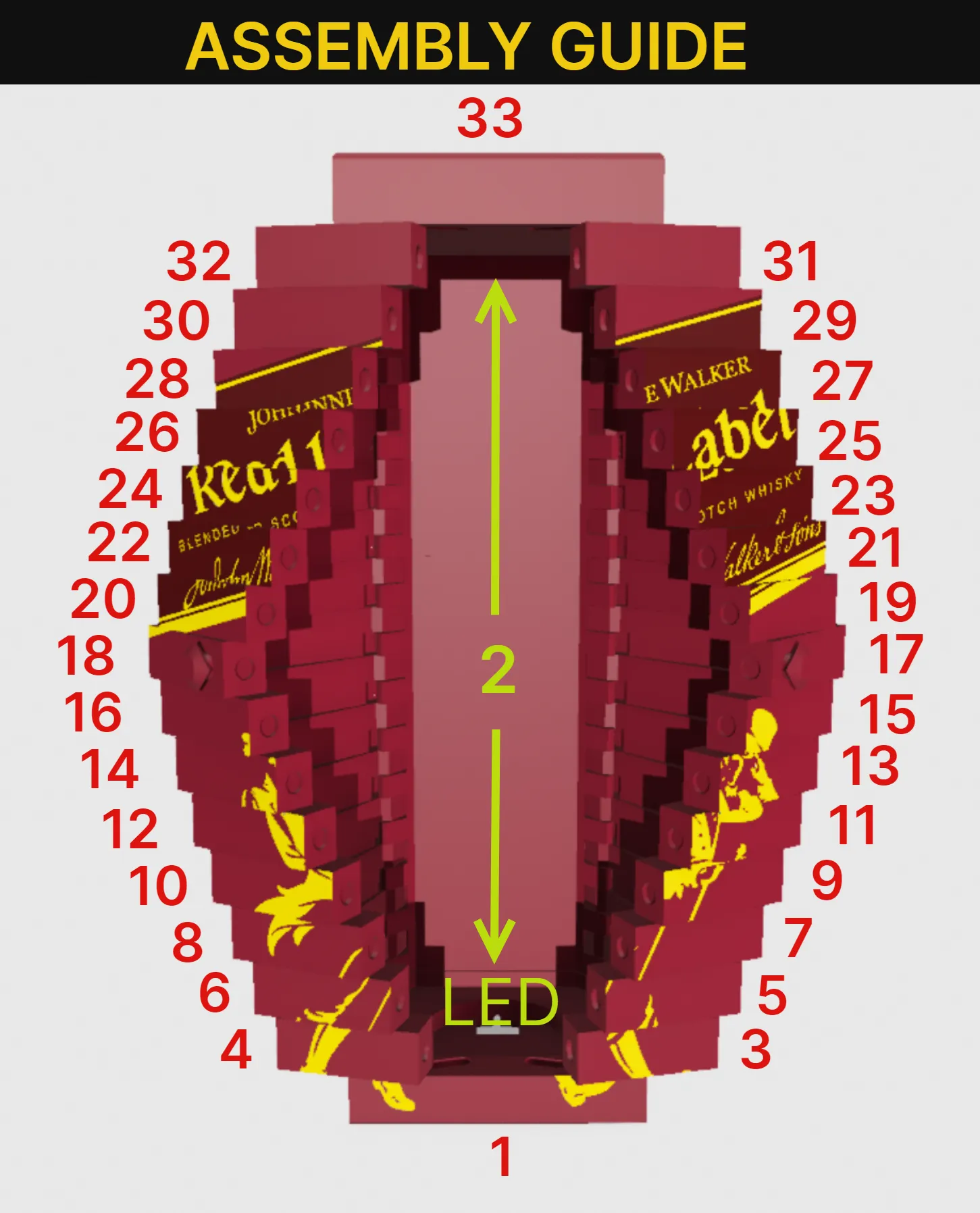

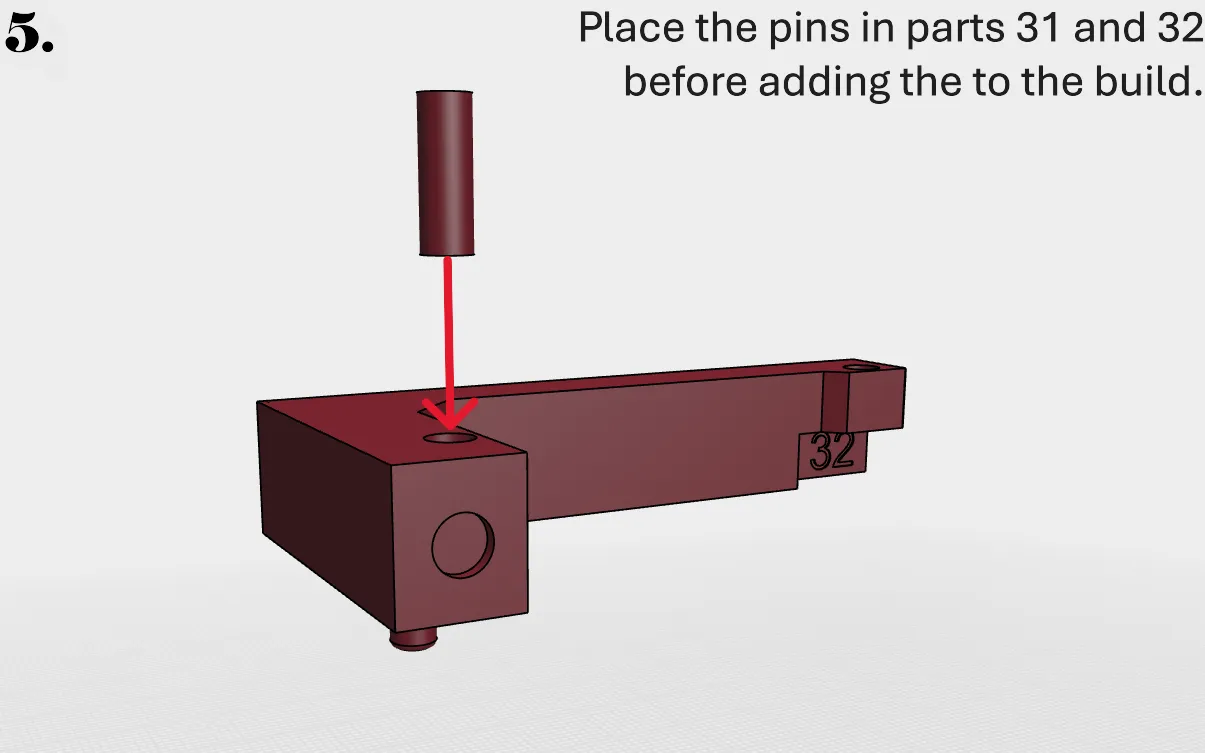

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

START

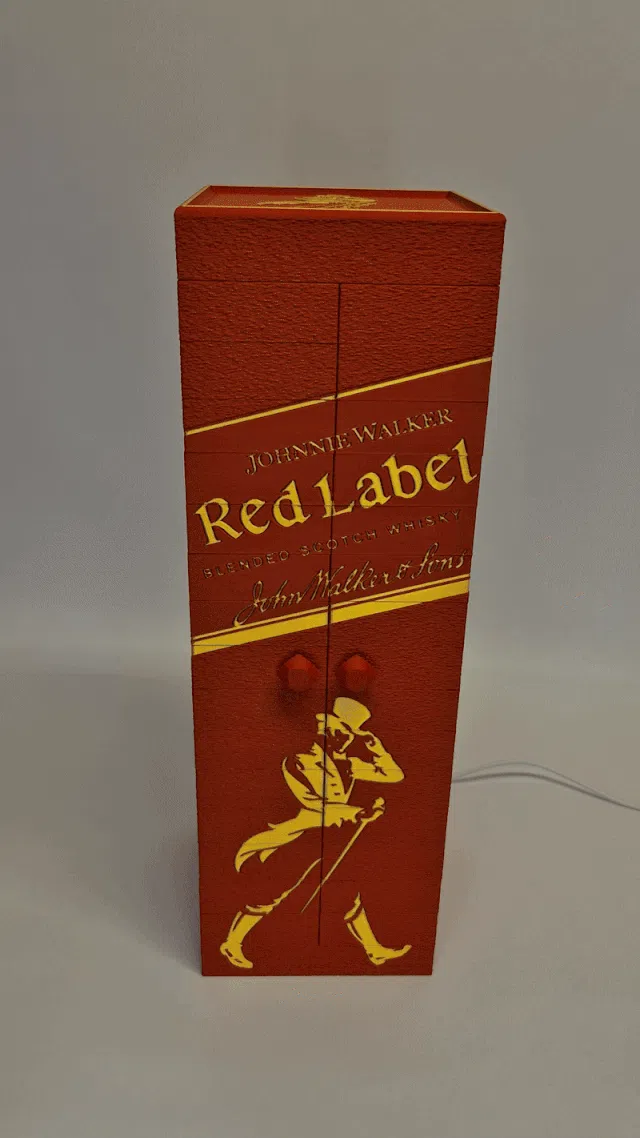

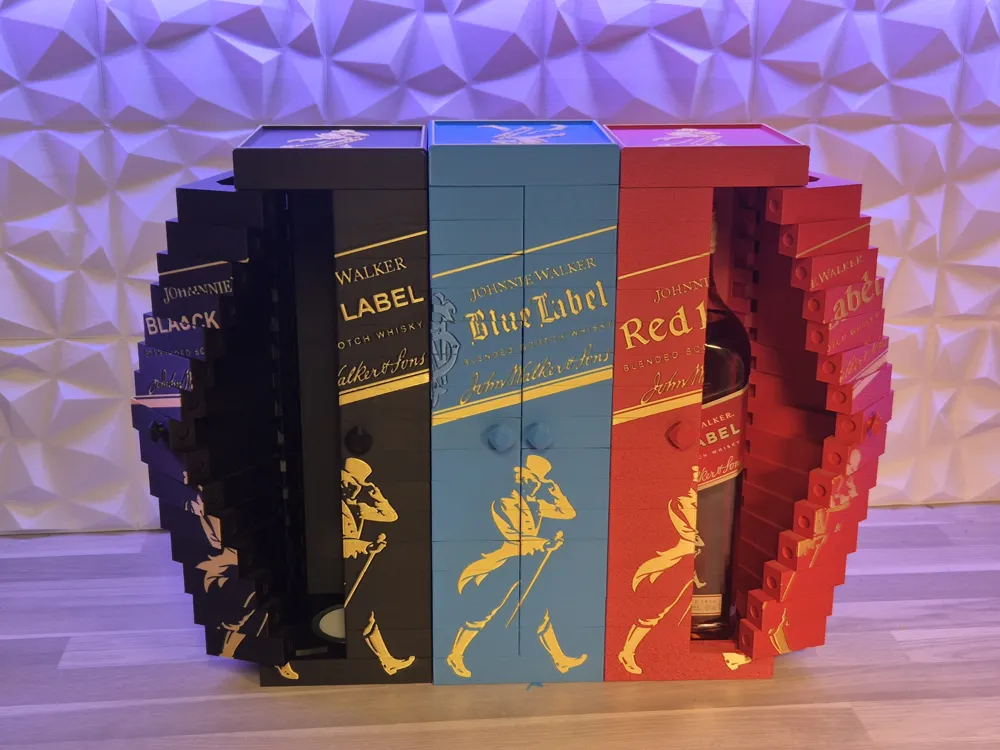

When yout done, it should look like this….
