Battery Storage Box for 118 pcs battery
Print Profile(4)
Description

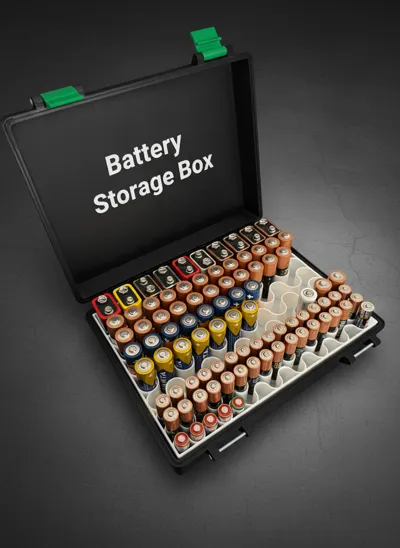

Battery Storage Box for 118 pcs battery.

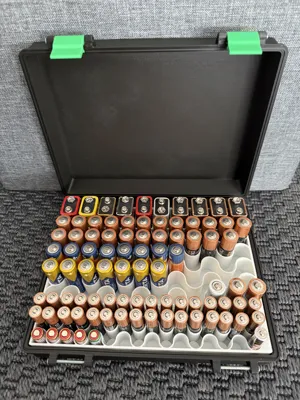

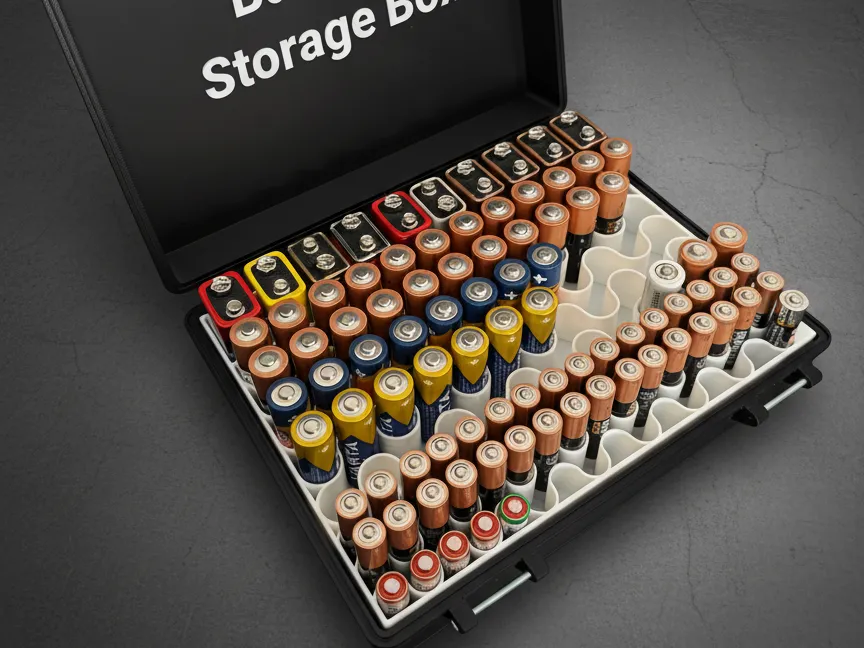

The box can store the following batteries:
- 10 pcs 9V (6LR61, 6F22)
- 60 pcs AA
- 48 pcs AAA (or 23A 12V)
The box is robust and durable.

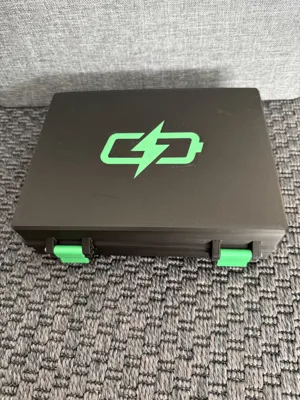

There is a battery symbol on the lid, if you don't want to print it, change its color to the same as the box, and then you don't need AMS.

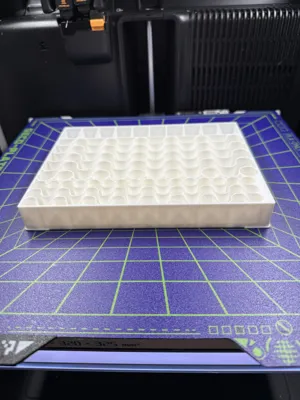

The inside of the container is removable (white part).
If needed, contact me and I can design a battery holder with a different layout.
Required for this model:
2 x M3 x 30 mm screws for the hinge (D head)
4 x M3 x 35 mm screws for the lock mechanism (countersunk head)
!!! UPDATE !!! - 10.03.2026
I added a profile. I increased the size of the holes by 0.2mm, so the hinge breakage problems should go away.

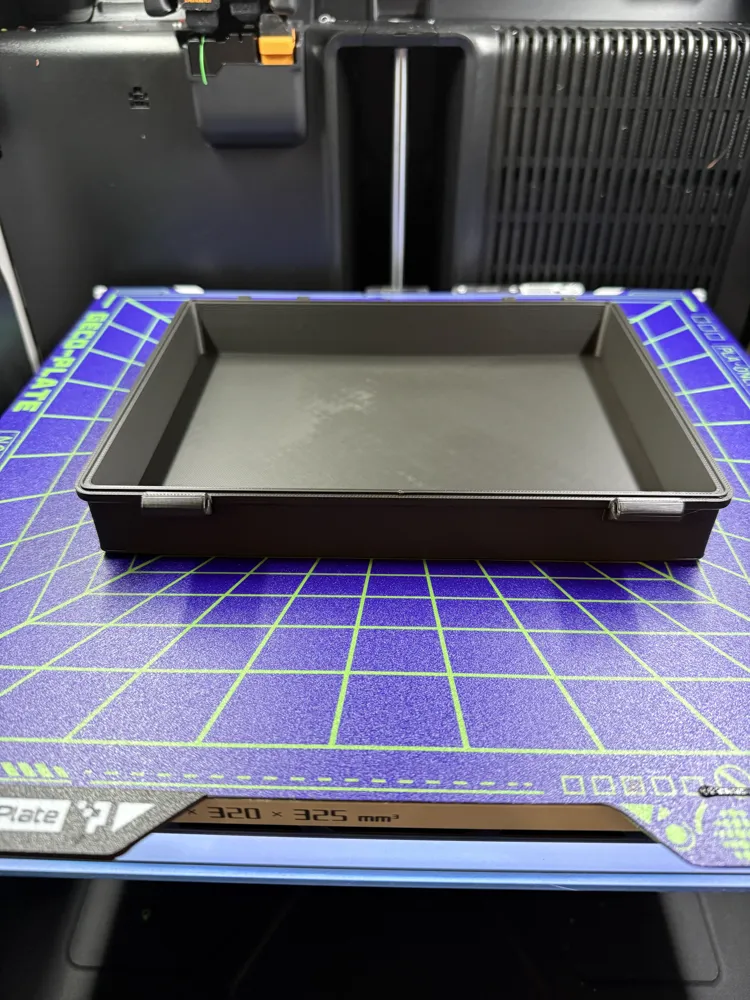

Update Bottom and Top STLs.
!!! UPDATE !!! - 31.12.2025
It can also be equipped with modular containers, the following model containers can be used. The new modular holders are compatible with the following battery types:
- AA
- AAA
-C
-9V (6LR61, 6F22)
-CR2032 (LR2032)
My modells: my modells.
If you are satisfied with my work, please, in addition to downloading the model, printing and evaluating it, you can also support it with boost.
Boost Me (for free)
Print and use!
