Dual Switch for Bike (6x6mm DPDT switch)
Print Profile(0)
Description

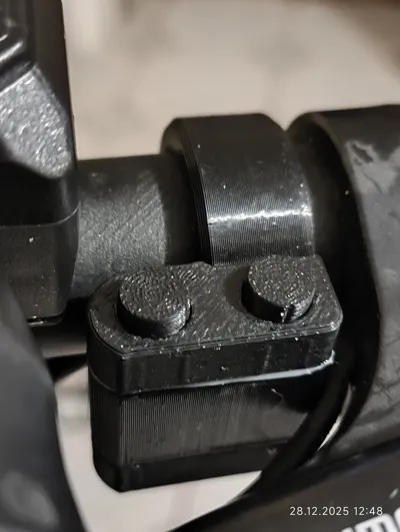

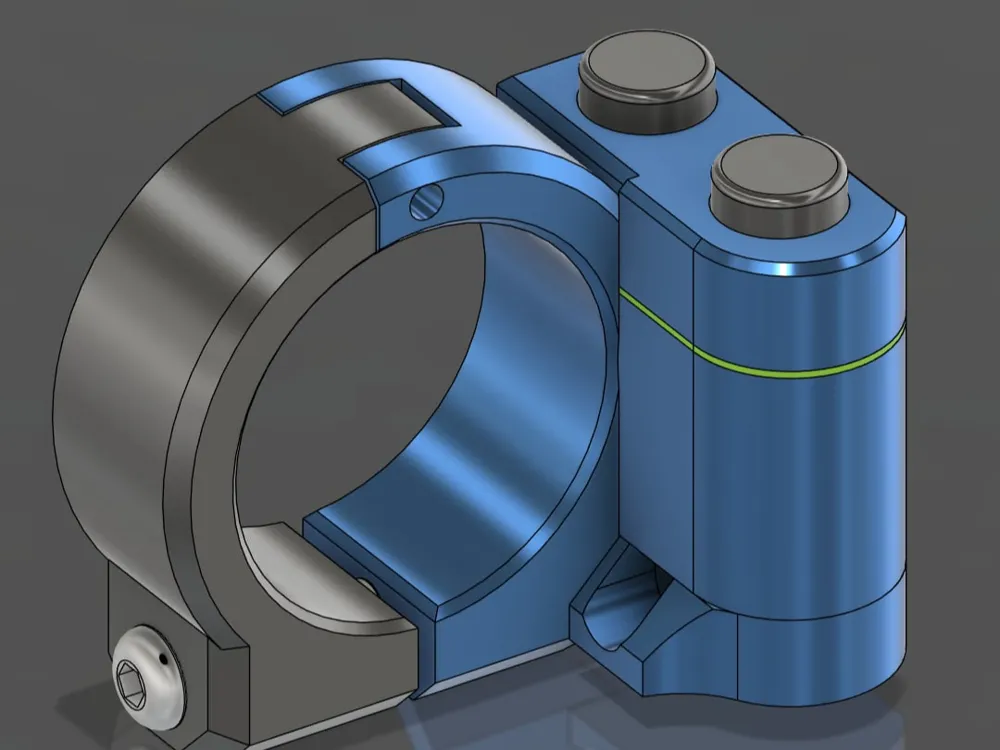

A rainproof double switch, suitable for bicycle lights or other applications, e.g. ebike
Uses two 6x6mm DPDT switches.
The seal can be printed from TPU or (better) cut from silicone tape.
You also need two screws:
M3x20mm
M3x23mm

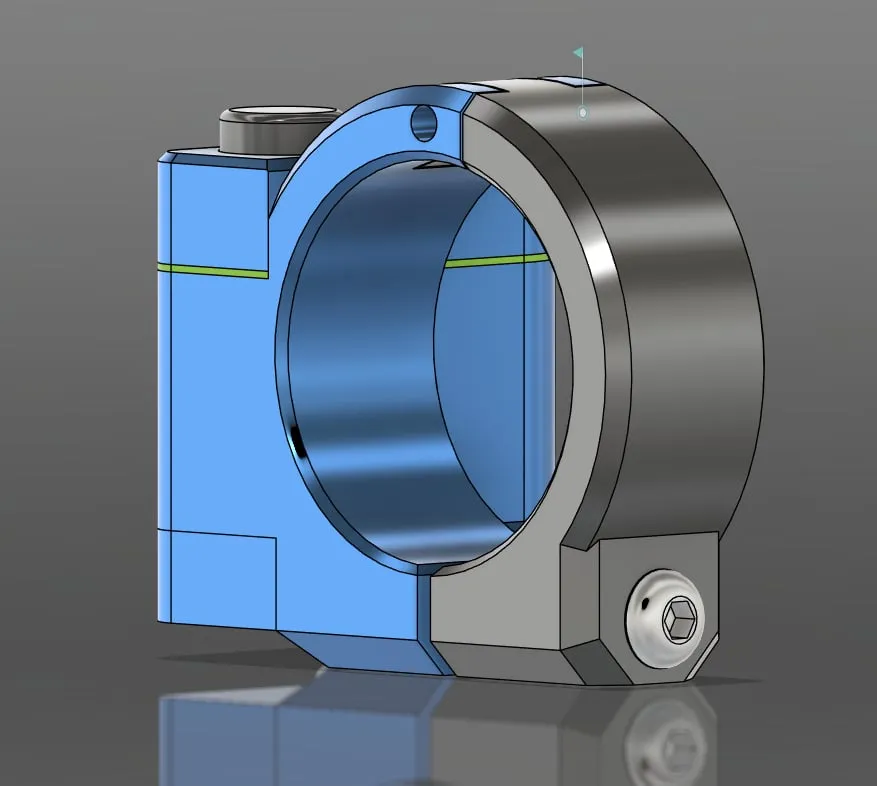

The handle's rotation axis is a piece of filament, tapered at the edges to prevent it from falling out.

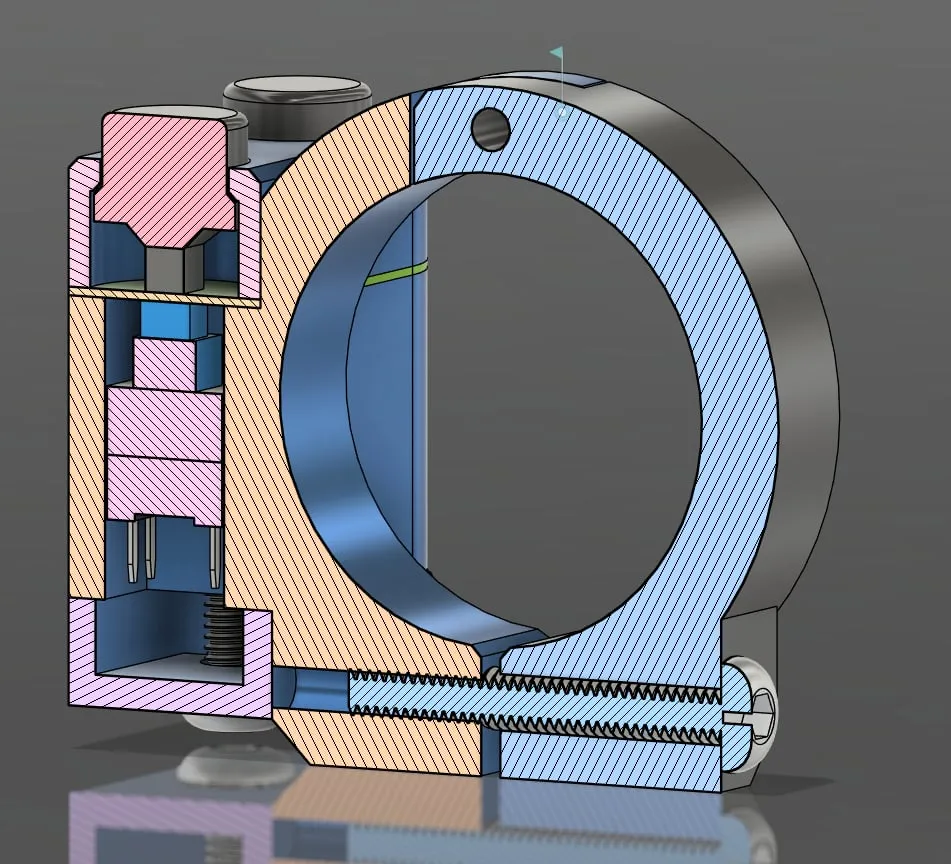

To determine the position of the switch, insert it into the hole in the "off" position so that it rests freely on the TPU membrane, and then fill it with hot glue on the wire side.
