X-Carve Diode Laser Spindle Mount
Print Profile(1)
Bill of Materials
- M4x20 Socket Head Cap Machine Screw x 1:
Description

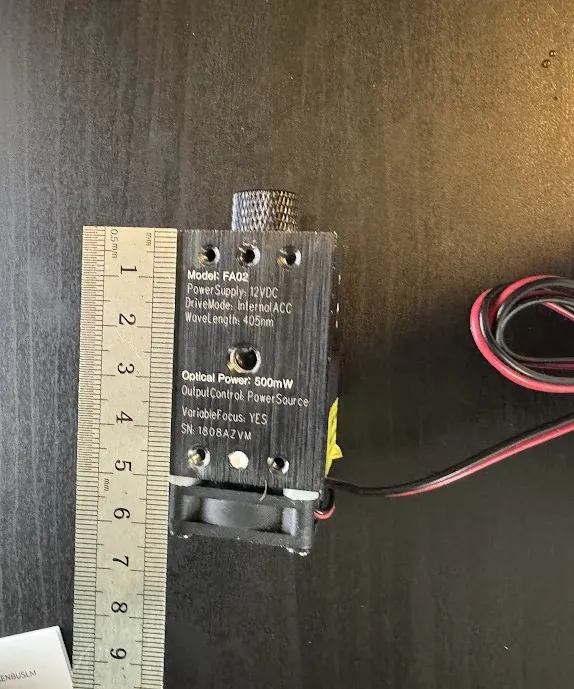

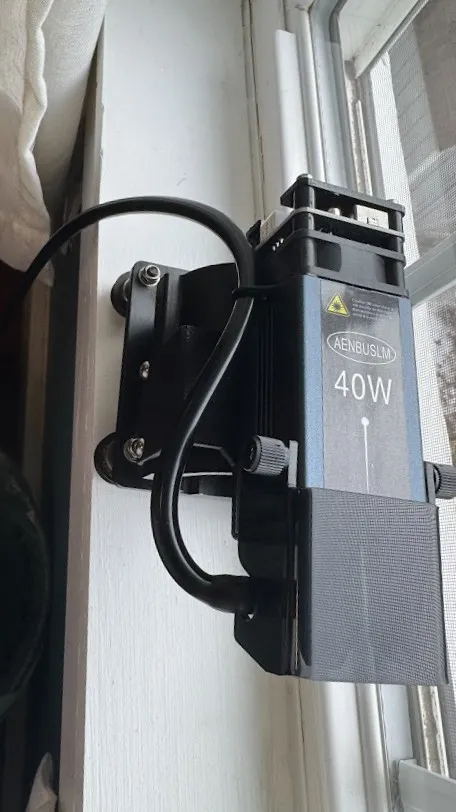

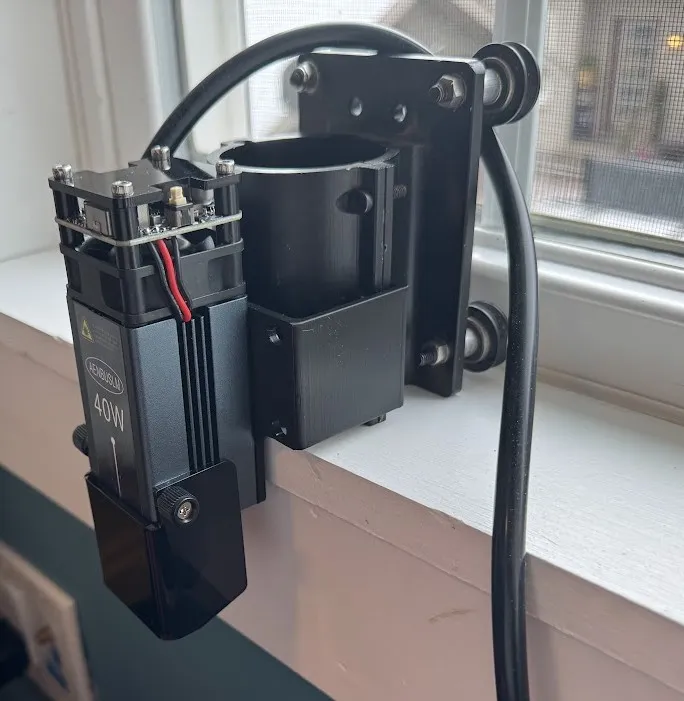

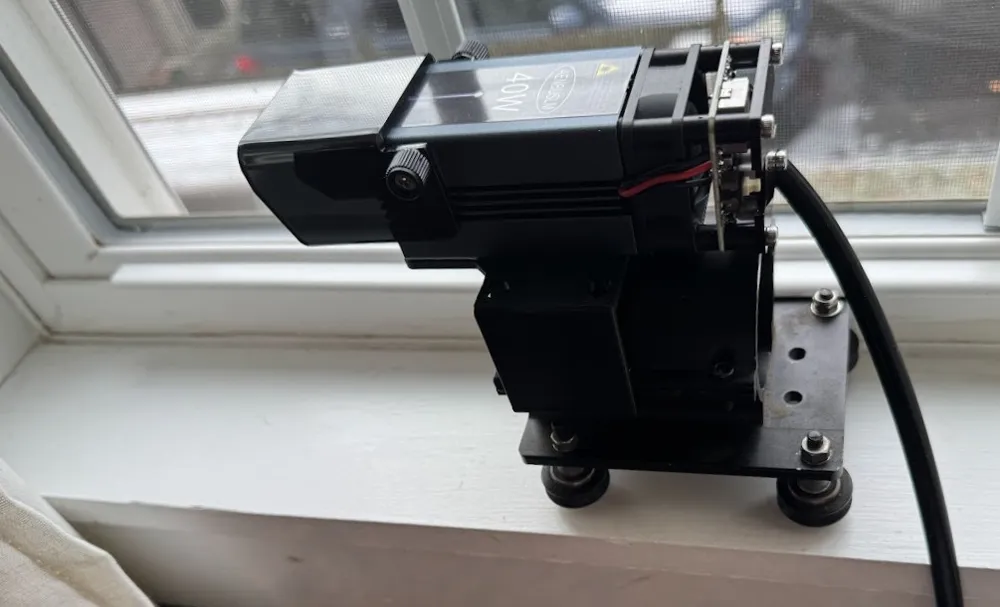

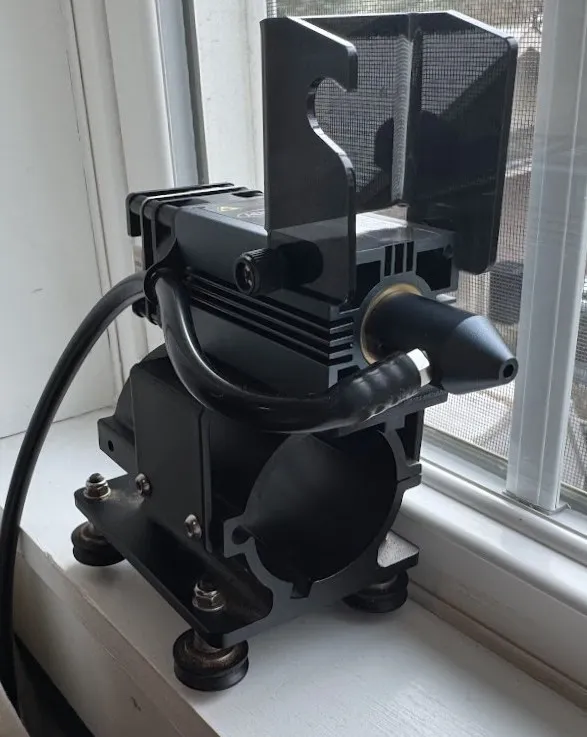

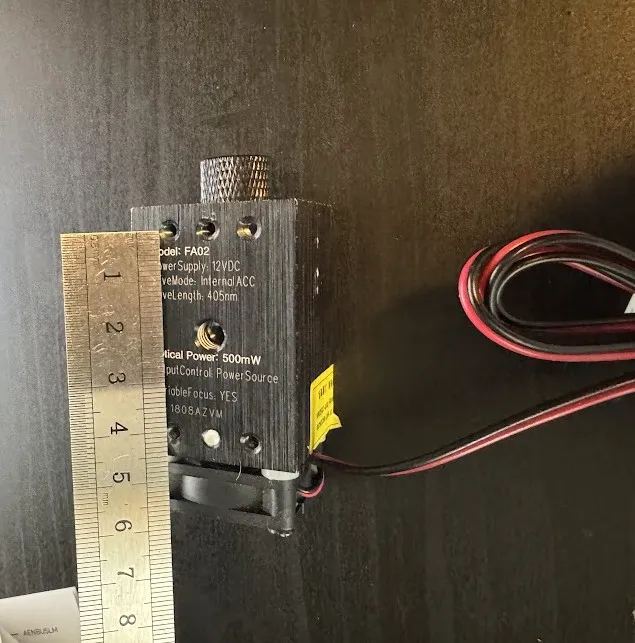

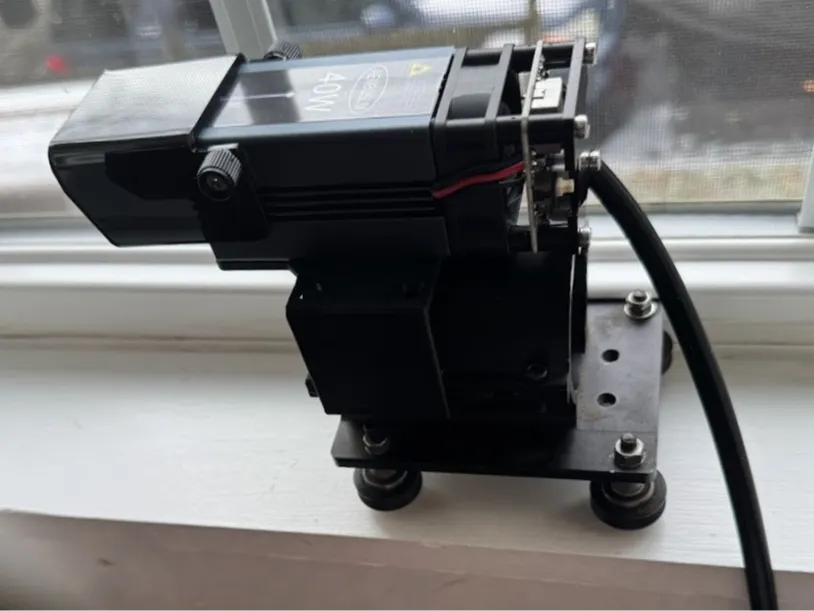

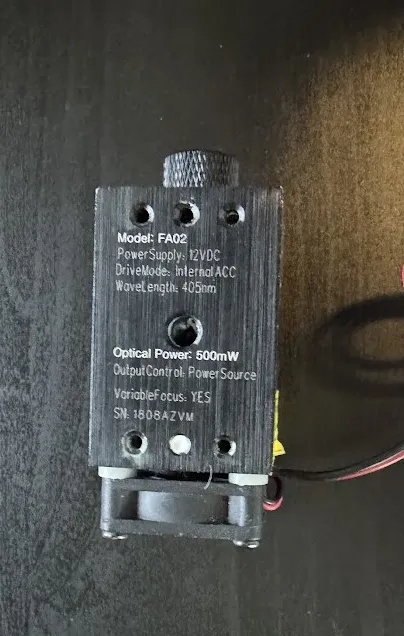

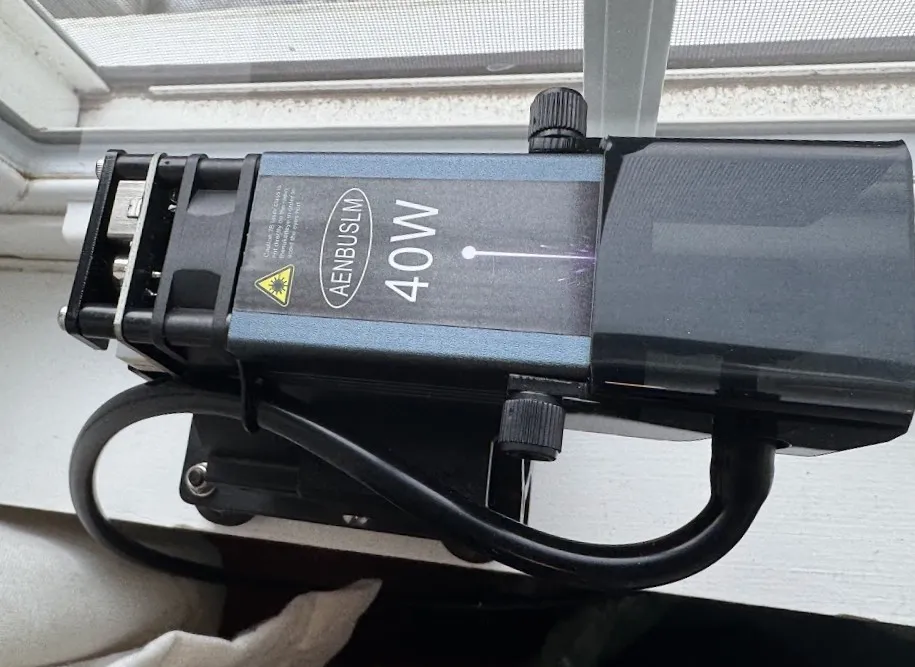

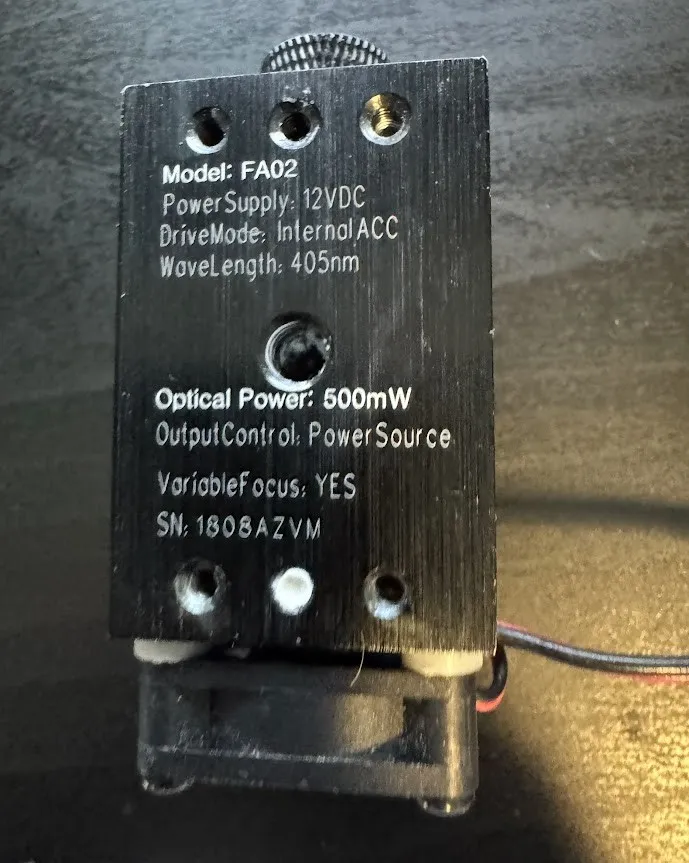

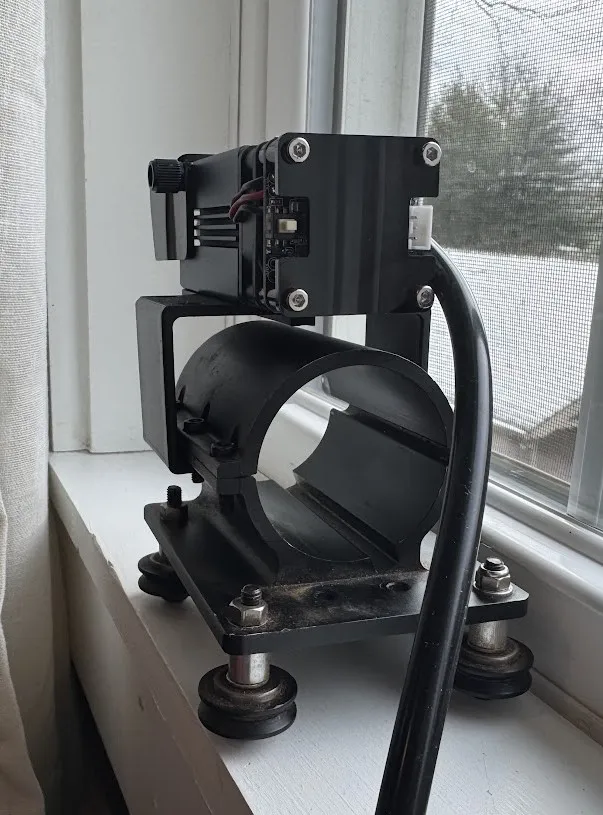

This is an adapter plate for the X-Carve or Shapeoko 52mm Quiet cut spindle holder. This is mostly for the older models of Shapeoko or X-Carve. This fits a lot of diode lasers. The spacing is 16mm x 40mm hole pattern on the laser. I used an AENBUSLM from amazon - https://a.co/d/8AjjBJx but i know this also fits a generic FA02 Diode module. I designed it around this spindle mount - https://www.inventables.com/products/spindle-carriage?variant=41228895682617
