Description

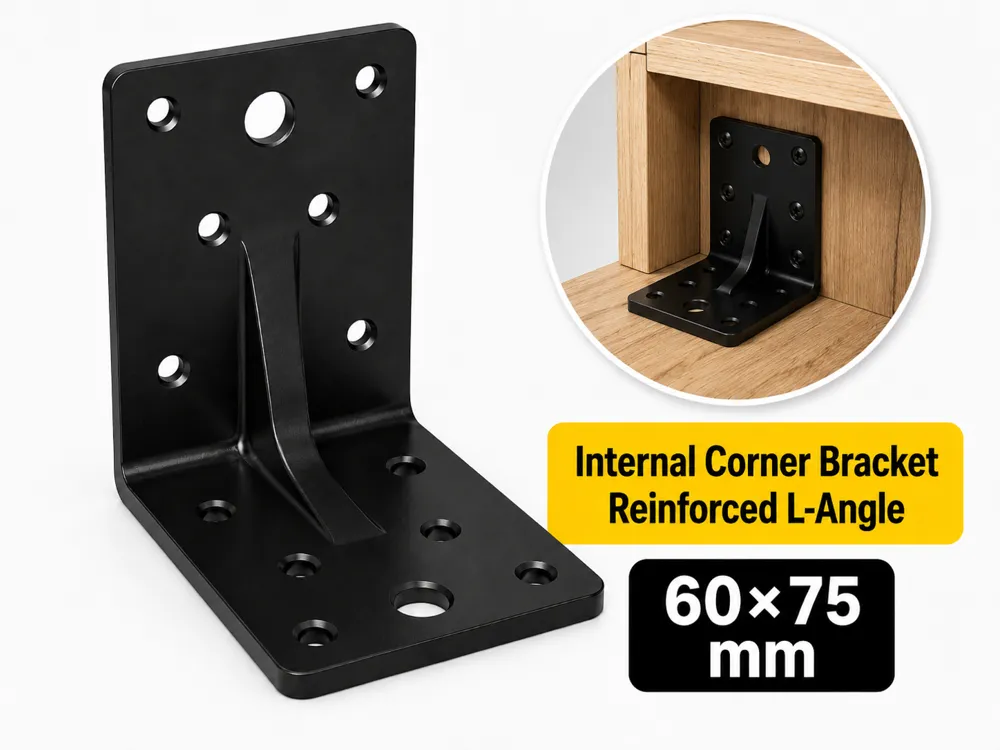

This internal corner bracket (L-angle) is designed for rigid right-angle connections in frames, enclosures, cabinets, and structural assemblies.
The part features a central reinforcing rib for improved stiffness and load distribution, making it suitable for functional and semi-structural applications.
Key Features
- Internal L-bracket for inside corner mounting
- Overall size: 60 × 75 mm
- 6 mounting holes per side
- Standard holes: Ø5 mm
- Reinforced center hole: Ø9 mm
- Central rib reinforcement for increased rigidity
- Clean, industrial geometry – no decorative elements
- Designed with 3D printing reliability in mind
Supported Materials
- PETG – good balance of strength and flexibility, suitable for indoor and light outdoor use
- PCTG – higher toughness and excellent layer adhesion, ideal for impact-resistant functional parts
- ABS – higher temperature resistance for demanding environments
(Printing profiles for PETG, PCTG, and ABS are provided.)
Printing Notes
- Prints without supports
- Recommended orientation: flat on one side
Designed for common M5 hardware
Typical Use Cases
- Frame and enclosure assembly
- Furniture and cabinet construction
- Workshop fixtures and jigs
- 3D printer enclosures
- General right-angle reinforcement
