HUMMINBIRD XNT9 XNT14 Transducer Holder Underboat Mounting

Fishfinder Transducer Holder for Humminbird XNT9 & XNT14 (Underboat Mounting)

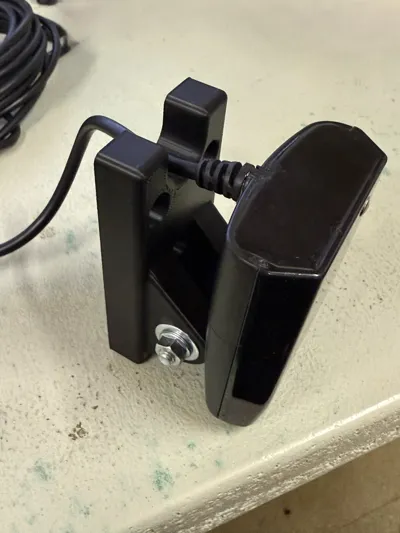

This model is a fishfinder transducer holder for Humminbird XNT9 and XNT14 transducers, which allows for horizontal underboat mounting.

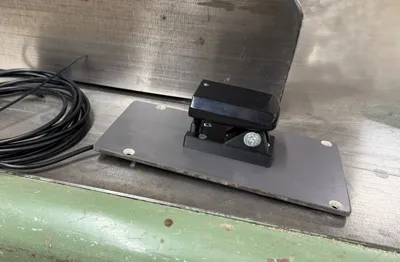

Since these fishfinder transducers are originally intended for transom mounting, this holder allows for an alternative attachment under the boat hull, e.g., in the transducer compartment of a kayak or at other suitable positions.

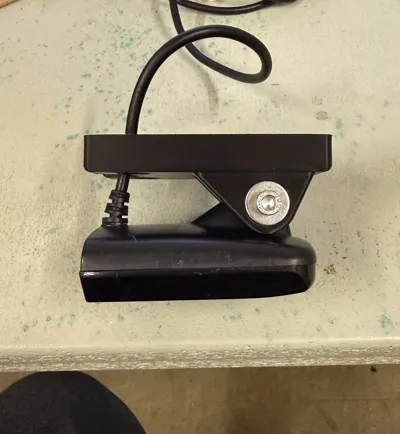

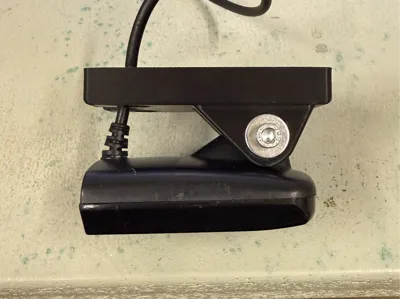

The holder is designed so that the transducer can be easily aligned. It can be tilted up and down by a few degrees, allowing the fishfinder transducer to be set exactly horizontal. This is particularly important for a clean and reliable fishfinder measurement.

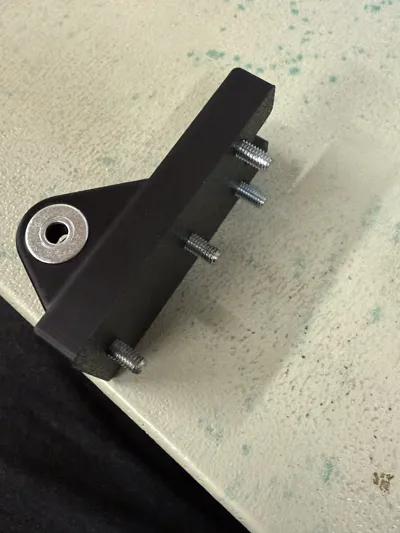

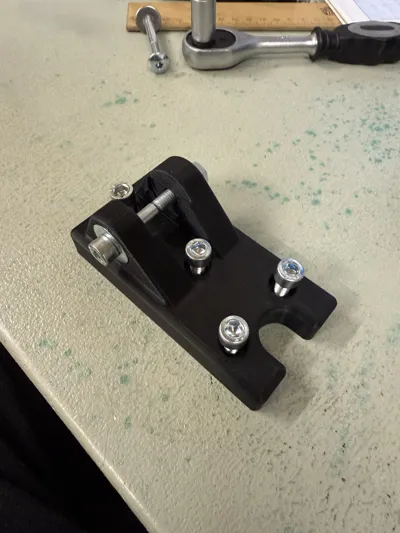

The attachment is designed for M6 screws. Alternatively, depending on the boat and application, the holder can also be adhered with waterproof, double-sided adhesive tape.

Notes:

• Suitable for Humminbird XNT9 and XNT14
• Horizontal underboat mounting instead of transom mounting
• Adjustable tilt angle for exact alignment
• Designed for M6 screws
• Alternatively, can be adhered with suitable waterproof adhesive tape or other suitable adhesives
• Suitable for kayaks, transducer compartments, and custom boat solutions

Material selection and print settings should be adapted for use in water
