Mega Man X Statue with Lights - Free 3D Print Model

Description

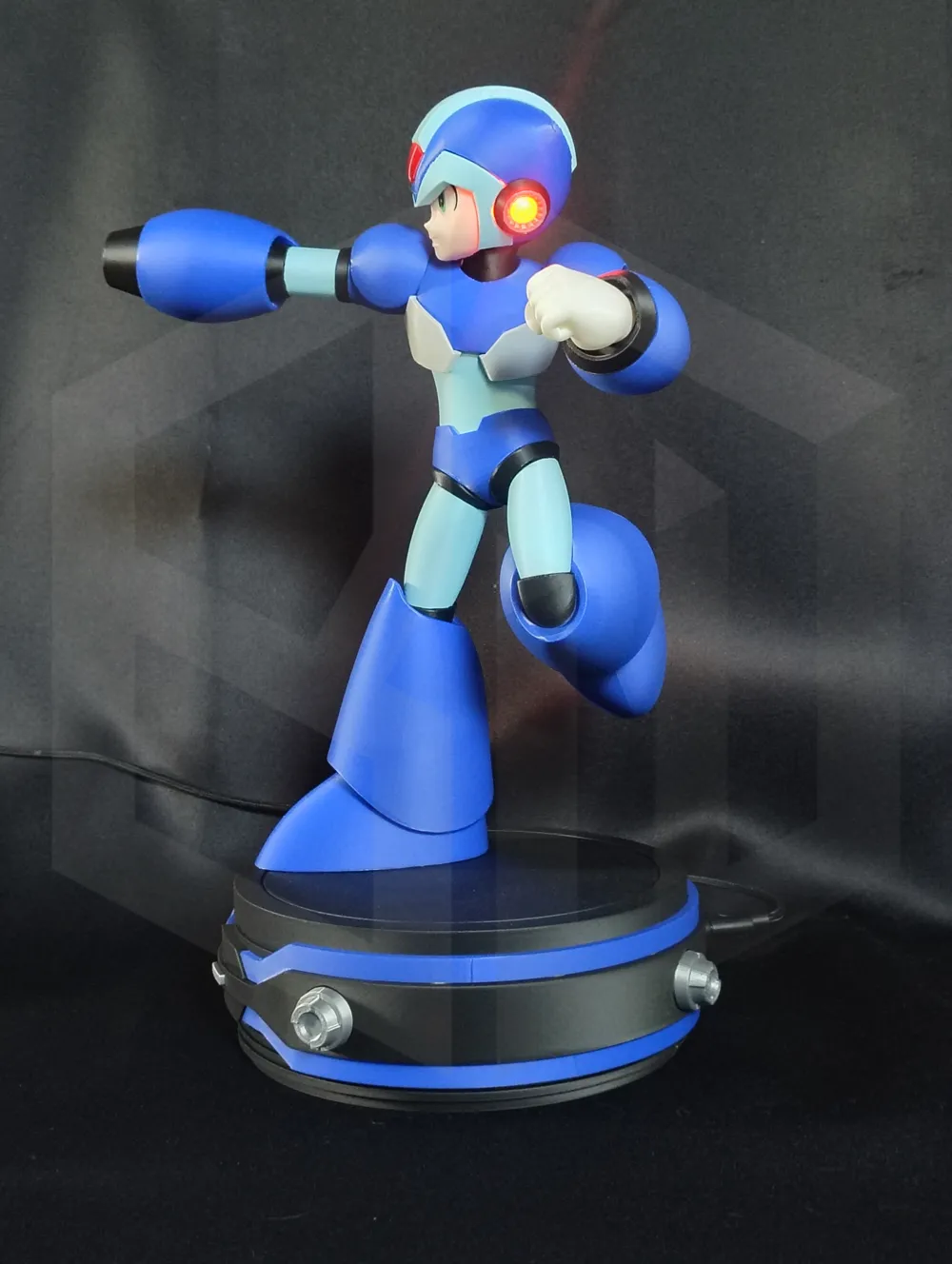

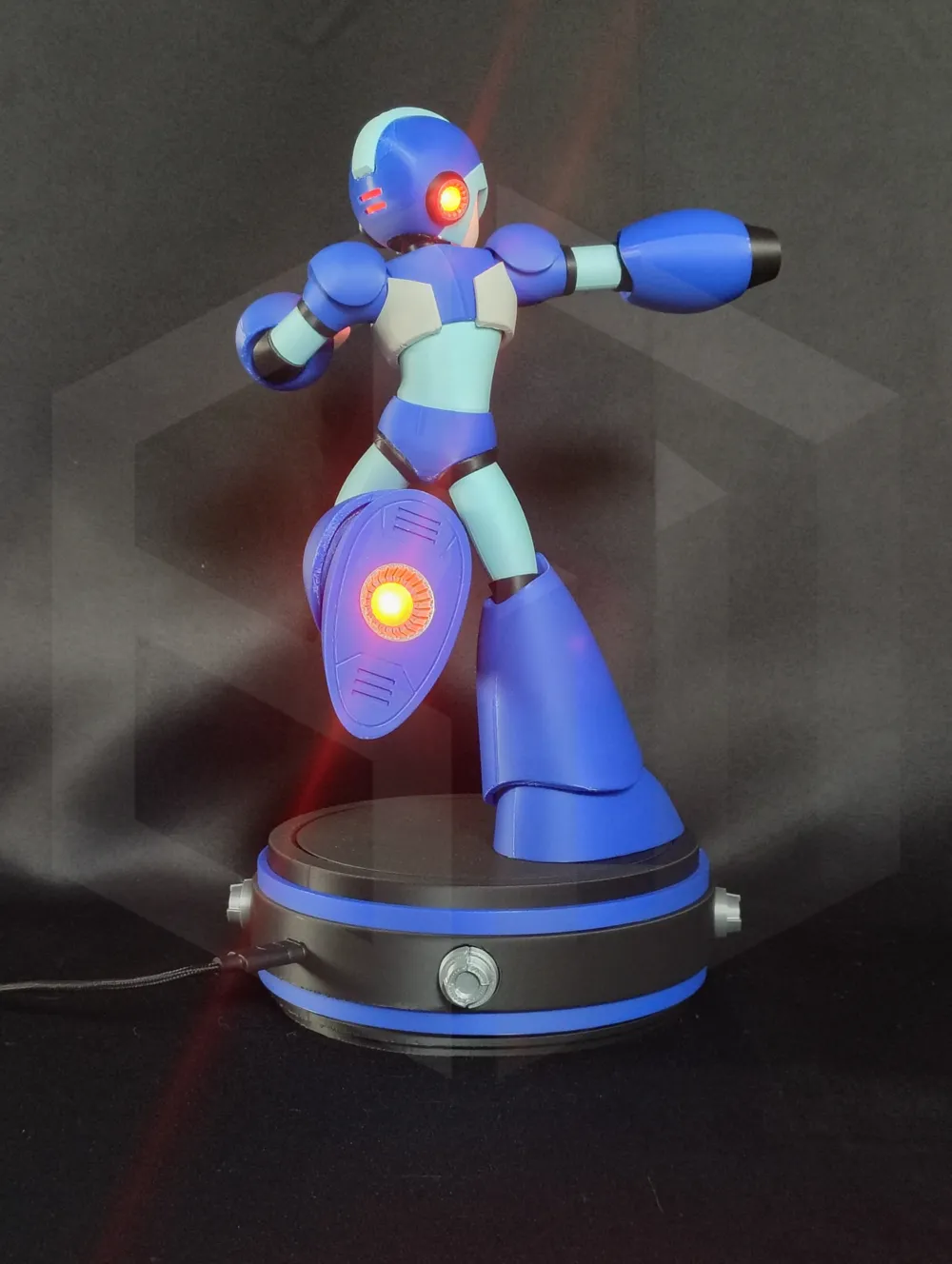

Mega Man X Statue with Lights

Measures 13 inches tall - Fits nicely in a Ikea glass Display

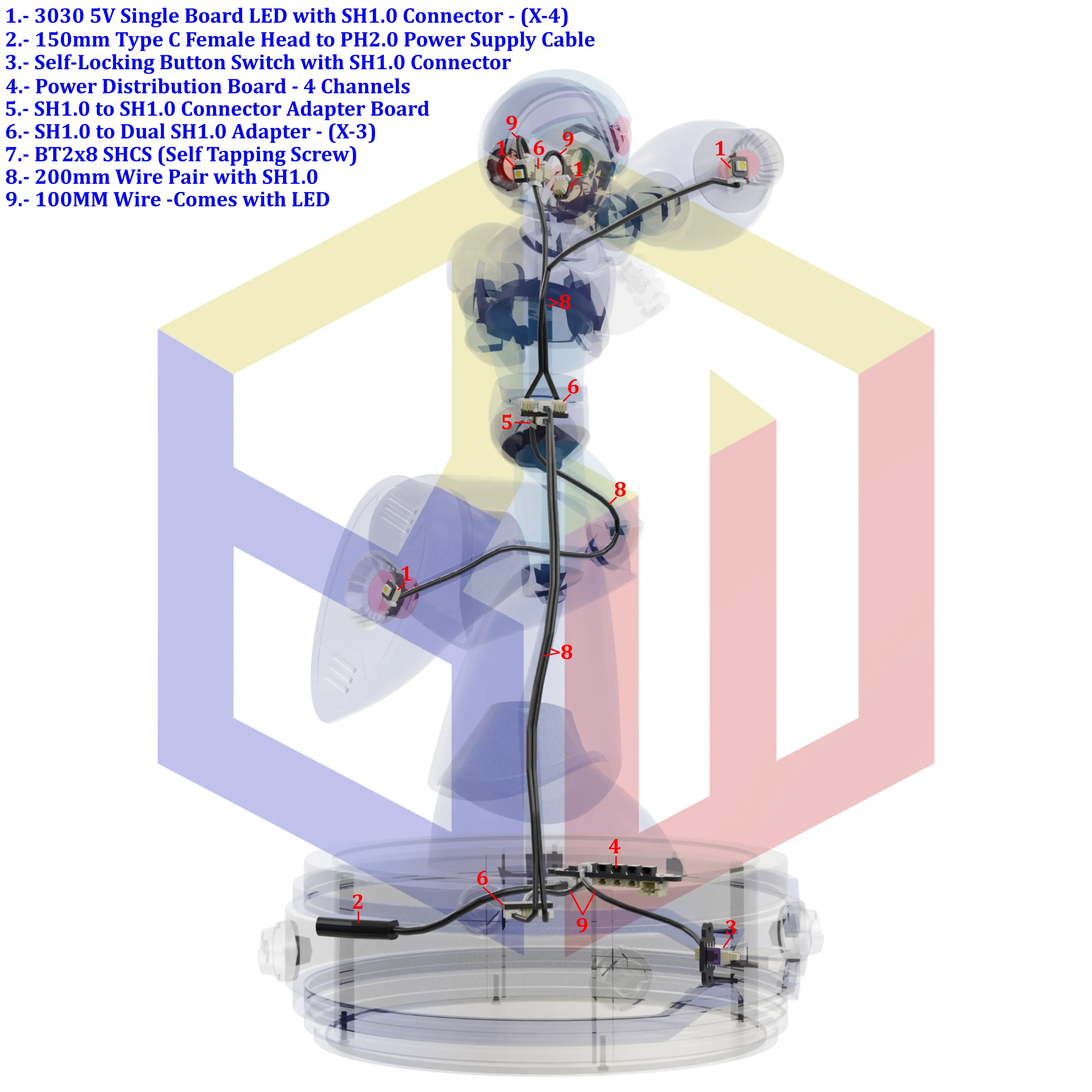

Parts needed -

1.- Power Distribution Board - 4 Channels
2.- Self-Locking Button Switch with SH1.0 Connector
3.- 150mm Type C Female Head to PH2.0 Power Supply Cable
4.- 3030 5V Single Board LED with SH1.0 Connector - (X-2)
5.- 200mm Wire Pair with SH1.0
6.- SH1.0 to Dual SH1.0 Adapter - (X-2)
7.- SH1.0 to SH1.0 Connector Adapter Board
8.- BT2x8 SHCS (Self Tapping Screw)

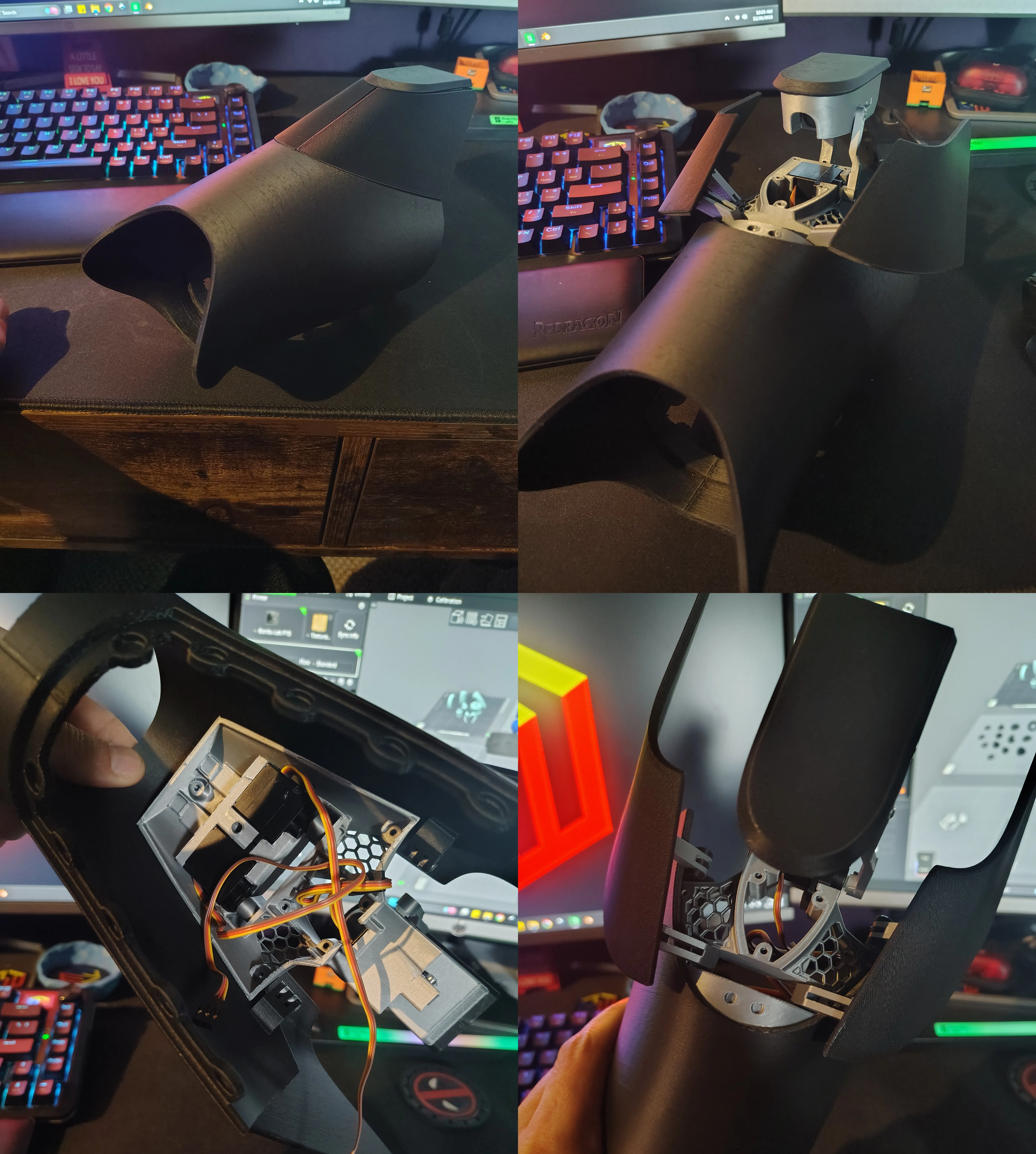

The Mark 3 was put on hold for a bit. I was dumping way to much time and money into motorizing it. This is the third iteration of the forearm. Opening works great but closing not so much.

Enjoy
