Modular arm phone holder + LED lamp kit holder
Print Profile(2)

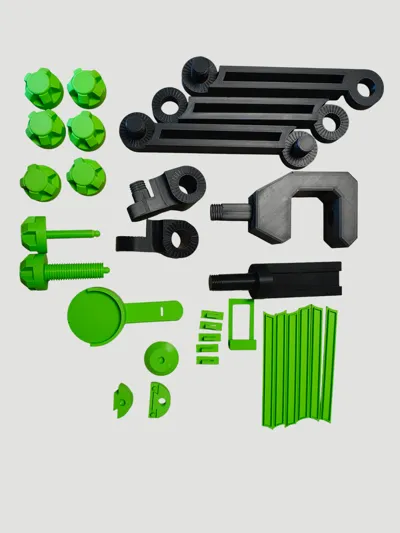

Bill of Materials
Description

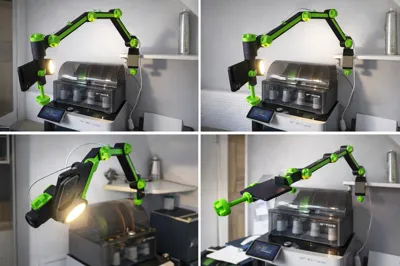

This modular articulating mount is designed for stable and flexible positioning of a phone or LED light without occupying valuable workspace.

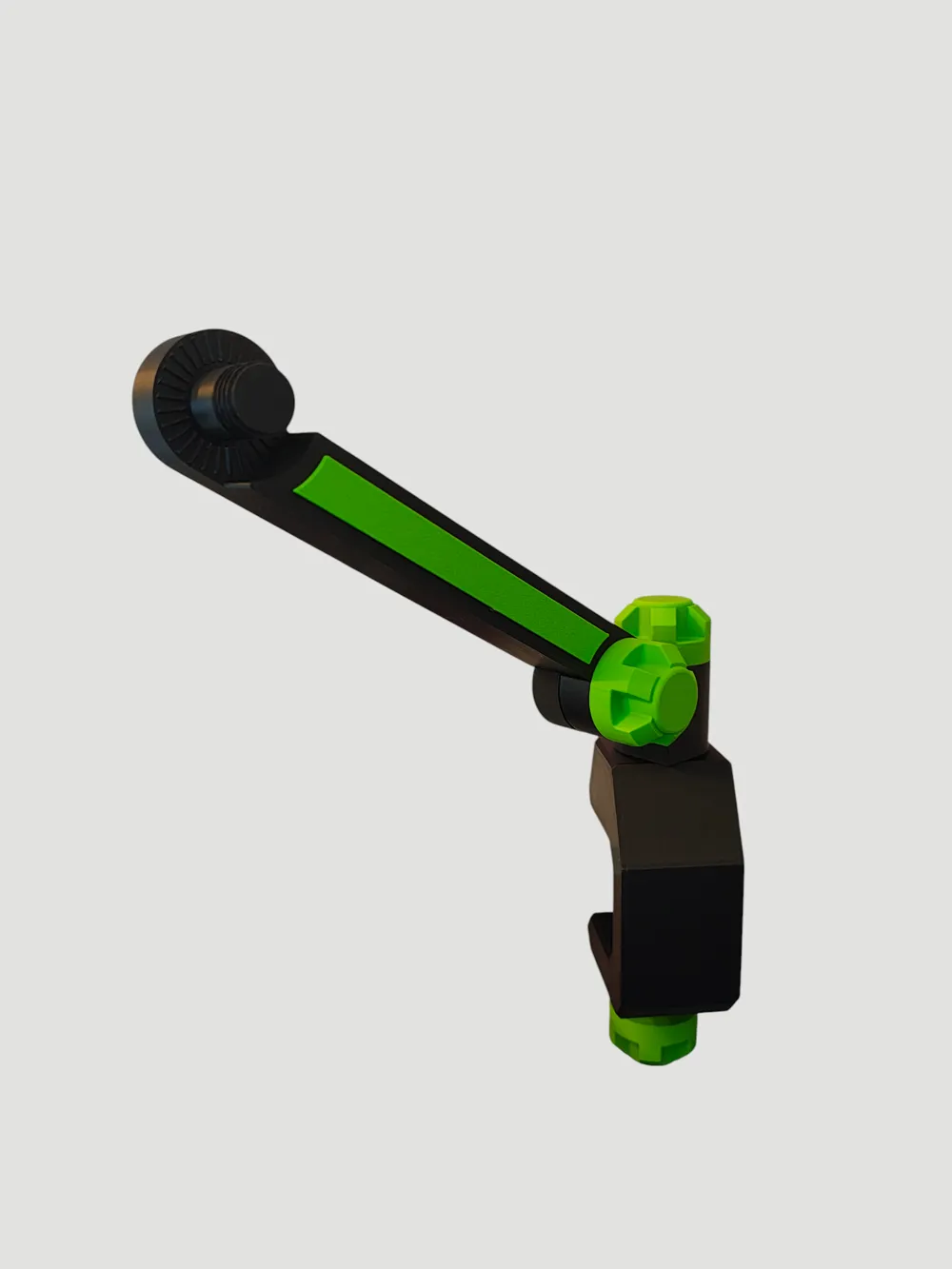

The adjustable arm uses multiple joints that allow precise positioning while maintaining a firm hold once tightened. It is suitable for print monitoring, video recording, photography, or detailed work around a desk or workbench.
Maximum phone width: 77 mm
Maximum phone thickness: 11.5 mm
Maximum desk thickness: 40 mm
🔧 Main Features
• Fully modular articulated design – adjustable length and angle
• Multiple joints with strong locking capability
• Integrated phone holder for recording or monitoring

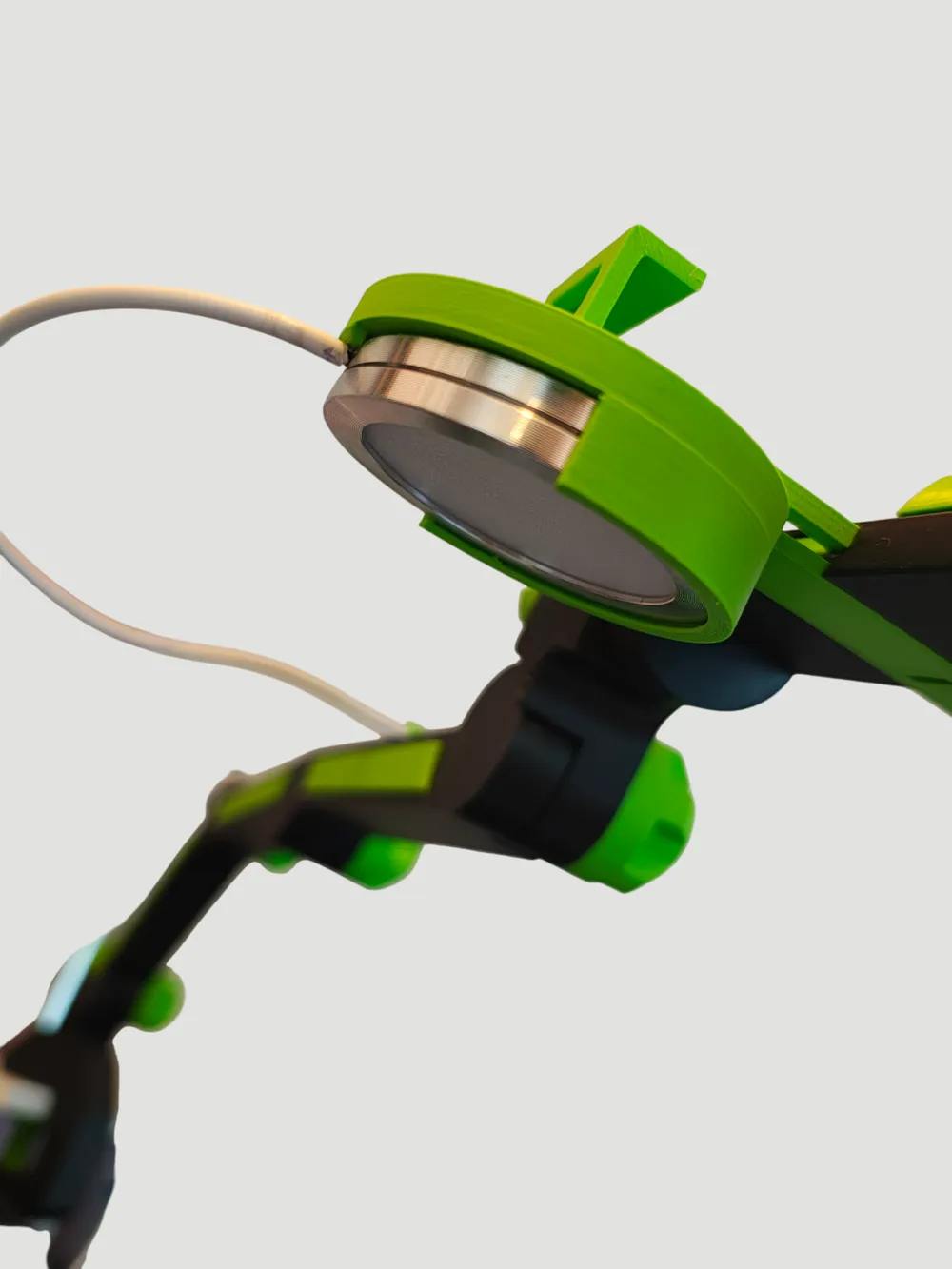

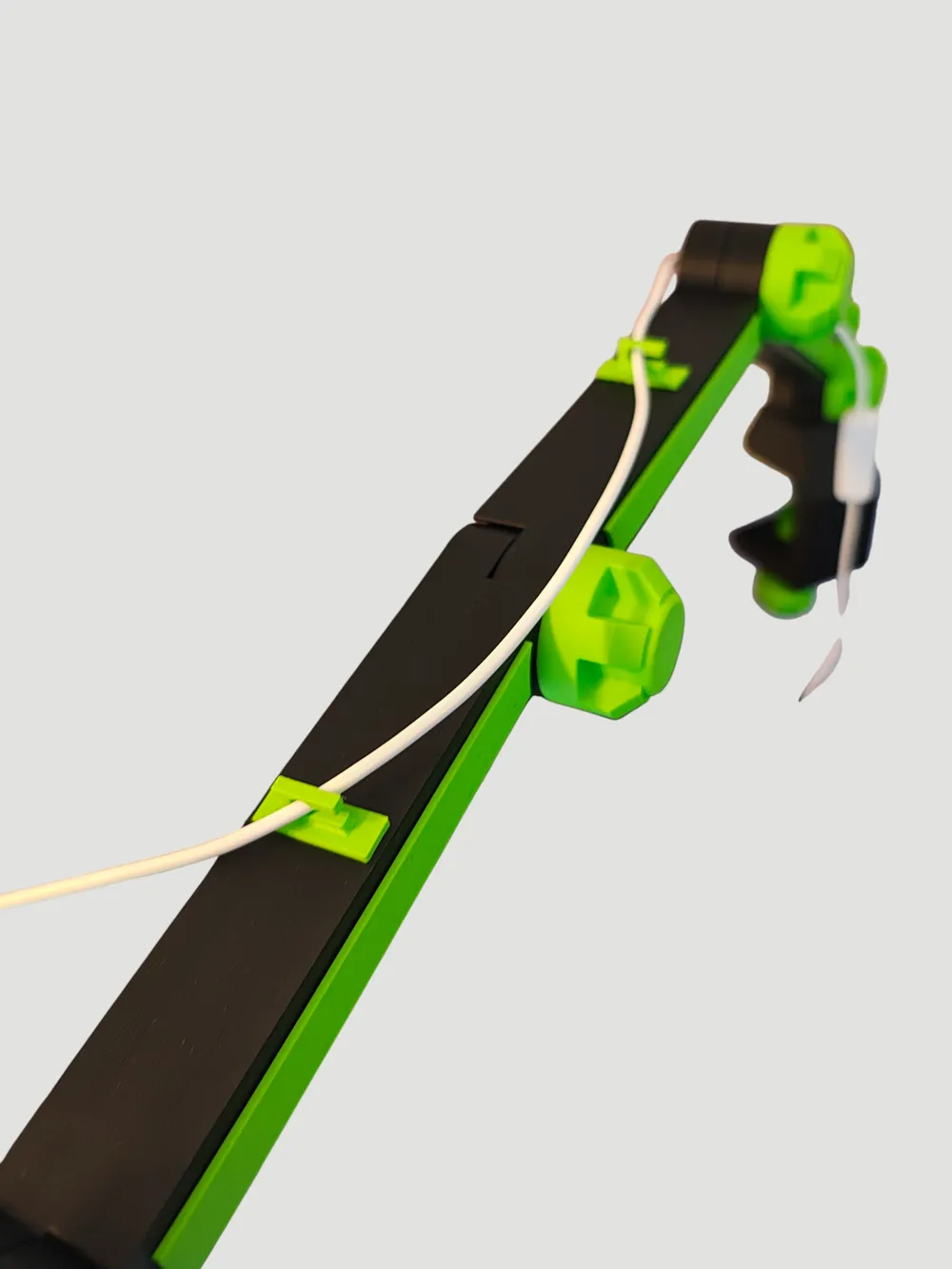

• Optional LED light mount or cable holders
• Desk / shelf mounting – no drilling required
🖨️ Printing Recommendations
• Material: PLA+ or PETG (PETG recommended for higher strength)
• Infill: 15–30%
• Perimeters: minimum 2–3
💡 Typical Uses
• 3D printing area illumination
• Timelapse and video recording
• Print supervision via mobile phone
• Universal adjustable arm for workshop or workbench
