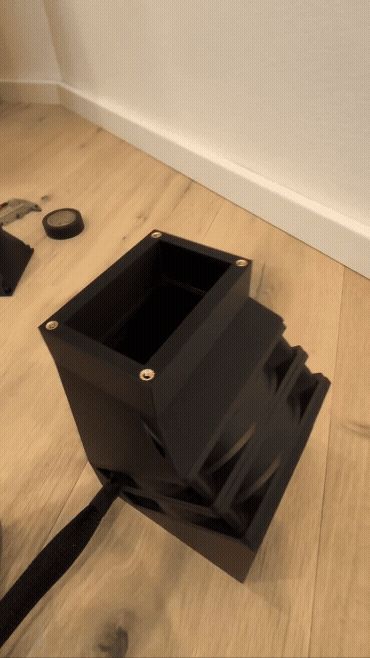

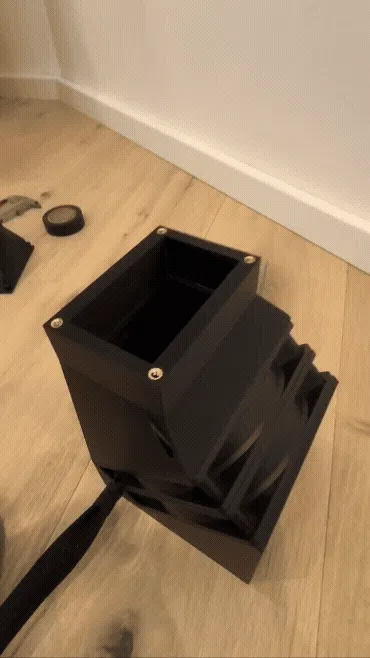

P2S Exhaust for HMJ Riser
Print Profile(1)
Description

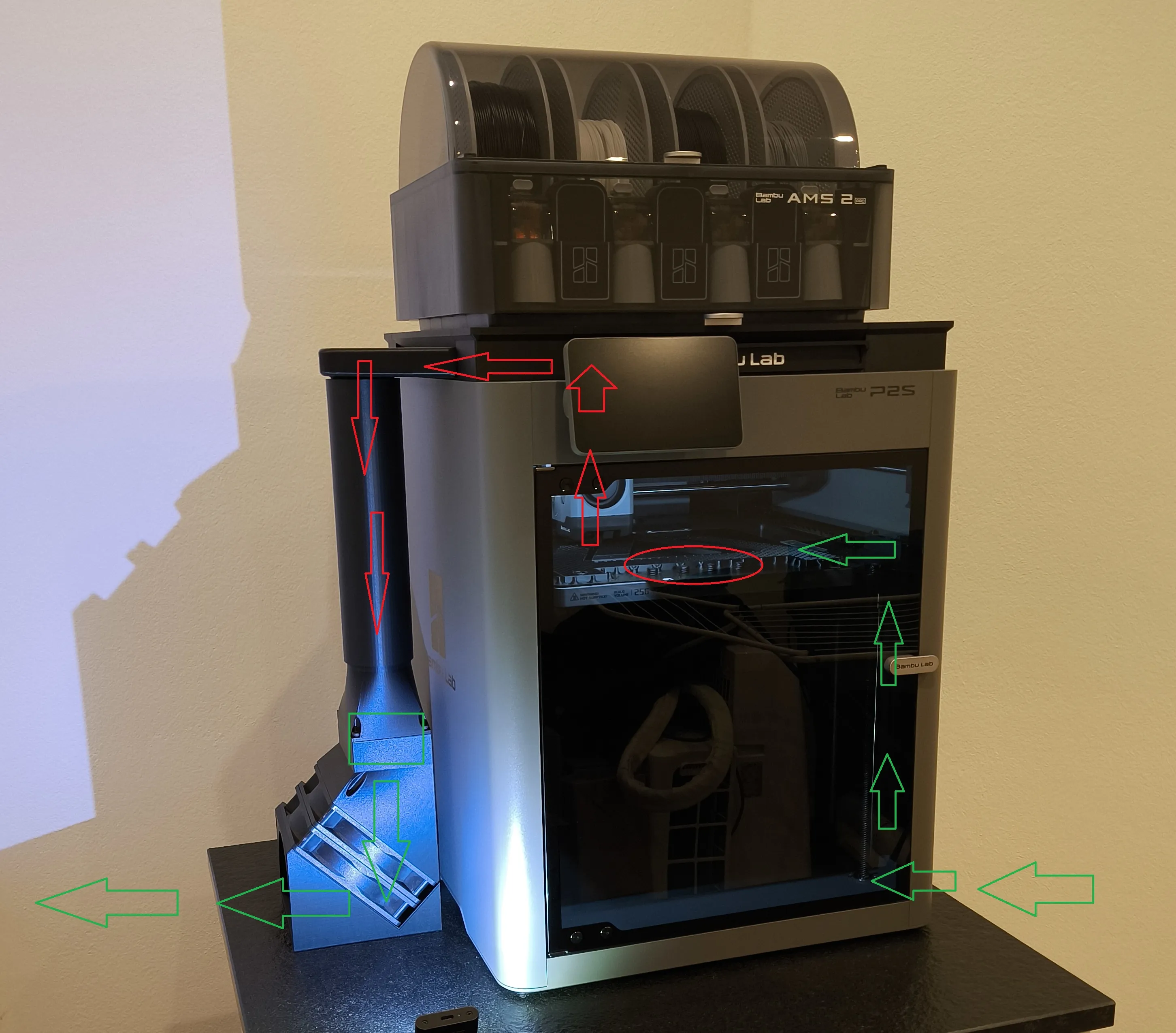

A practical addition for printing with PLA to filter the air

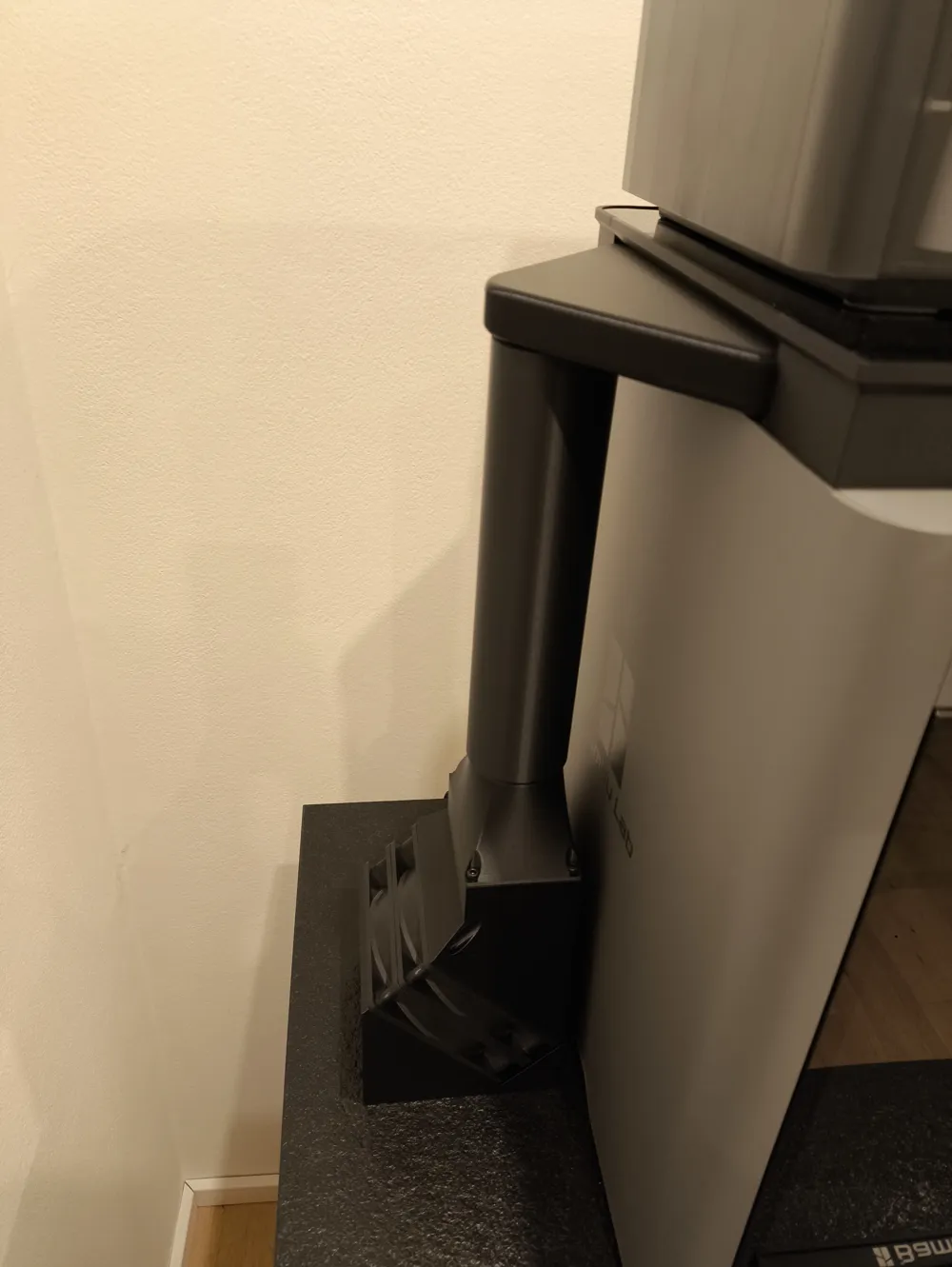

Supplementary product for the great Riser System from HMJ
https://makerworld.com/de/models/1991863-hmj-riser-kit-01-air-vent#profileId-2143693
Exhaust snorkel V3 is required here

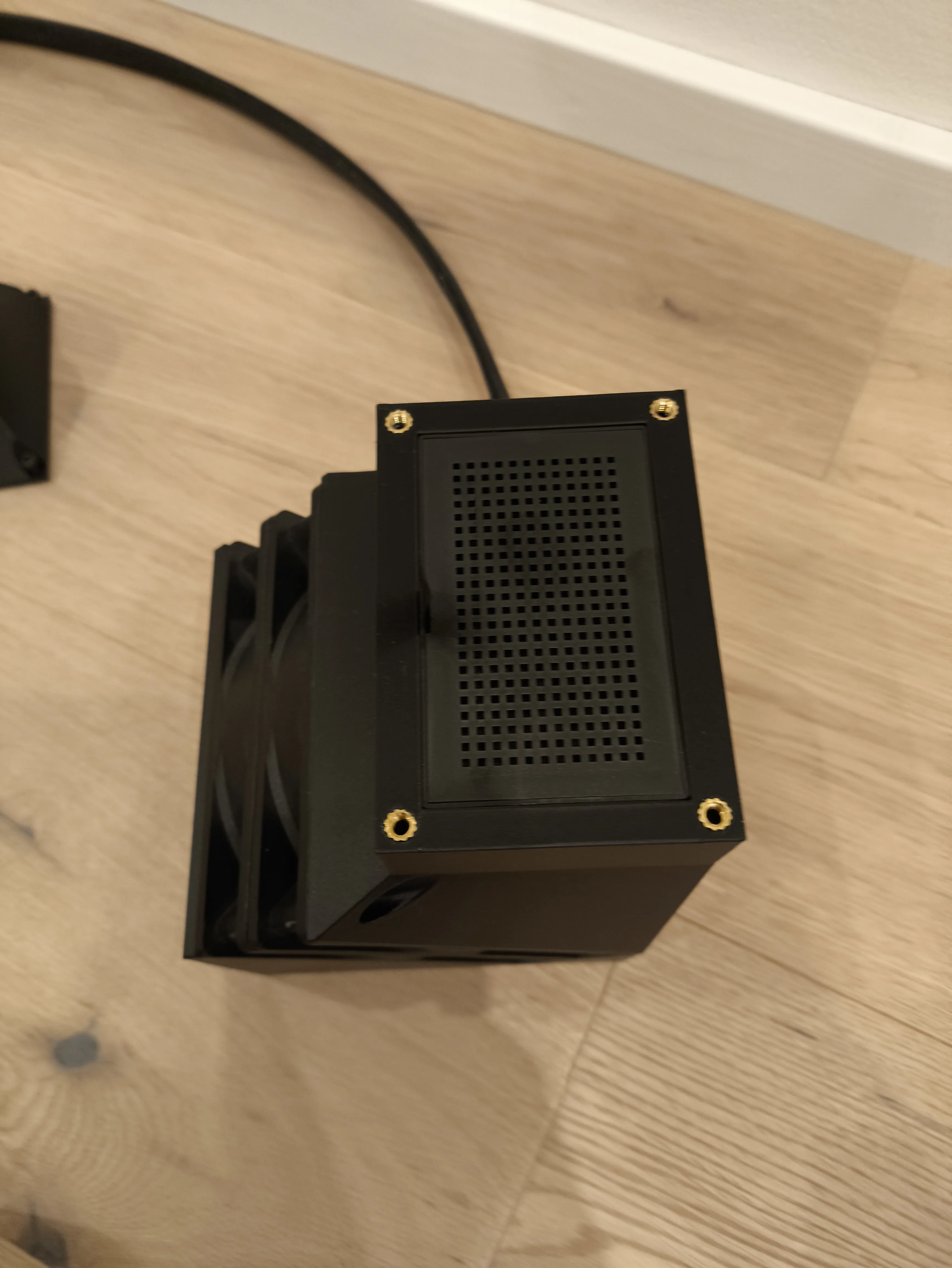

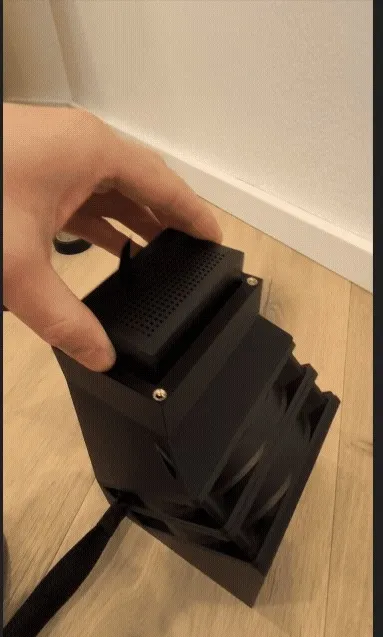

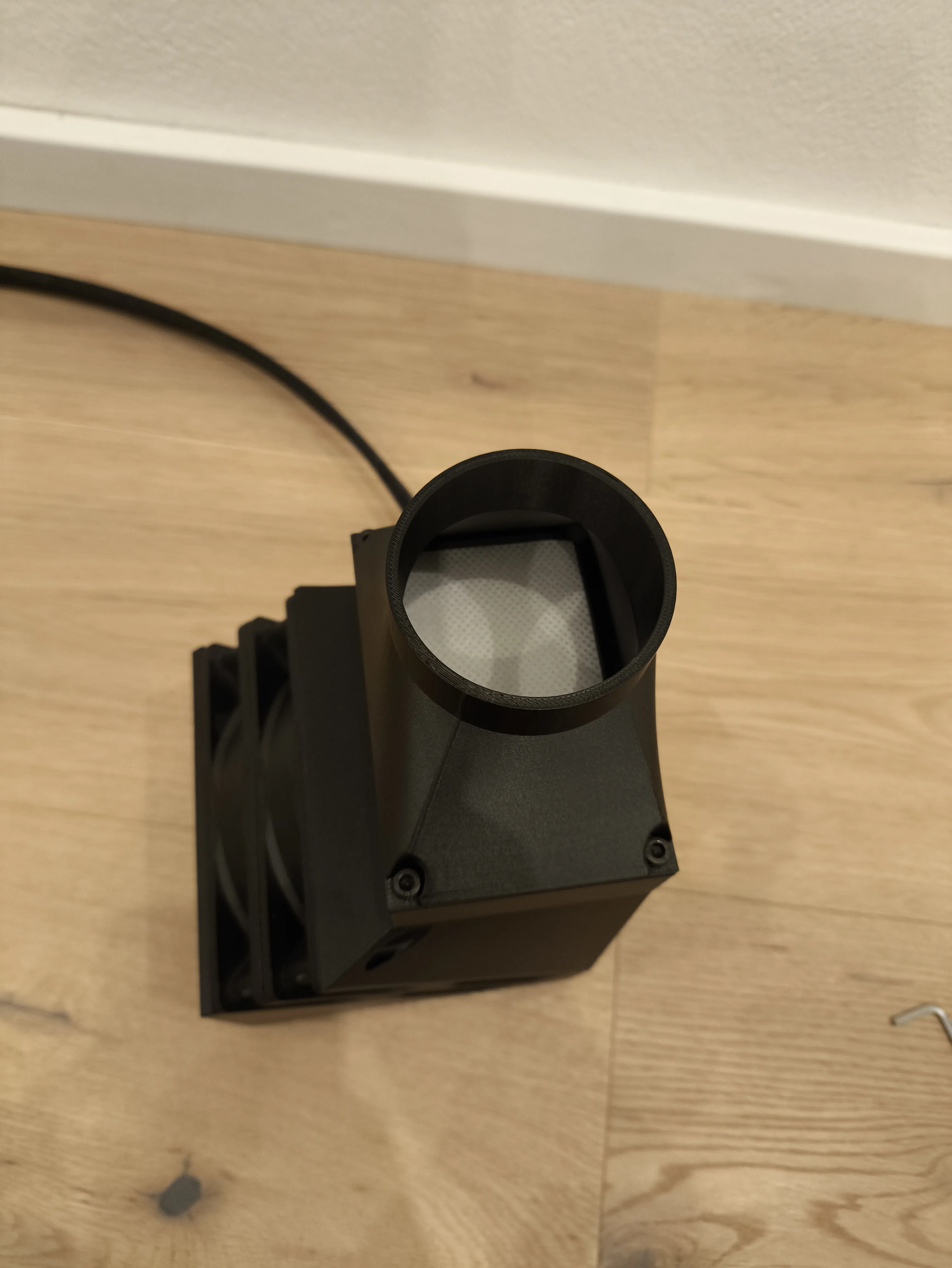

Matching Filter
Additional Filter Material:
For additional filtering of the extracted air, use a HEPA filter

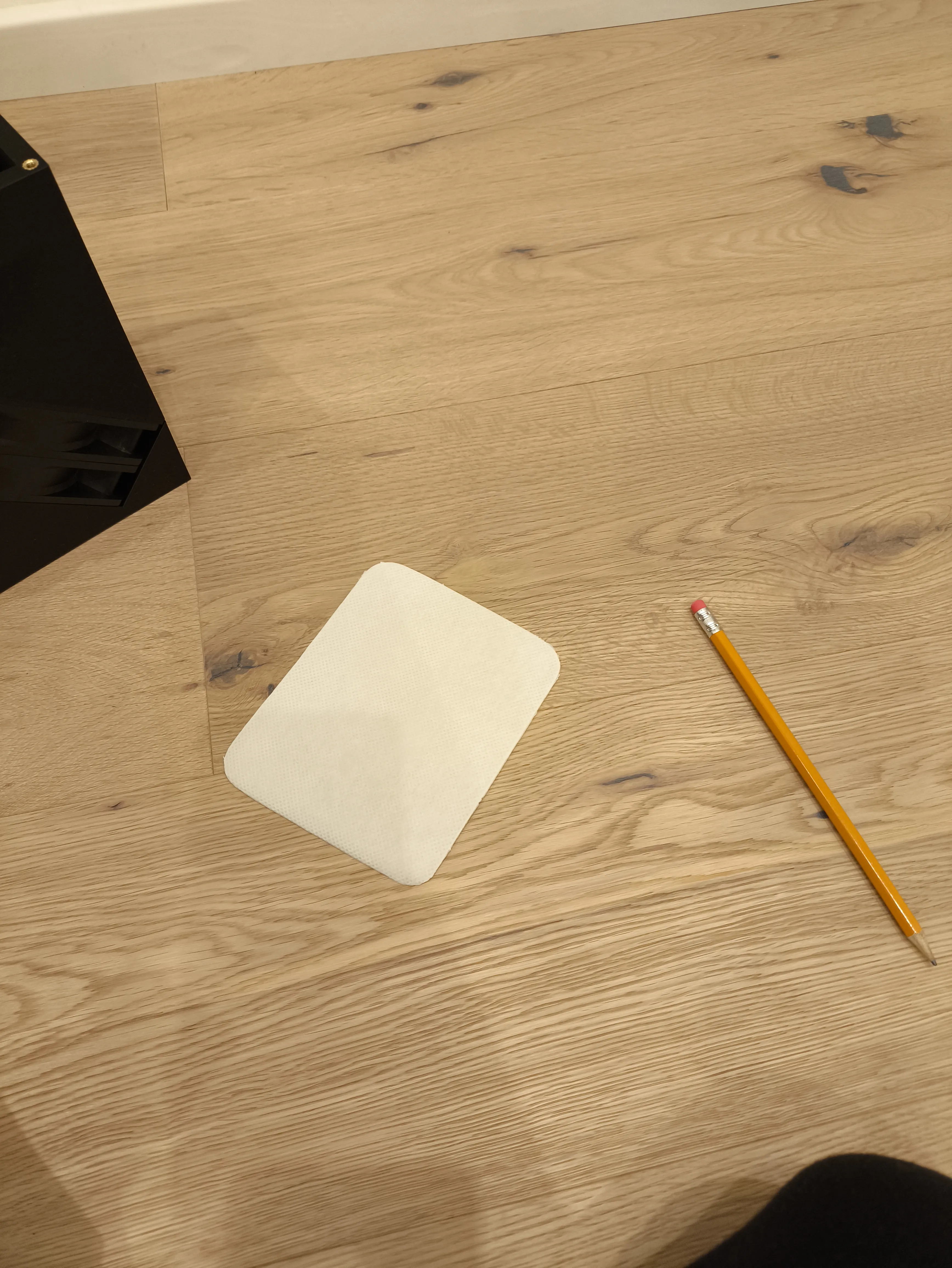

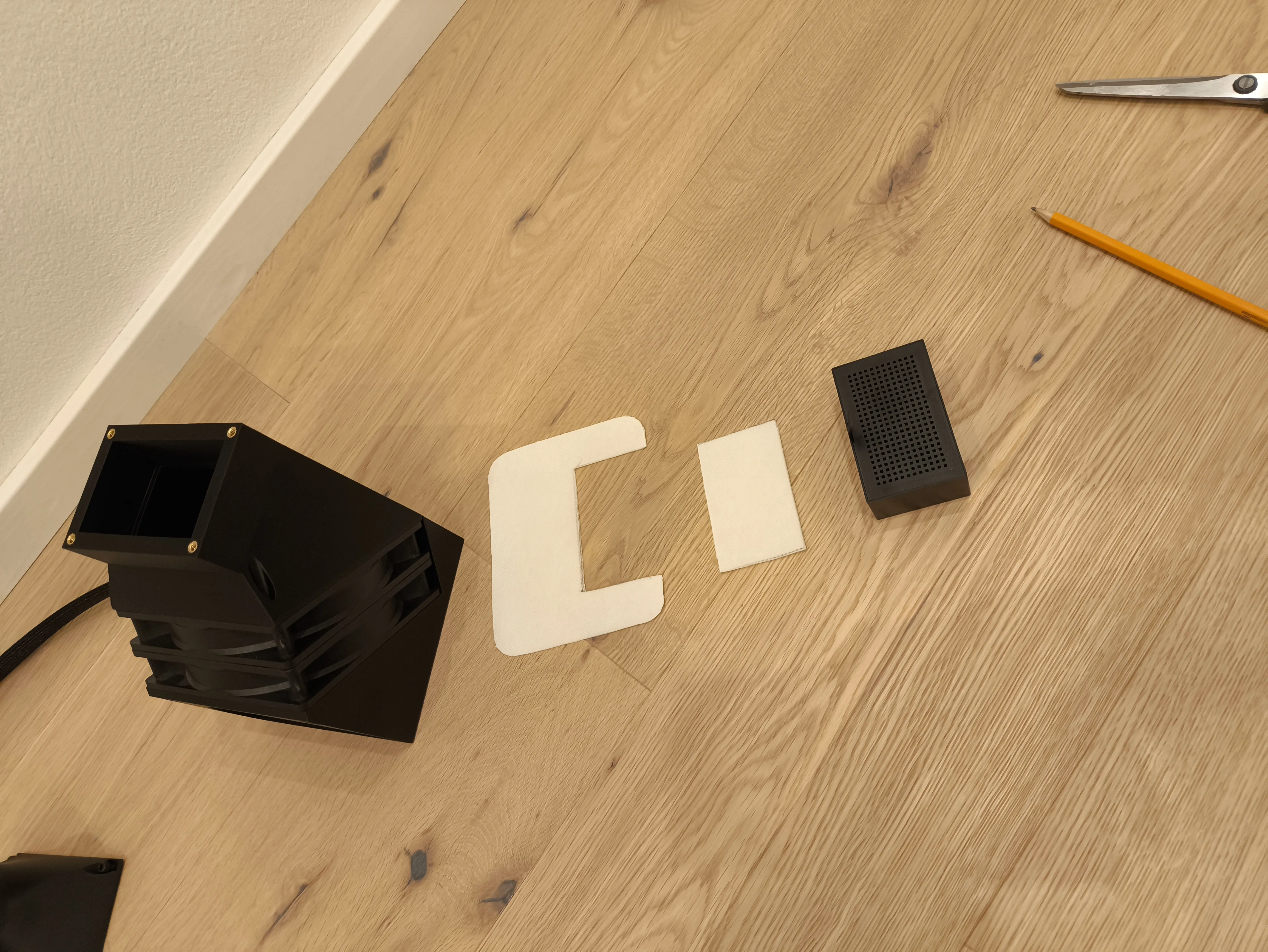

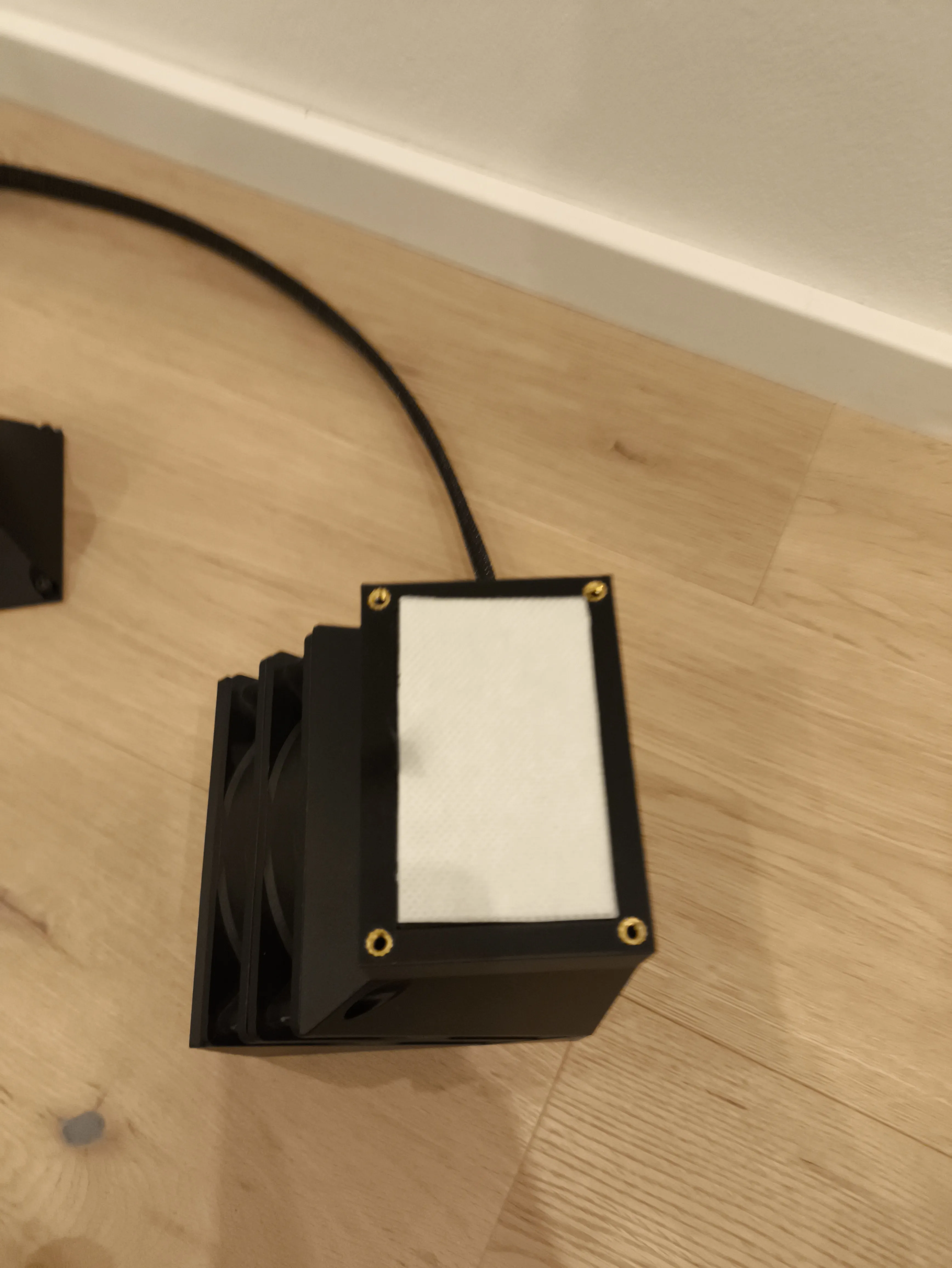

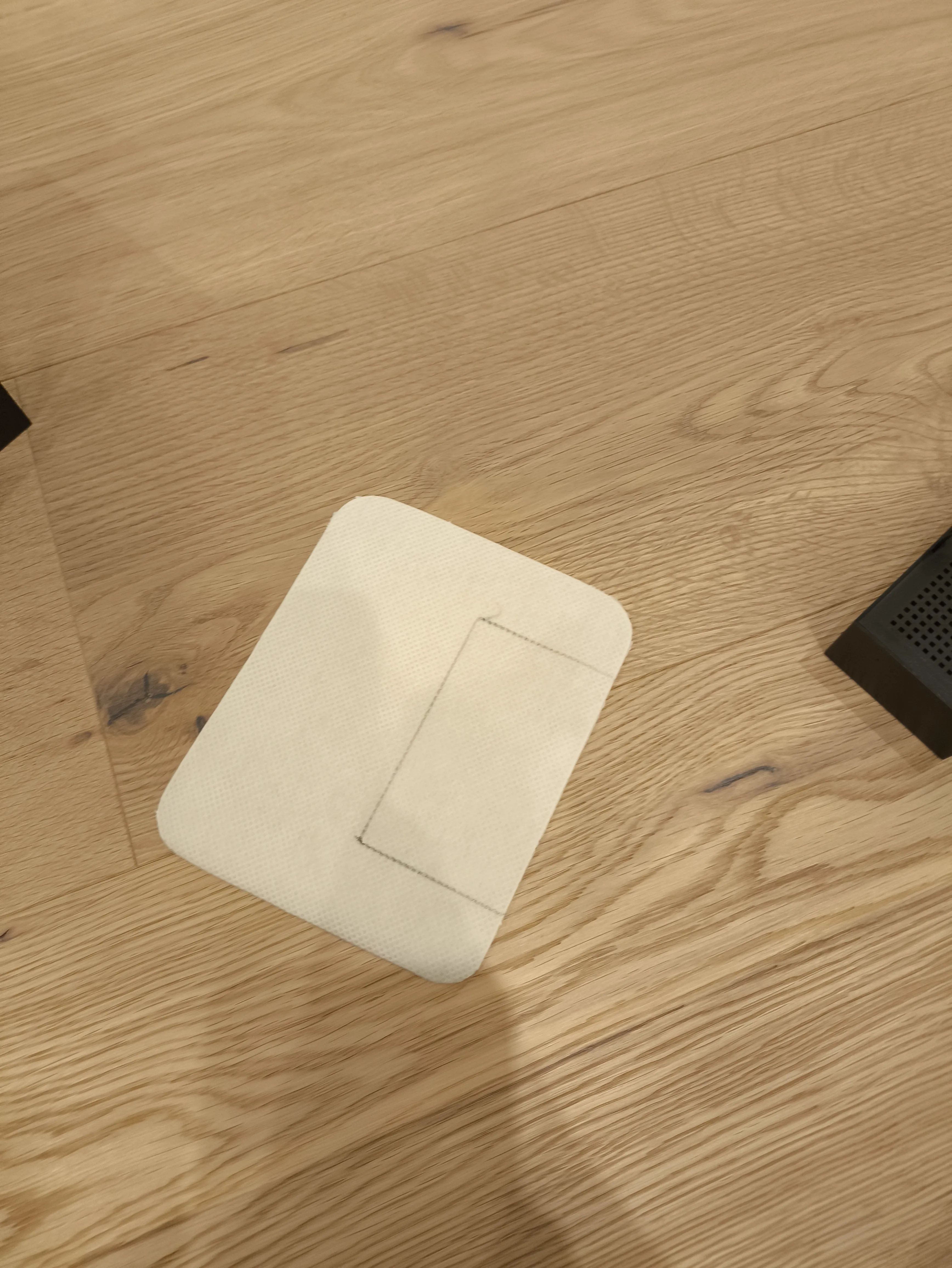

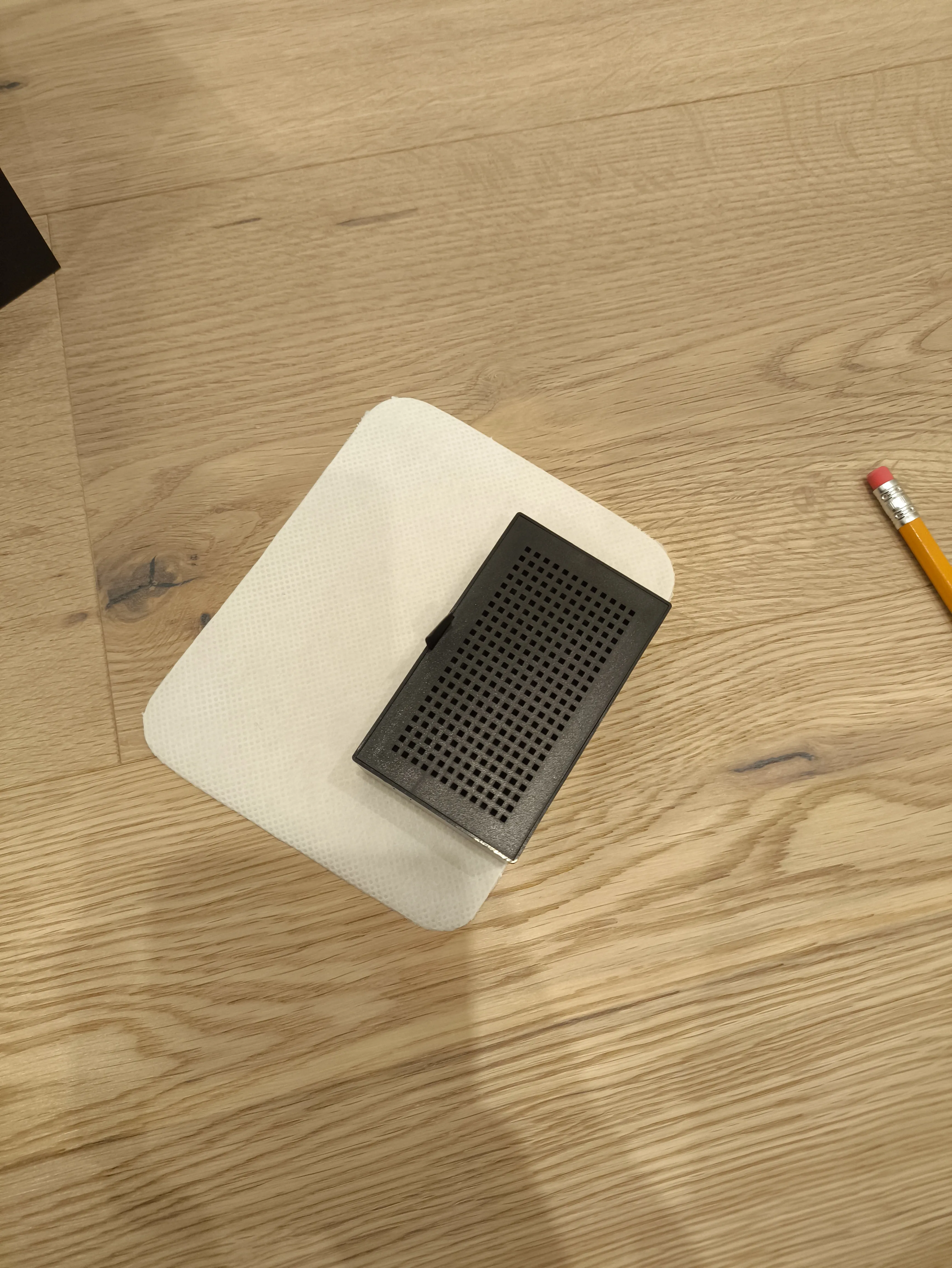

I used a standard universal vacuum cleaner HEPA filter, cut it to the shape of the cartridge, and placed it over it

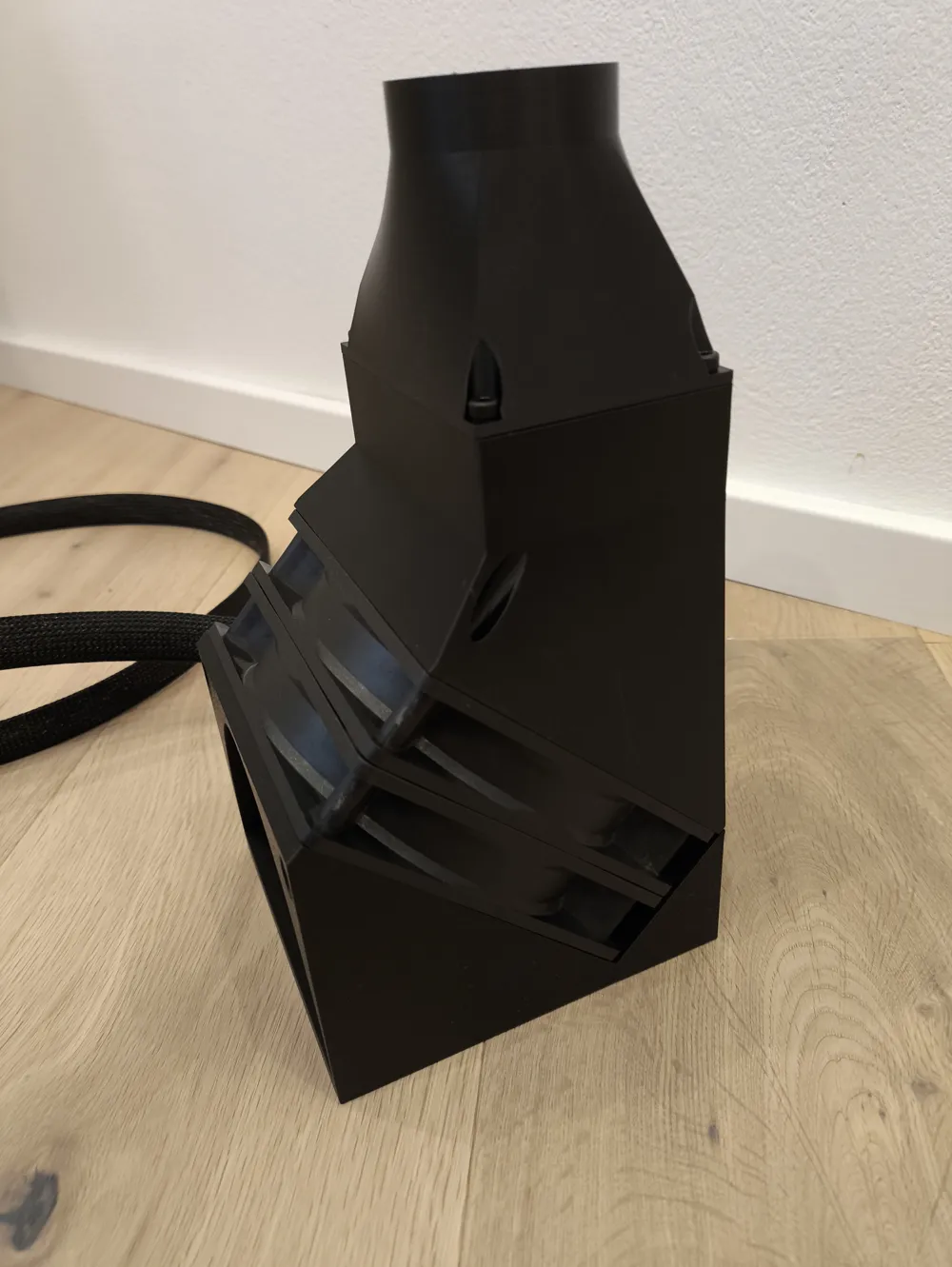

Exhaust:

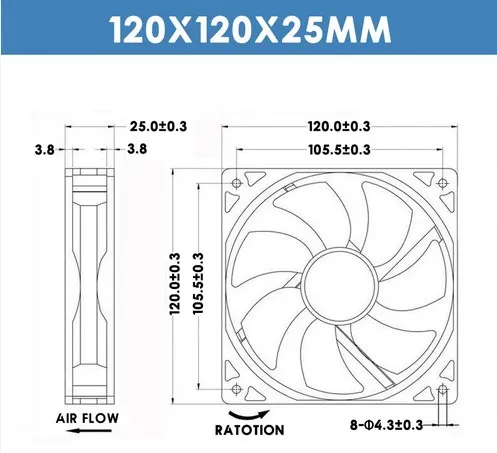

For exhaust, 2 x 120mm PC fans connected in series are used here
with a standardized hole spacing of 105+-0.5mm
this increases the suction pressure
For assembly, the following are required
are required

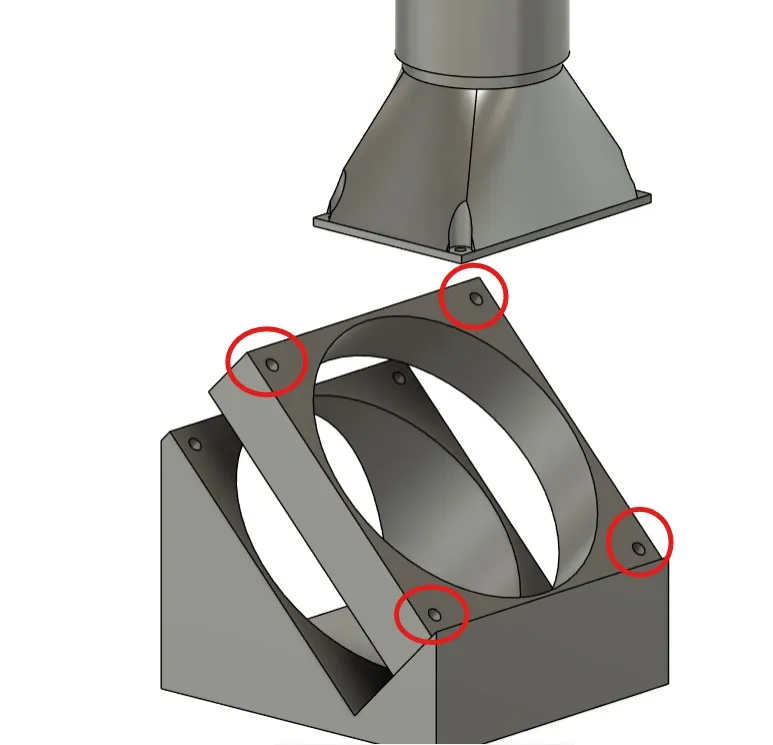

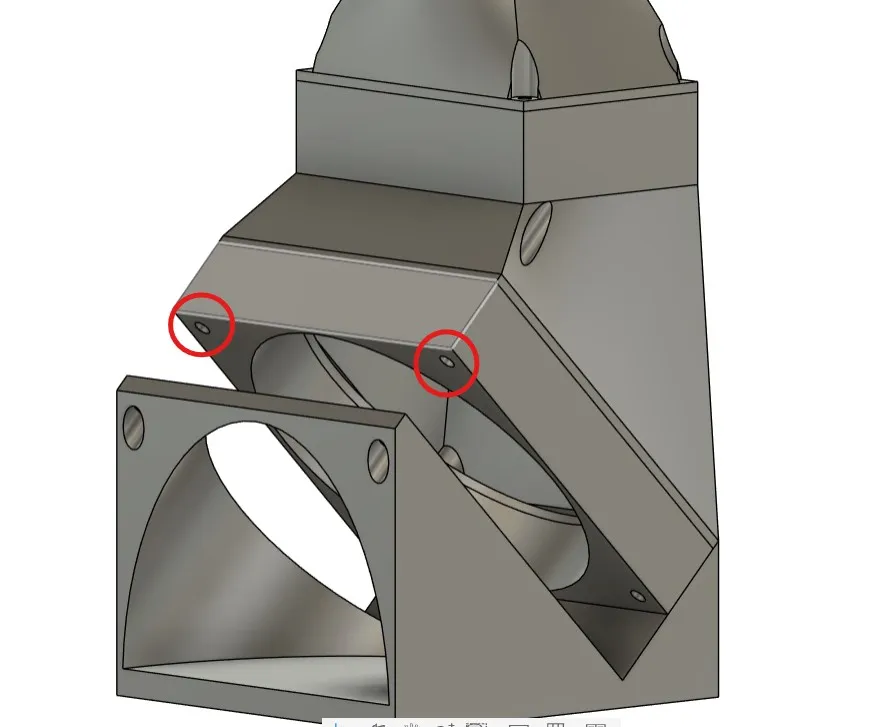

Position of the heat-set inserts in the rear fan

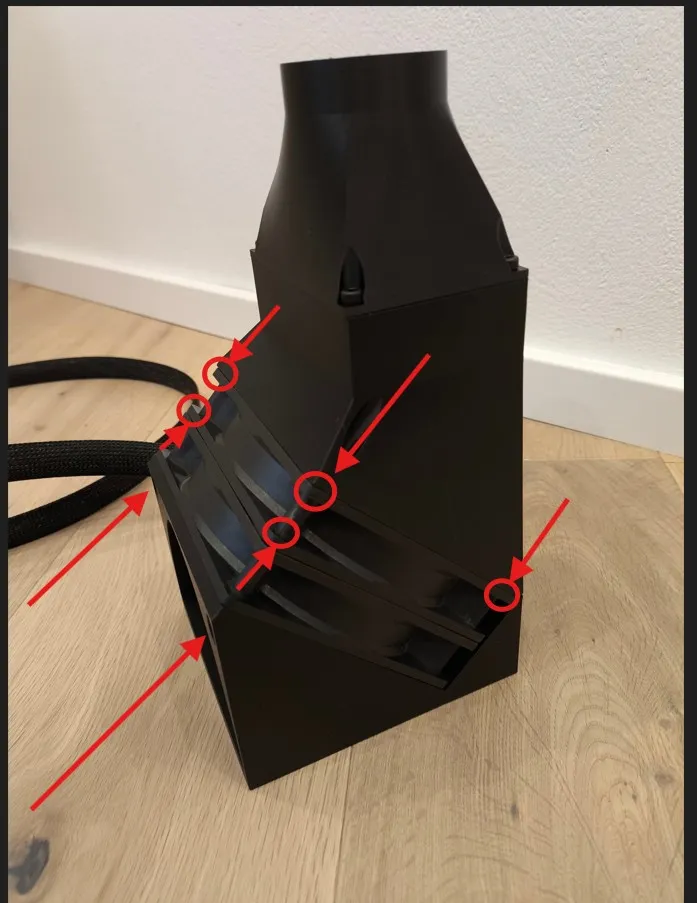

The front fan is screwed together with the rear one through the hole here
