BMW GS Crashpad - Frame & Axle Sliders (Universal)

These crash pads were specifically developed for the **tubular frame or crash bars** of the **BMW GS** and fit **25 mm** or **22 mm** tube diameters depending on the variant They serve as **additional protection** for crash bars and fairing in case of a tip-over or fall

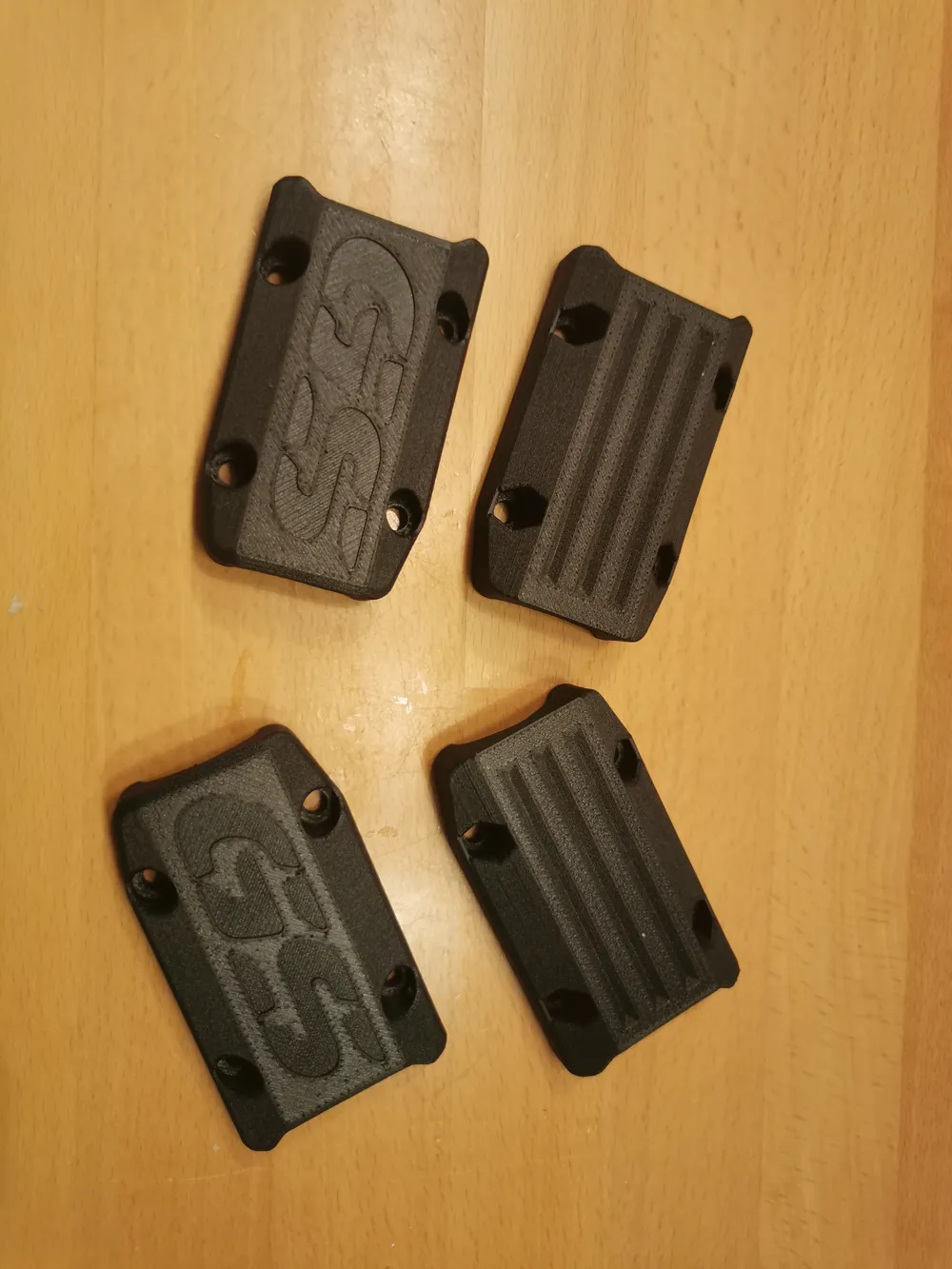

There are **several variants to choose from**:

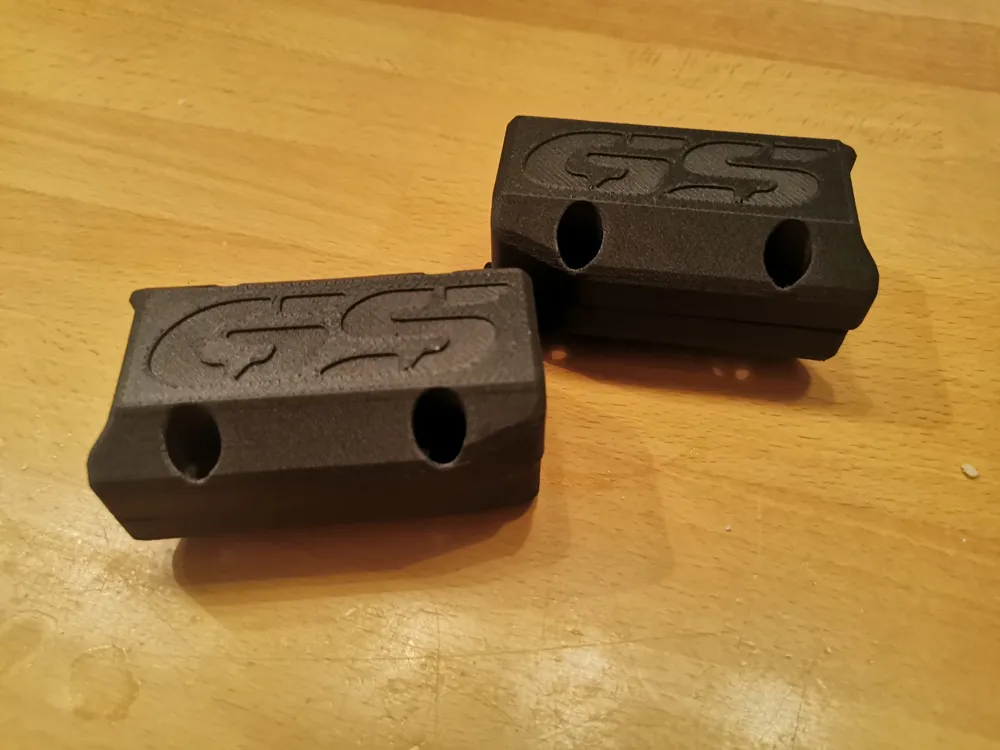

• **Short version:** compact and discreet
• **Long version:** offers extended protection area
• **Each available:**
  • **with GS symbol** (specifically for BMW GS models)
  • **neutral (without symbol)** – universally applicable

**Assembly note:** For assembly, the following screws and nuts are required (not included):

• **Short version:**
  • 8 × M5 × 16 mm hex socket head screws
  • 8 × M5 self-locking nuts
• **Long version:**
  • 12 × M5 × 16 mm hex socket head screws
  • 12 × M5 self-locking nuts

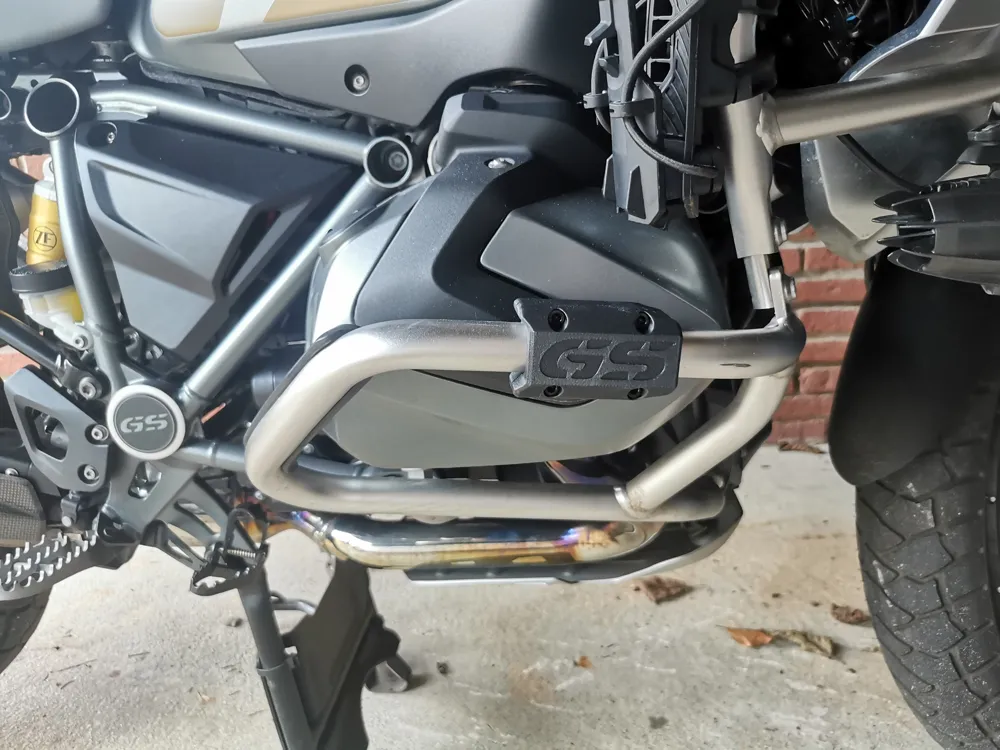

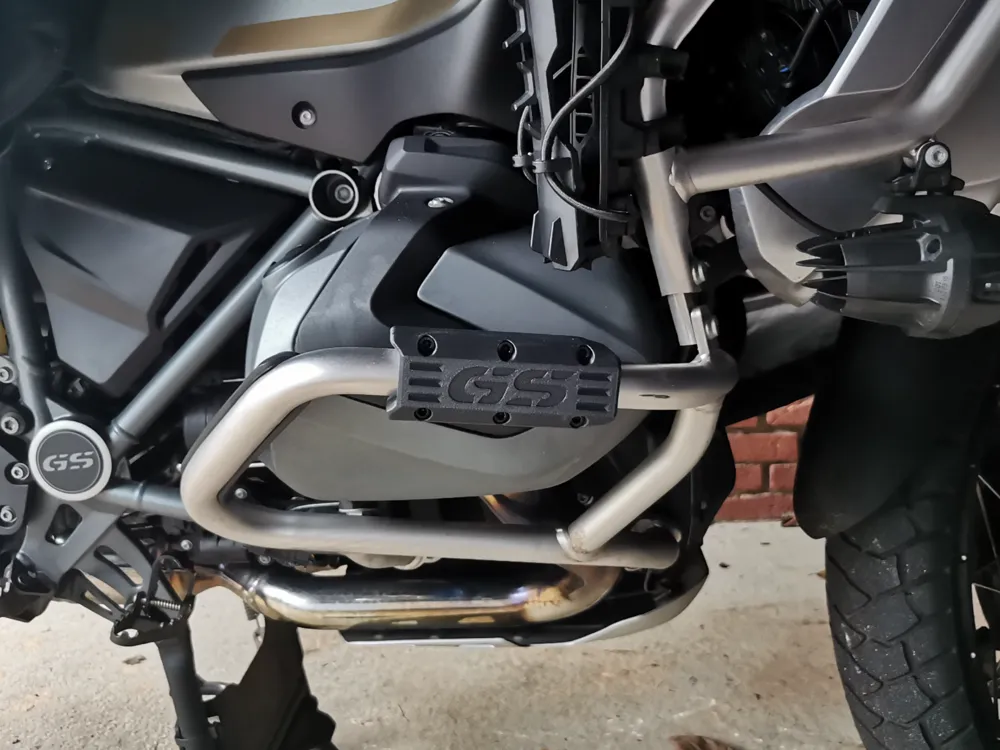

The pads are simply mounted on the crash bar – **no drilling or permanent modification** necessary

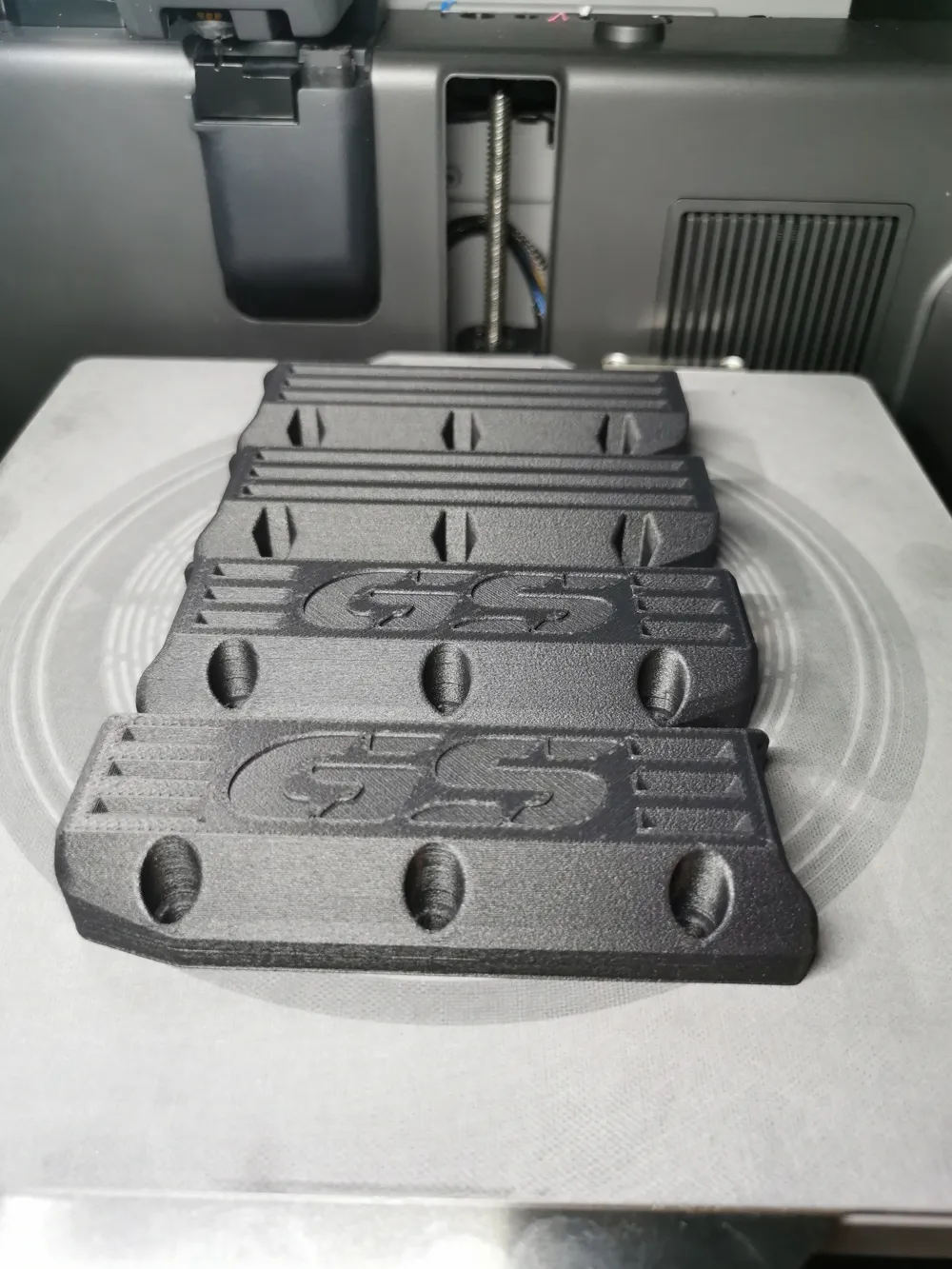

**Printing recommendation:**

• **Material:** ASA or ASA CF for optimal **UV resistance**, **stability**, and **weather resistance**
• **Supports:** **not required** – all parts are **printable without supports**
• Ideal for **outdoor use on a motorcycle**

**Note on variants:** The **neutral versions** are also suitable for other motorcycles with 22 mm or 25 mm crash bars Other tube diameters are available **upon request**

**Legal notice:** This part is a **private, untested accessory** Use and assembly are **at your own risk** **No liability or warranty** is assumed regarding **approval, roadworthiness, or consequential damages**
