Air Conditioner Hole Exhaust Component
Print Profile(2)
Description

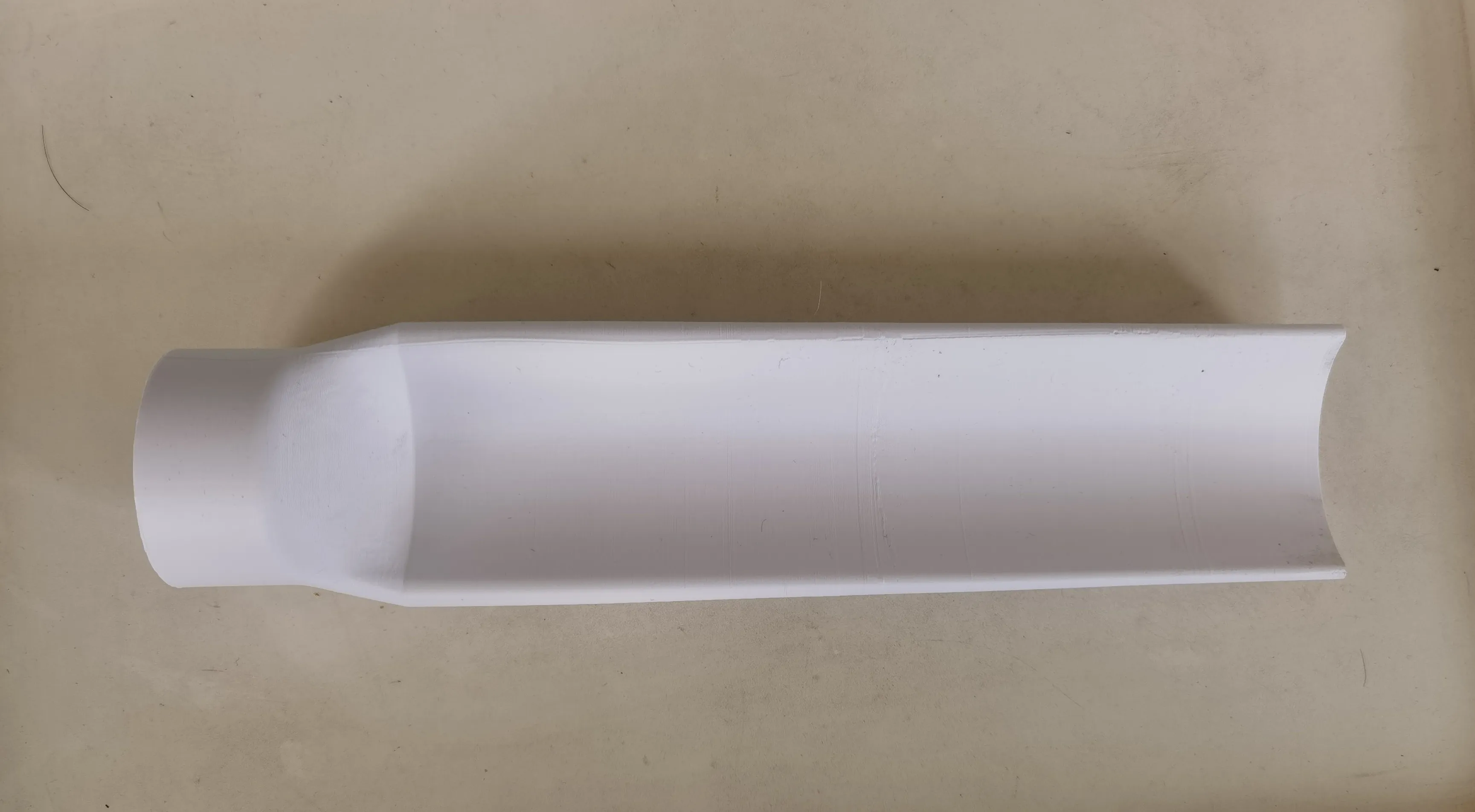

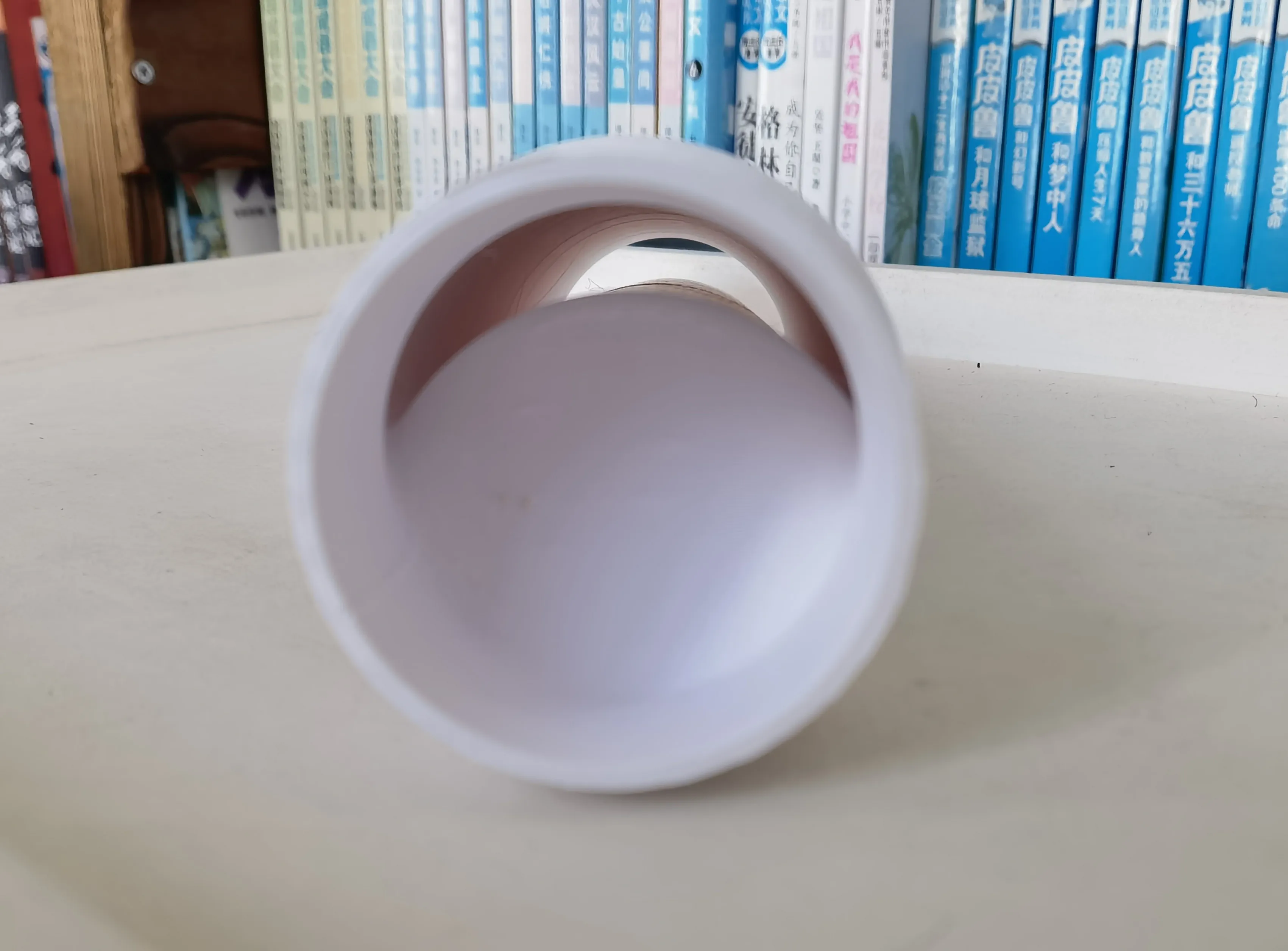

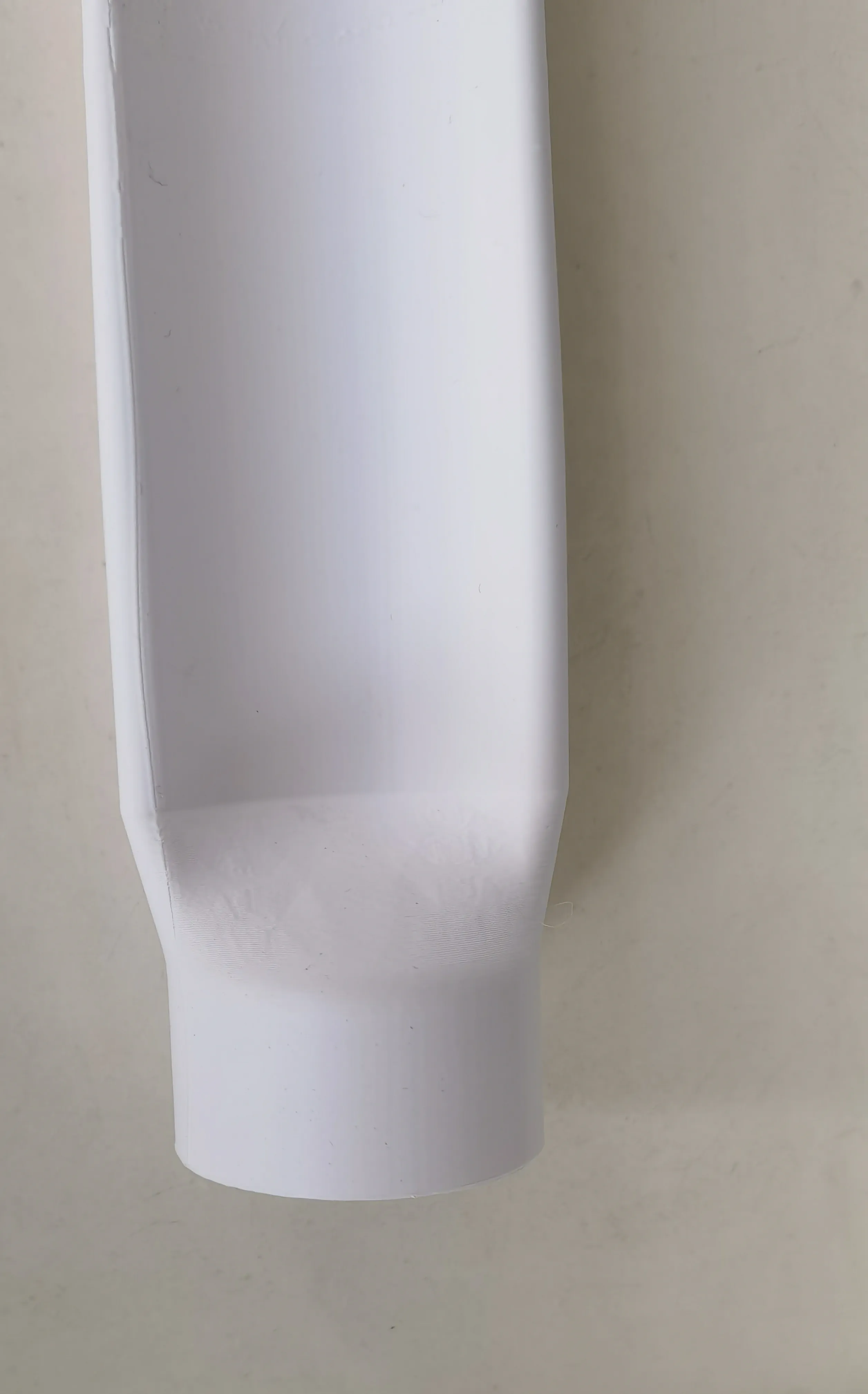

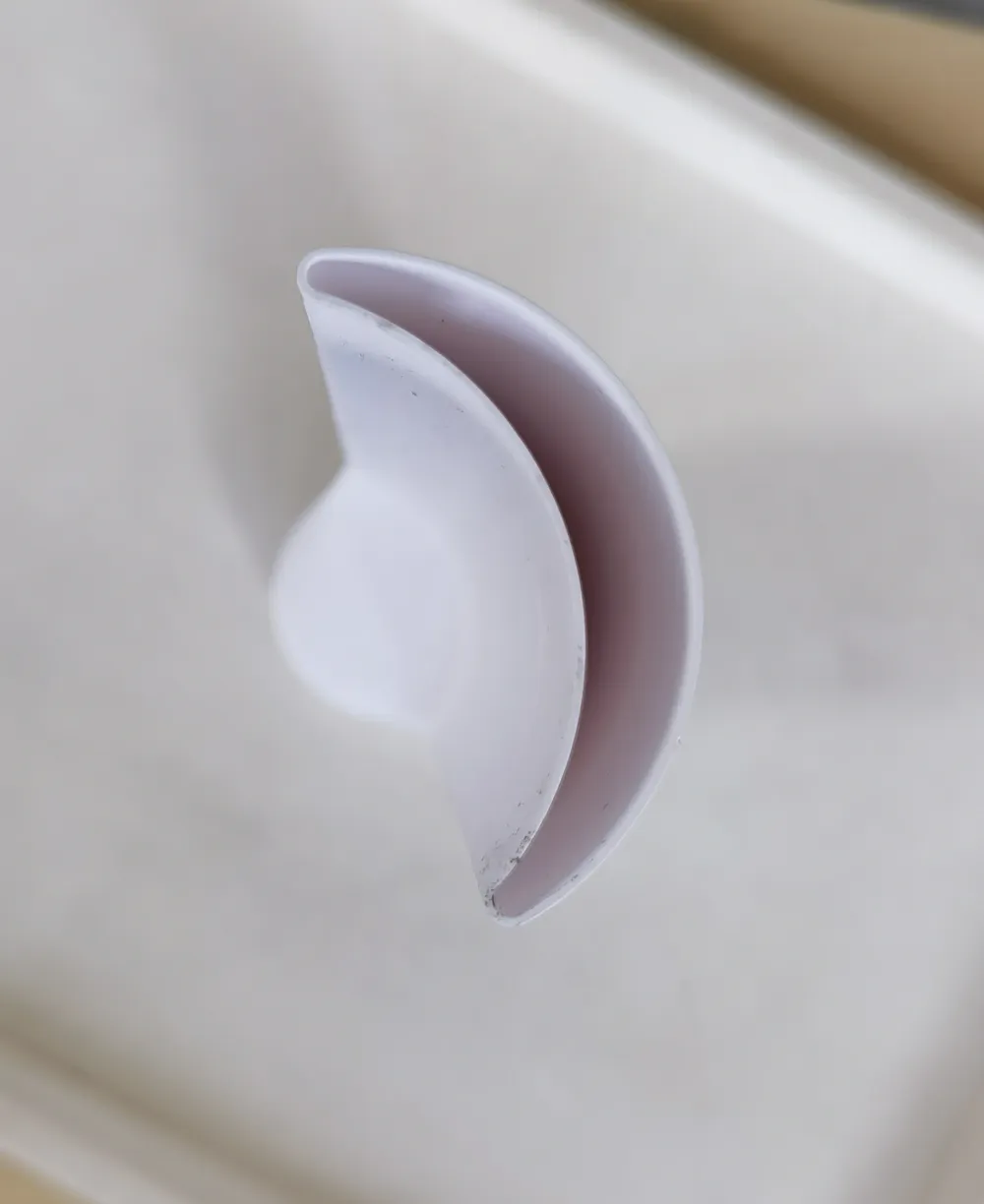

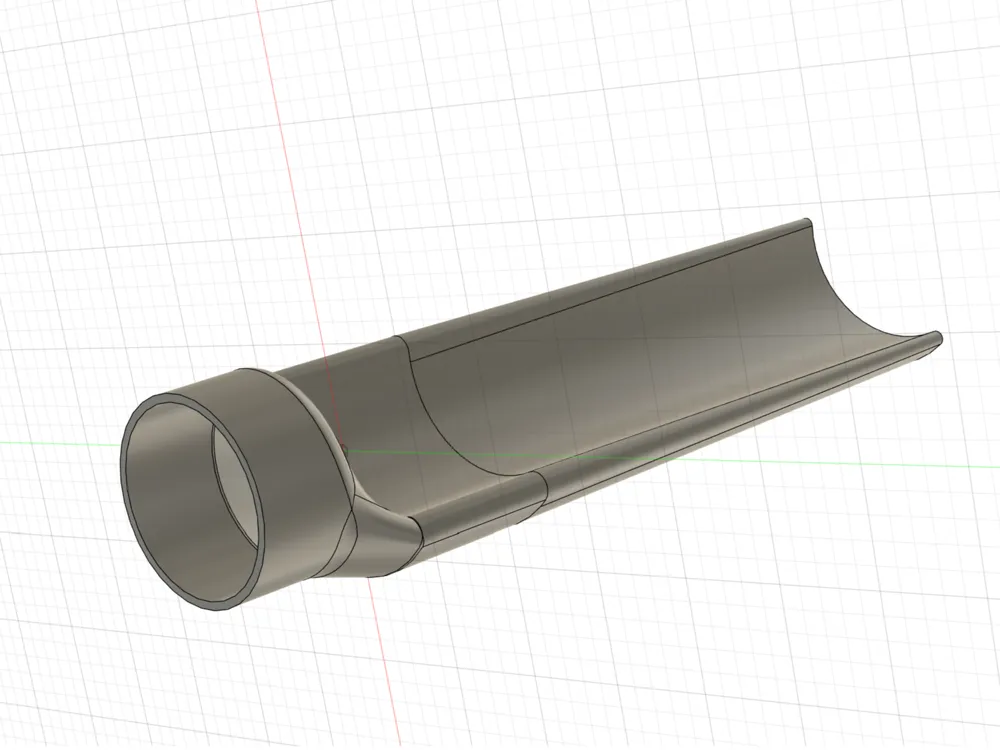

Utilize the air conditioner hole for exhaust, which can connect to P1S or X1C exhaust emissions. The duct diameter is 60mm, fitting most household air conditioner holes. The interface is 49mm, allowing connection with a 50mm diameter corrugated pipe. The component length is 245mm, capable of penetrating most walls
Scheme A
Suitable for situations where the condensate pipe bends after entering the room
Scheme B
The corrugated pipe connection point has been moved outwards by 50mm, suitable for situations where the condensate pipe does not bend after entering the room and does not obstruct the condensate pipe
