Aqara H1 Switch Wall Quattro Frame EU

Remix: Aqara H1 EU – 4-Gang Wall Frame

This project is a remixed wall frame for the Aqara H1 switch (EU version), based on the original model by Jakub Kasperek.

The design is dedicated exclusively to the 4-gang Aqara H1 configuration and has been adjusted for better wall fit, mounting stability, and a clean, minimal look after installation.

🔧 Key features:

• Compatible only with Aqara H1 EU – 4-gang switches
• Improved geometry for stable mounting and proper alignment
• Clean front profile for a flush wall finish
• Optimised specifically for 3D printing

🖨 Print information:

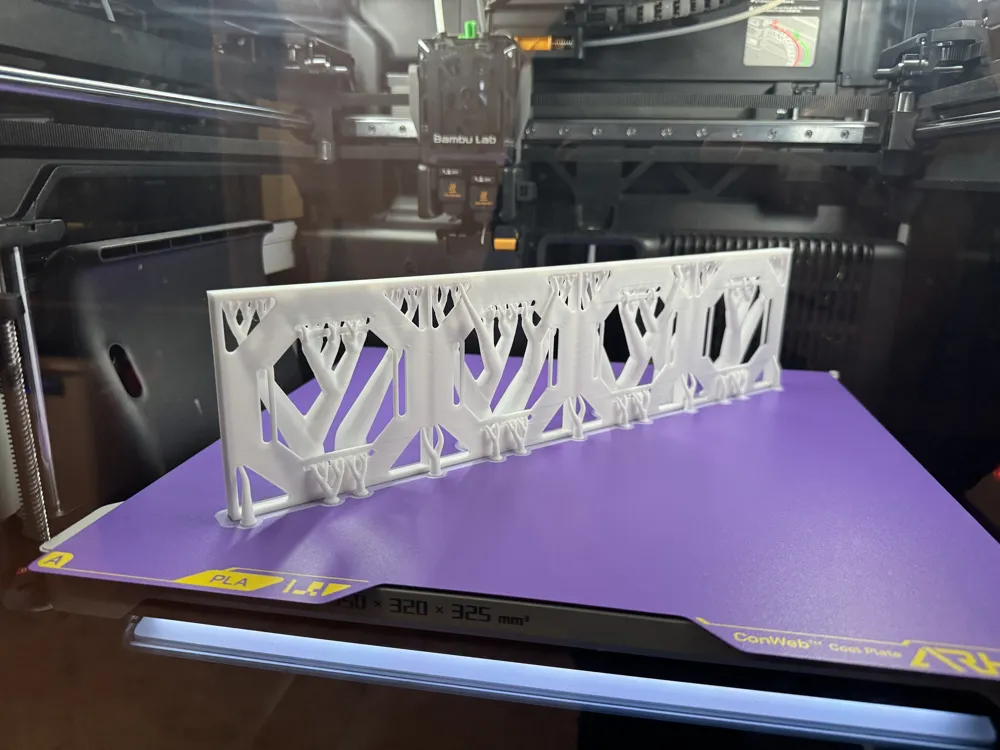

• First Print profile prepared for H2D
• Model orientation: printed vertically
• Supports enabled (required for proper geometry)
• Recommended materials: PLA / PETG / ABS
• Layer height: 0.16–0.20 mm
• Walls: 2–3 perimeters
• Infill: 15%

📌 Credits:

Original design by Jakub Kasperek

This model is published as a remix in compliance with MakerWorld remix guidelines.
