Vorwerk VC100 wall mount and protection plate

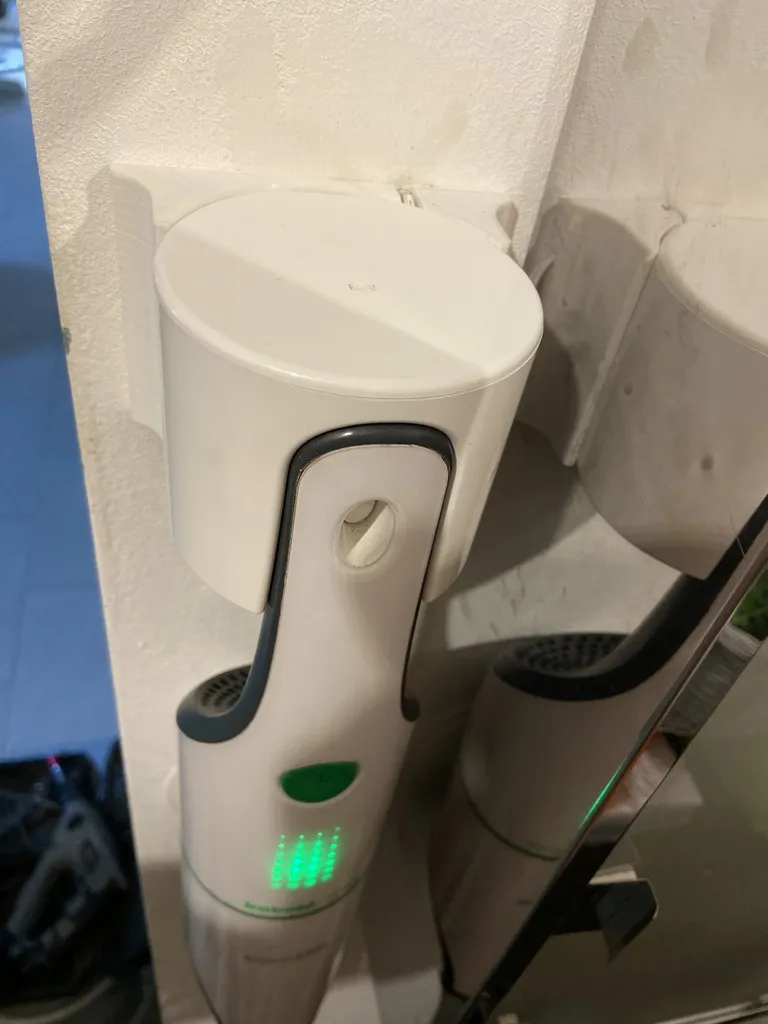

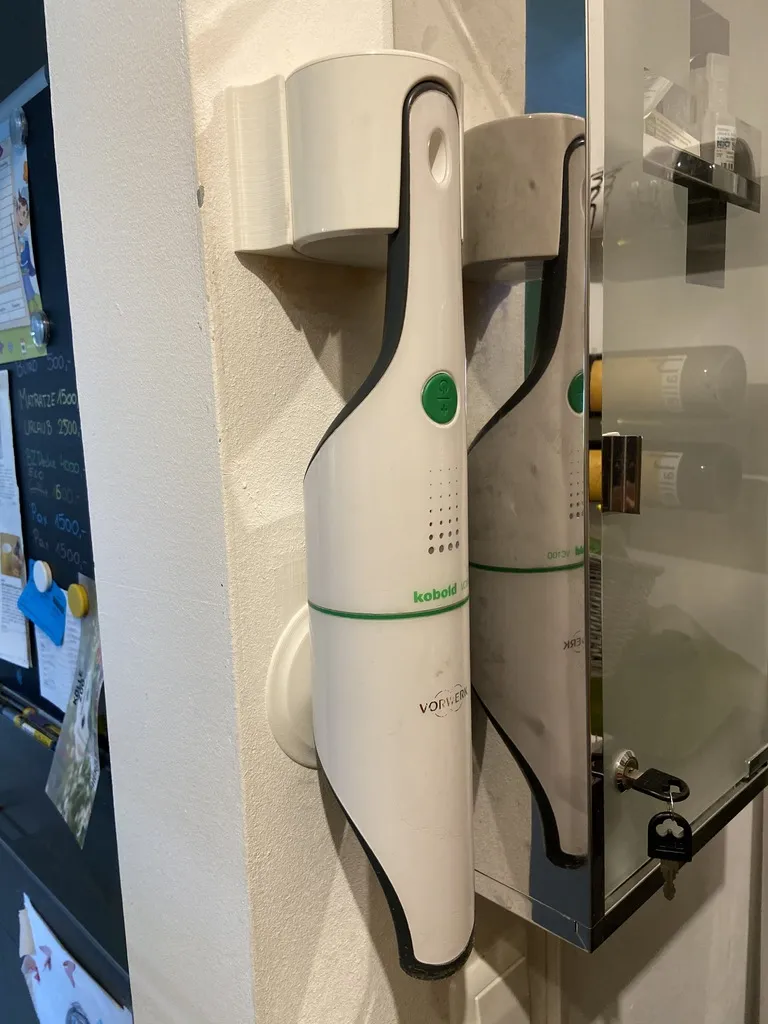

📌 Wall Support for Vacuum Cleaner Docking Station

I always had trouble removing the vacuum cleaner from its wall-mounted charging dock.
The contact area between the docking station and the wall is very small, which caused the dock to become loose over time and even damage the wall behind it.

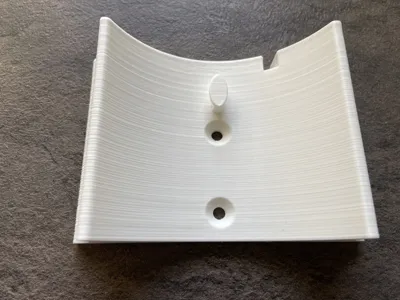

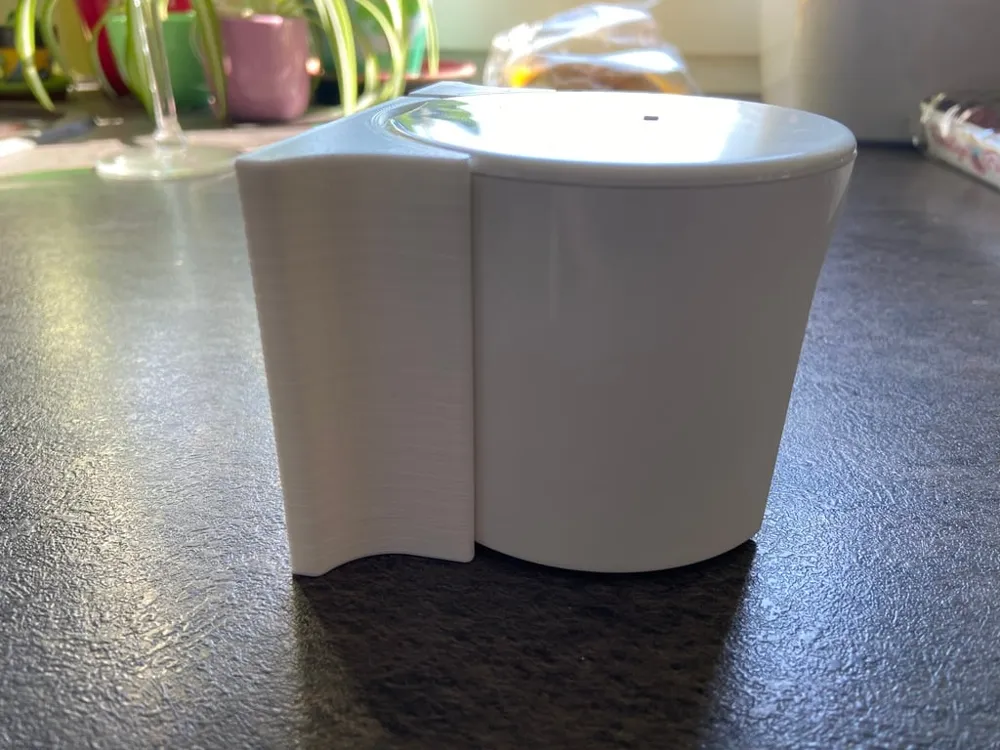

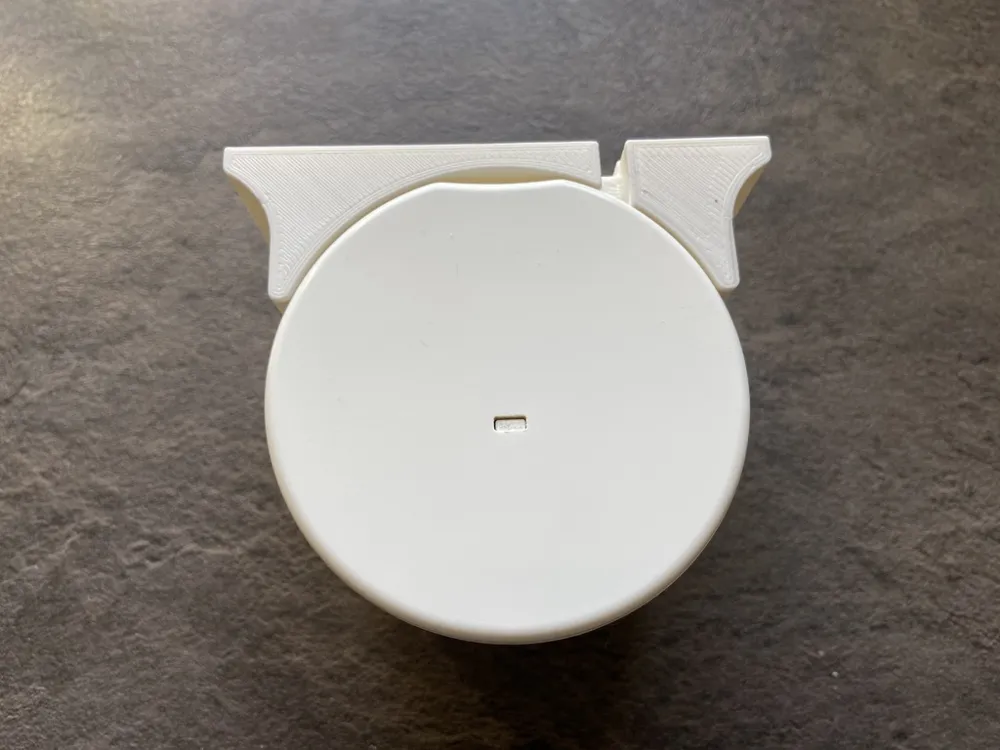

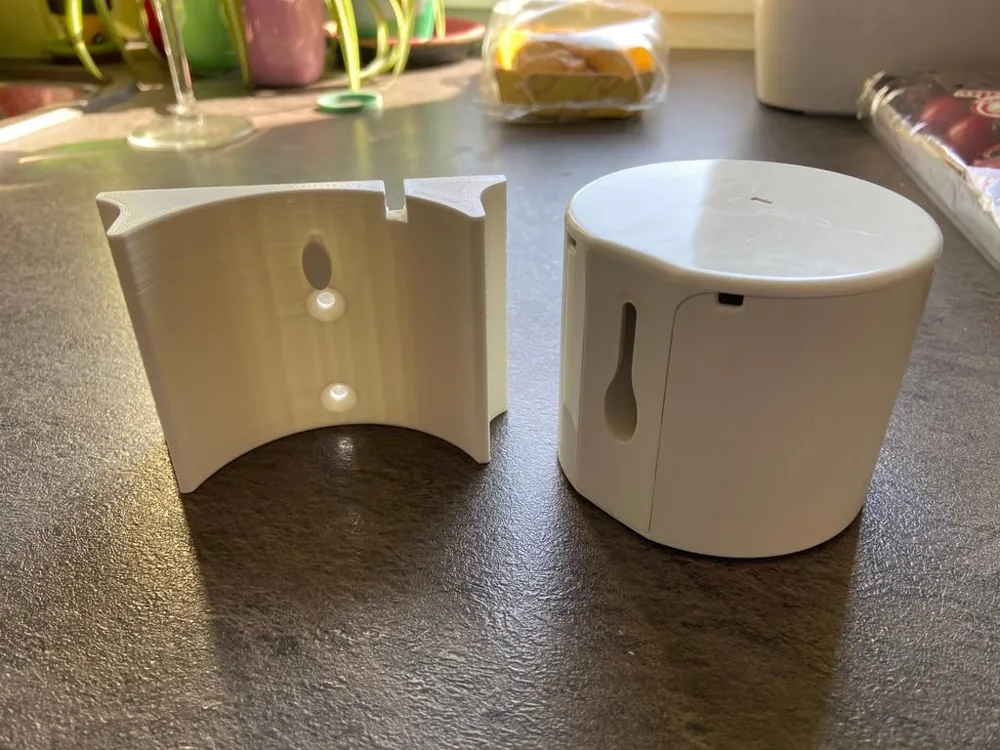

To solve this, I designed a wall support that significantly increases the contact surface between the docking station and the wall.
This provides better stability, protects the wall, and makes docking and undocking the vacuum cleaner much more comfortable.

This is my first 3D design, and it was created with simplicity and functionality in mind. 🙂

🖨️ Printing Instructions

• Print orientation:

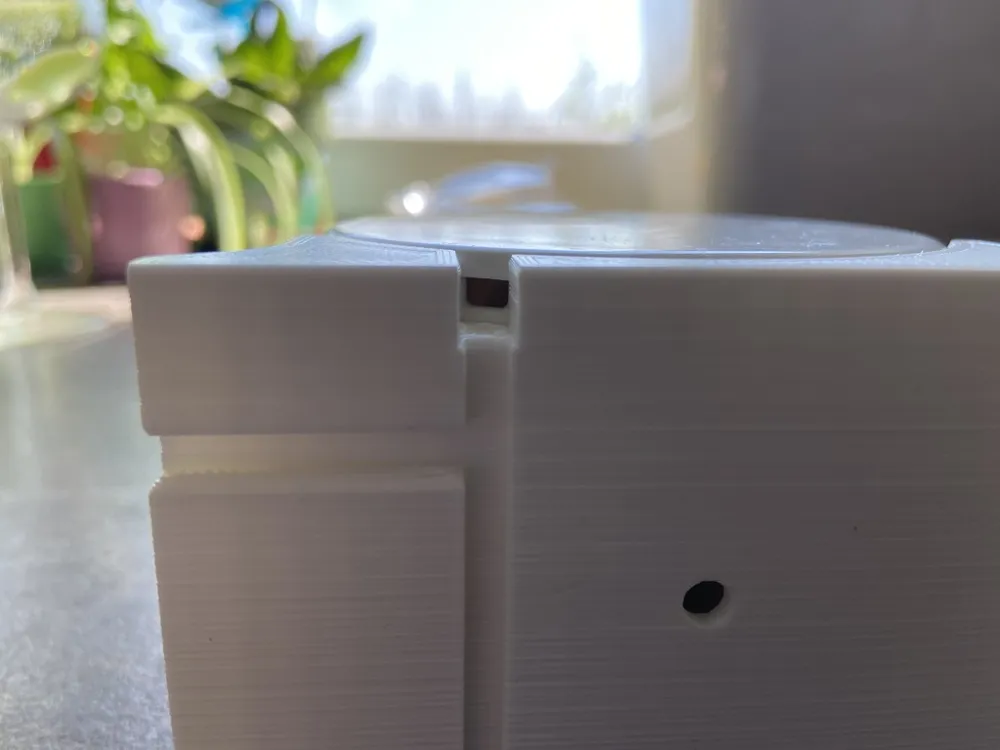

  Print the model upside down to minimize the required supports for the knob and the vertical cable guide.
• Perimeters / Shells:
  Print with 4 walls, 4 top layers, and 4 bottom layers for maximum strength and durability.

⚙️ Print Settings

• Printer: Artillery Genius
• Layer height: 0.2 mm
• Infill: 15%
• Supports: Yes
• Raft: No
• Filament material: PLA
• Filament brand: Polymaker
• Filament color: White
