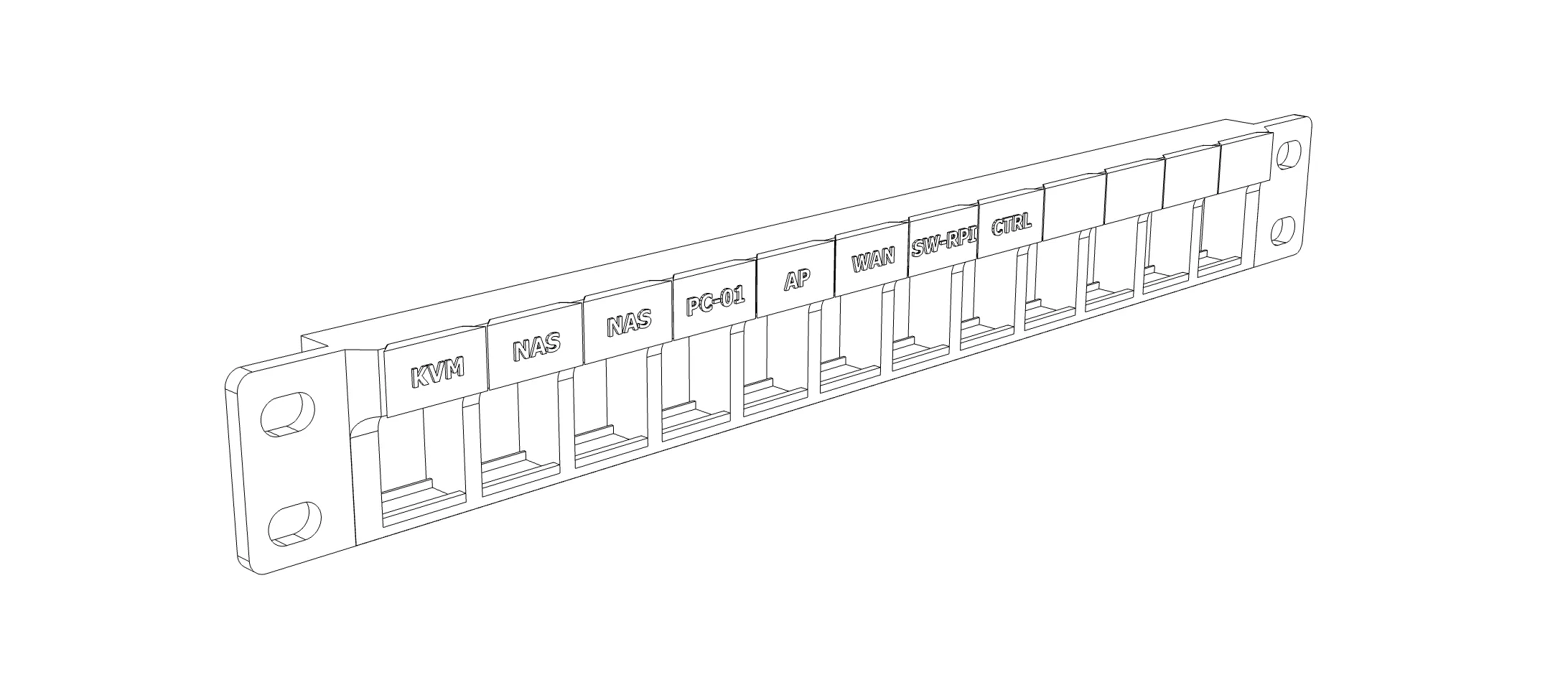

Patch Keystones Panel 2/3U - for 10 inch KWS Rack
Print Profile(3)
Description
Check out my full KWS Rack v2 project for the complete modular rack ecosystem.

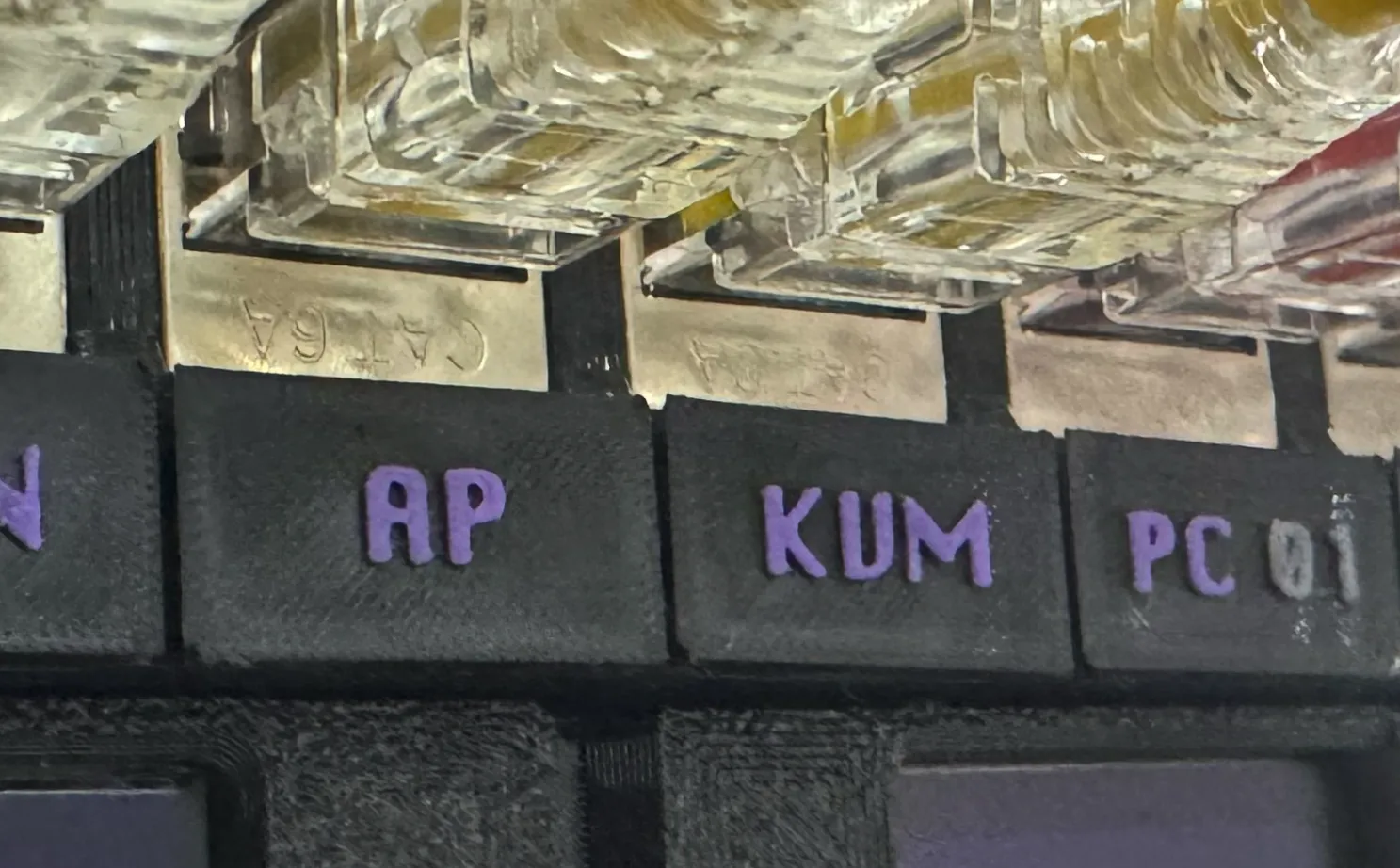

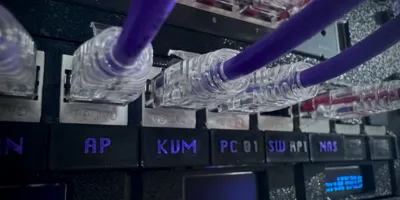

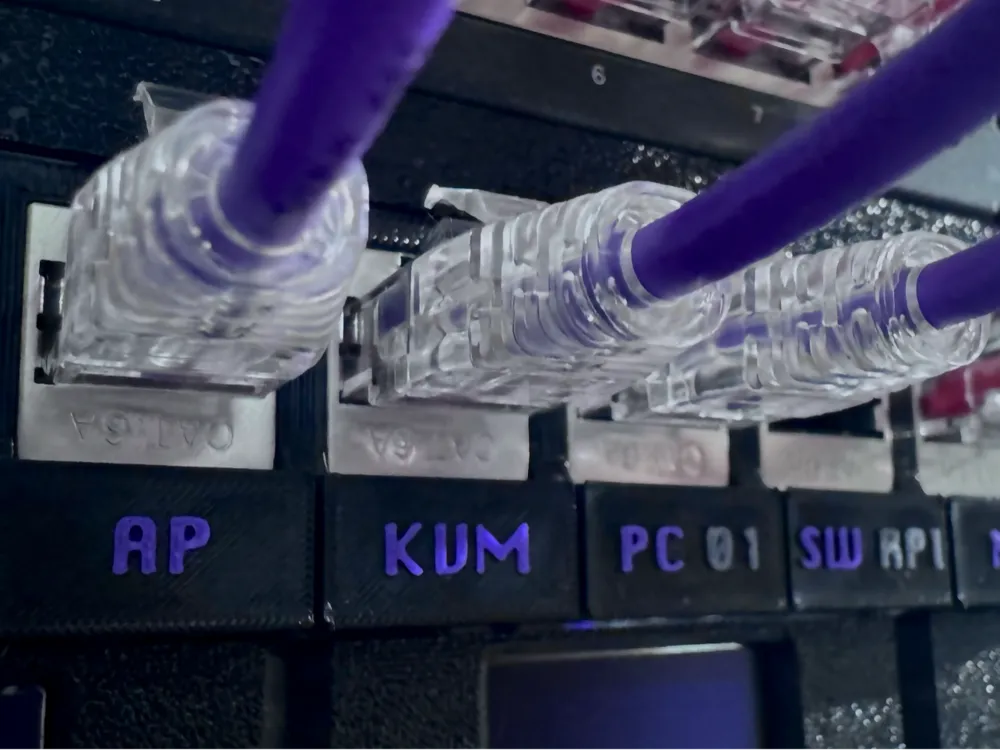

This patch panel features magnetic labels, allowing you to clearly mark each keystone with its corresponding connection. Labels snap in place magnetically and can be easily rearranged as your setup evolves.
𧲠Magnets Required
Youâll need 6Ă2 mm round magnets (example).
Recommended quantities:
- 12Ă magnets â panel
- 12Ă magnets â labels
- â Strongly recommended: order a few extras
đ¨ď¸ Printing Notes
- Panel
- Printed with 0.4 mm nozzle
- Requires some supports (already configured)
- Labels
- Printed with 0.2 mm nozzle for sharper text
â ď¸ Important:
Both print profiles include planned pauses to insert the magnets.
Make sure to double-check magnet polarity before inserting - orientation matters.
Share your MAKES â¤ď¸
Â
Boost Me (for free)
đ KWS Rack will always be free!
If you like the model and want to support my work,
feel free to give it a BOOST đ
