Mounting feet for Laser (Atomstack X20)
Print Profile(1)
Description

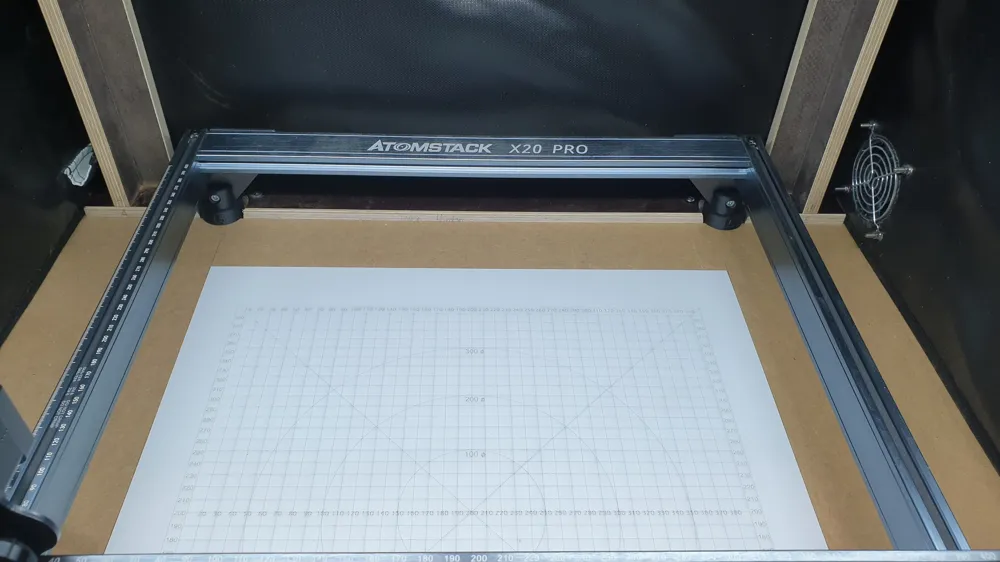

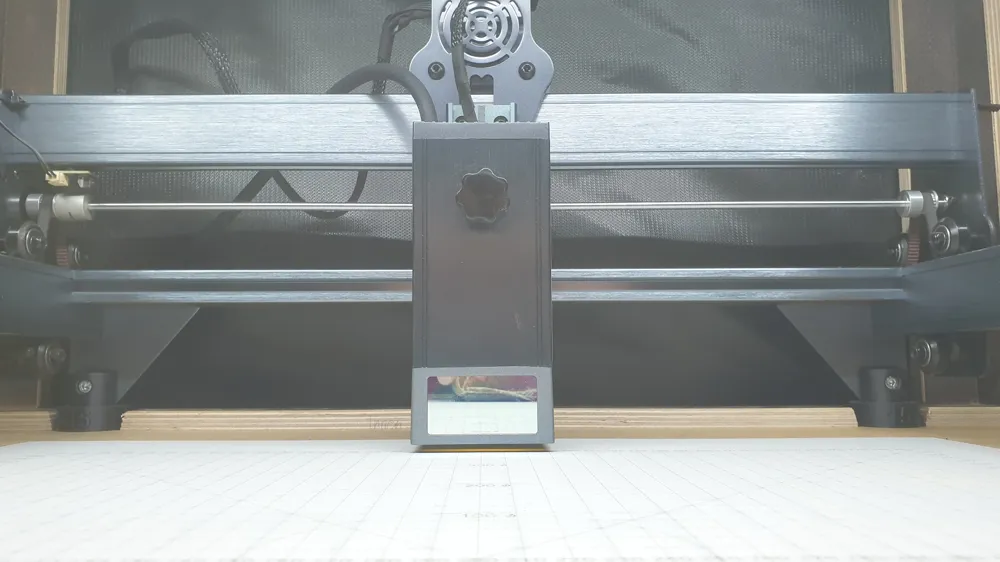

The purpose of these stackable feet is to adjust the height of a laser engraving machine (Atomstack X20) without changing its position

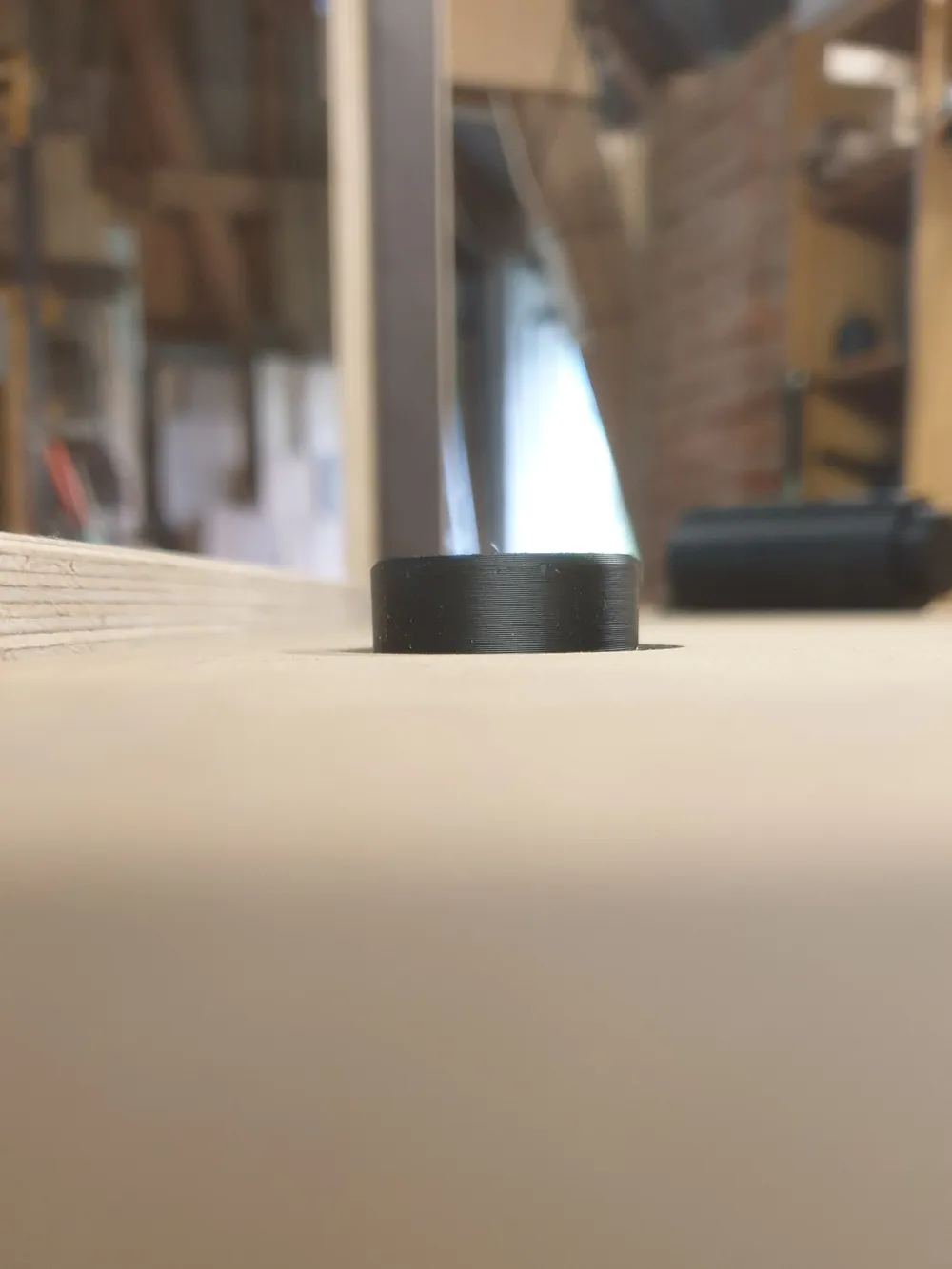

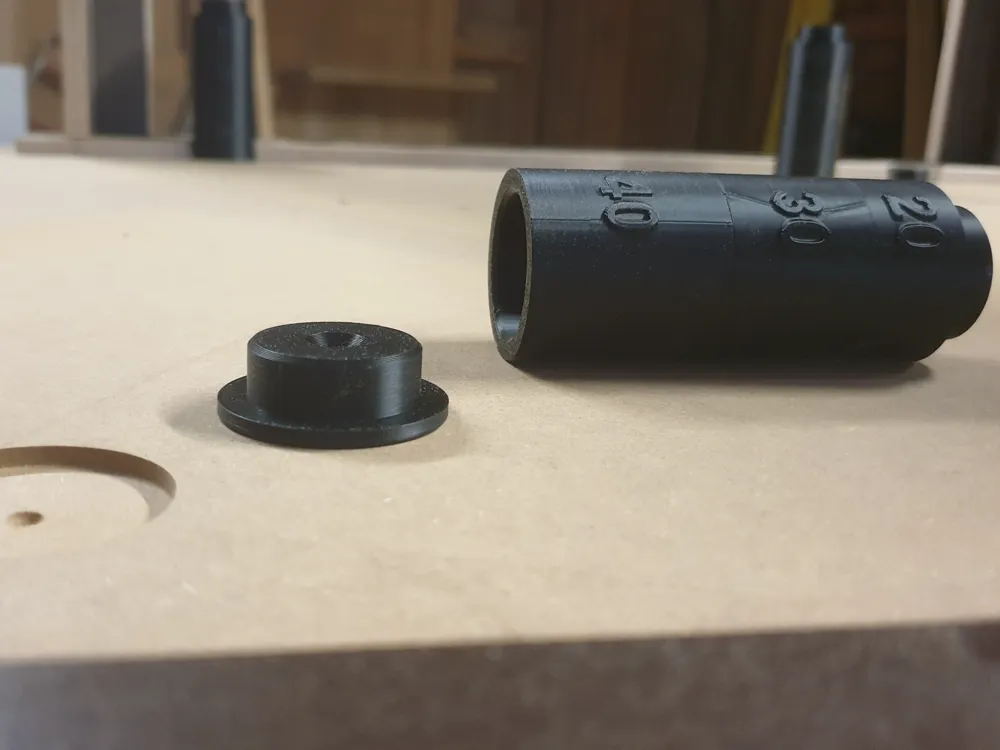

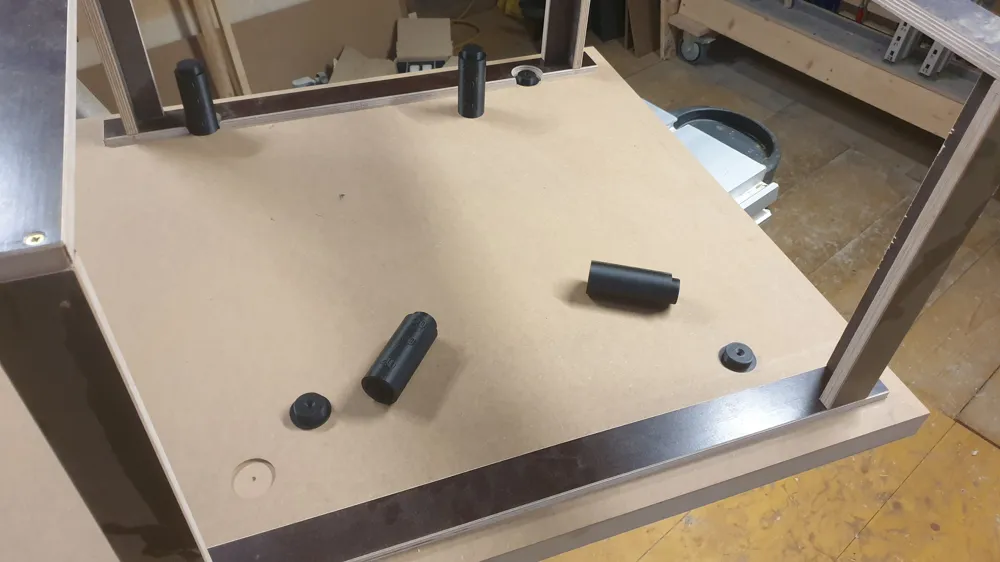

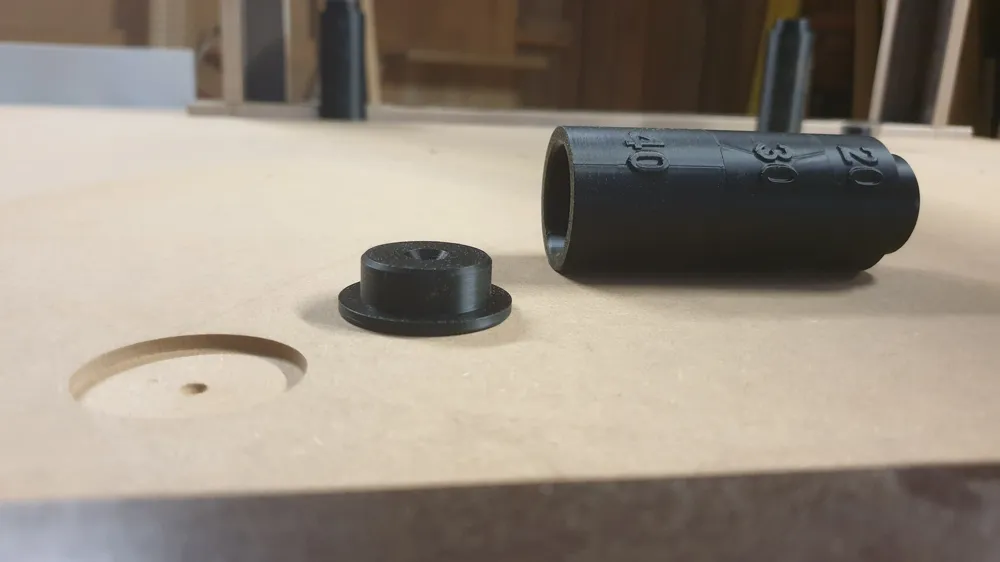

Due to the cylindrical design, the bottom foot can be easily integrated into a plate (40mm drill or milling) and fixed with a screw

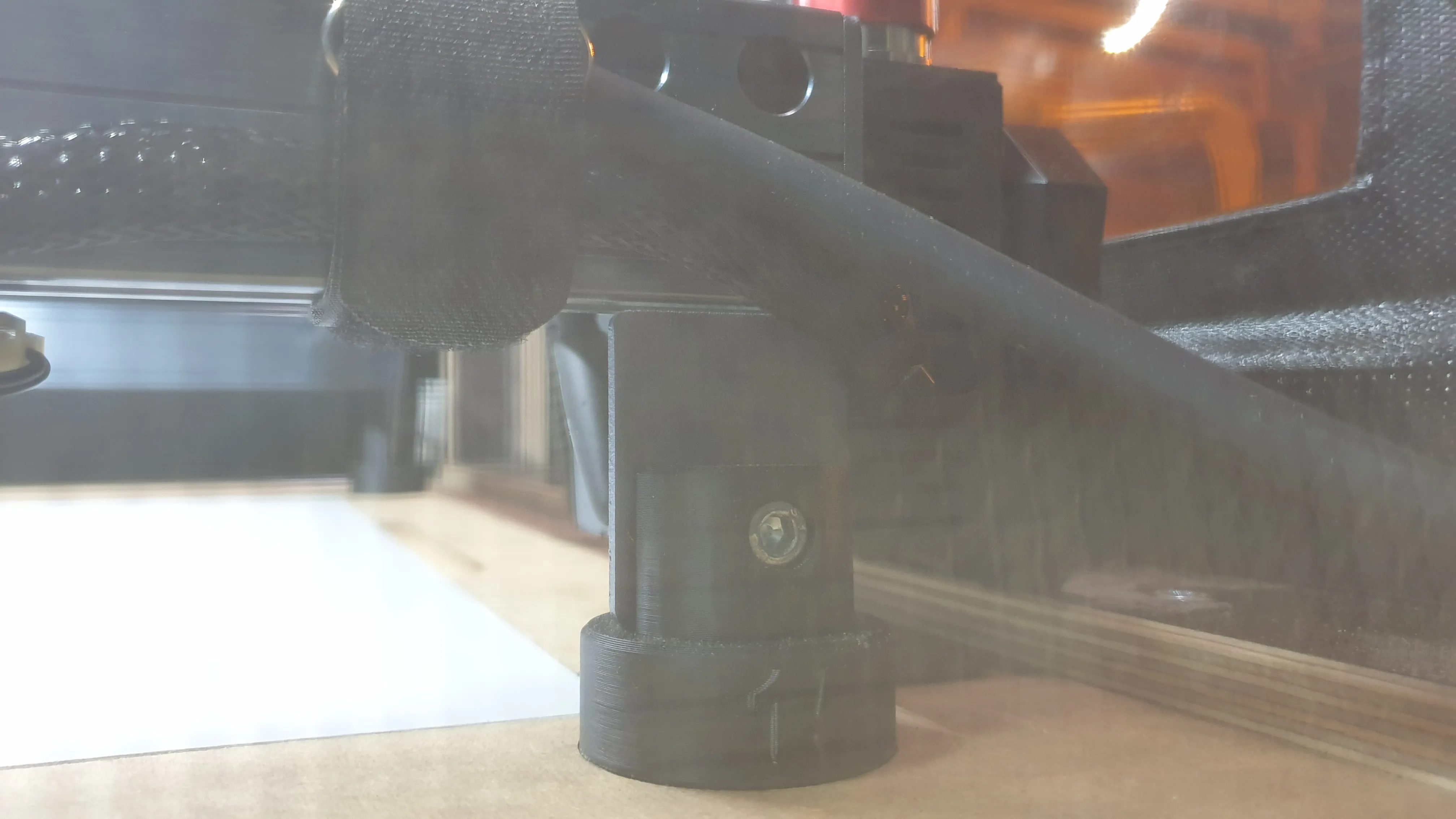

The top foot can be screwed directly to the laser
Please note that you need to drill a hole (5mm) into the frame of the laser (Model X20) to mount all four feet
Atomstack itself offers feet for this laser (Model X20), but these also lack the aforementioned hole for the front left foot

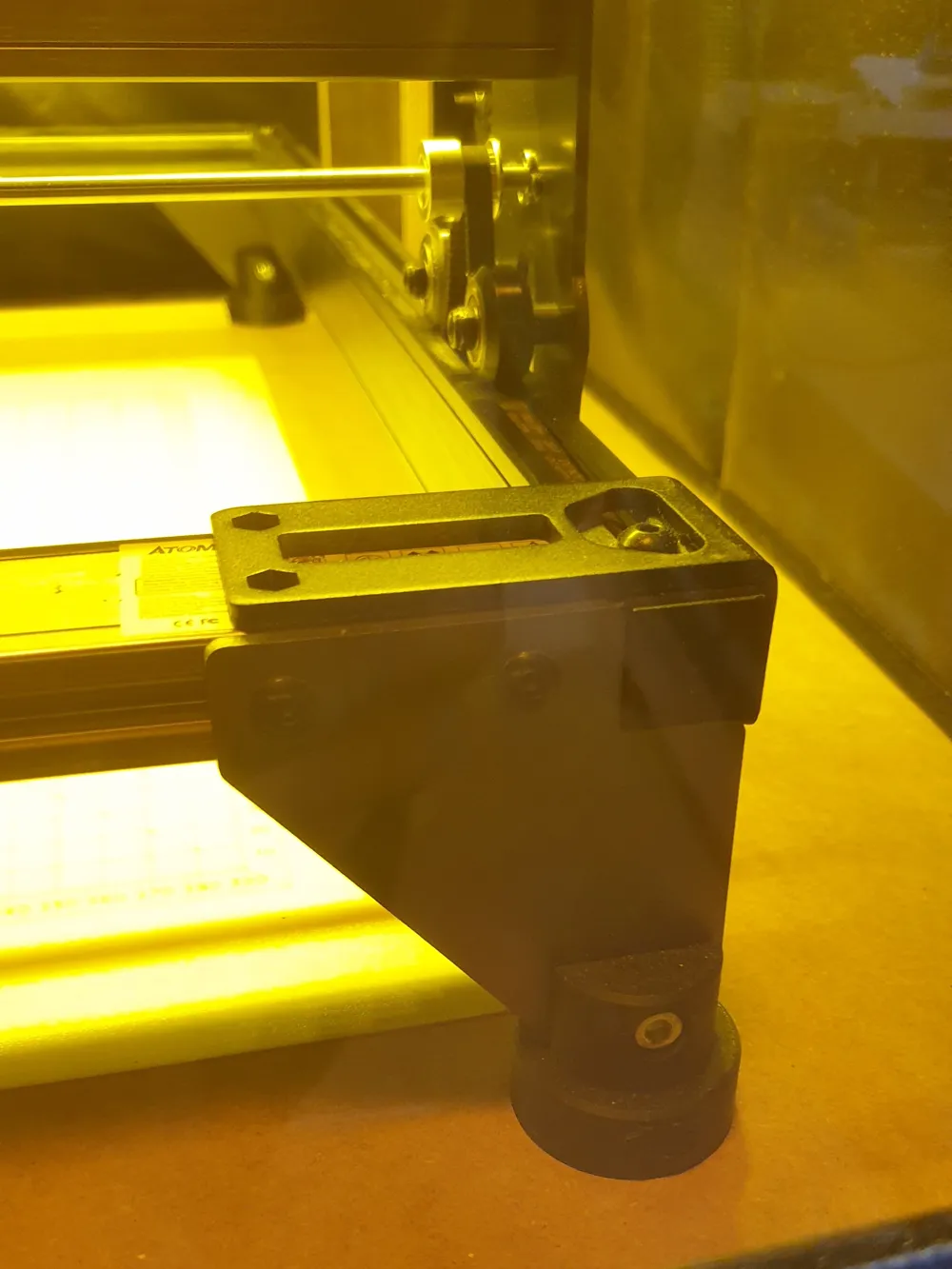

Here in this picture you can see this "problem foot" whose hole still needs to be drilled

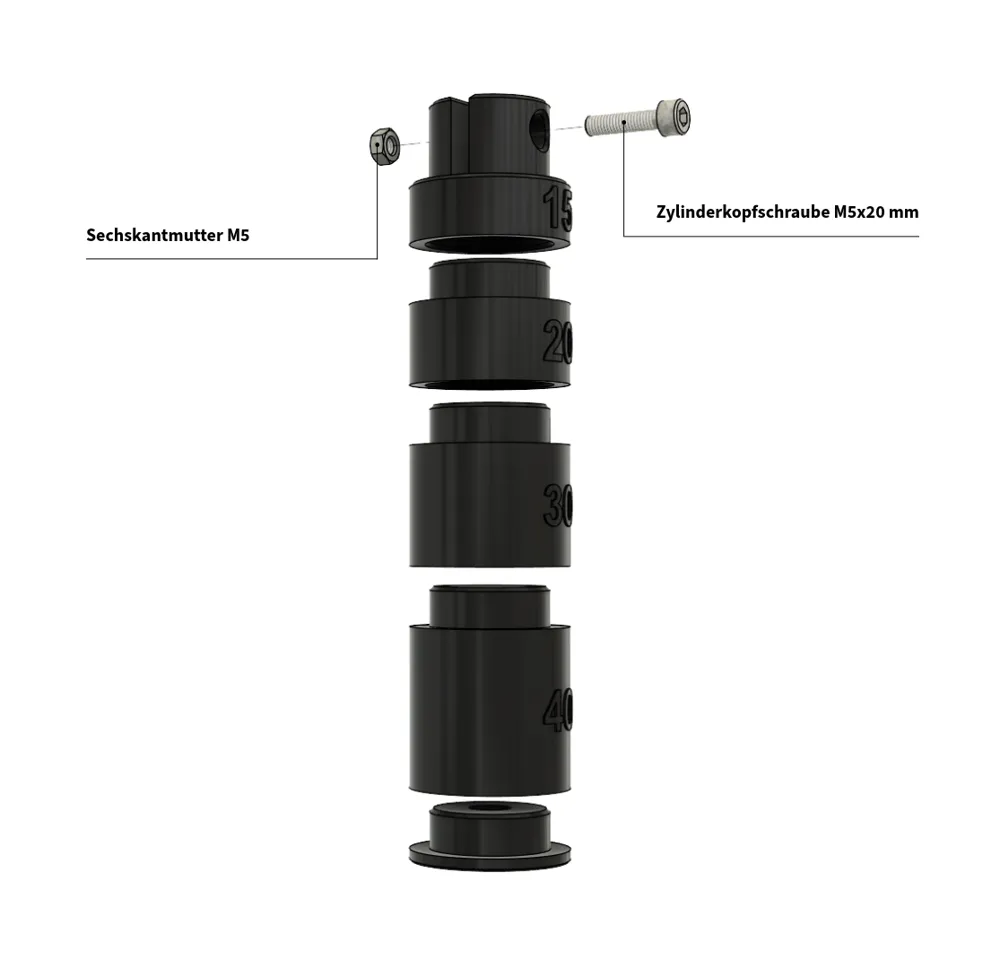

More detailed information regarding dimensions, screws and assembly can be found in the pictures, perhaps another use for it can also be found
Should these mounting feet also bring you joy and make working with the laser easier..? Then I would appreciate a thumbs up
You are welcome to check out my other works,
there you will also find a fixture for Atomstack's honeycomb plate
In this sense
Thank you
