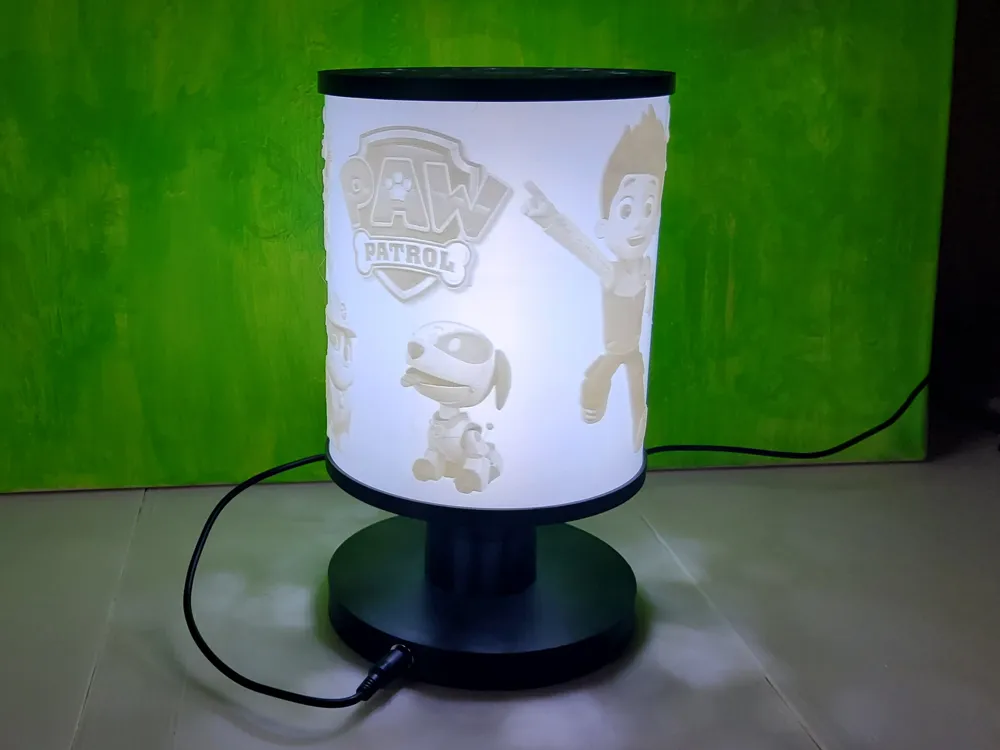

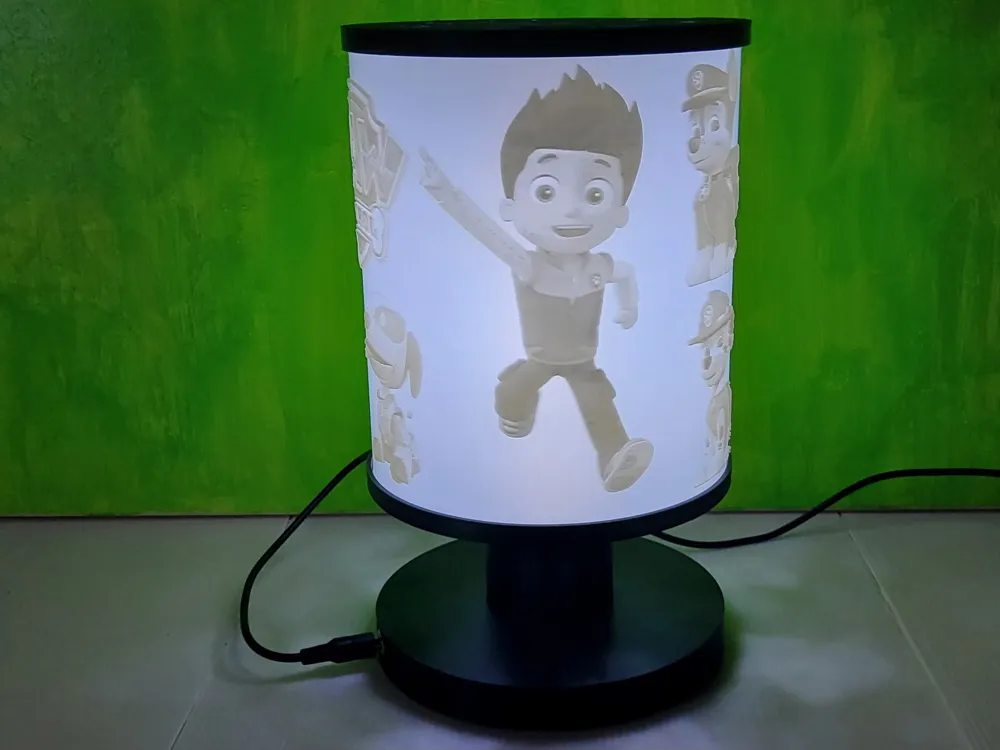

Paw Patrol Lamp

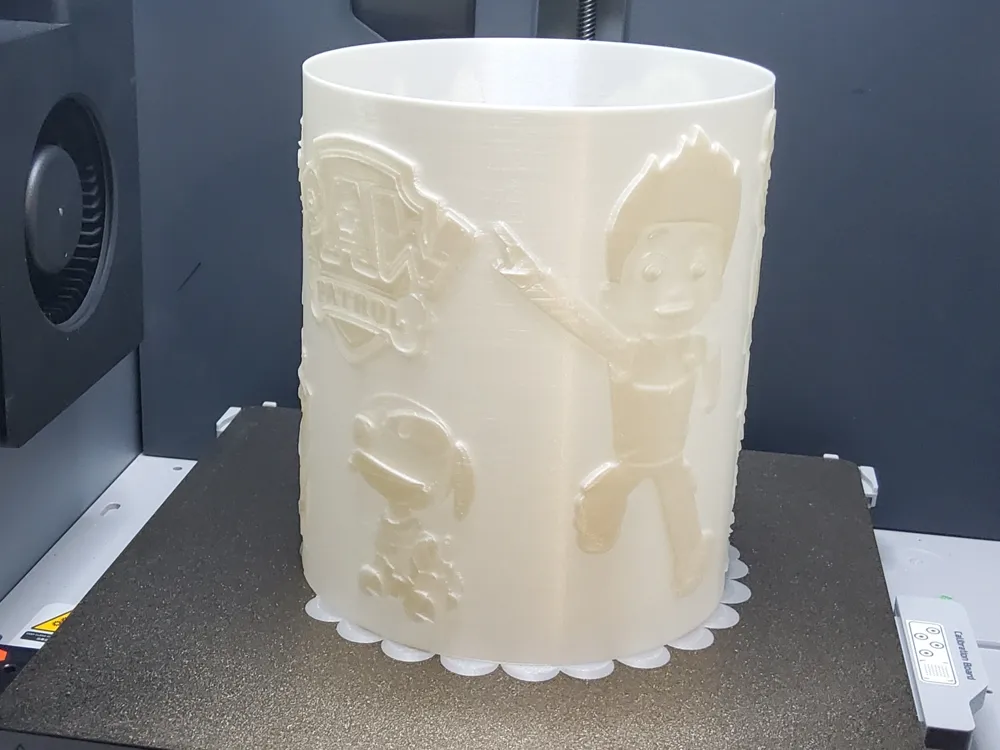

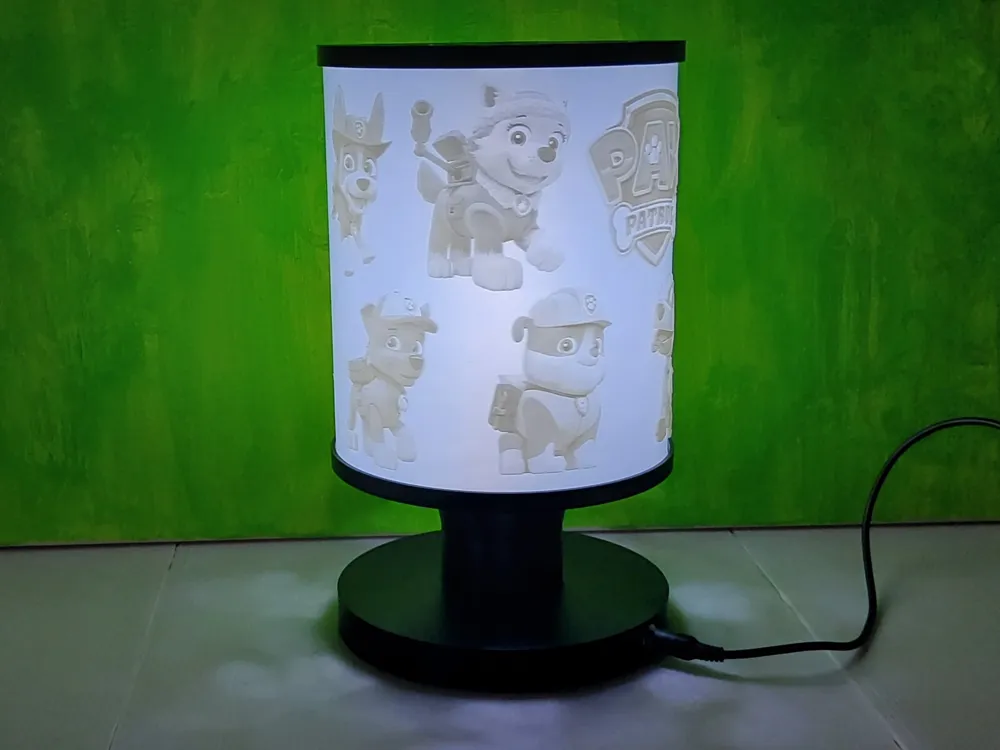

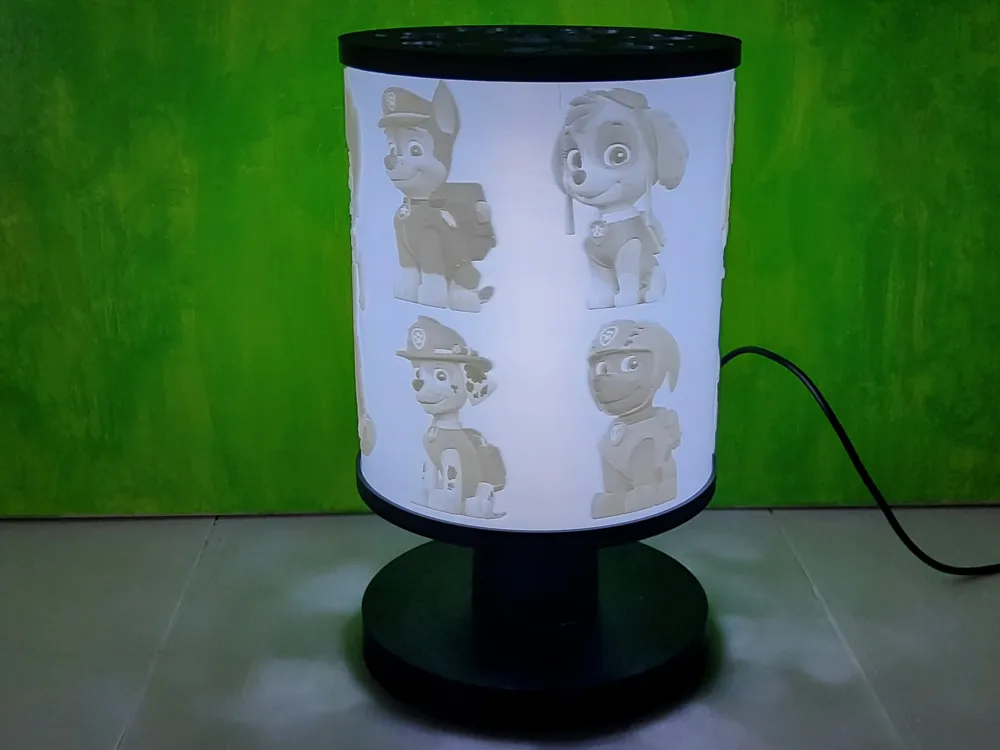

Here I have created this beautiful Paw Patrol lamp in a lithophane style.
The lamp is printed in 6 print plates in black and white.
So it can be printed without AMS and is easy to print. The foot and the LED holder have easily removable supports.
The lamp is approx. 25 cm high and approx. 15 cm in diameter.

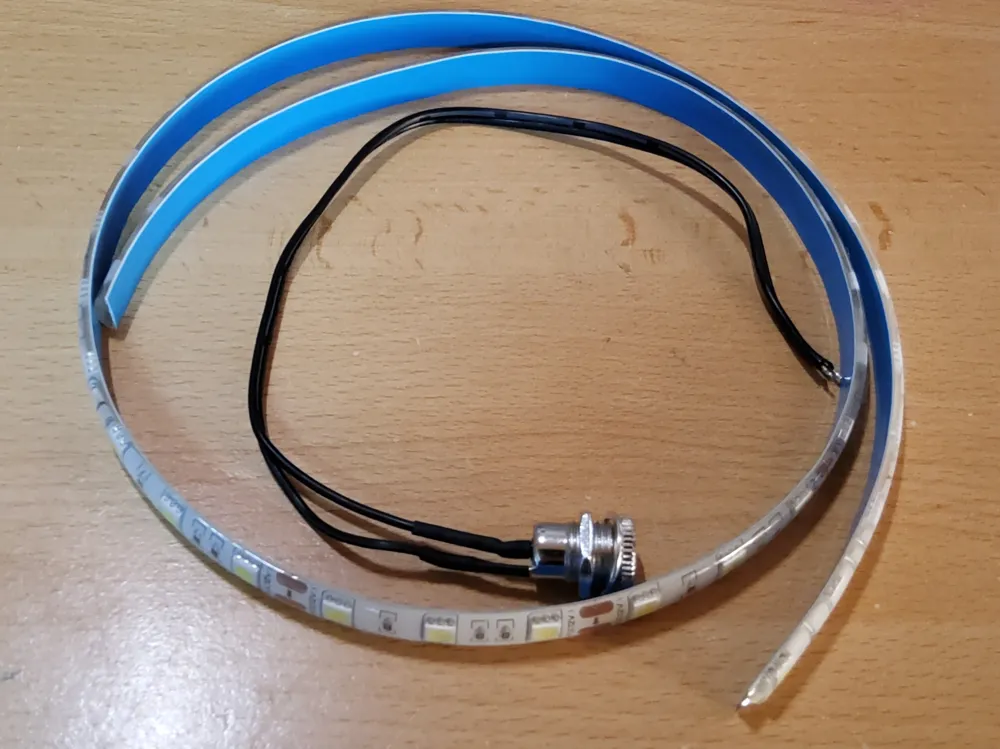

For the electronics, I used a 12V LED strip 60 cm, a cable 24 cm, and a 5.5x2.1mm DC power jack.

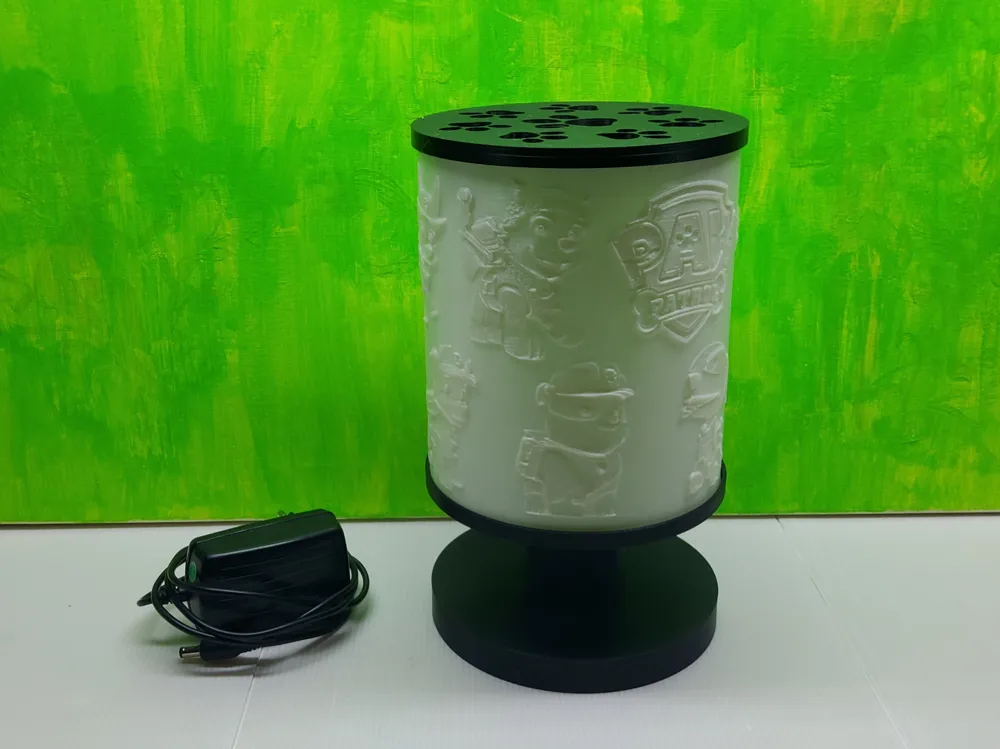

I also used a 12V power supply.

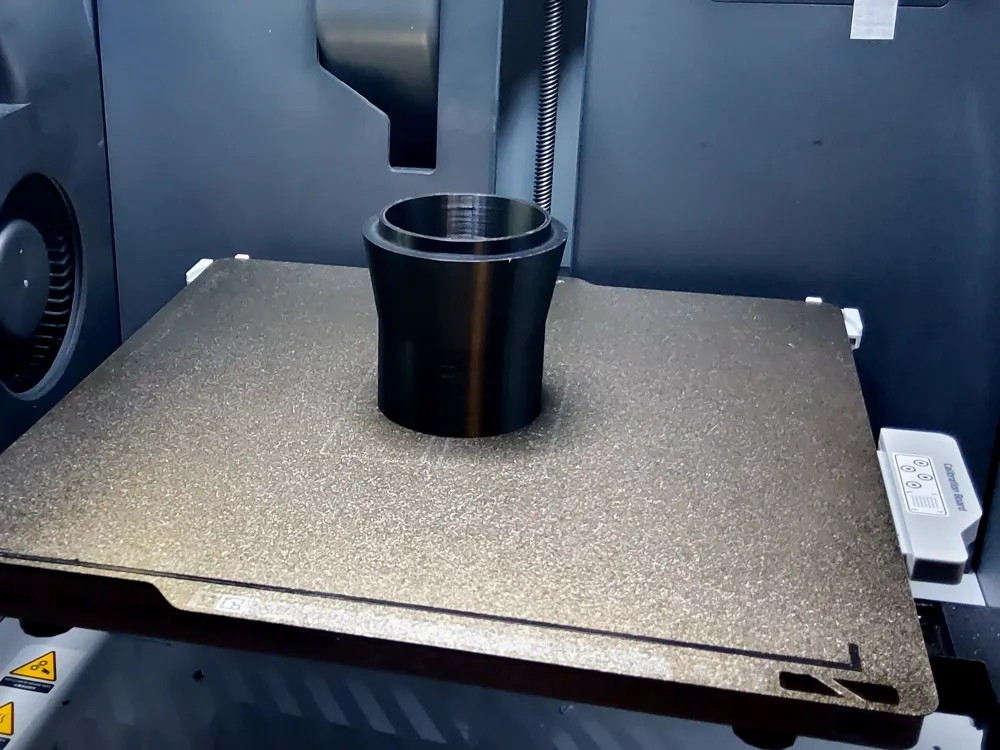

For assembly, I first printed the foot, soldered the jack and cable, and screwed them into the foot.
The hole is square inside so that the nut of the jack is held when screwed in. I made the cable a bit longer so that the LED strip can be easily replaced if it breaks.

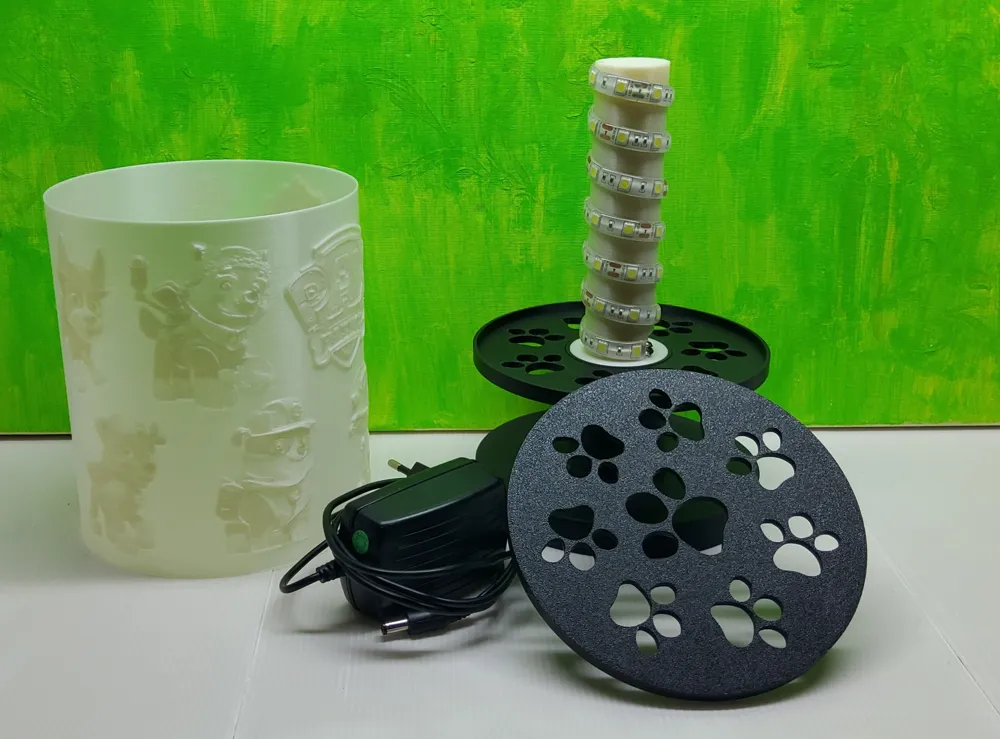

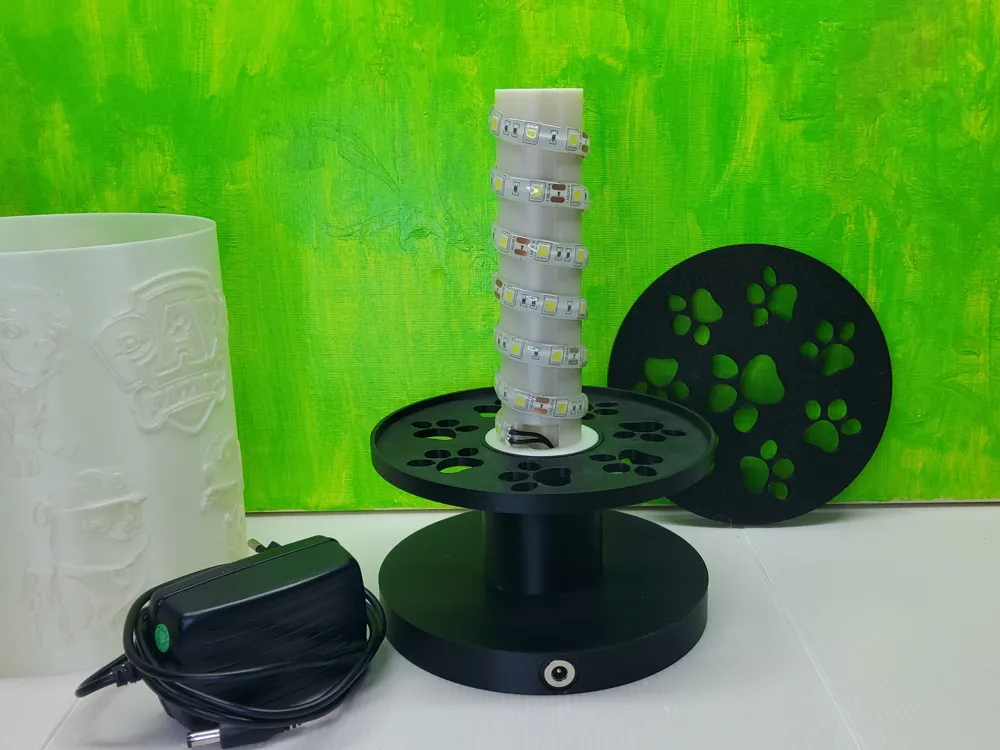

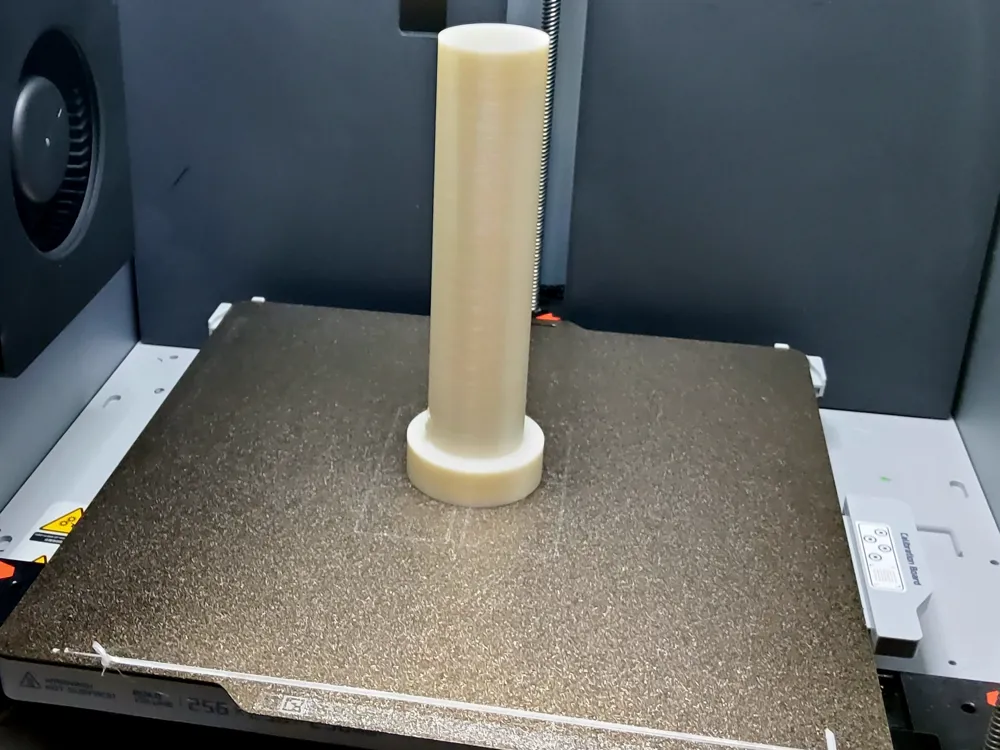

I glued the foot stem, LED holder, and bottom of the lamp.

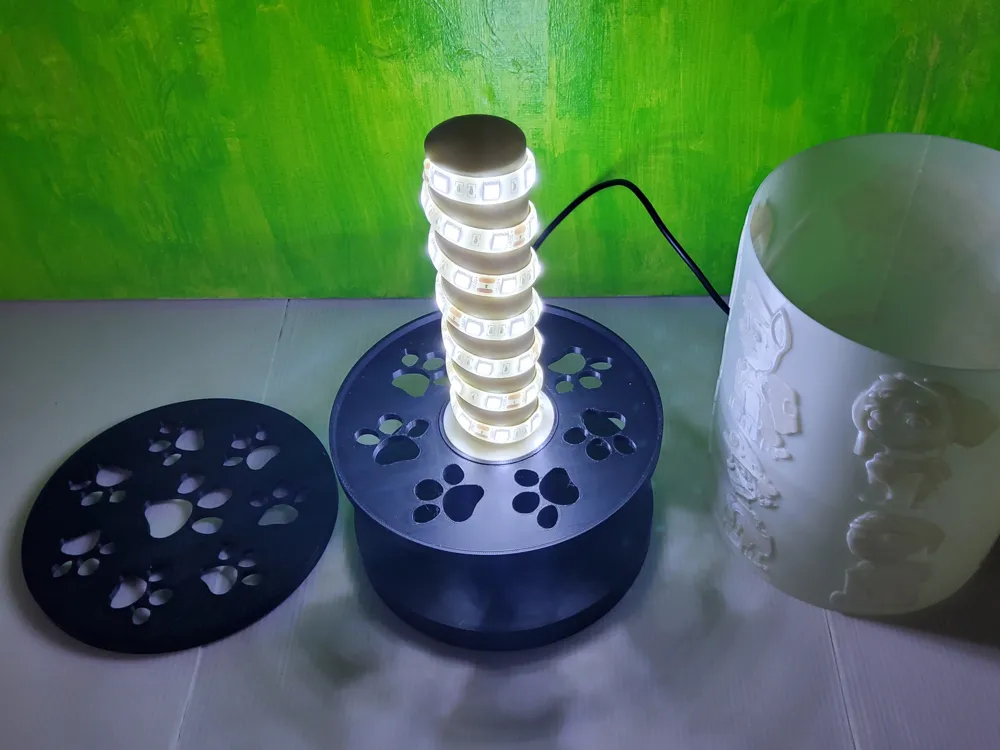

I only placed the lithophane image and cover. This makes it easier to access the LED strip if it ever breaks.

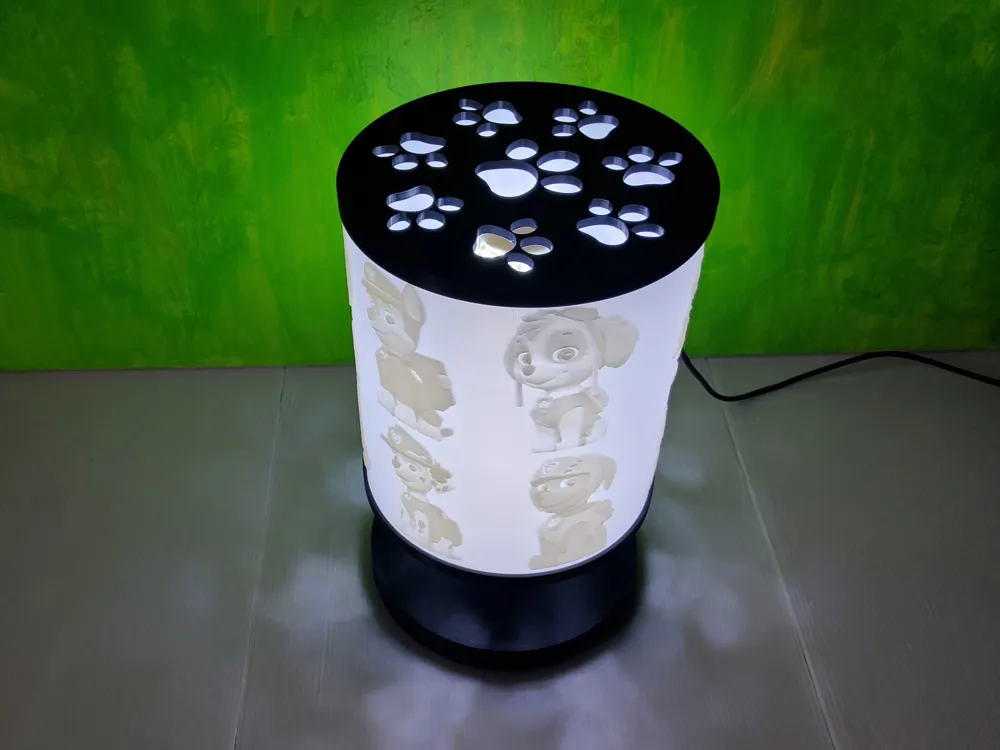

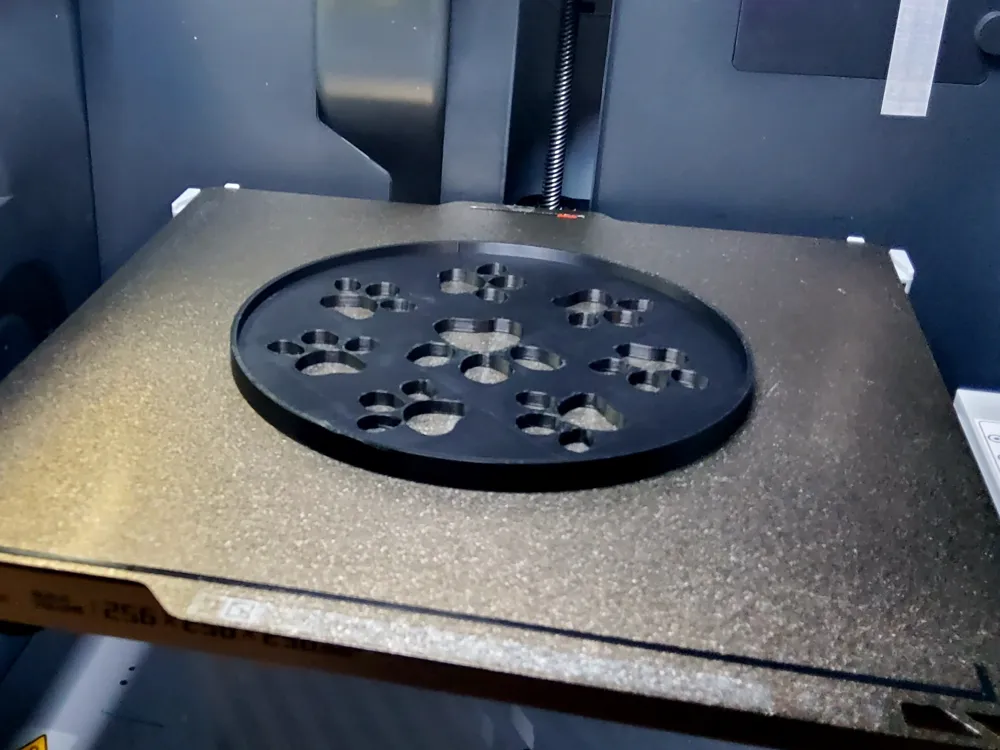

The bottom and the lid have ventilation holes in the shape of dog paws.
