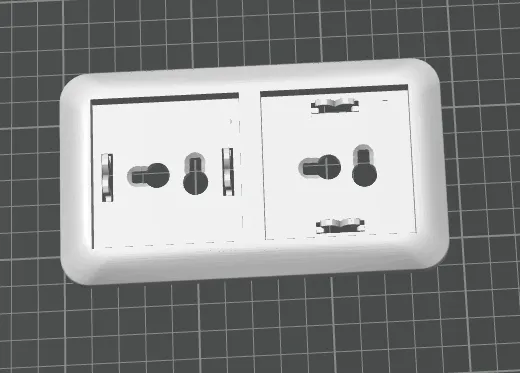

Wall lines 3 and infill optimized

<h4>Diese 3D-gedruckte Wandhalterung ermöglicht die <strong>Montage von zwei Homematic IP Geräten</strong>, wahlweise <strong>nebeneinander oder übereinander</strong>.<br>Die Halterung nutzt die <strong>originale Homematic-IP-Klickaufnahme</strong>, wodurch die Geräte <strong>sicher einrasten</strong> und jederzeit <strong>werkzeuglos entnommen</strong> werden können – ideal für den <strong>Batteriewechsel</strong>.</h4><h4>Die Rastnasen wurden <strong>real gedruckt und getestet</strong> und bieten einen zuverlässigen Halt.</h4><h4>Kompatibilität (baugleich)</h4><h4>✔ <strong>HmIP-WTH-1 / WTH-2</strong> (Wandthermostate)<br>✔ <strong>HmIP-WRC1 / WRC2 / WRC4 / WRC6</strong> (Wandtaster)</h4><h4>Montage</h4><ul><li><h4>Montage <strong>nebeneinander oder übereinander</strong></h4></li><li><h4>Befestigung an der Wand über Schrauben oder geeignete Klebepads (nicht enthalten)</h4></li><li><h4>Geräte werden von oben eingesetzt und unten eingerastet</h4></li><li><h4>Leichtes Abziehen nach oben möglich (kein Werkzeug erforderlich)</h4><h4> </h4></li></ul><h4><strong>Druckhinweise (wichtig)</strong></h4><ul><li><h4><strong>Stützstrukturen sind erforderlich.</strong></h4></li><li><h4>Empfohlene Einstellungen:</h4></li><li><h4><strong>Material:</strong> PLA oder PETG<br><i>(PETG empfohlen bei häufiger Demontage</i></h4></li></ul>

<h4>This 3D-printed wall mount allows for the <strong>mounting of two Homematic IP devices</strong>, either <strong>side by side or one above the other</strong>.<br>The mount uses the <strong>original Homematic IP click-in mechanism</strong>, which means the devices <strong>lock securely into place</strong> and can be <strong>removed without tools</strong> at any time – ideal for <strong>battery changes</strong>.</h4><h4>The locking tabs have been <strong>actually printed and tested</strong> and provide a reliable hold.</h4><h4>Compatibility (identical construction)</h4><h4>✔ <strong>HmIP-WTH-1 / WTH-2</strong> (Wall thermostats)<br>✔ <strong>HmIP-WRC1 / WRC2 / WRC4 / WRC6</strong> (Wall push-buttons)</h4><h4>Installation</h4><ul><li><h4>Installation <strong>side by side or one above the other</strong></h4></li><li><h4>Wall mounting via screws or suitable adhesive pads (not included)</h4></li><li><h4>Devices are inserted from the top and click into place at the bottom</h4></li><li><h4>Easy removal by pulling upwards (no tools required)</h4><h4> </h4></li></ul><h4><strong>Printing Notes (important)</strong></h4><ul><li><h4><strong>Support structures are required.</strong></h4></li><li><h4>Recommended settings:</h4></li><li><h4><strong>Material:</strong> PLA or PETG<br><i>(PETG recommended for frequent removal)</i></h4></li></ul>

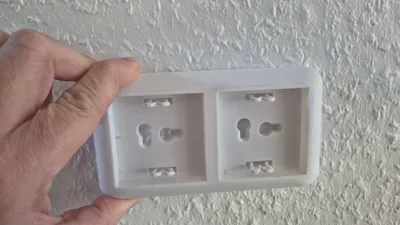

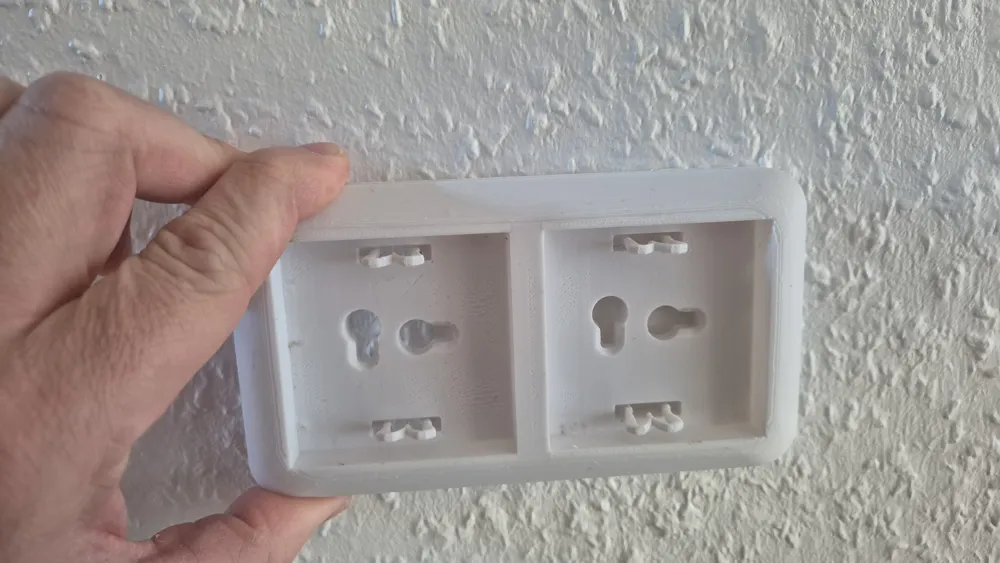

Homematic IP Wall Mount – Dual (Click-in Installation)

ASIA

Print Profile(1)

Description

The locking tabs have been actually printed and tested and provide a reliable hold.

Compatibility (identical construction)

✔ HmIP-WTH-1 / WTH-2 (Wall thermostats)
✔ HmIP-WRC1 / WRC2 / WRC4 / WRC6 (Wall push-buttons)

Installation

Installation side by side or one above the other

Wall mounting via screws or suitable adhesive pads (not included)

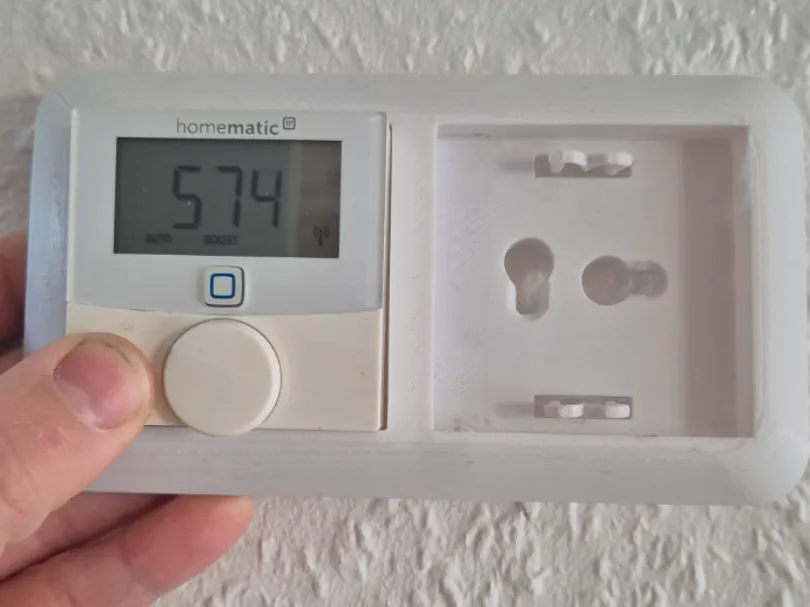

Devices are inserted from the top and click into place at the bottom

Easy removal by pulling upwards (no tools required)

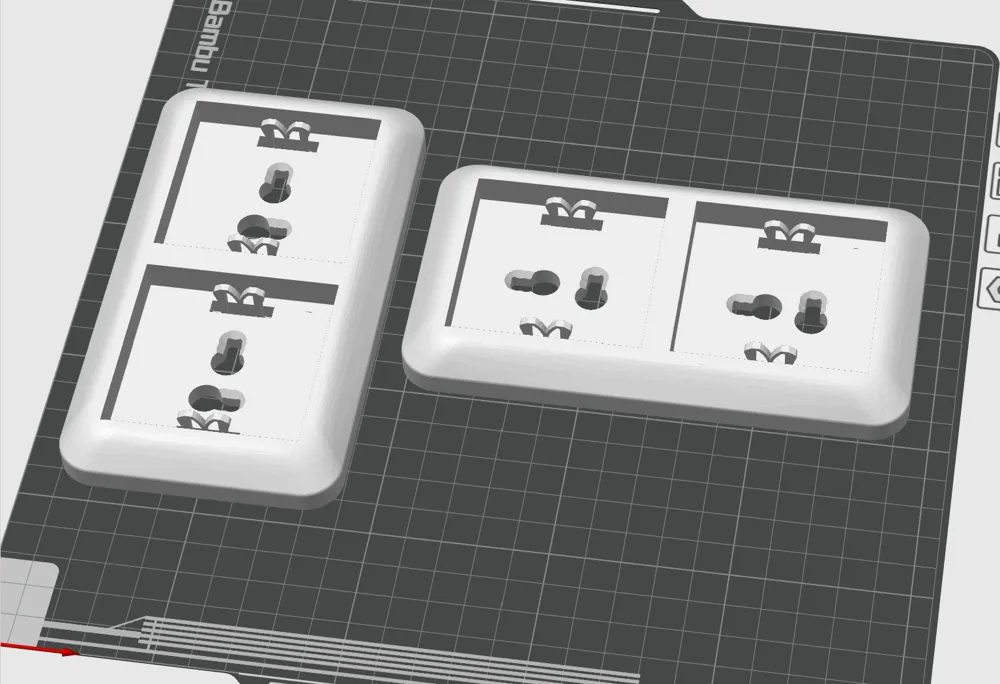

Printing Notes (important)

Support structures are required.

Recommended settings:

Material: PLA or PETG
(PETG recommended for frequent removal)
