WLtoys k989 monoshock Original+Aftermarket
Print Profile(2)
Description

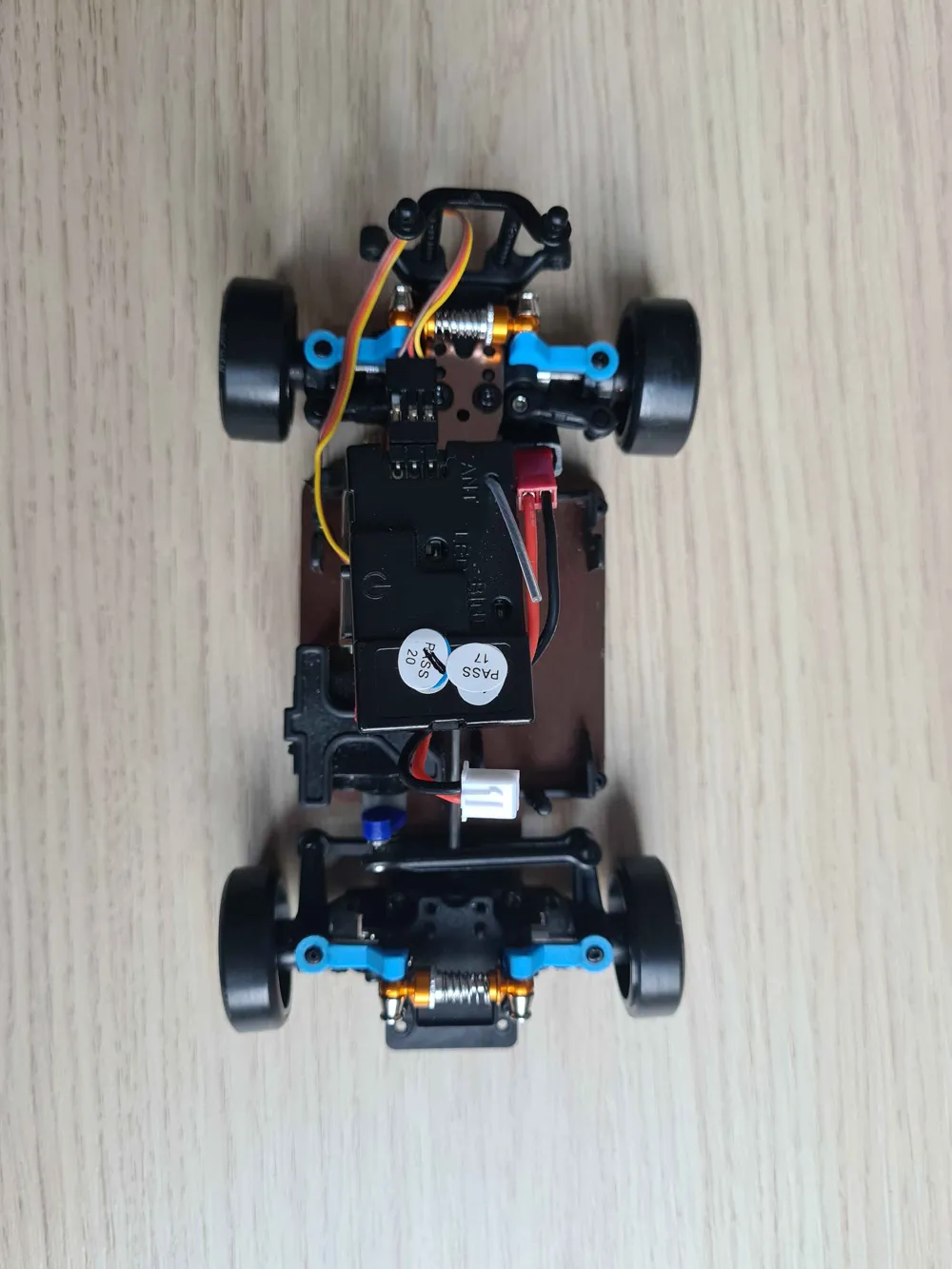

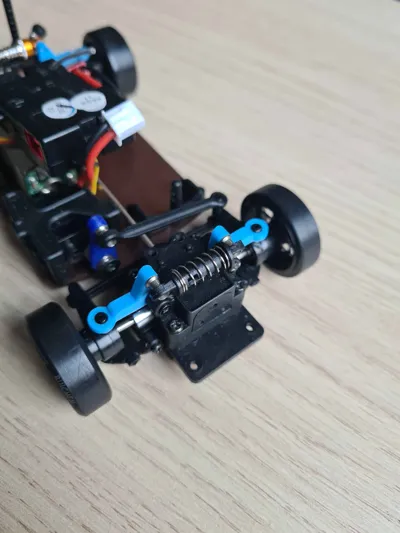

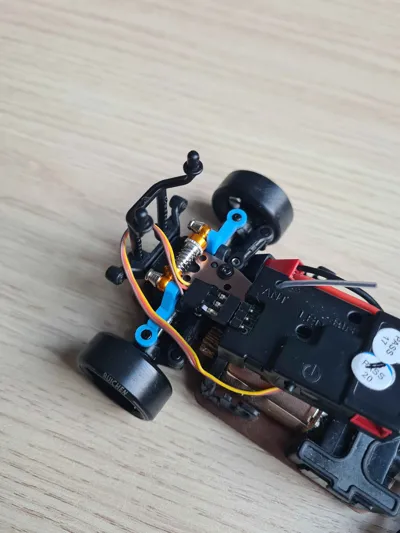

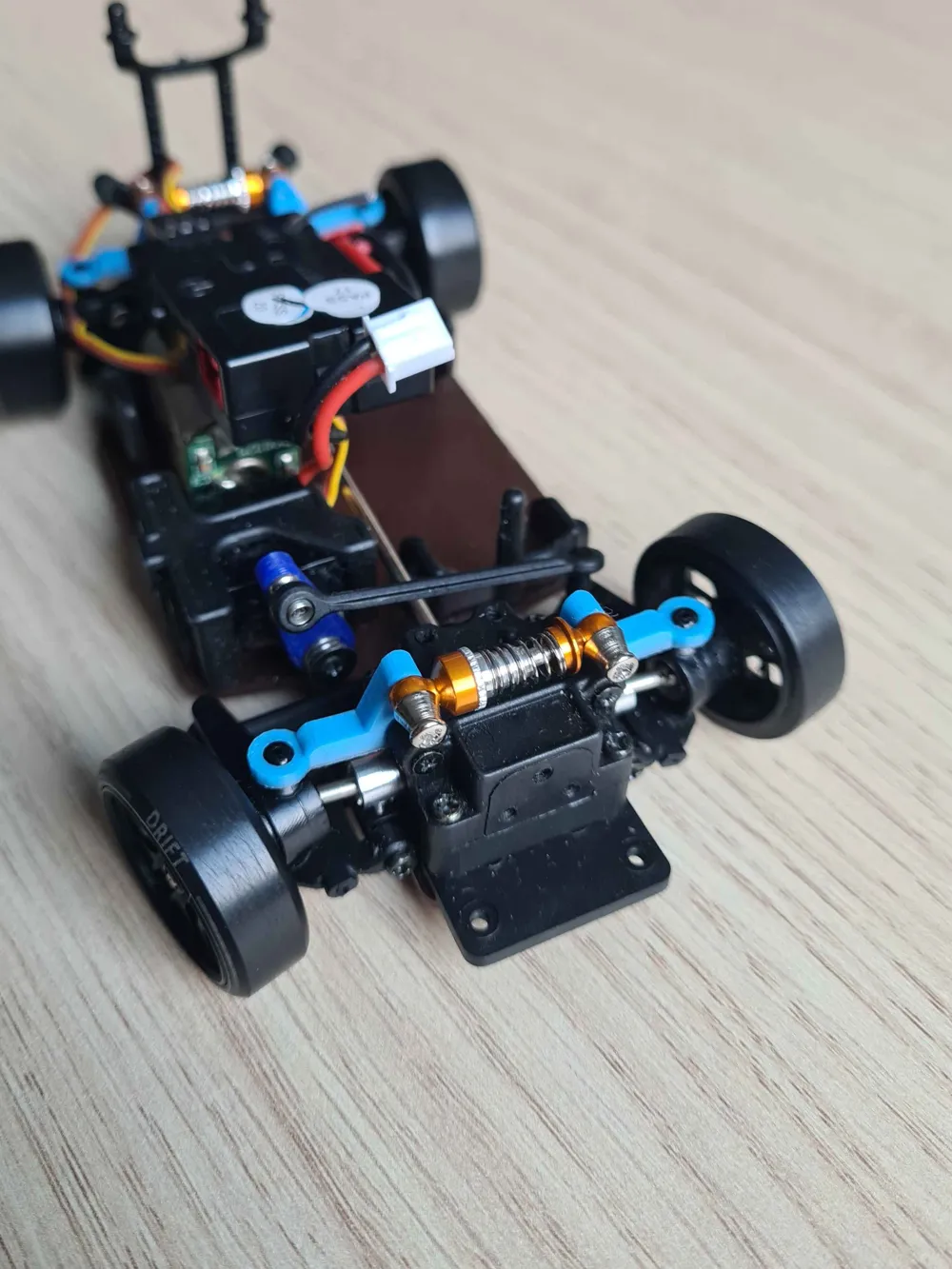

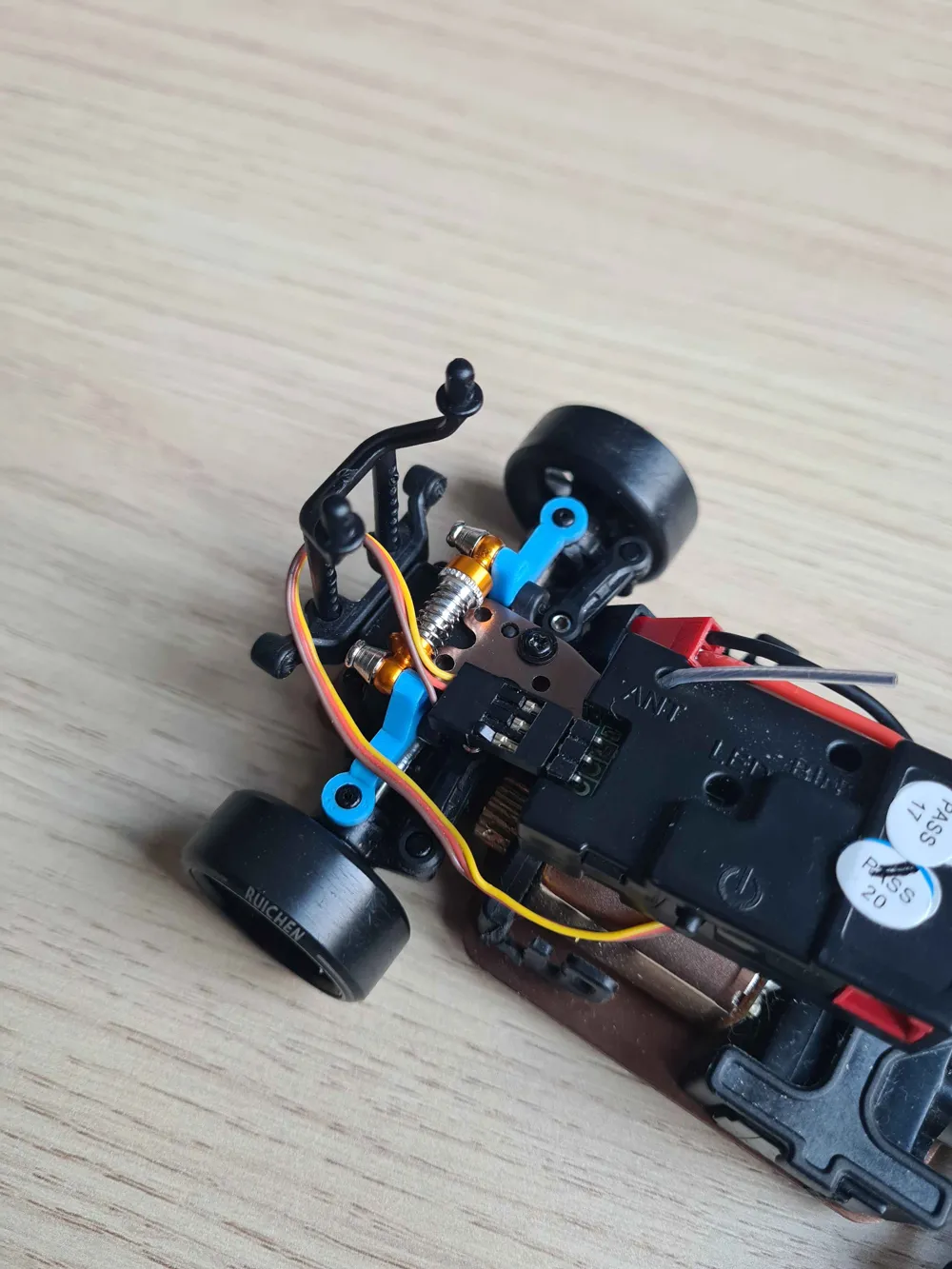

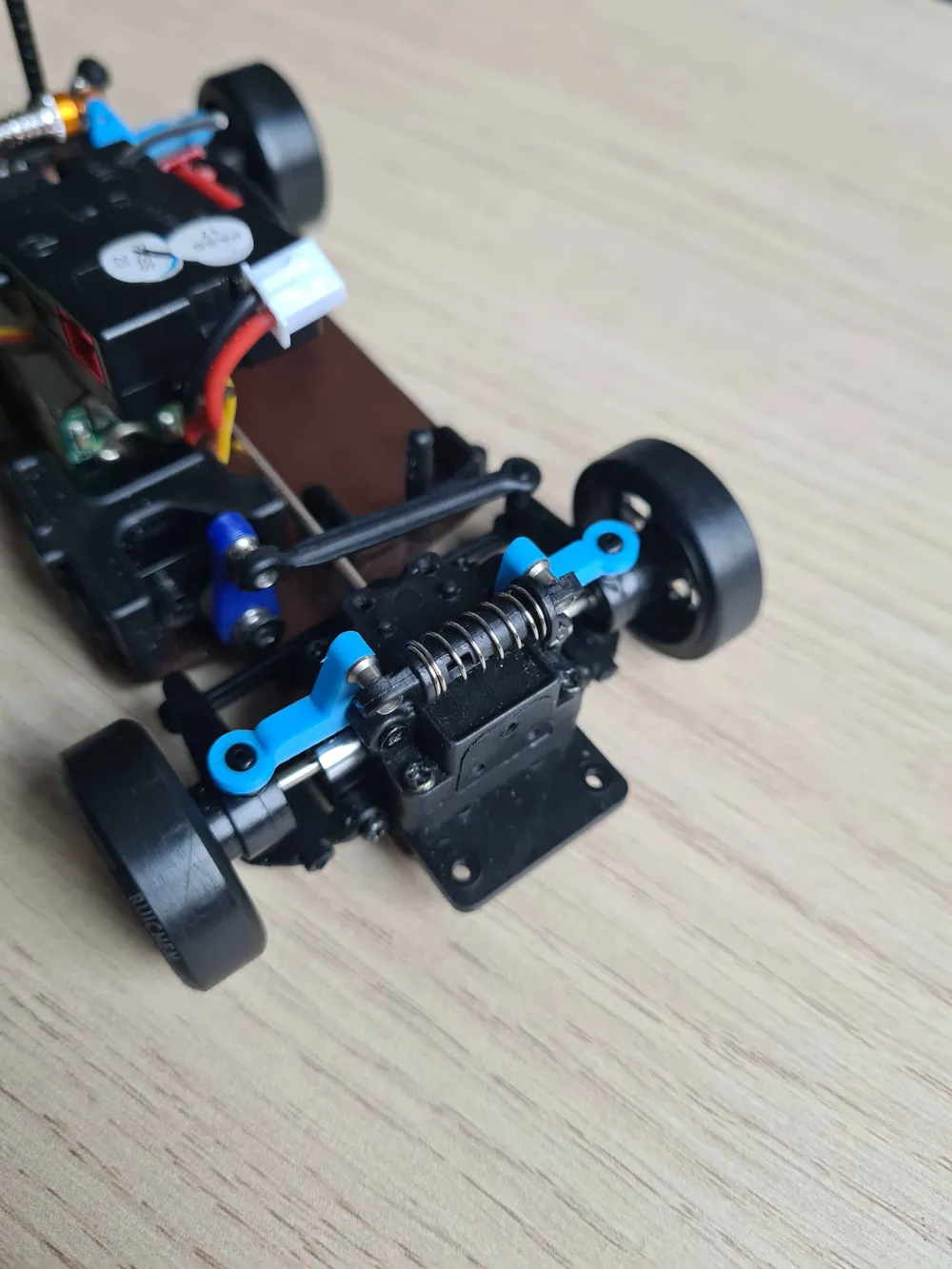

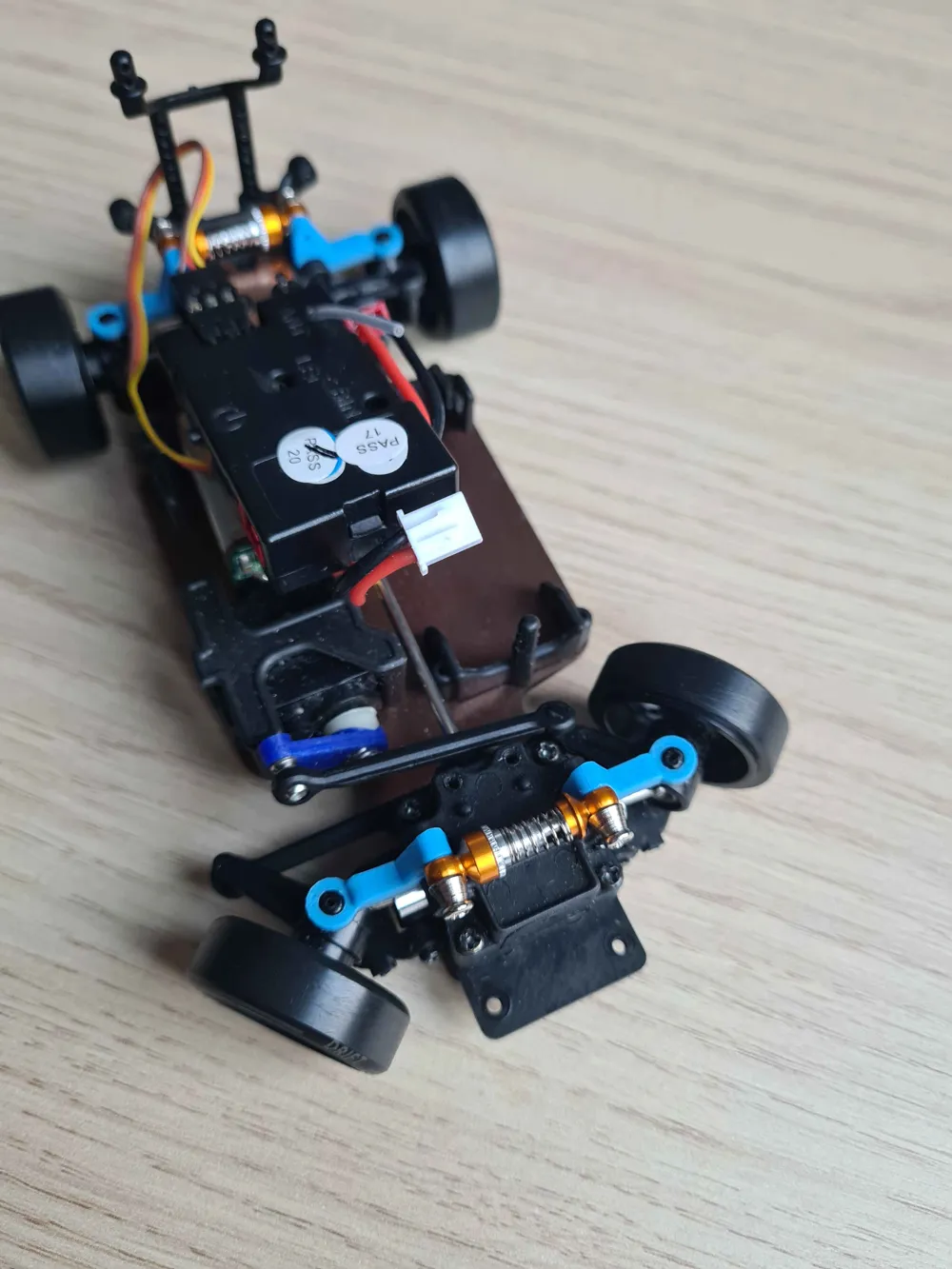

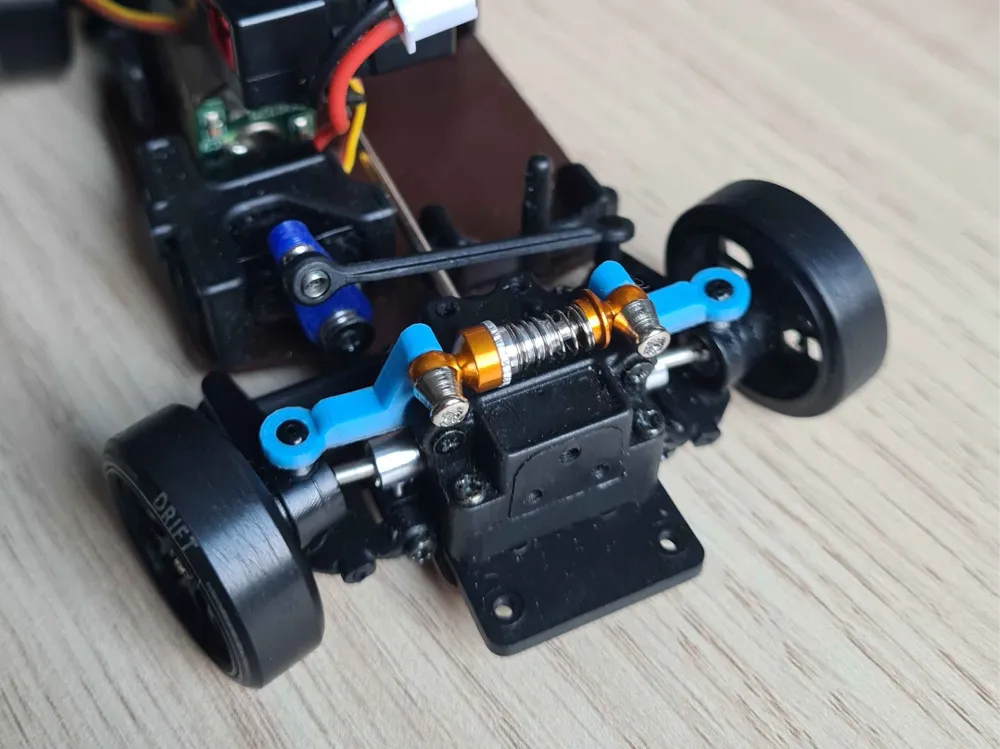

Monoshock upgrade for wl toys k989/k969
- For Aftermarket and Original shock
- File is accedentally sized too big. Please scale down to 10%. Will fix when i have the time.
- Use 0.12 or low layer heigth to make the print as detailed as possible
- Don't be afraid to use a bit of force to push the ball joint into the arm. It should snap into place and be able to move freely with a slight bit of resistance
Revision V10
- Made top holler a bit wider so drilling is not needed
- Made bottom hole a bit wider so drilling is not needed
- Moved the top holder further outwards so the shock isn't already heavily compressed from the start
- Made it so the same arms can be used for the rear aswell
- For original shock the travel is limited due to the travel on that shock
Also check out the extended servo arm:
See profile or https://makerworld.com/nl/models/2153122-wl-toys-k989-extended-servo-arm
FYI: I posted this model again on my new account.
