Case for "LUXMAN LXA-OT1" amplifier

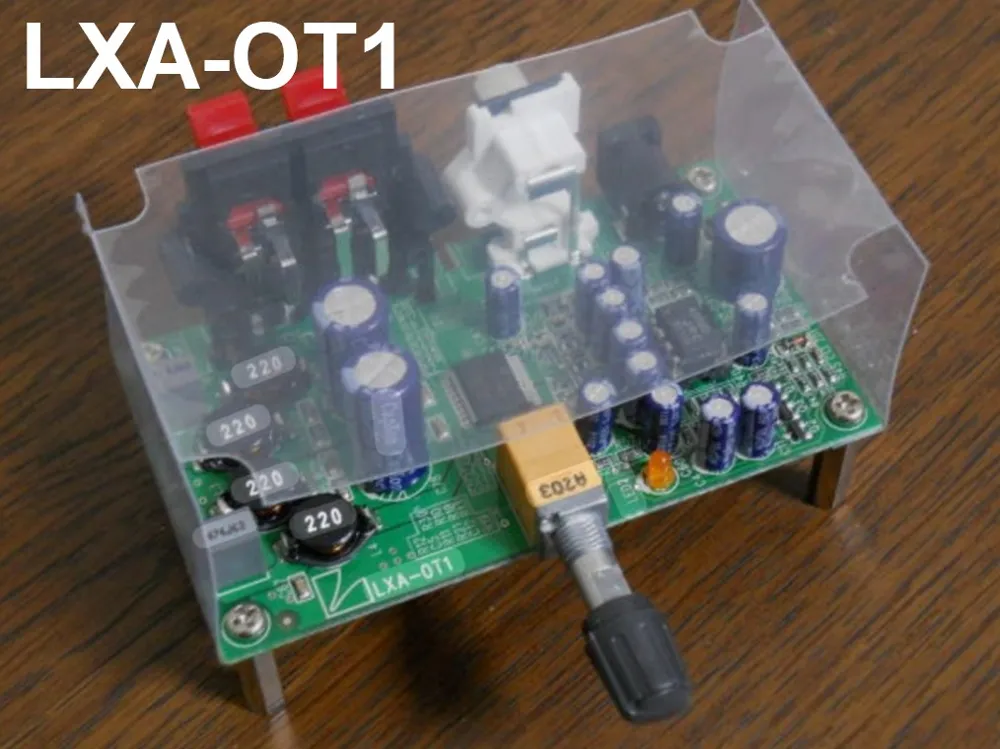

This is a case to house the "LUXMAN LXA-OT1" amplifier, which was offered as an appendix to an audio magazine in 2012.

This amplifier gained considerable reputation at the time, so many people probably own it.
It is difficult to obtain new now, but you can find it on auctions and private sales sites.

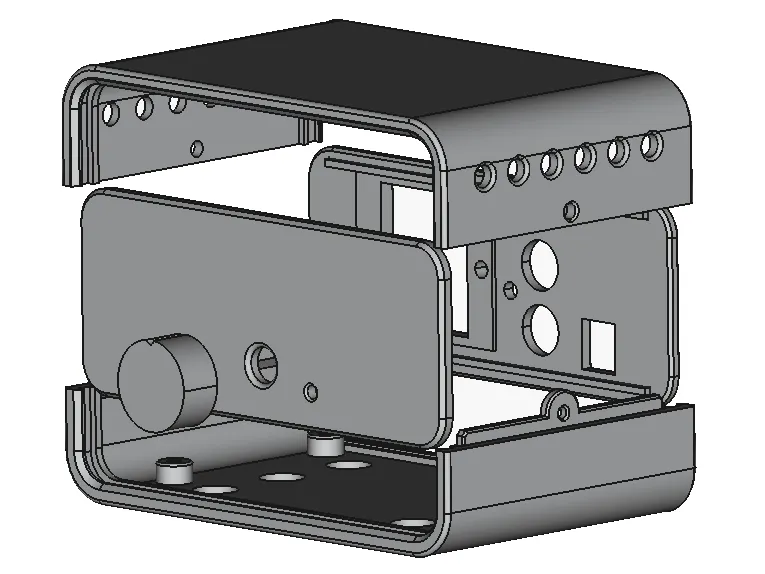

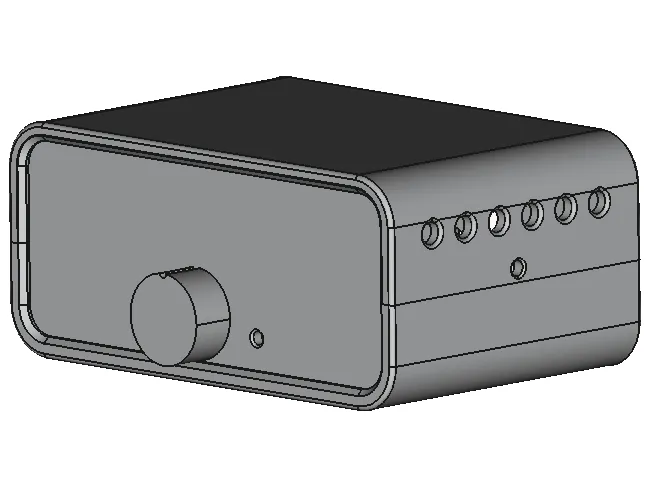

This model includes five parts: a bottom frame, a top frame, a front panel, a rear panel, and a volume knob.

Items needed other than printed parts:
Four φ3x5 screws are needed to fix the amplifier board to the bottom frame.
Three φ3 plastic screws are needed to fix the connector part to the rear panel.
Two φ3 plastic screws are needed to fix the bottom frame and the top frame.
The model in the photo has four rubber feet at the bottom.

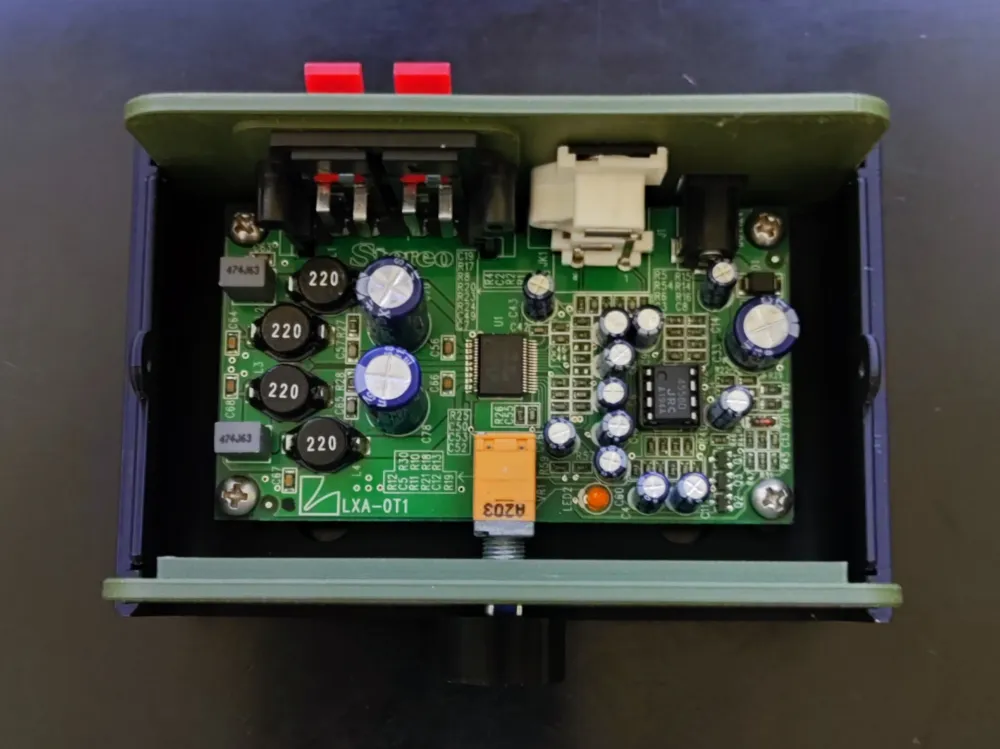

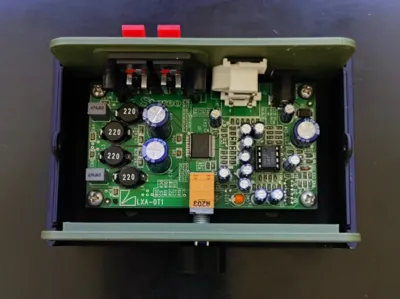

Align the front and rear panels with the amplifier board, set them into the bottom frame, and fix them.
Fix the screws for the rear panel and bottom frame while aligning their positions.
Finally, fix the top frame and bottom frame.

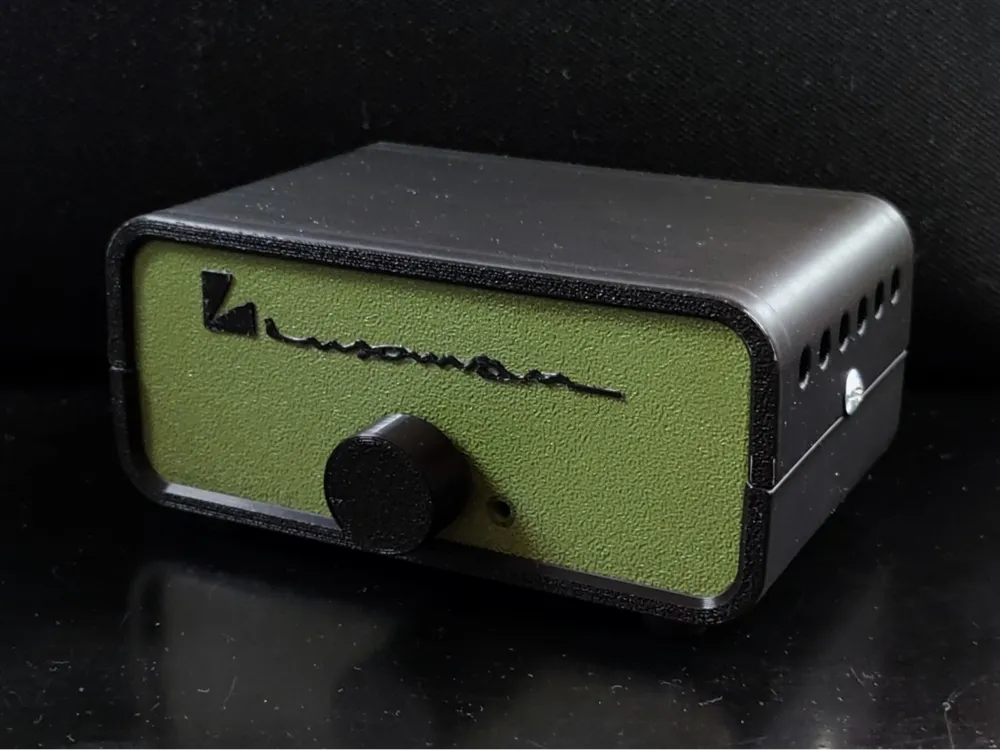

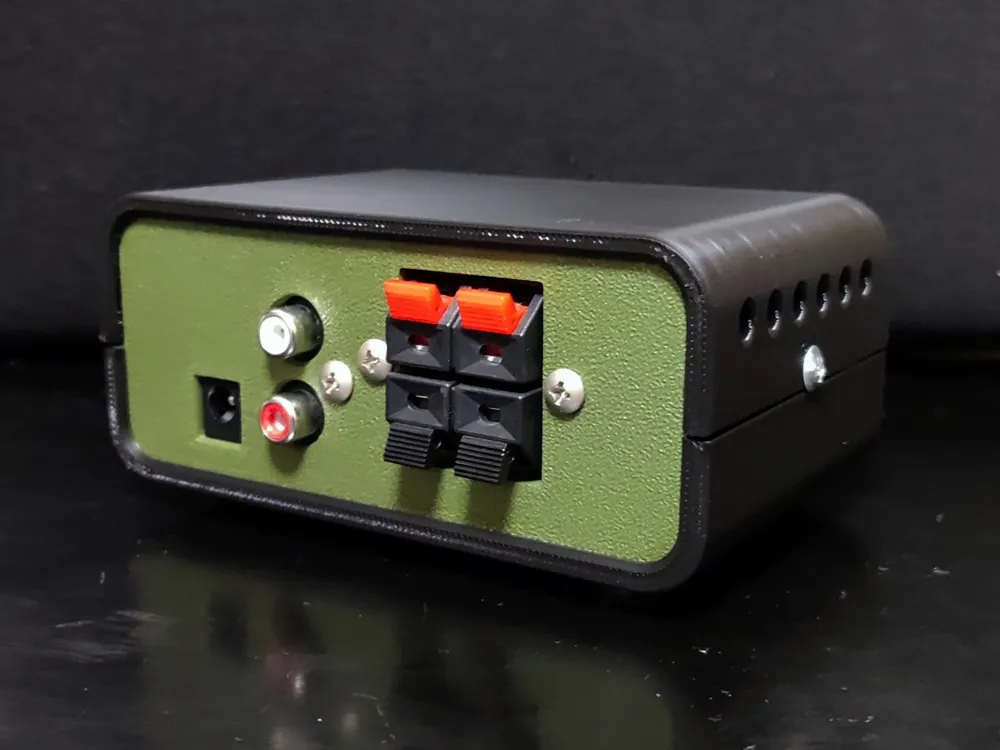

If you want to change the color of the front and rear panels and the top and bottom frames as shown in the photo, print them separately.
An old-style LUXMAN logo is also included. Please use it as you like.
