Ski Edge Tuner (Ski Edge Grinder)
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
12.3 h
4 plates
Open in Bambu Studio
Boost
76
276
8
5
74
29
Released
Description
Content has been automatically translated.

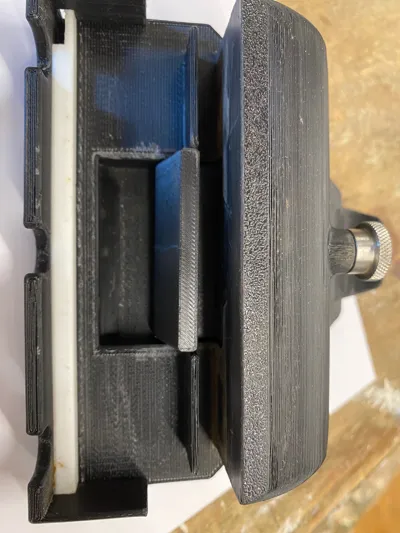

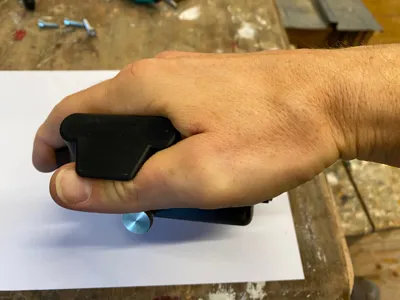

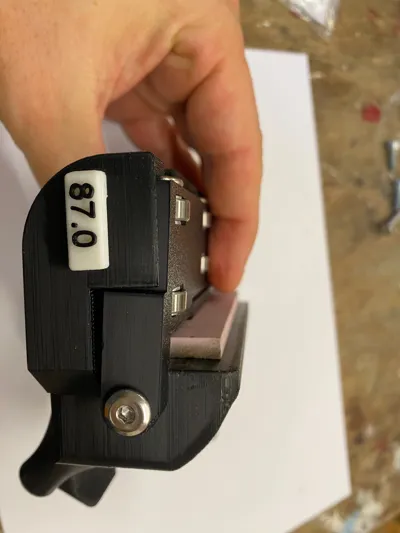

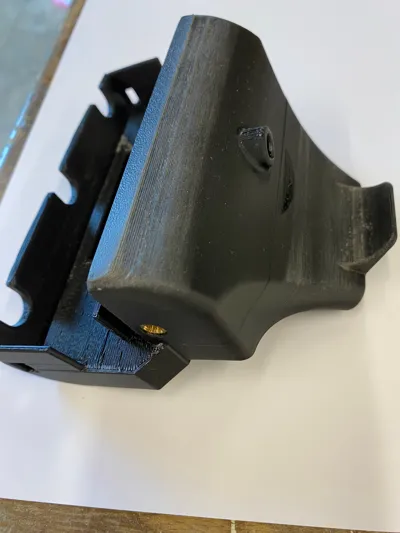

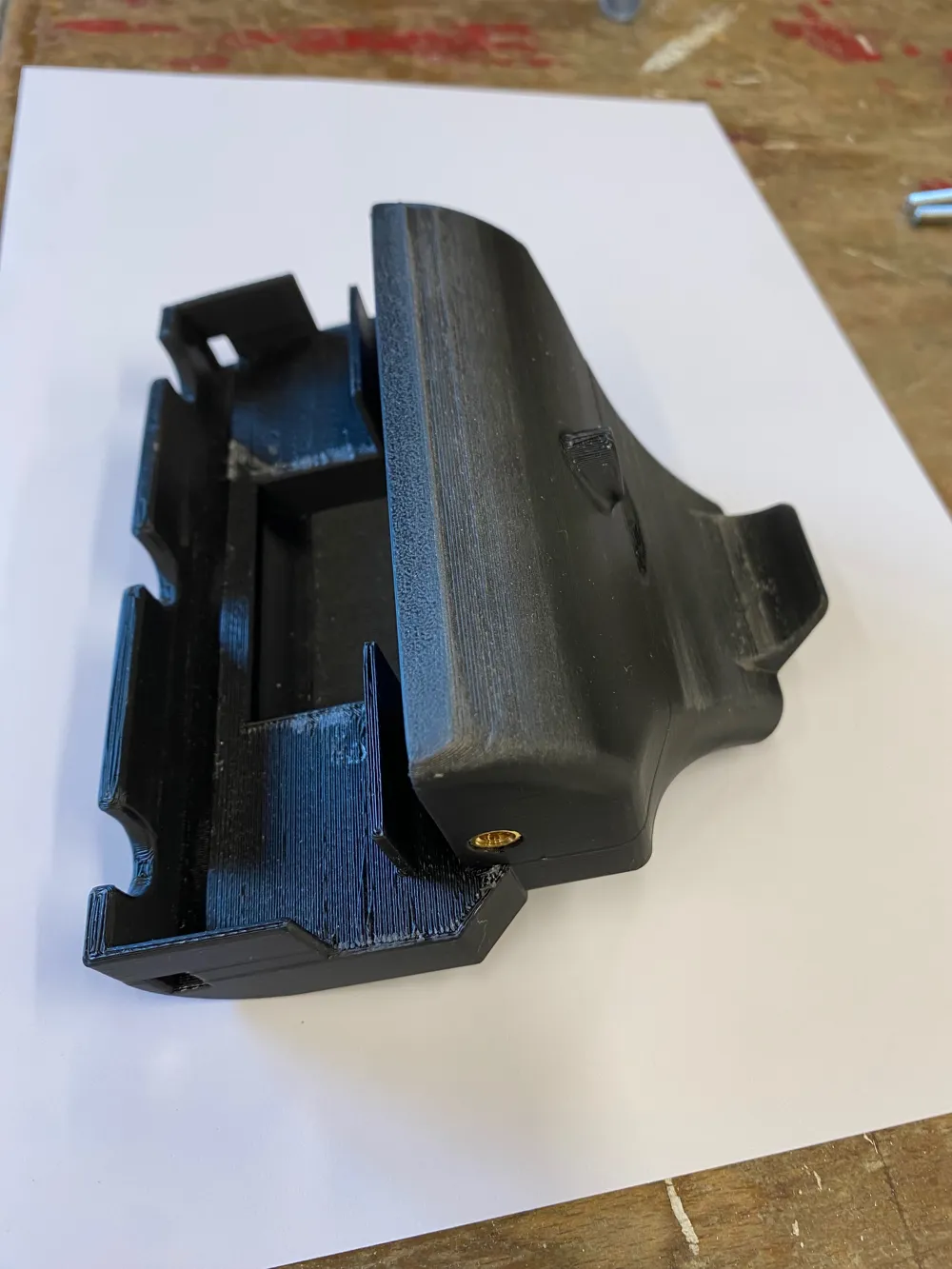

This is a ski edge grinder. Perfectly suited to give skis the latest polish. The shape with the hump allows for optimal force to be applied to the file/grinding stone. The angle is adjusted relatively simply with insertable wedges. This means there is no adjustment wheel that becomes imprecise over time, as is the case with many commercially available models.

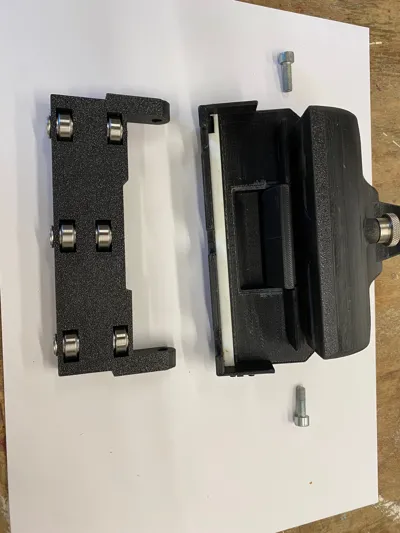

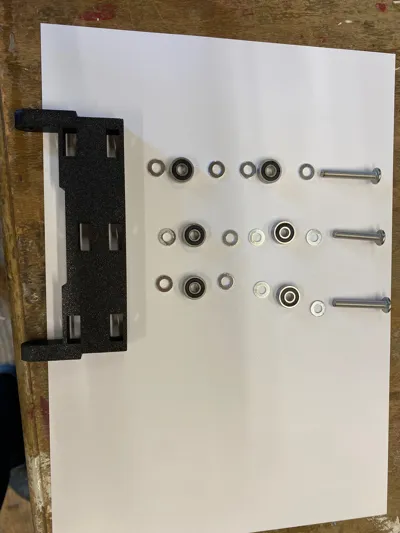

The following is required for the model:
- Knurled screw M6 x 20mm
- 5 pcs M5 screws (at least 40mm)
- 12 pcs. M5 washers

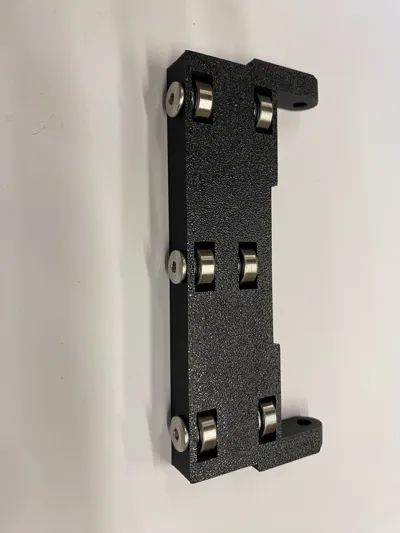

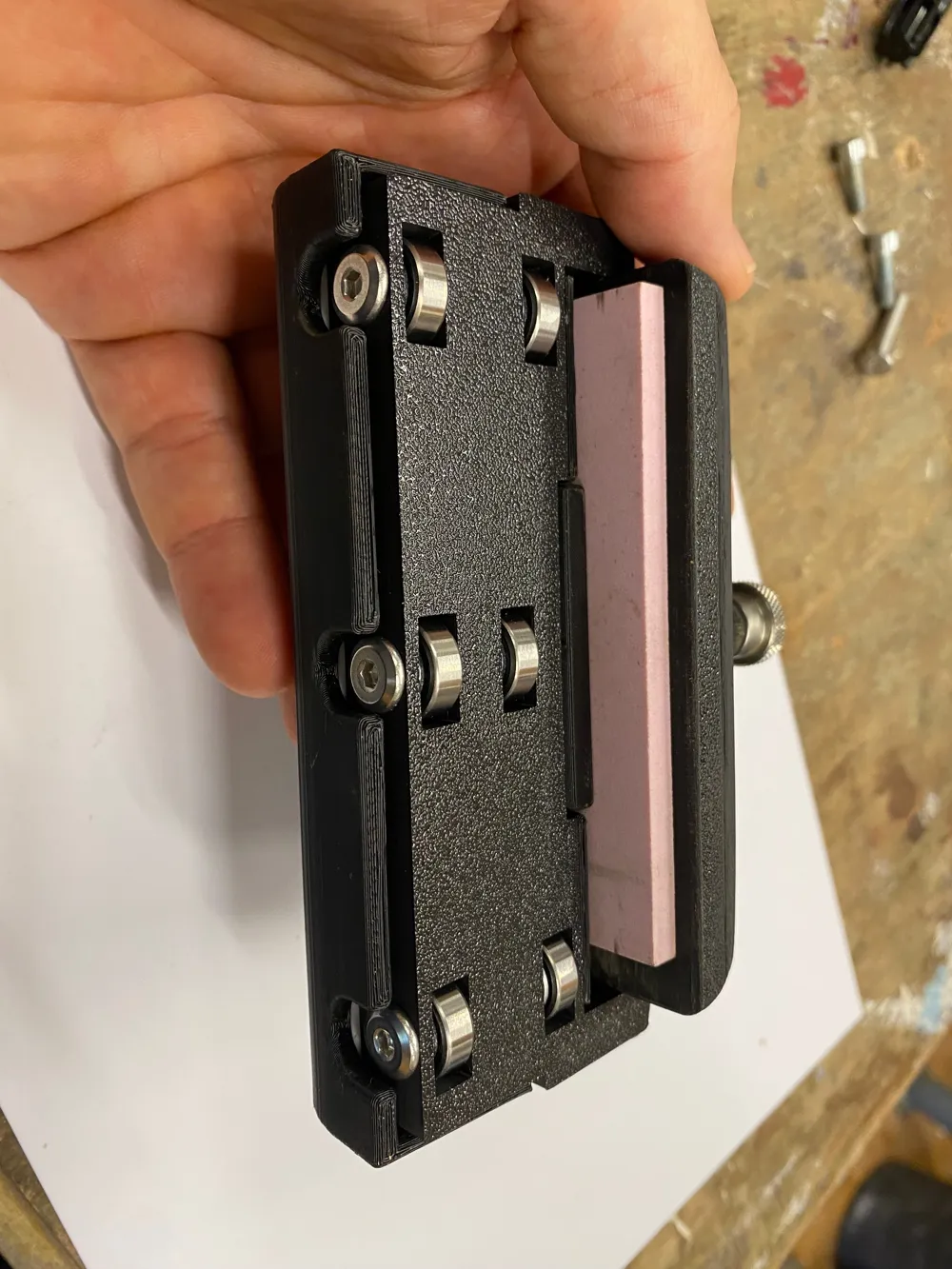

- 6 pcs. Stainless steel miniature ball bearings SS 605 2RS 5x14x5 mm (SS-605-2RS)

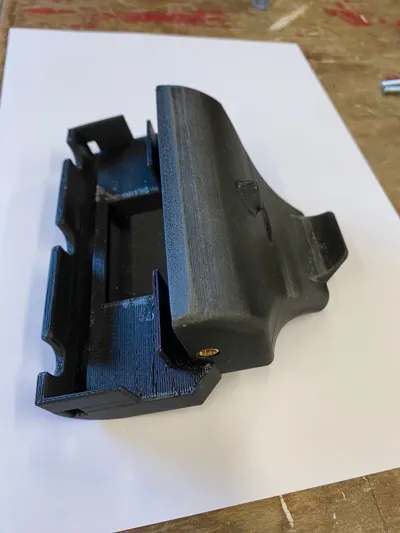

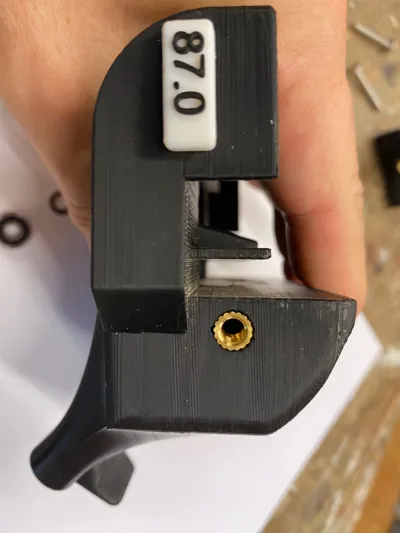

- 1x threaded insert M6
- 2x threaded insert M5
The arrangement of the components on the build plate is optimized for angle precision, not for material consumption. The same applies to the sliding hump. I have optimized for handling and safety (slipping towards the edge) here, not for material consumption.
I printed everything in PLA.
