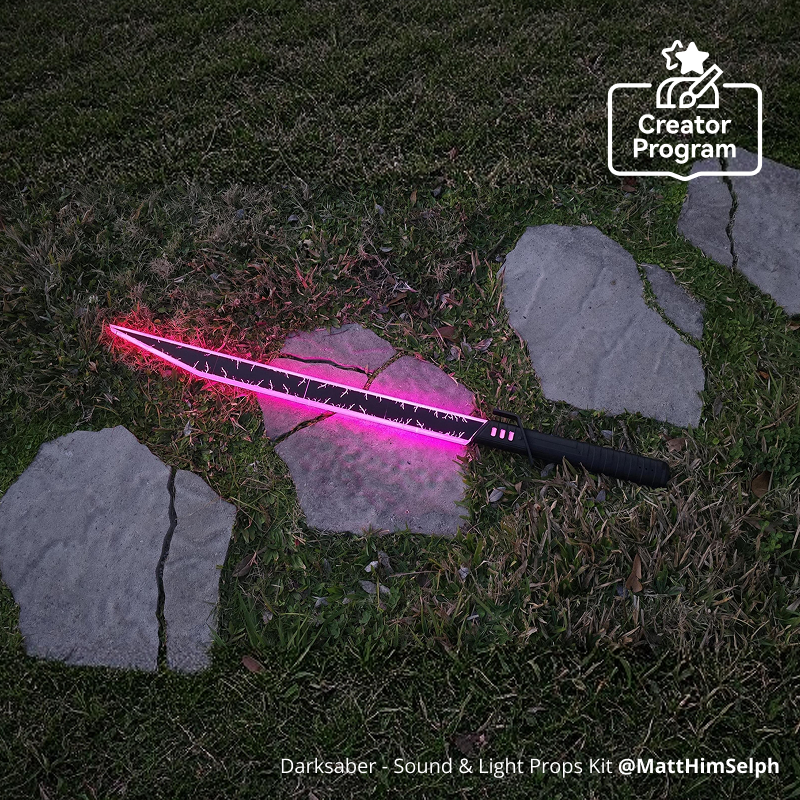

Dark Saber - Sound & Light Props Kit

UPDATE: 03/12/2026

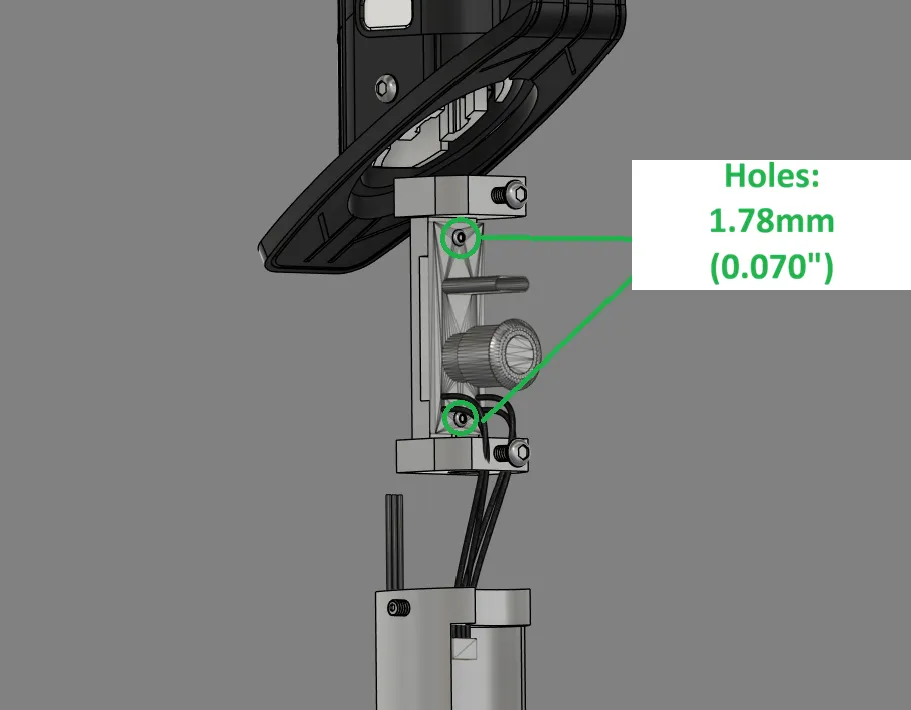

-Adjusted tolerance for the Button holder to work with the BT2 Self Tapping screws that come in the Motion-Activated Sound & Light Prop kit.

-Materials Update (ASA is now PLA Basic)

-Supports have been made uniform across all print profiles

-New more detailed Assembly Video in description


Here is my creation of the Dark Saber utilizing Bambu Lab's Motion-Activated Sound and Lights Prop Kit (ZC010)

I had printed and built the Master Sword by 卡卡

https://makerworld.com/en/models/887552-lightening-zelda-master-sword-100cm#profileId-843153

and the Ruyi Jingu Bang Wukong Staff Weapon by DaDaLand.

https://makerworld.com/en/models/602439-1-1-ruyi-jingu-bang-wukong-staff-weapon#profileId-524871

 I absolutley loved these build. I wanted to make something similar but using the Darksaber as a platform.

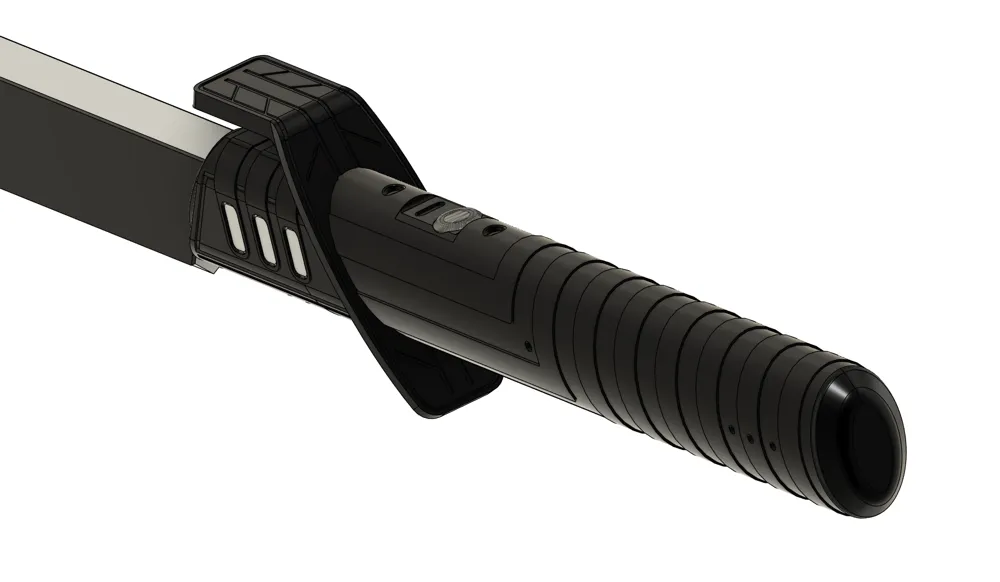

I designed this in Fusion 360 specifically around the Motion-Activated Sound and Lights Props Kit.

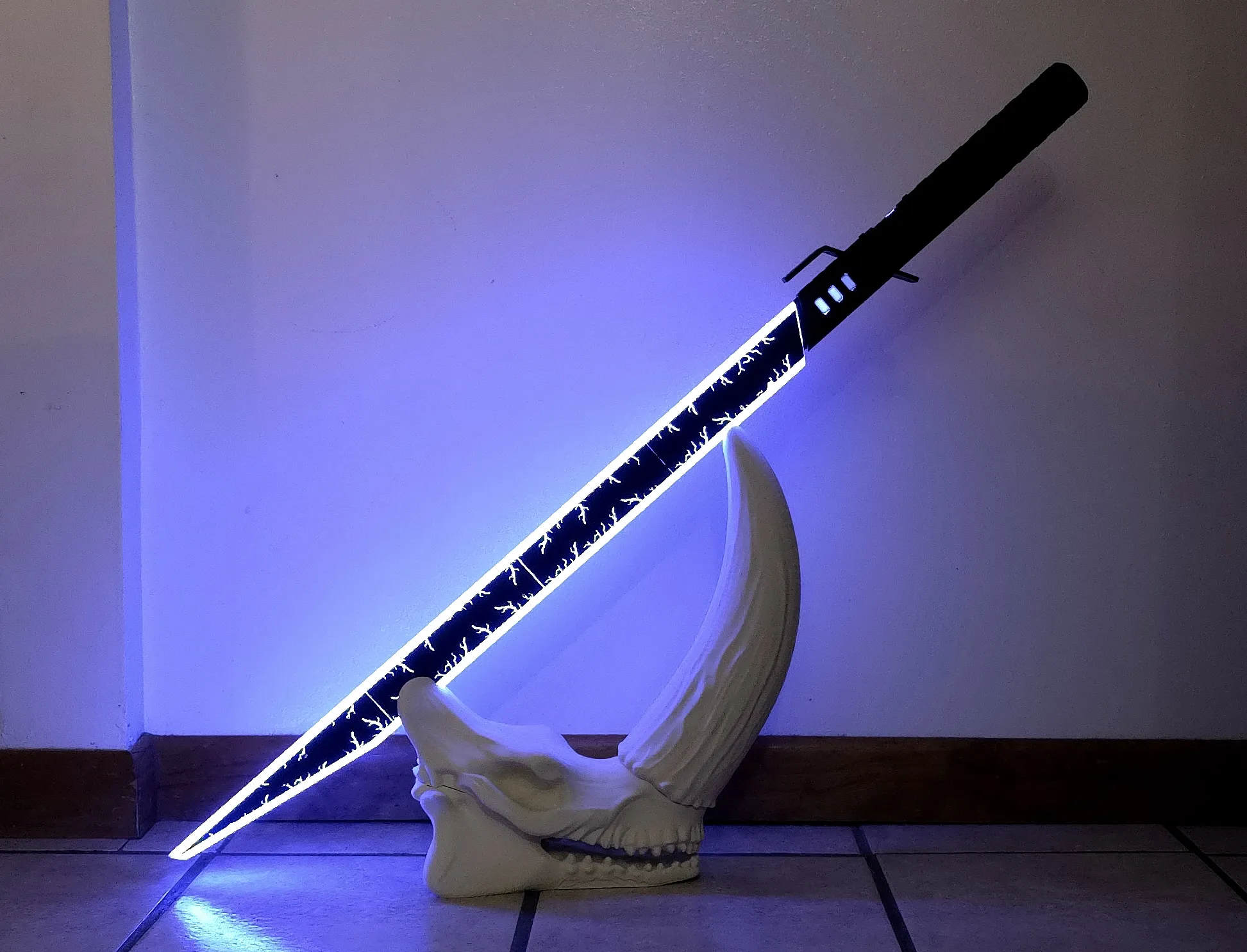

Check this Mudhorn Skull Stand out!

Lighting System:

1. LED lighting effects are inspired by the game's lighting, capable of emitting various colors and effects. The light strips are embedded in the sculpted ends, with hollow designs that produce smooth lighting effects similar to those in the game.
2. Controlled via a smartphone app, with over 20 built-in lighting effects.
3. Customizable lighting effects allow for personal design.


Sound System:

1. Built-in sound effects include metal impacts and swinging sounds, providing an immersive experience.
2. Features a speaker chamber for clear, three-dimensional sound, adding power to each swing.
3. SD card support for updating the sound library, allowing import of additional effects such as clashing swords or monster screams.
4. Integrates motion sensors with the sound system for a more realistic experience.


Hardware and Software Features:

1. Bluetooth connectivity enables seamless interaction with a smartphone app, allowing real-time adjustment of lighting and sound effects.
2. Motion sensing provides corresponding effects during swings, enhancing immersion.
3. Customizable lighting and sound effects through the app and SD card according to personal preference.



Assembly Video

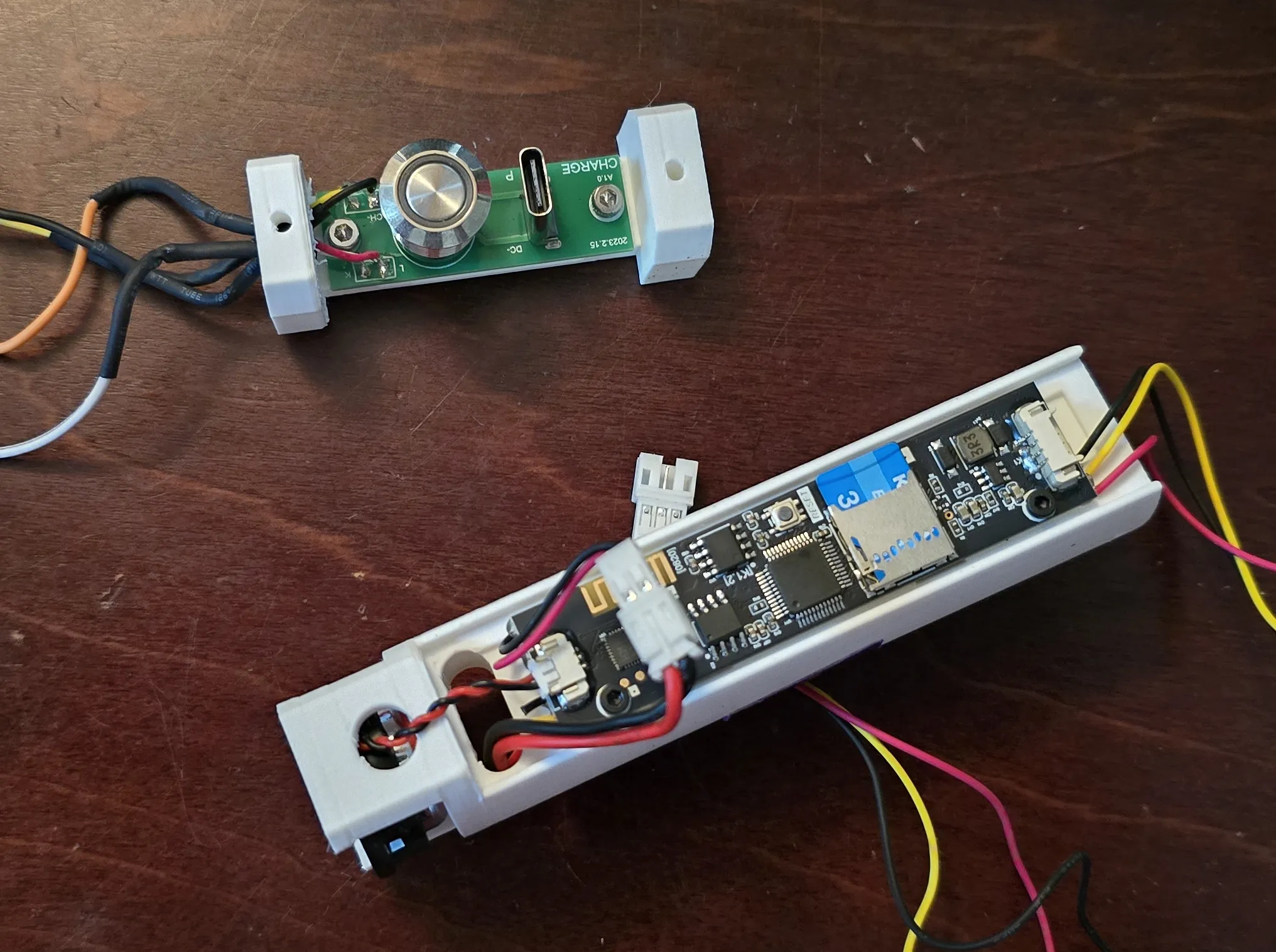

Orientation of the boards

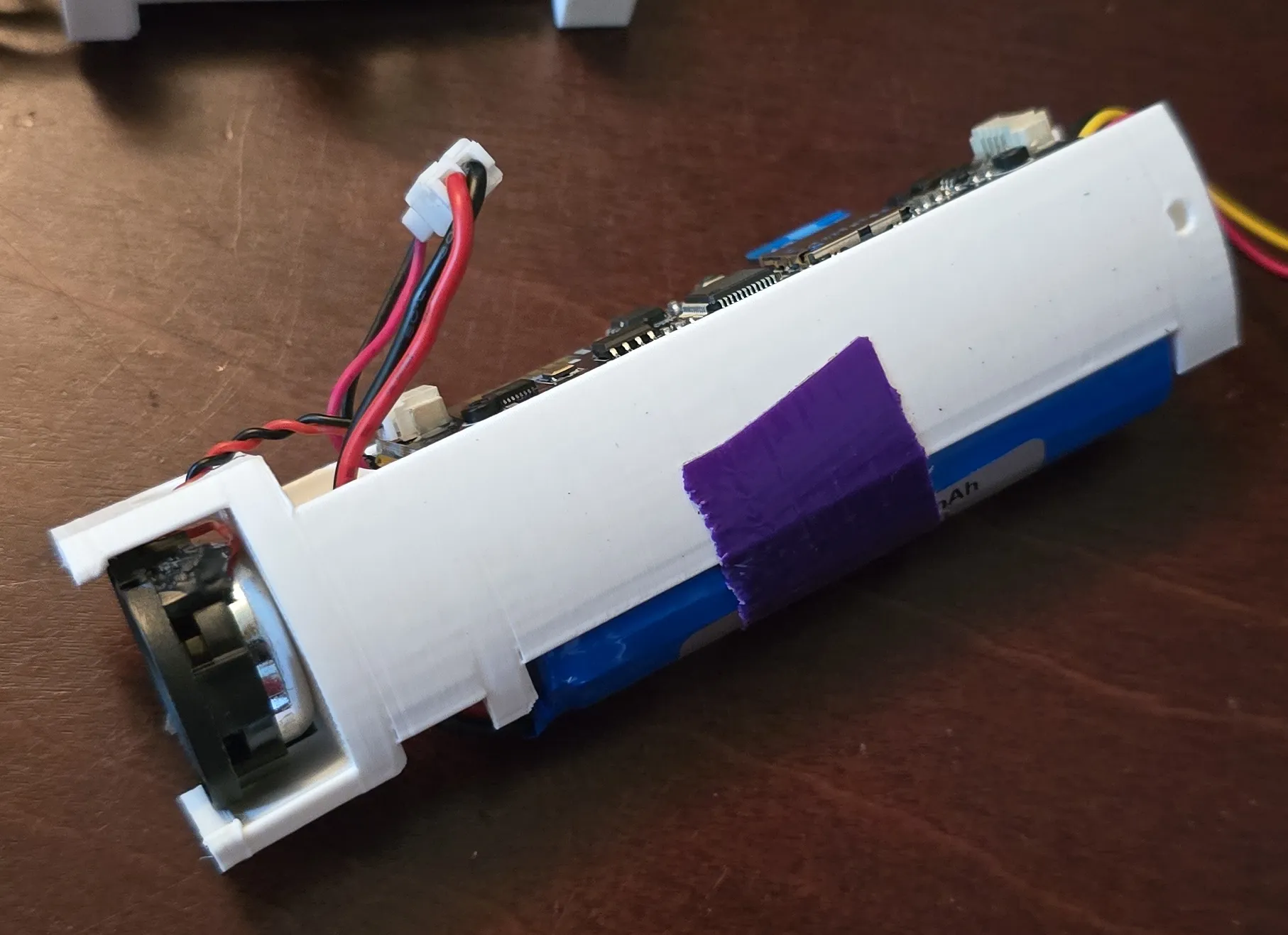

Battery Installed (I used a pice of tape to keep it secure)

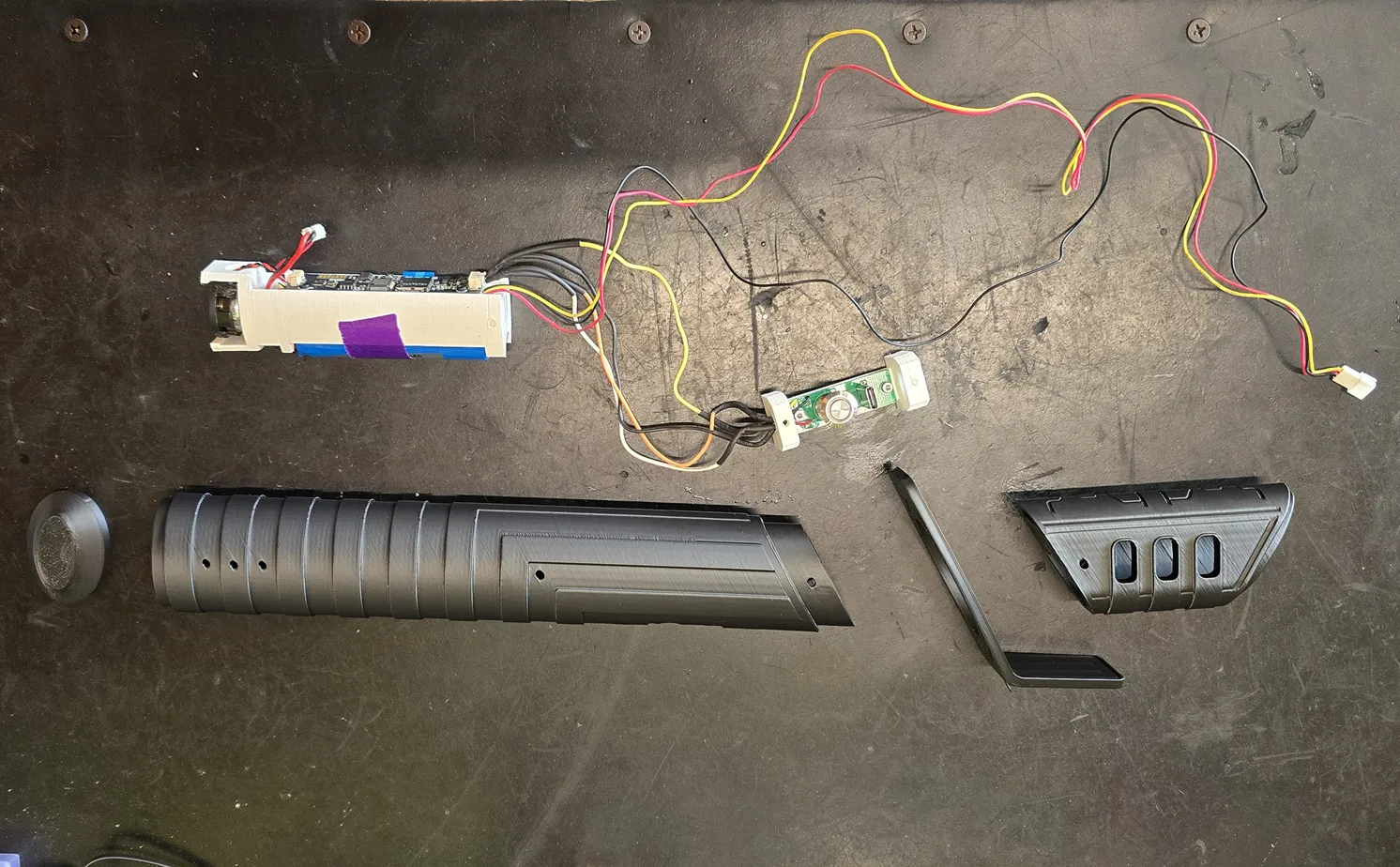

Everything wired up, ready to install into Hilt.

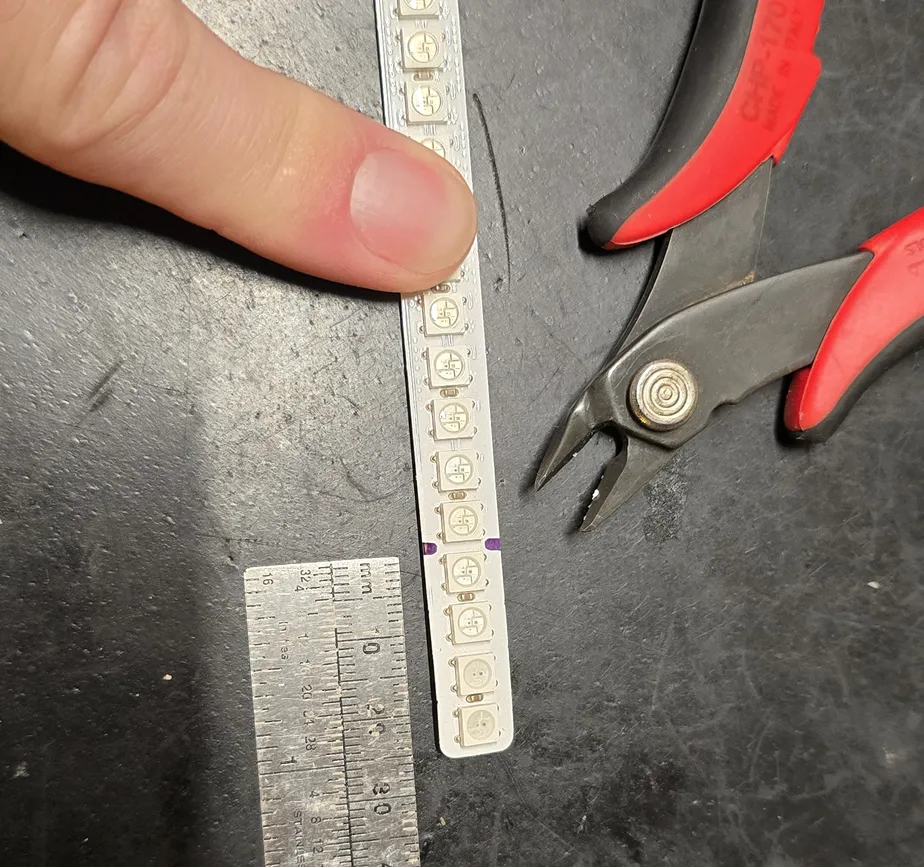

You'll need to cut off 4 of the LED diodes on the 815mm LED strip.


Inside the blade there is a channel for the light strip to insert into. You can use some CA glue to help hold the light strip in place.
***NOTE: Make sure when assembling the blade, the channel is lined up properly. ***


You will need to get Forcepark App. Follow this link for instructions.

https://www.stardustsabers.com/en-us/pages/sn-v4-pro-forcepark-v2?srsltid=AfmBOoofj86MgWThxzn4k4Ya4Sc-YweQ78m9ygIgHAF5wTxpTwr23x5R
