Gemini EAF support for Acuter 40 H-Alpha Telescope

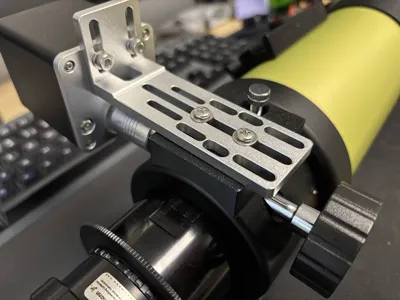

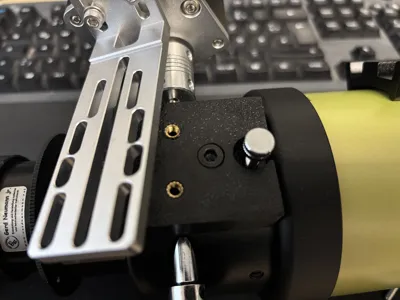

This is to fit the Gemini Motor Focuser to the Acuter 40.

Please note:

1.  Use the original focuser locking screw as the rotator locking screw as its a bit longer
2.  You need 2x M4 5mm brass insert nut and 2x M4x12 or M4x15 screws to screw the EAF to the adapter
3.  You need a 1x M5x10mm Hex socket screw (can be also a bit longer or any other screw with that thread) tp screw the Adapter to the scope

Advise to print in PETG, ABS or ASA with

• Minimum of 50% fill
• Activate support
