Mopeka Pro Sensor Holder for 11kg Gas Bottle
Print Profile(1)
Description
I have created a holder for the Mopeka Pro Bluetooth sensor for 11kg aluminum gas bottles

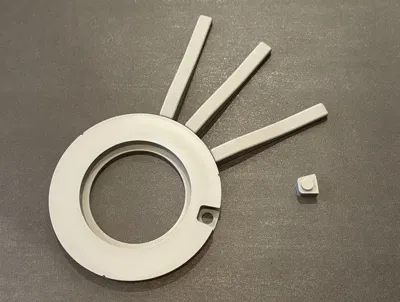

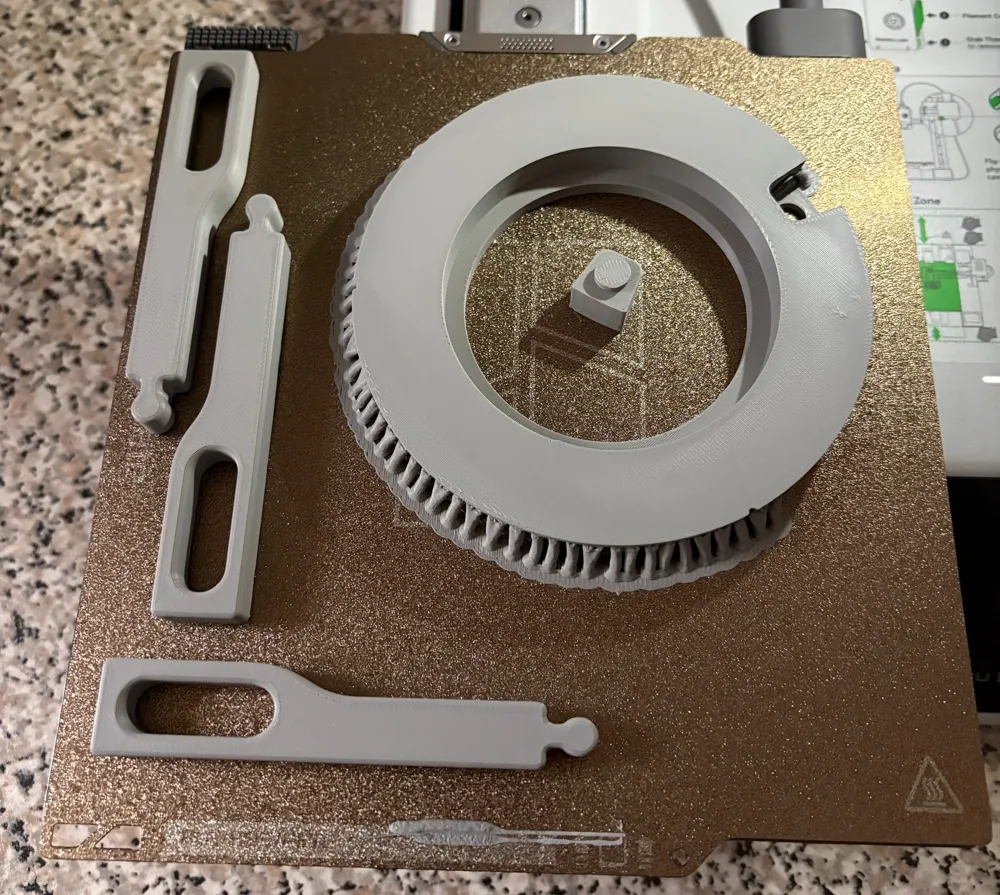

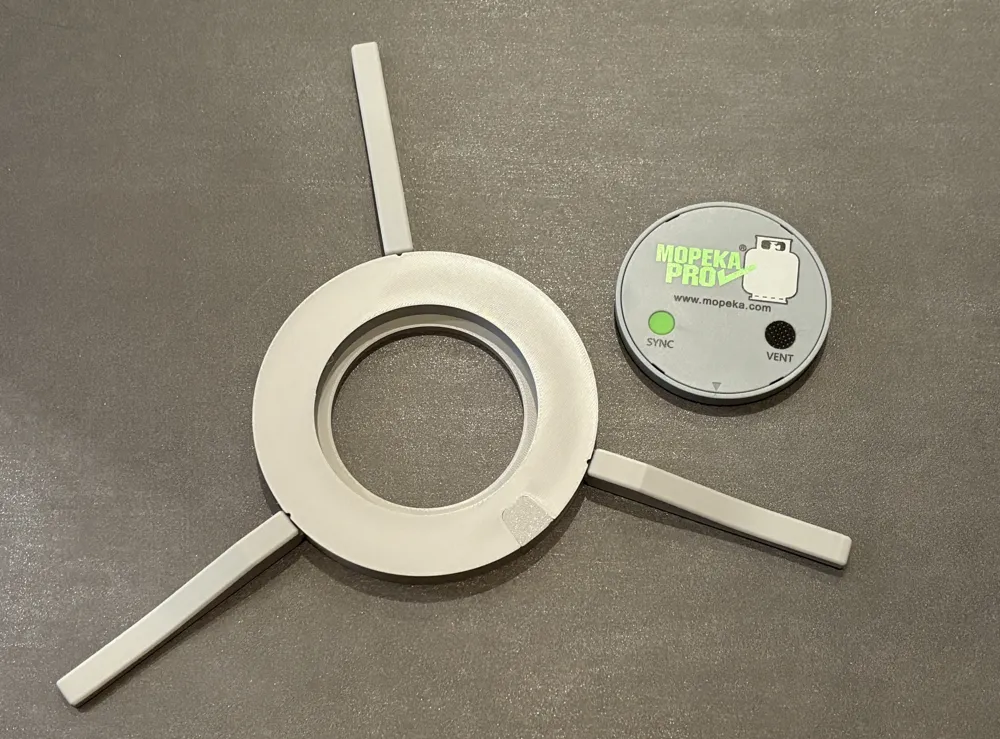

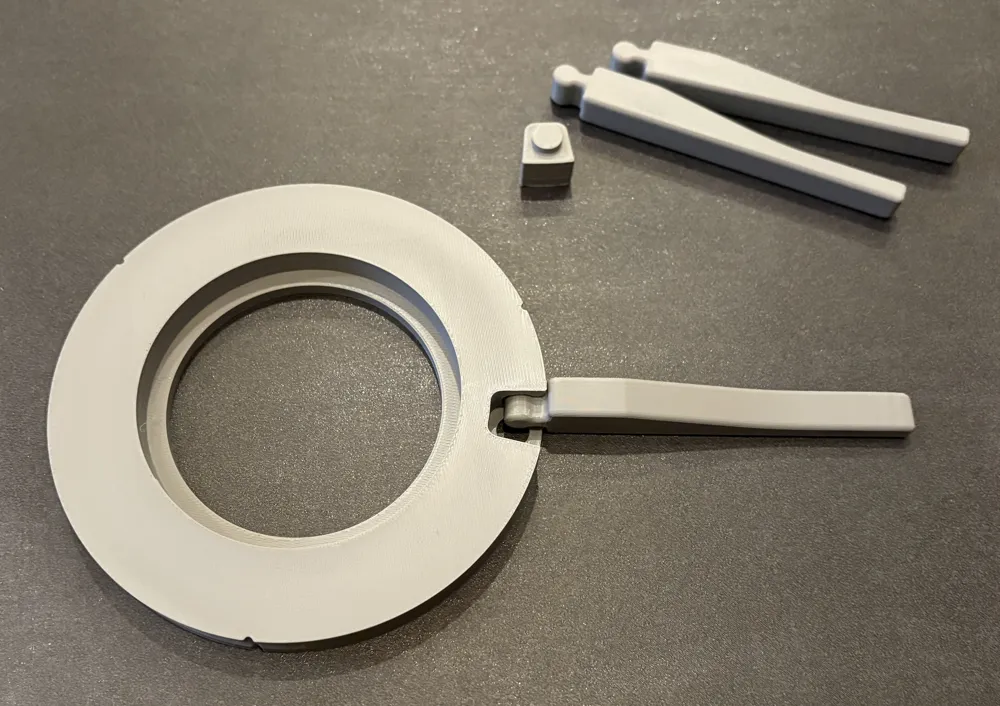

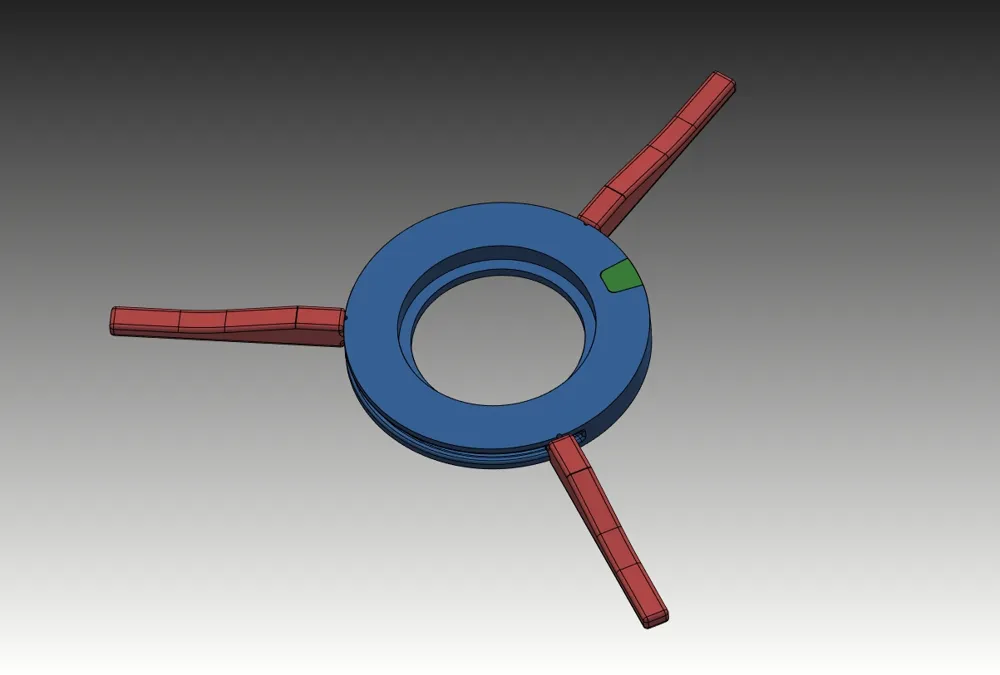

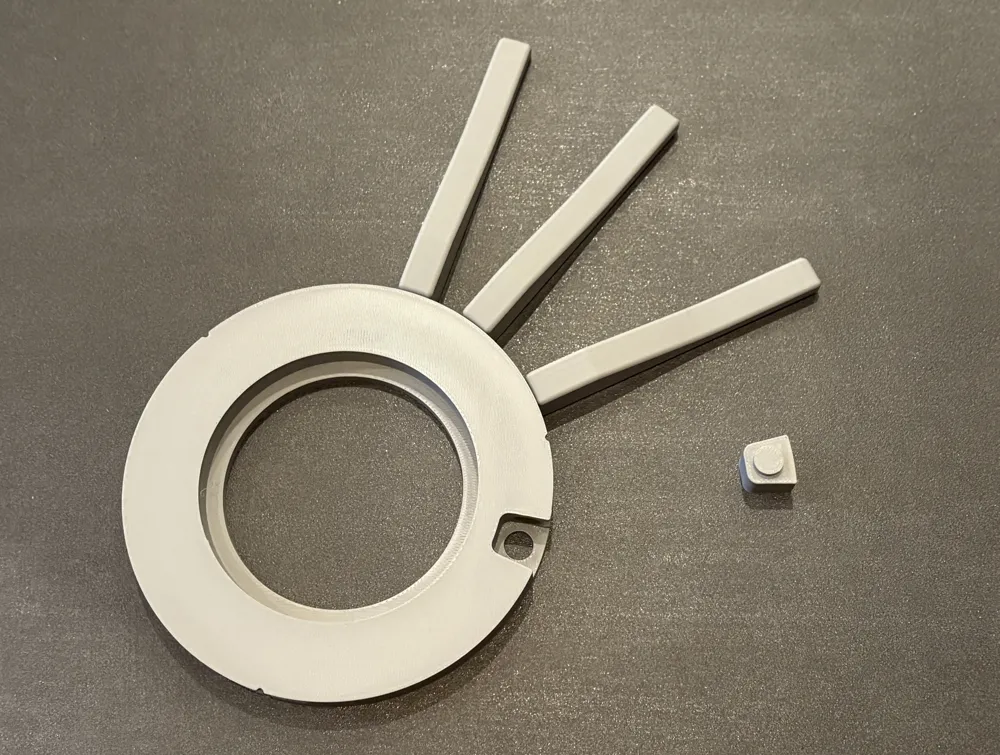

After printing, the 3 arms are inserted into the main part and the fastener is put in place. The fastener must be inserted with some pressure as it is intended to hold firmly in the main part. This prevents the arms from sliding out of the main part

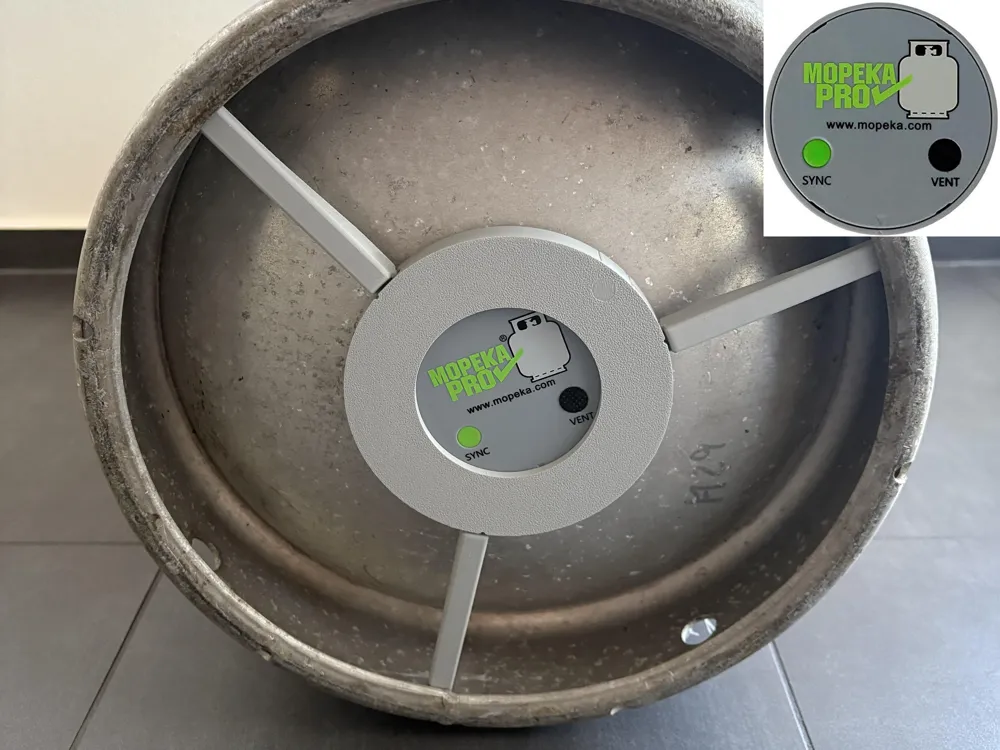

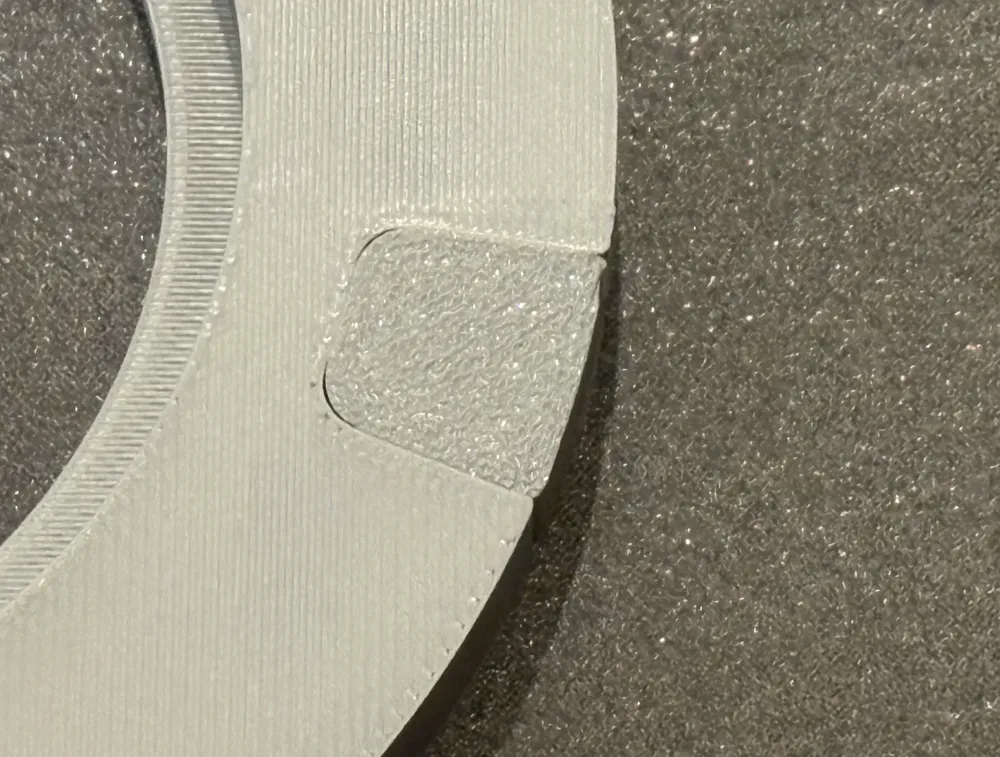

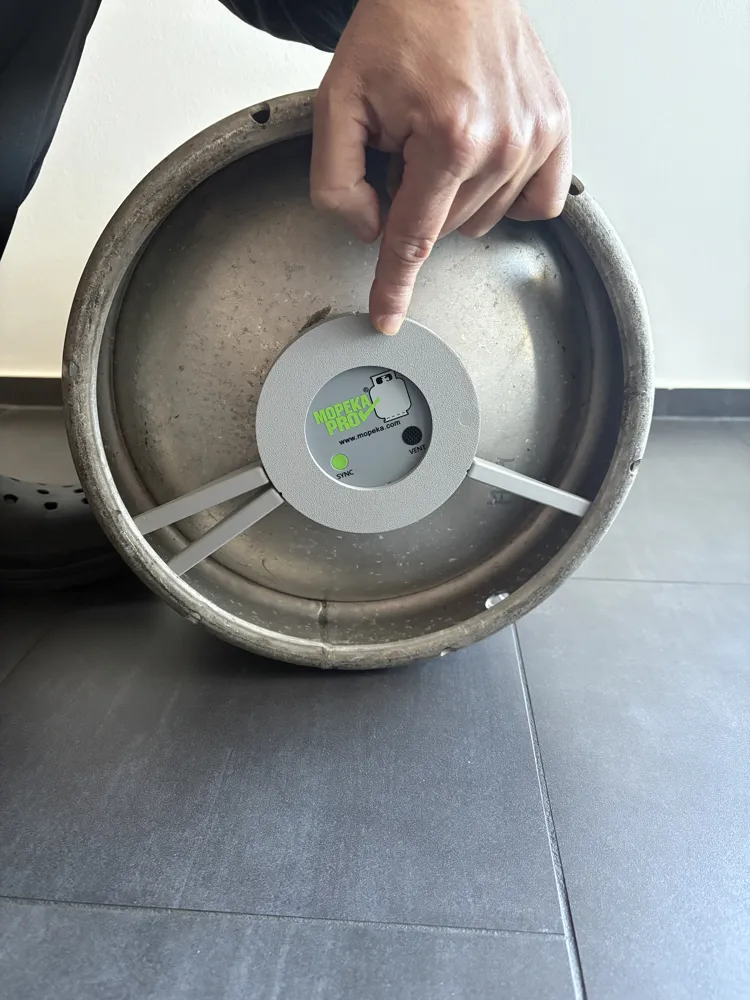

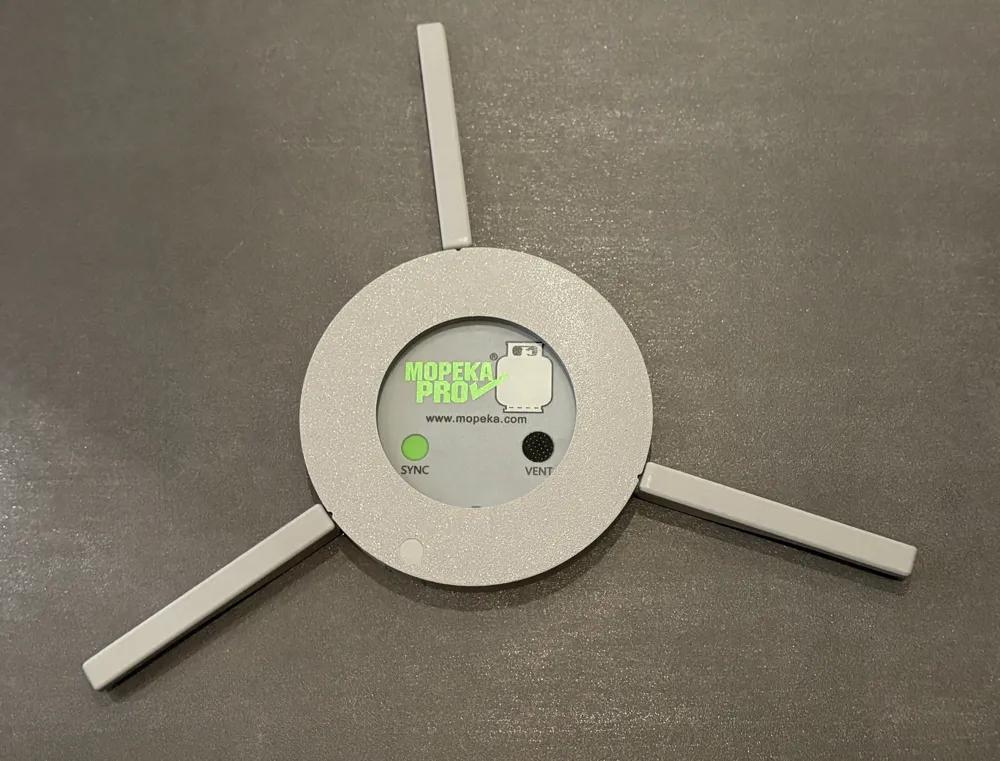

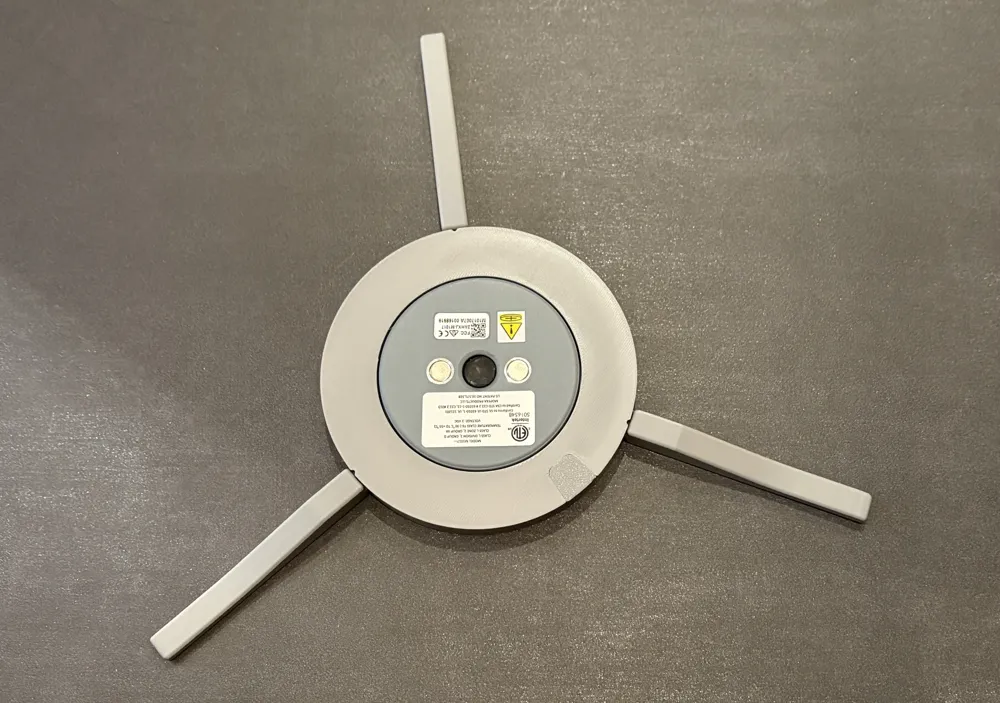

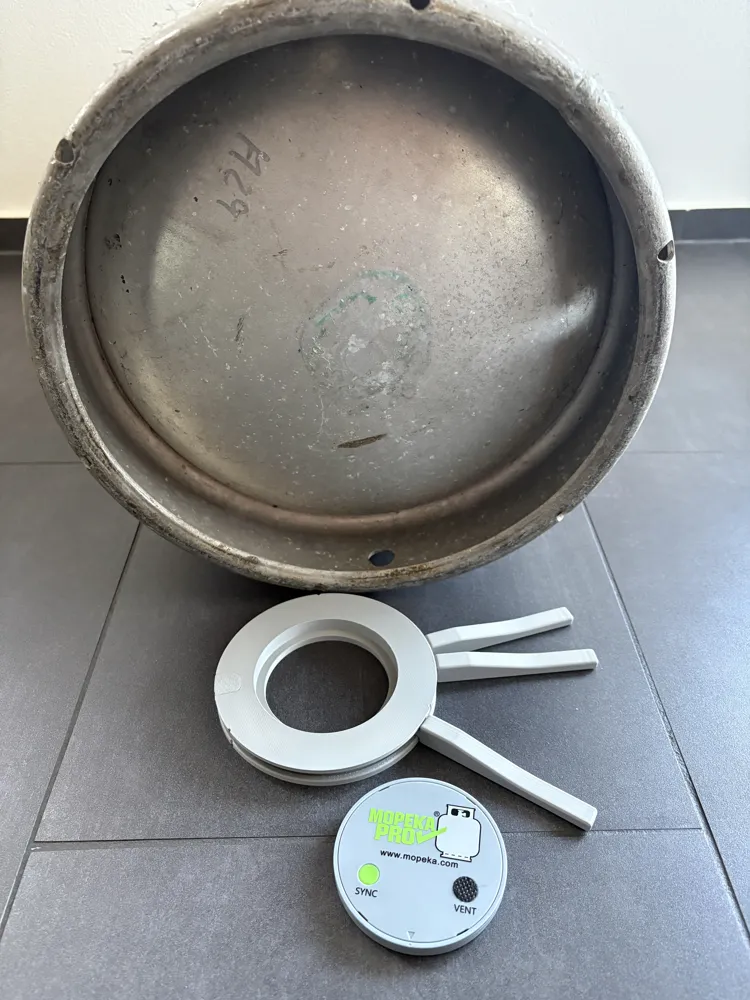

To mount it on the gas bottle, rotate the 3 arms close to each other and position the sensor. By rotating the arms to the positions marked with notches in the main part, the holder will clamp onto the gas bottle

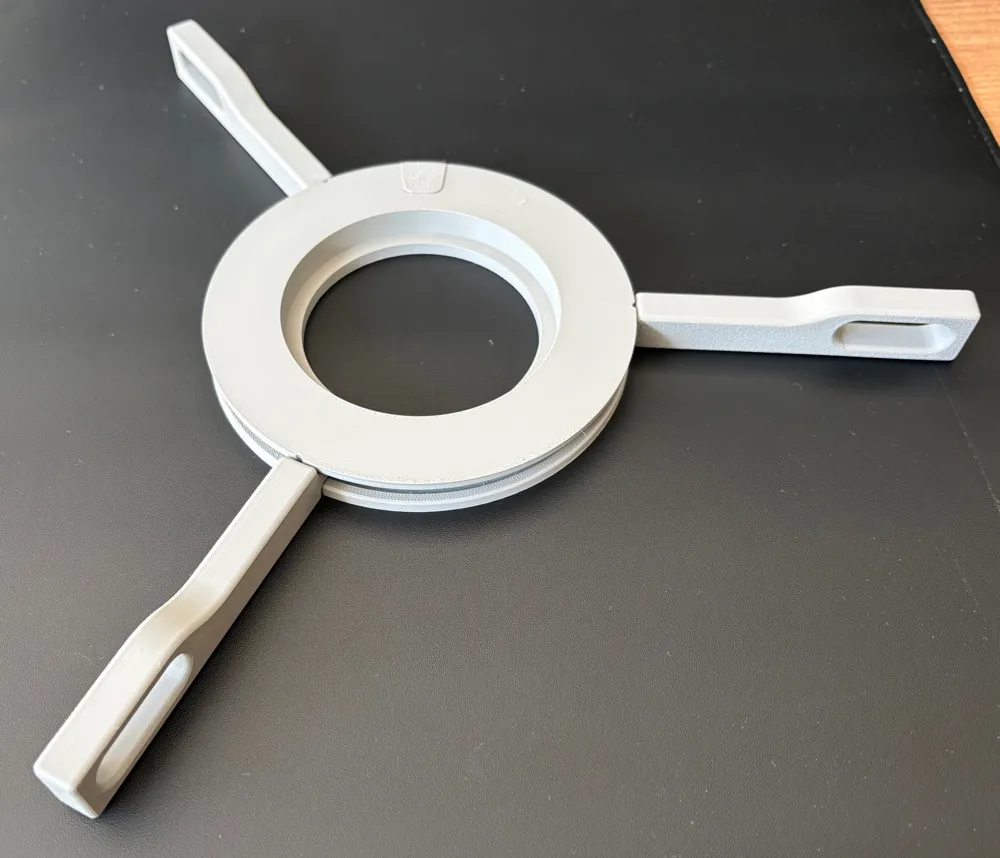

03/01/2026 I have created a new holding arm. Unfortunately, not all gas bottles are identical, and with some gas bottles, there is a 6mm gap between the gas bottle and the sensor when using the previous holding arm. I have designed the new holding arm so that it can be used on both sides; one side is now 6mm thicker. Depending on the design of your gas bottle, you can flip the arms in the holder. This also ensures that the holder will still fit after changing gas bottles while on the go. If you have been using the old holding arms, you can now print the new ones. They still fit the existing main part. I have not updated all the pictures
