Ultimate Parametric Gear Generator
IP Report
This model is created by Parametric Model Maker
Make Your Model
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
15 min
1 plate
Open in Bambu Studio
Boost
487
1441
10
20
453
64
Released
Description
Content has been automatically translated.
Boost Me (for free)
📢 All-Rounder! Ultimate Parametric Gear Generator v11, Dual-Layer Gear Generator V1
If you can imagine it, you can create it. From miniature worms for precision instruments to powerful herringbone gears for transmission, generate them with a single click.
Introduction:
Update Summary: Version 12 (Dual-Layer Gear v2)
2026.4.12
This update focuses on expanding gear geometry options, improving mechanical alignment for shaft holes, and adding new structural customization features.

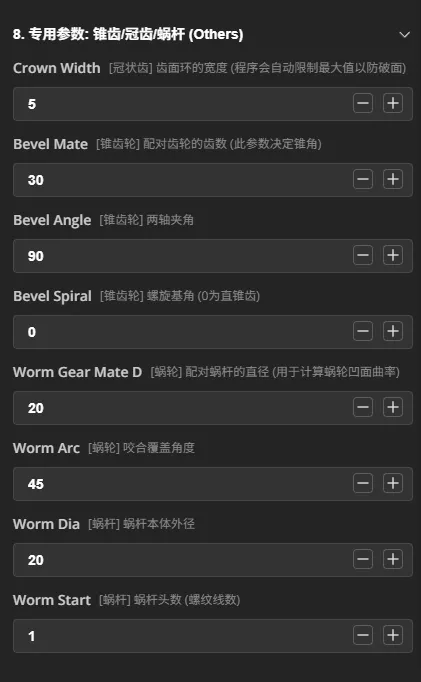

- Bevel Gear Comprehensive Improvement: Addressed the issue of being unable to generate straight bevel gears. The system now supports both straight bevel gears and spiral bevel gears.
- Enhanced Shaft Hole Functionality: * Added support for cross shafts and keyway shafts.
- Introduced hole rotation: This allows for precise alignment. For example, if one gear rotates 0.5 tooth units while the other remains stationary, the gears will mesh perfectly while keeping the keyway shafts aligned in a straight line.
- New Boss Feature: Added the boss feature. This feature has been fully integrated with the logic of all existing functions.
The 3D printed gear generator v11 Ultimate Edition is here!
Deeply refactored based on the powerful BOSL2 library, and after 10 versions of iterative fixes, this is currently the most robust and engineering-standard compliant 3D printed gear generator.
🔥 Core Highlights:

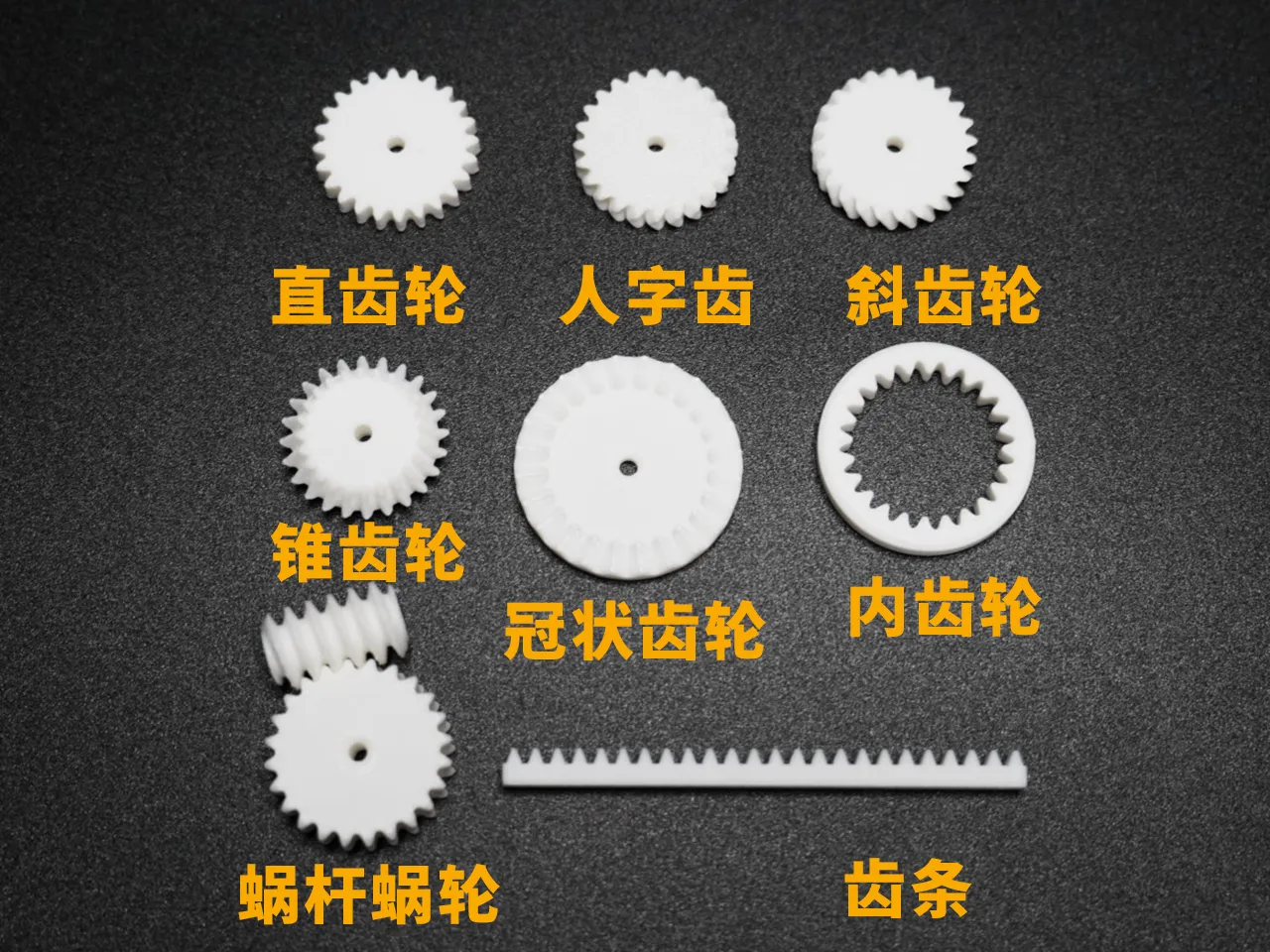

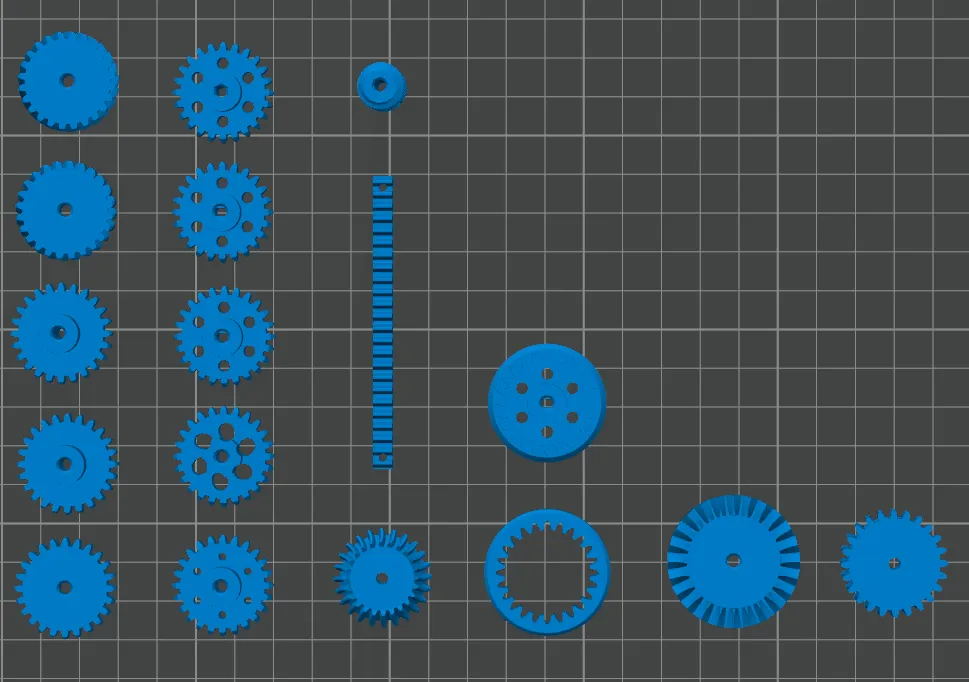

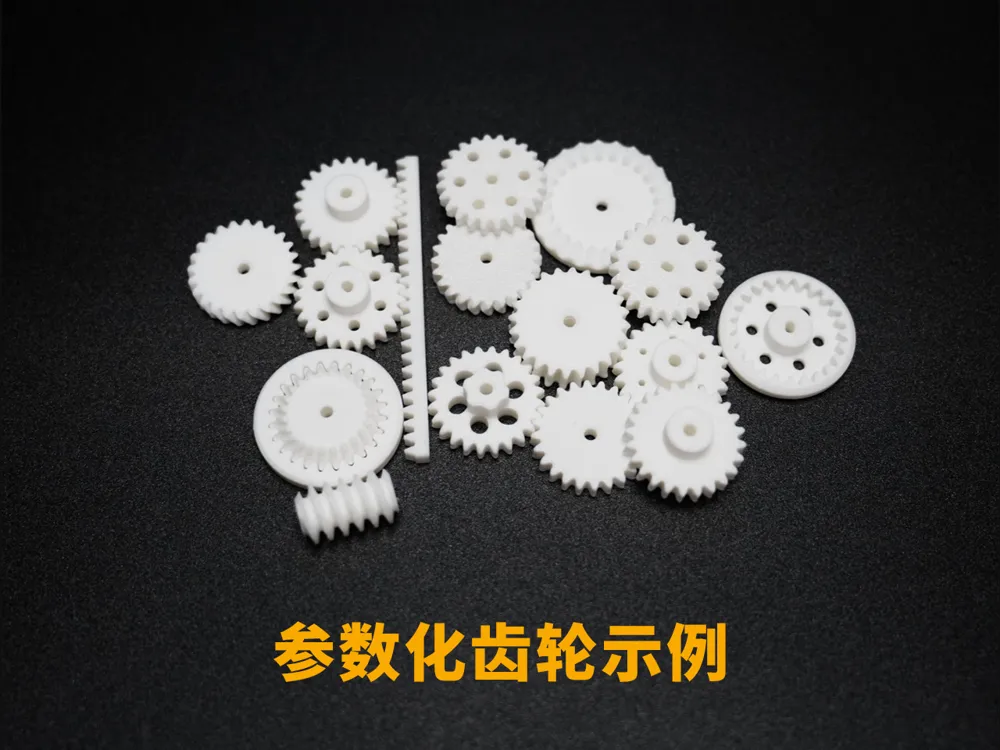

- 7 major gear types: spur/helical, herringbone, internal gear, crown gear, bevel gear, worm wheel, worm, rack

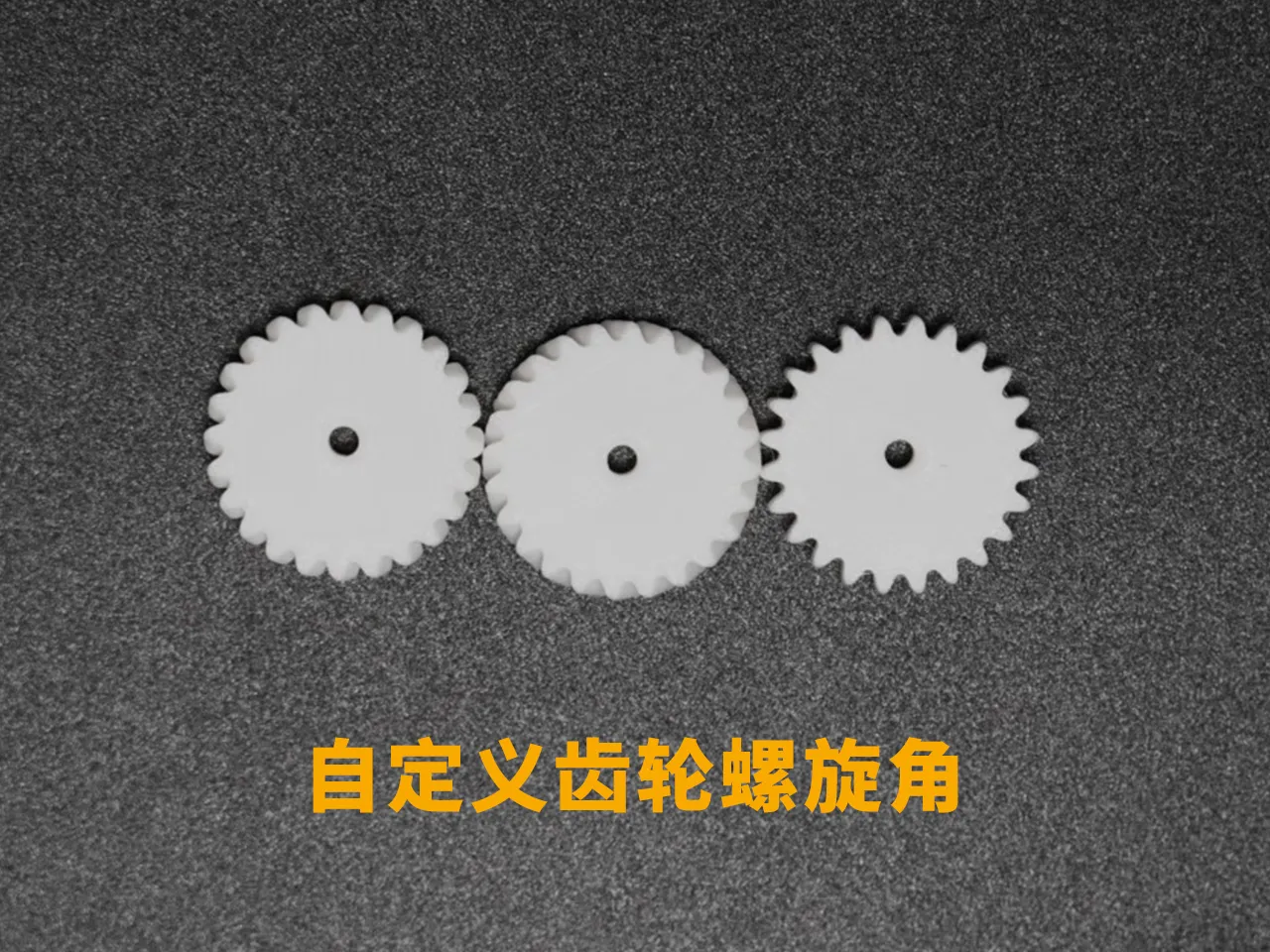

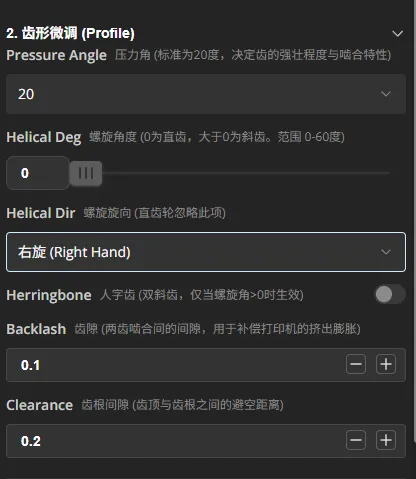

- Custom helix angle: Uses industrial-grade "face module" standard. Whether the helix angle is set to 0°, 45°, or 60°
- Perfect chamfer algorithm: Original "subtractive cutter" logic, adding chamfers to gears to reduce friction and nicks

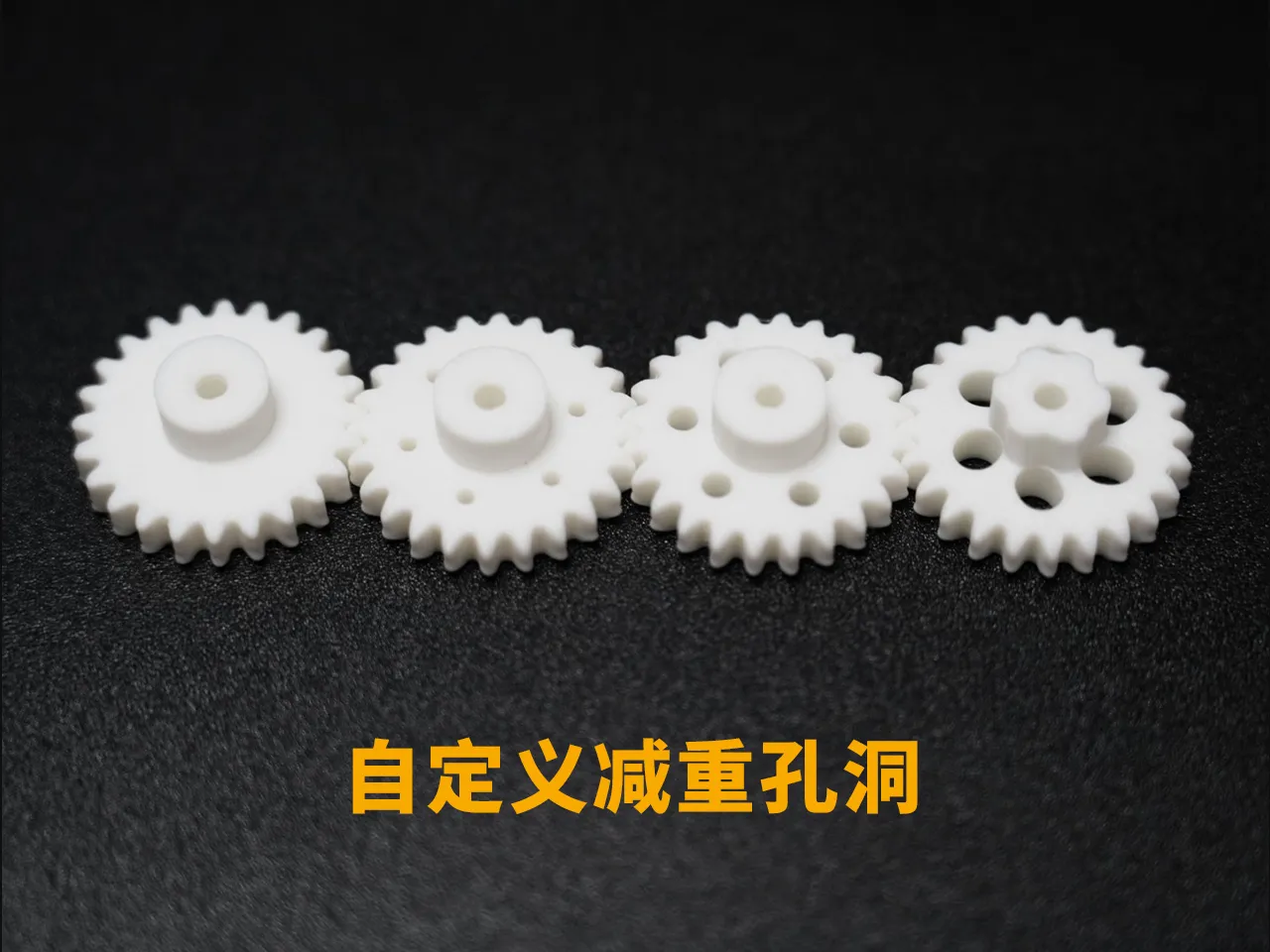

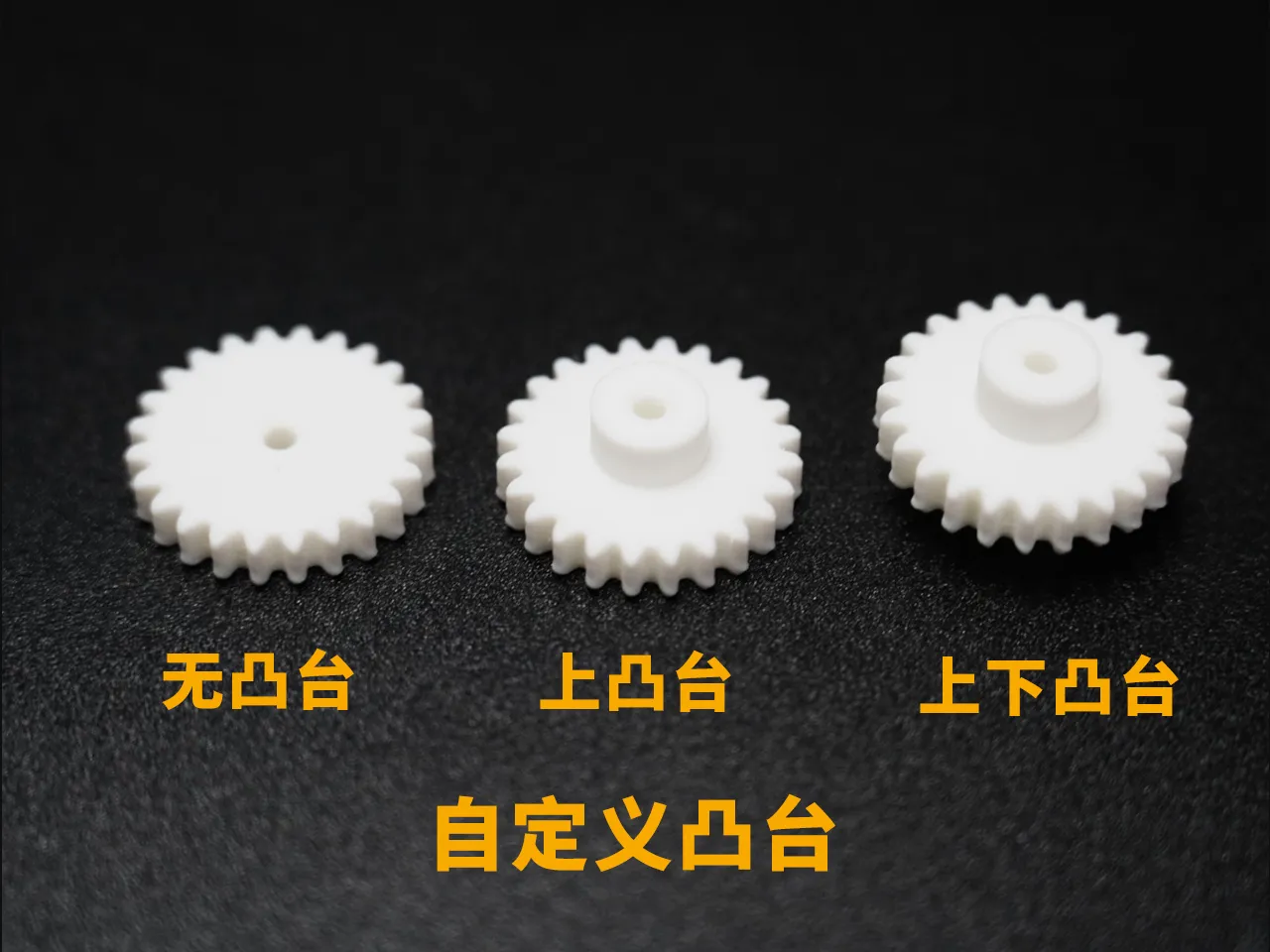

- Custom boss design: Adjustable boss height, diameter

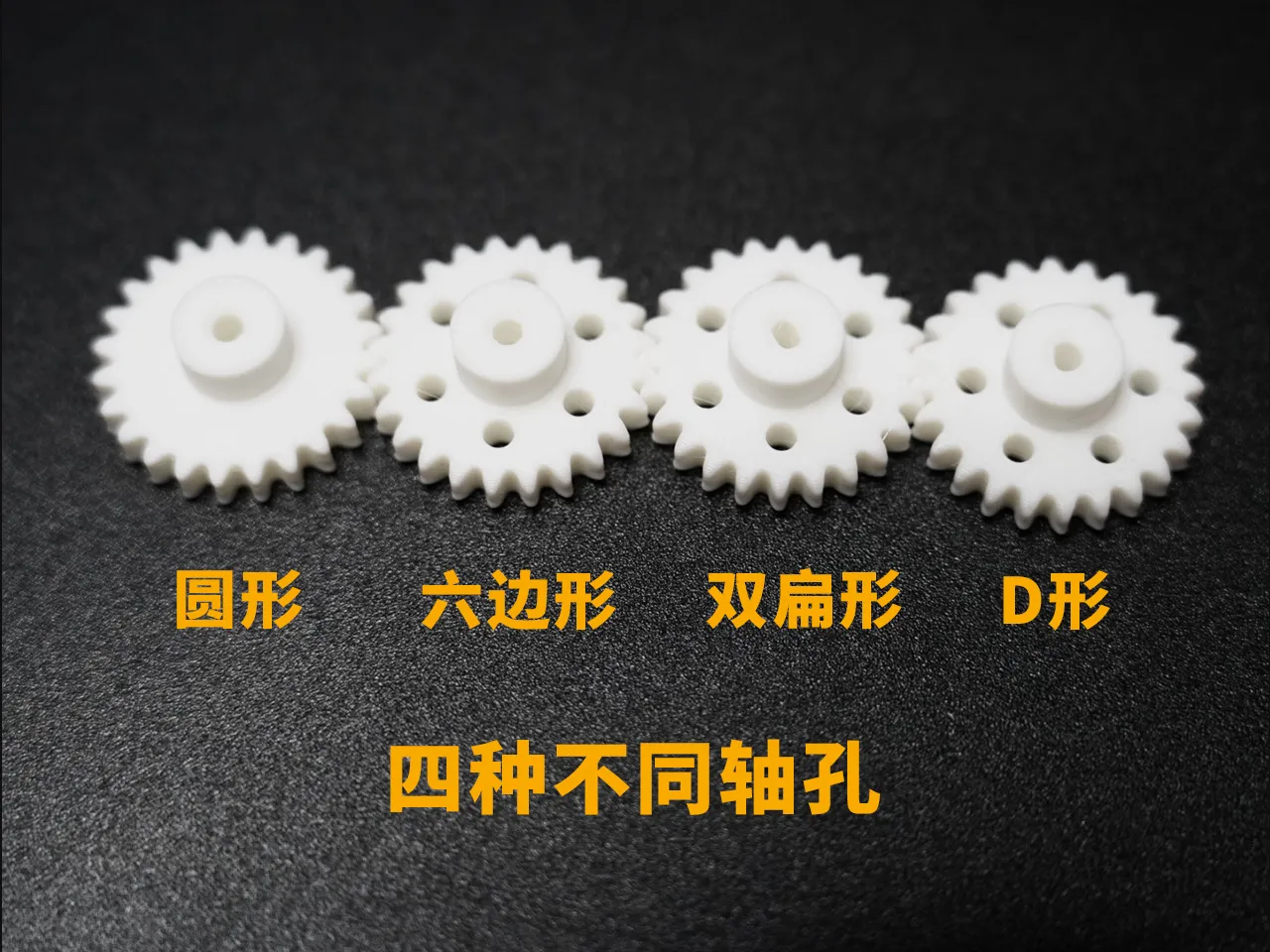

- Extensive shaft hole support: Round, hexagonal (nut insert), D-shaft, double D-shaft, perfectly compatible with various stepper motors.

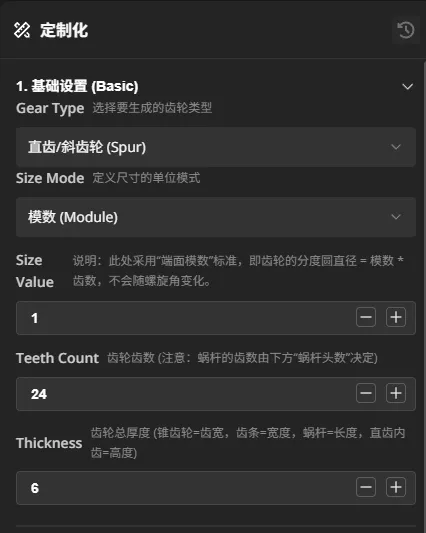

- Full Chinese interface: Clear parameter grouping, full Chinese annotations, even beginners can become engineers instantly.
Download now and end your library search!
If any other bugs still exist, please fill them in the comments section
Video tutorial attached
