Cabinet Hanging Shelf – Customizable - No Hardware

Cabinet Hanging Shelf – Fully Parametric, No Hardware Required

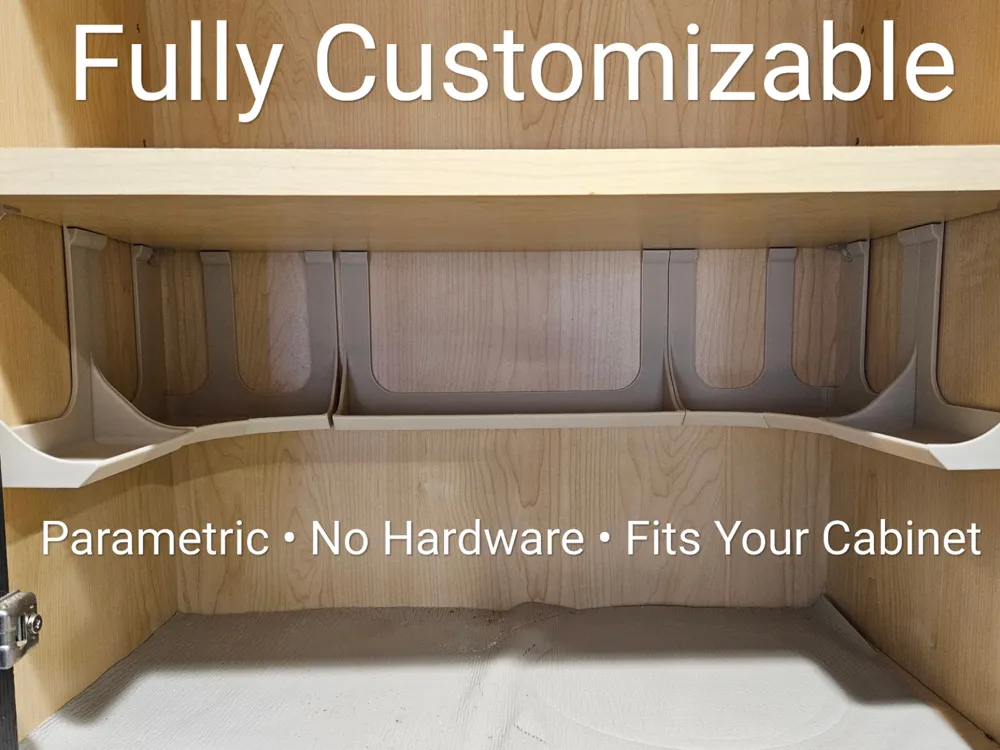

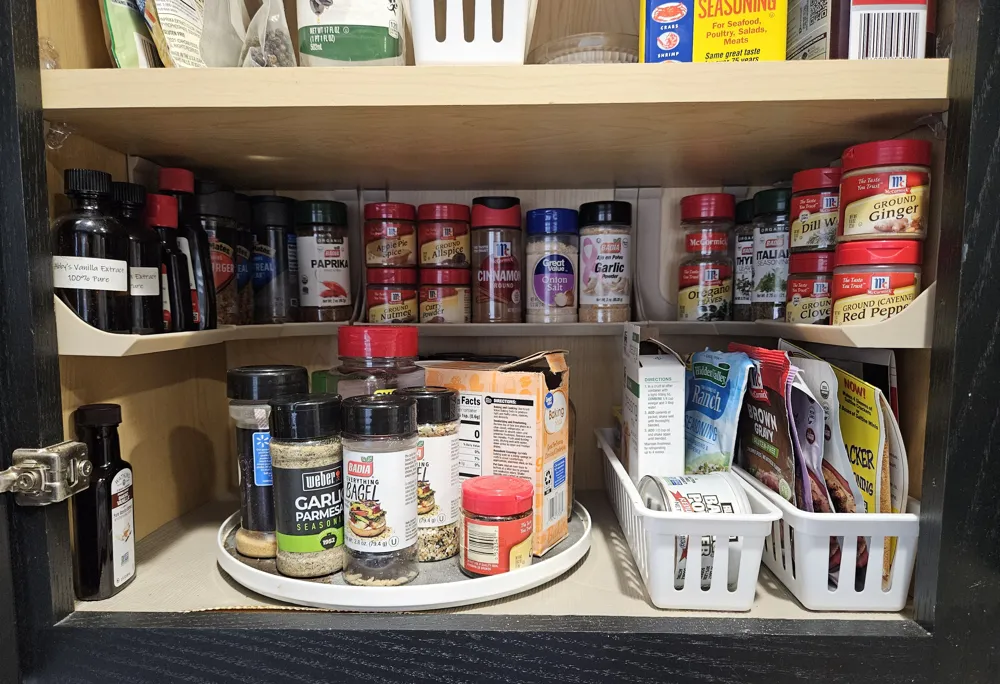

This is a fully parametric cabinet hanging shelf system designed to maximize unused vertical space without drilling, screws, or permanent hardware.

The shelf hangs securely from an existing cabinet shelf using a printed hook. Every critical dimension is driven by Fusion parameters, allowing the model to be easily customized to fit your exact cabinet width, depth, shelf thickness, and spacing.

I really liked the original design but it was too tall for my intended purpose so I redesigned it from the ground up in fusion to make it adaptable to any cabinet/shelf combo.

🔧 Key Features

• No hardware required – hangs directly from existing cabinet shelves
• Fully parametric Fusion 360 model – adjust dimensions instead of editing geometry

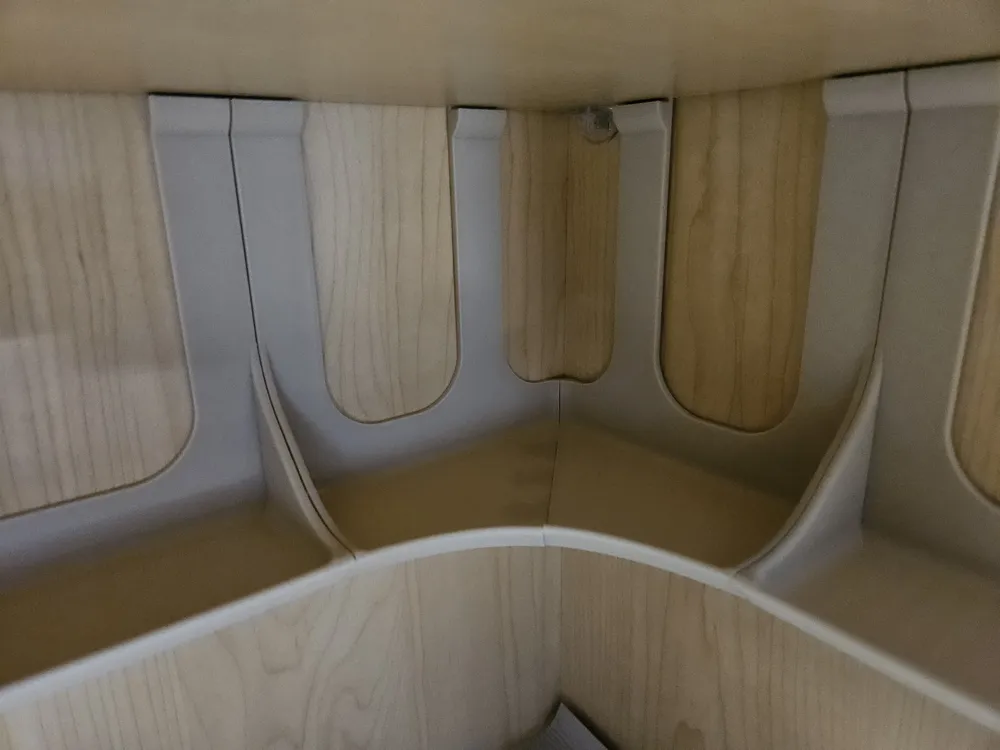

• Supports straight and corner cabinets

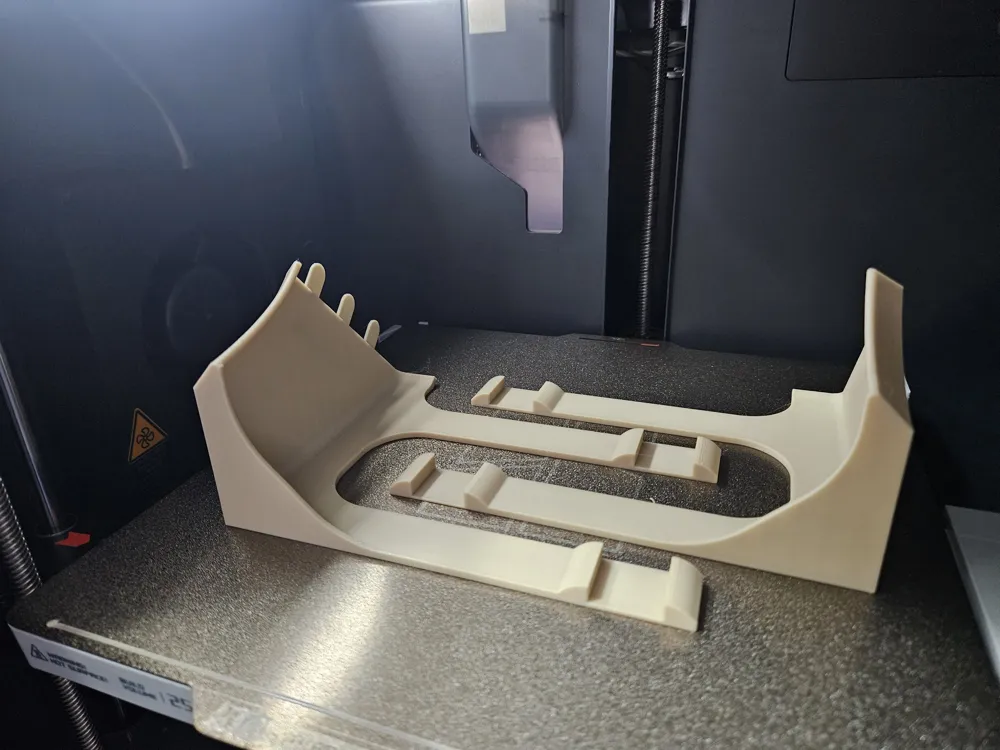

• Optimized print orientation included for strength and clean surfaces

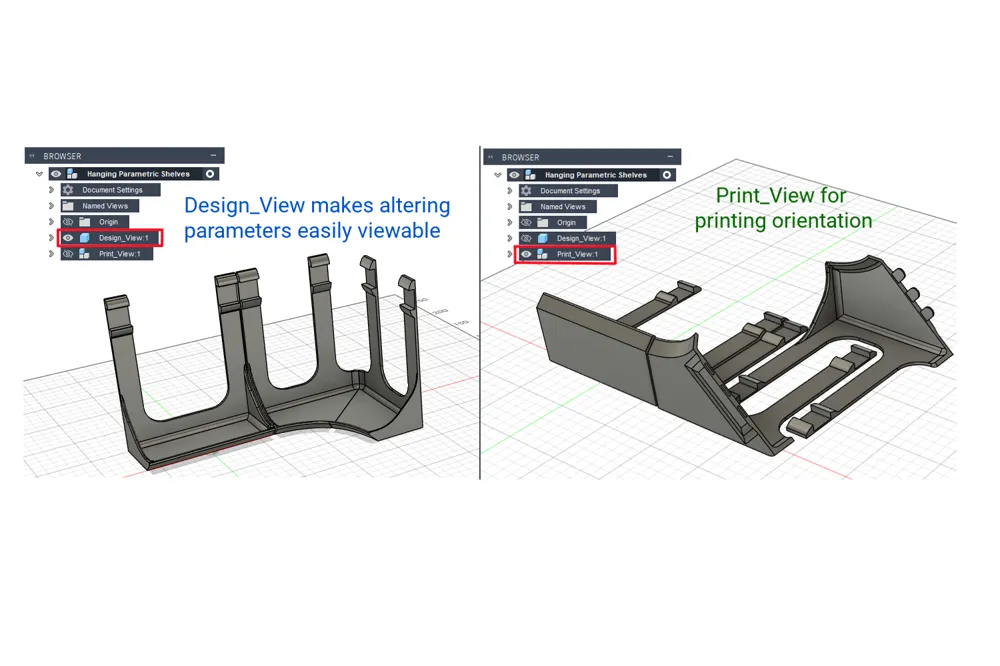

• Design View & Print View built into the model for easy customization and exporting
• Modular construction – print only the parts you need

📐 Customizable Parameters

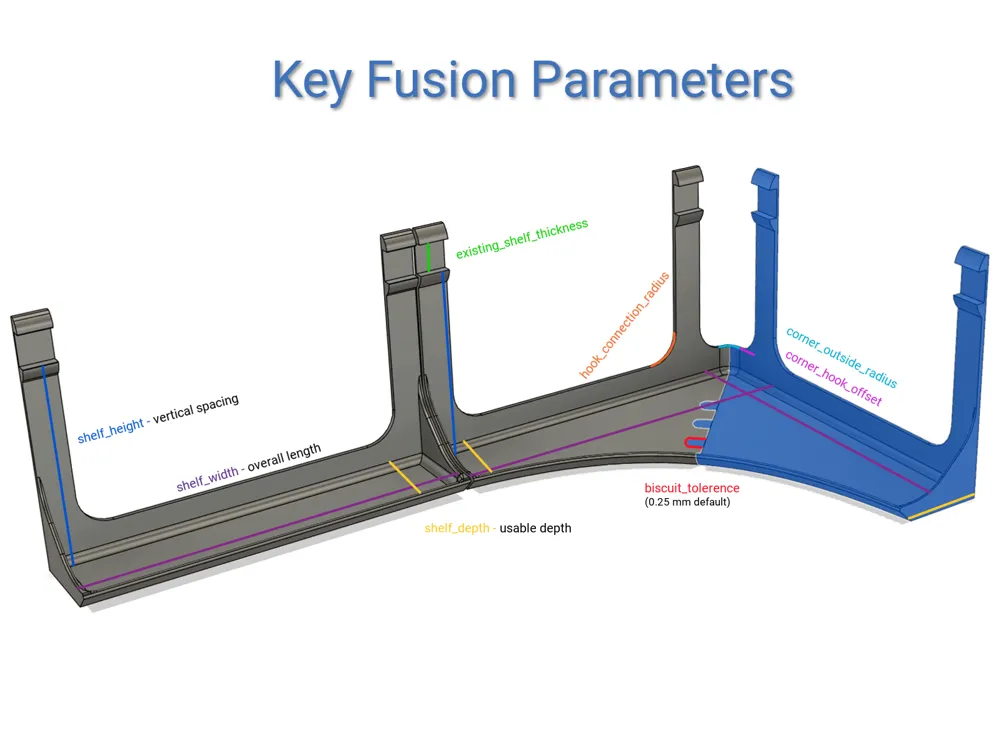

The following dimensions can be adjusted via Modify → Change Parameters:

• Shelf width (overall length)
• Shelf depth (usable depth)
• Vertical spacing between shelves
• Existing shelf thickness
• Corner radius and hook offsets
• Biscuit/connector tolerance (default tuned for FDM printing)

No sketches or features need to be edited — simply change the values and regenerate.


UPDATES

---------------------------------------------------

2025-12-22 | Added STEP file
