Description

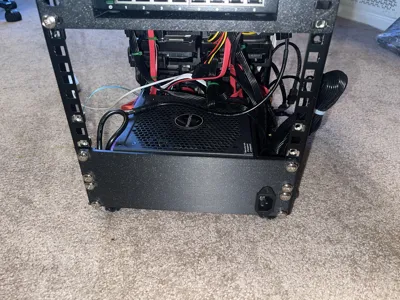

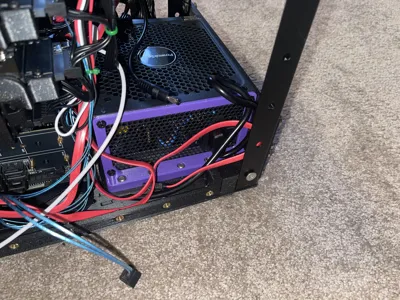

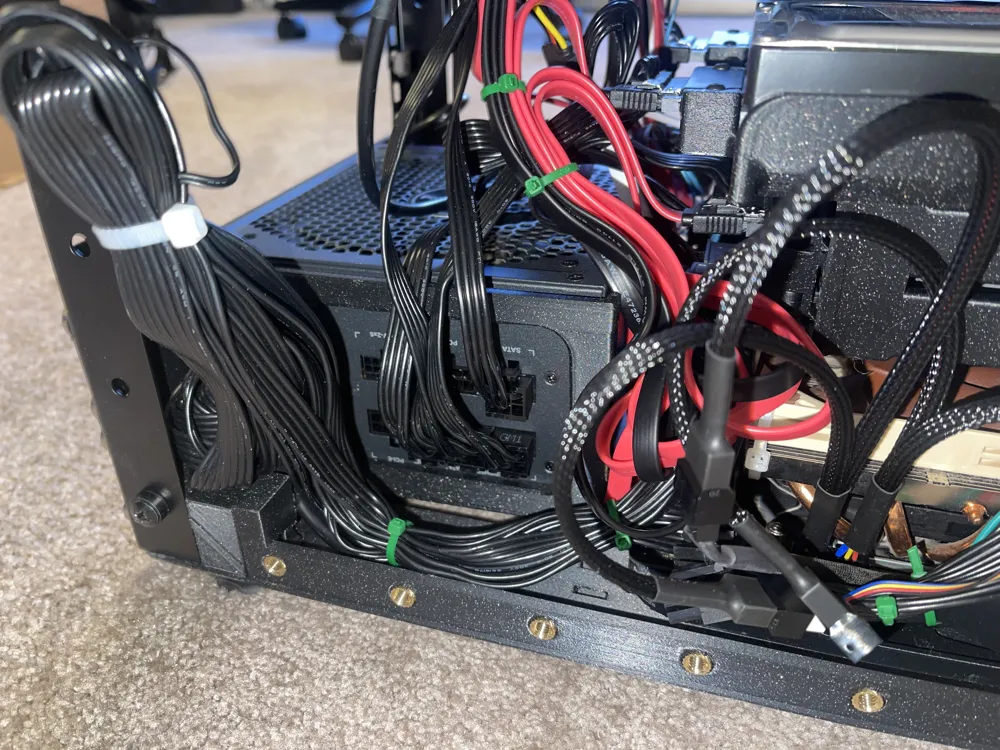

I had a shallow rack so I needed to mount my ATX PSU in the rack with a miniITX motherboard. This solution worked pretty well for me.
Required Parts for 2U:
5x M6x8 Thread inserts (This will work with up to 10mm long thread inserts)
5x M6x15 Countersunk Screws (Shorter or longer could work)
2x M3x4 Thread Inserts (If you are using the IEC Bulkhead Connector)
Required Parts for 3U:
5x M6x8 Thread inserts (This will work with up to 10mm long thread inserts)
5x M6x25 Caphead Screws
I Used the following items:
IEC Bulkhead Connector: https://www.amazon.com/Traovien-Extension-Computer-Monitor-Scanner/dp/B0BLRHDJ63?th=1
