Torture Test All in One
Print Profile(1)
Description

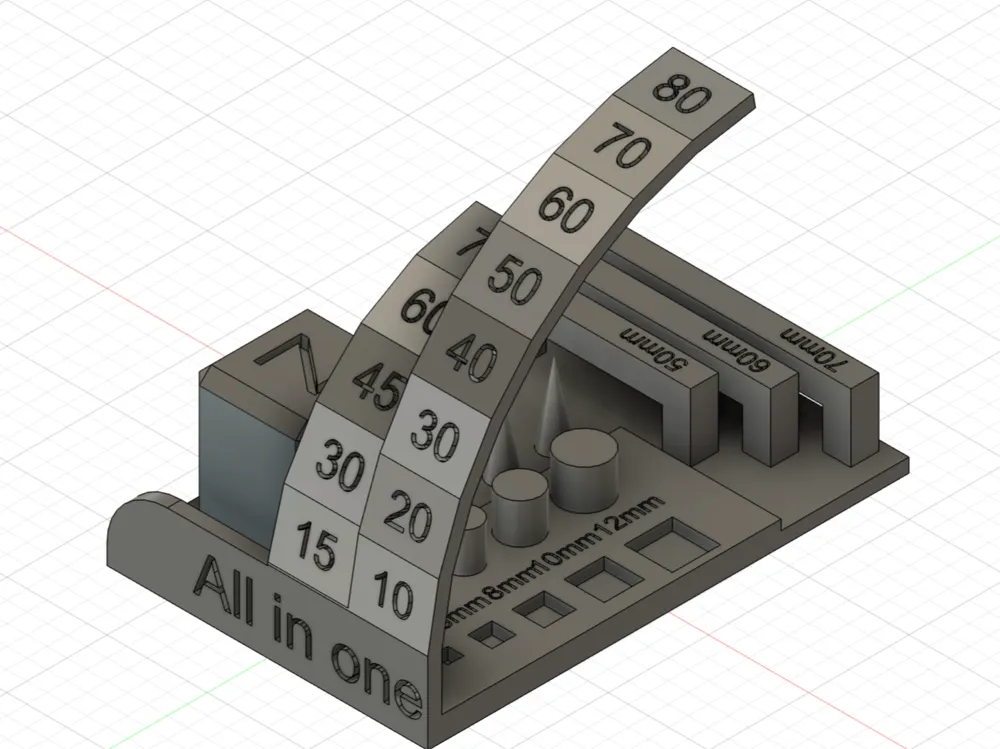

This torture test for your printer and filament contains 5 tests in a single model, with just 57g of filament.

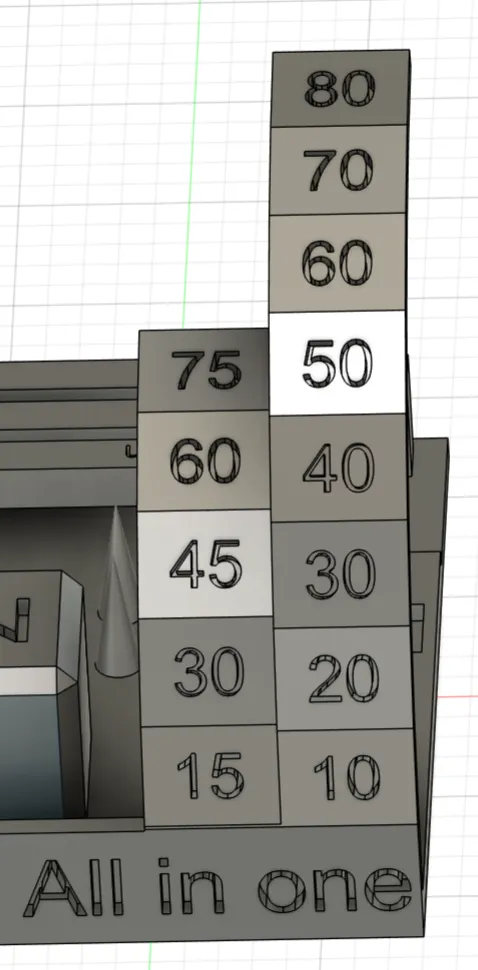

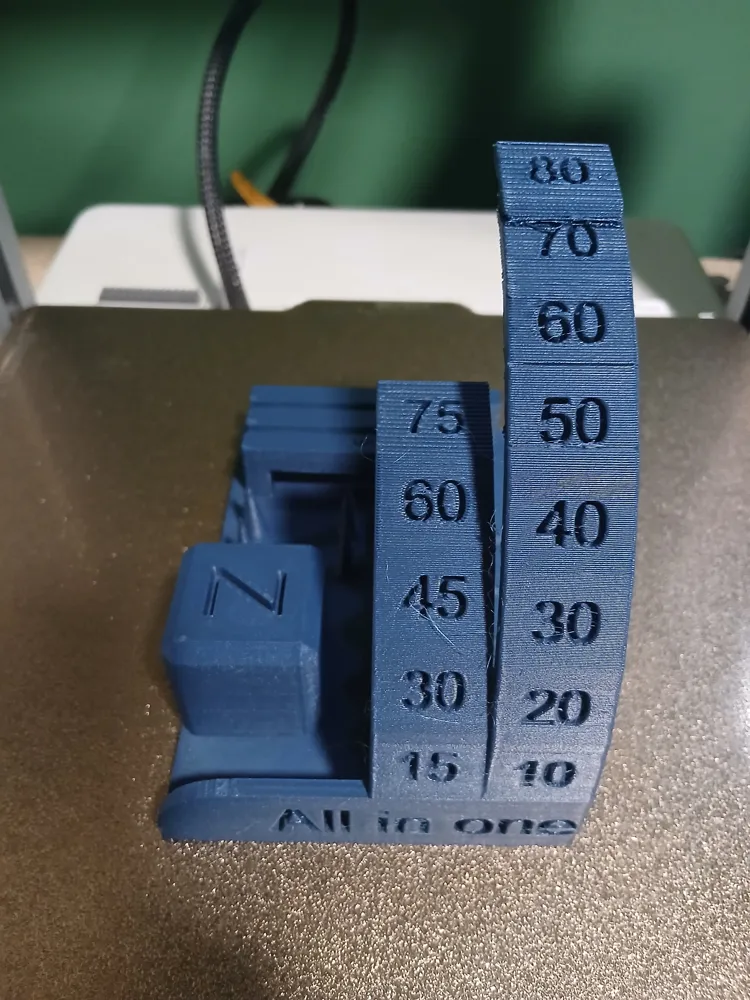

The first test is the overhang test: you have two hoverhang towers with different degrees of inclination. The first has a 10° increment and the second a 15° increment.

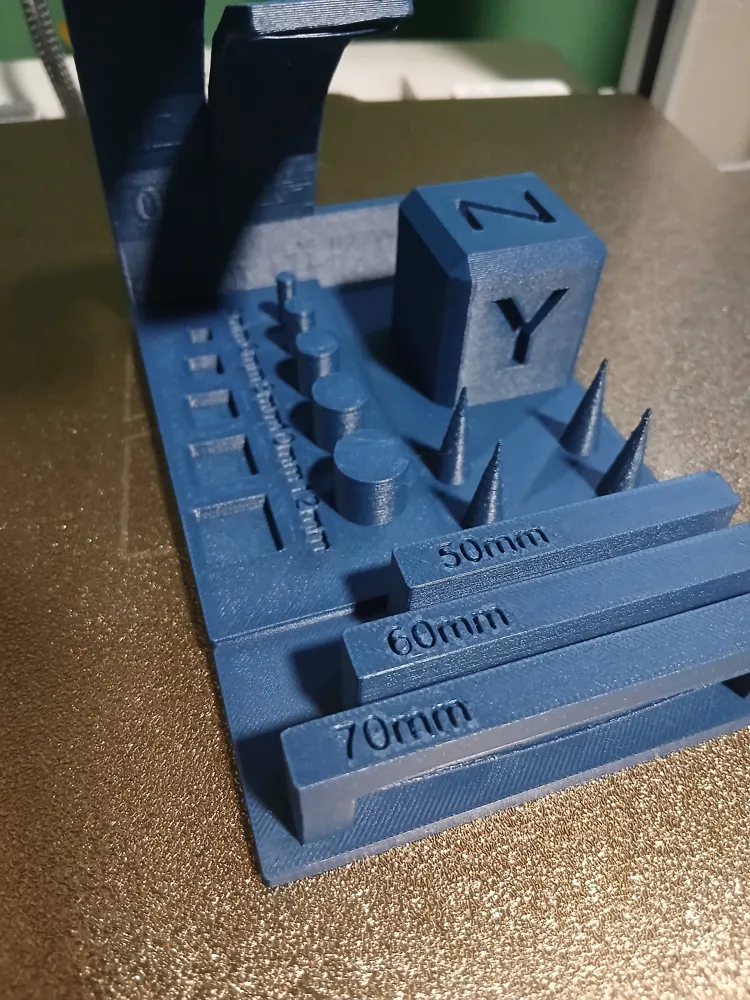

Immediately after that, you'll find the dimensional test: with holes and cylinders with the measurements to verify.
Then you'll find the bridging test: with three bridges of 70, 60, and 50mm.

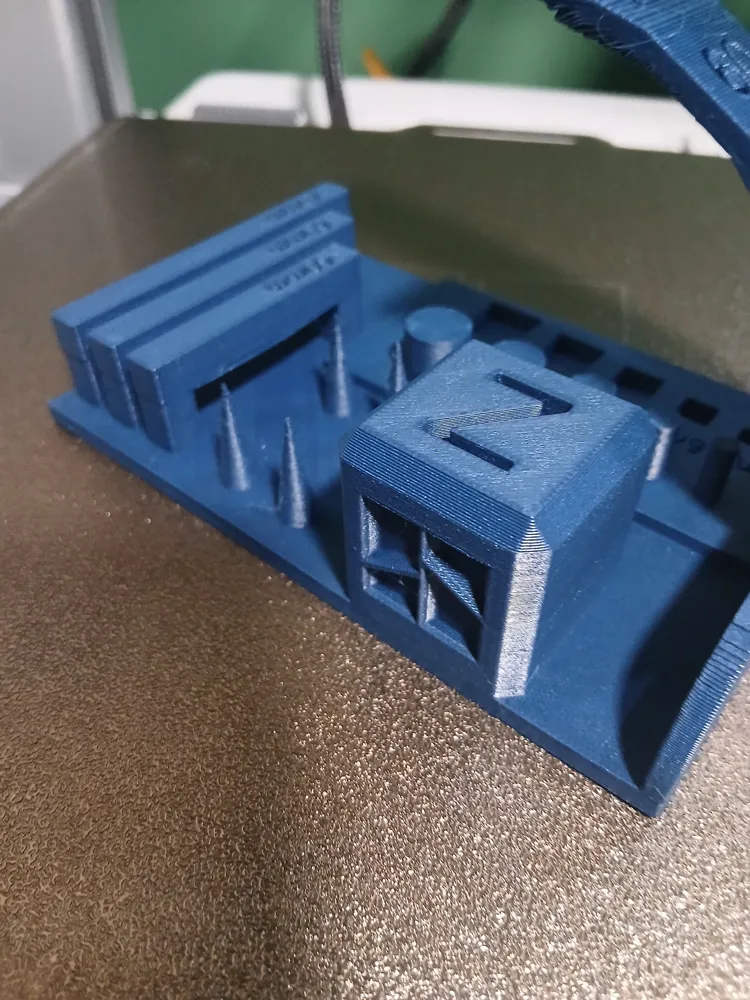

Nearby, you'll find 4 turrets for the stringing test.

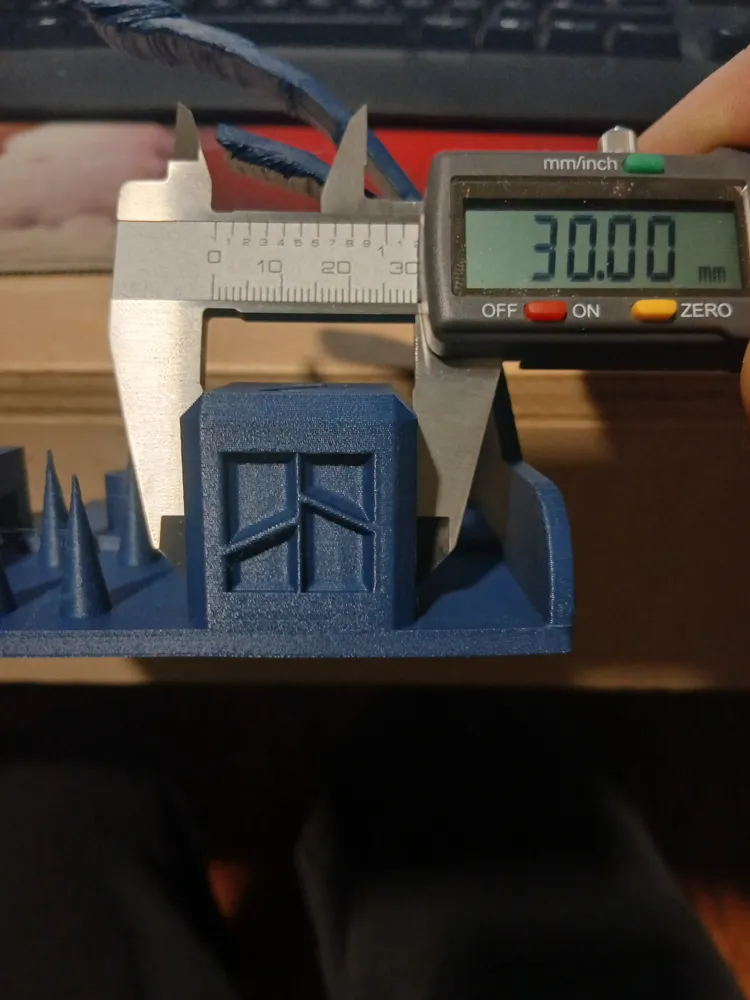

And finally, you have the 30x30x30mm bambu calibration cube.
With this test, you can also test warping and adhesion to the bed.
This test is very useful for understanding how your printer and filament work.
I hope you enjoy it and it helps you with your printing.
Enjoy!
