Safety cover for busbar
Print Profile(4)
Description
Safety Cover / Contact Protection for Busbar

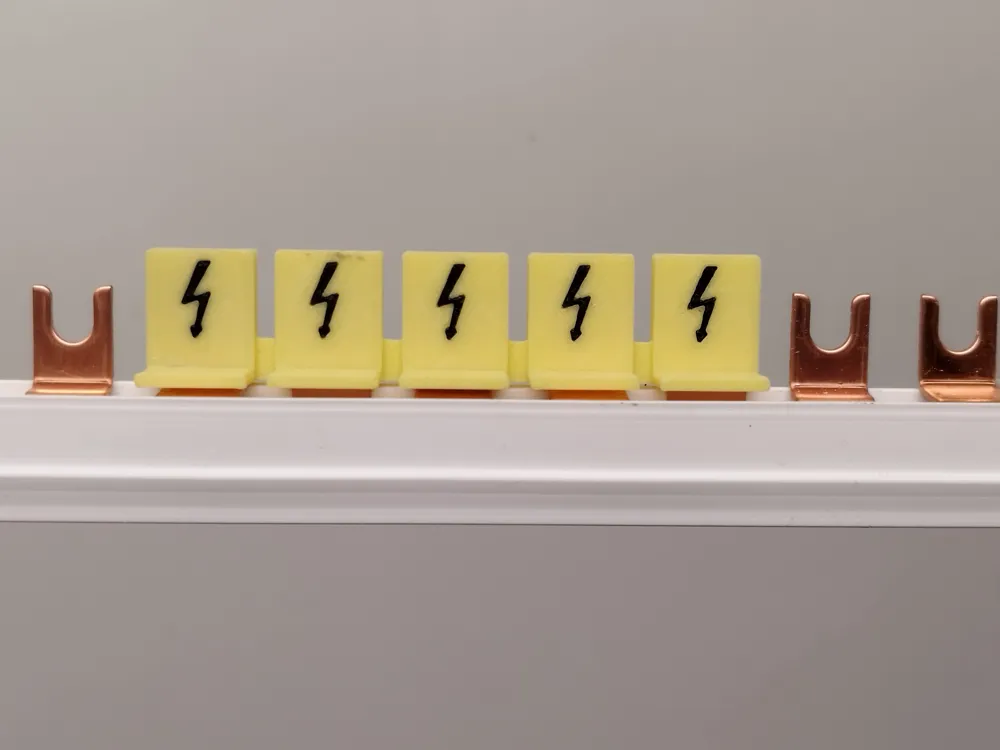

Cover for unused live module slots on the busbar (comb busbar) in the household distribution board/fuse box.

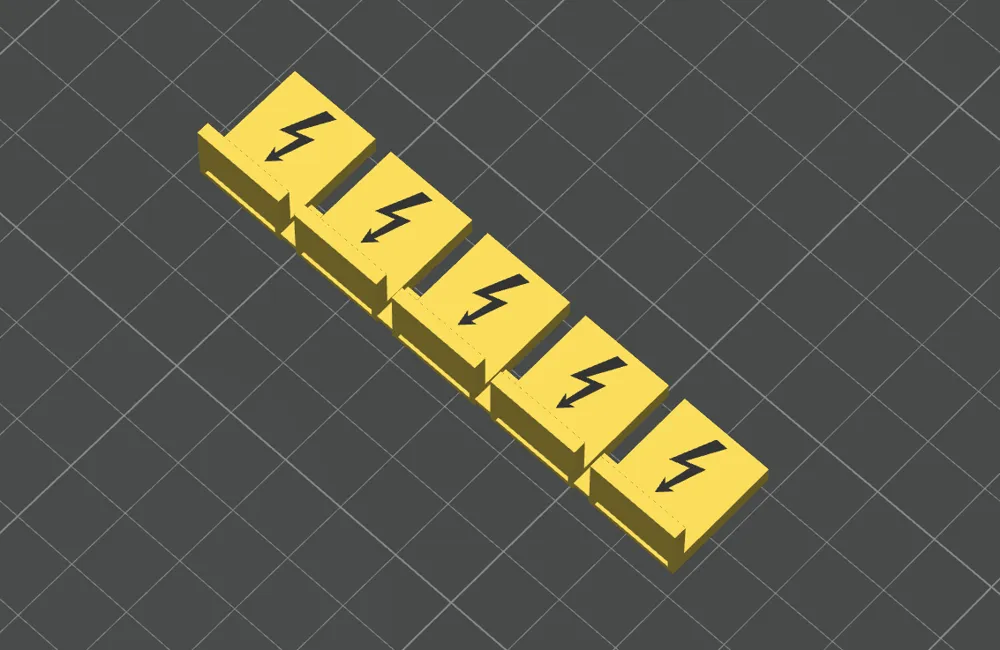

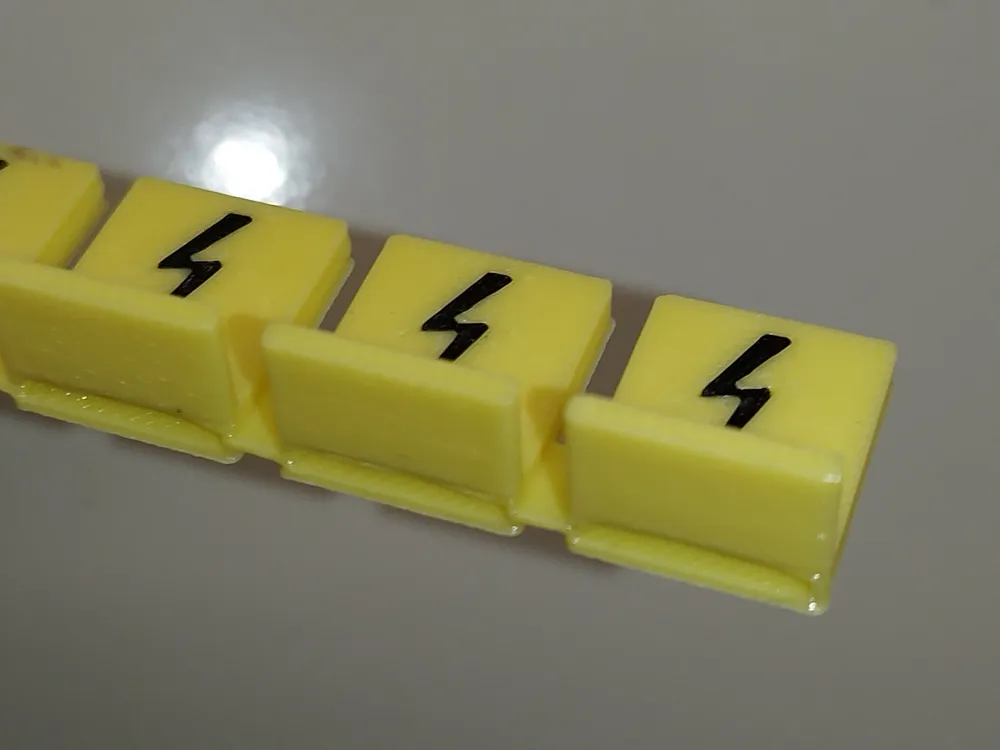

The model contains 5 cover caps in a row. If you need fewer, separate the desired number of caps at the predetermined breaking point with a blade.
- Suitable for busbars with:
- Fork connection (standard fork: 1 mm thick, 12 mm wide)
- 17.8 mm pitch
There are several variants/print profiles:

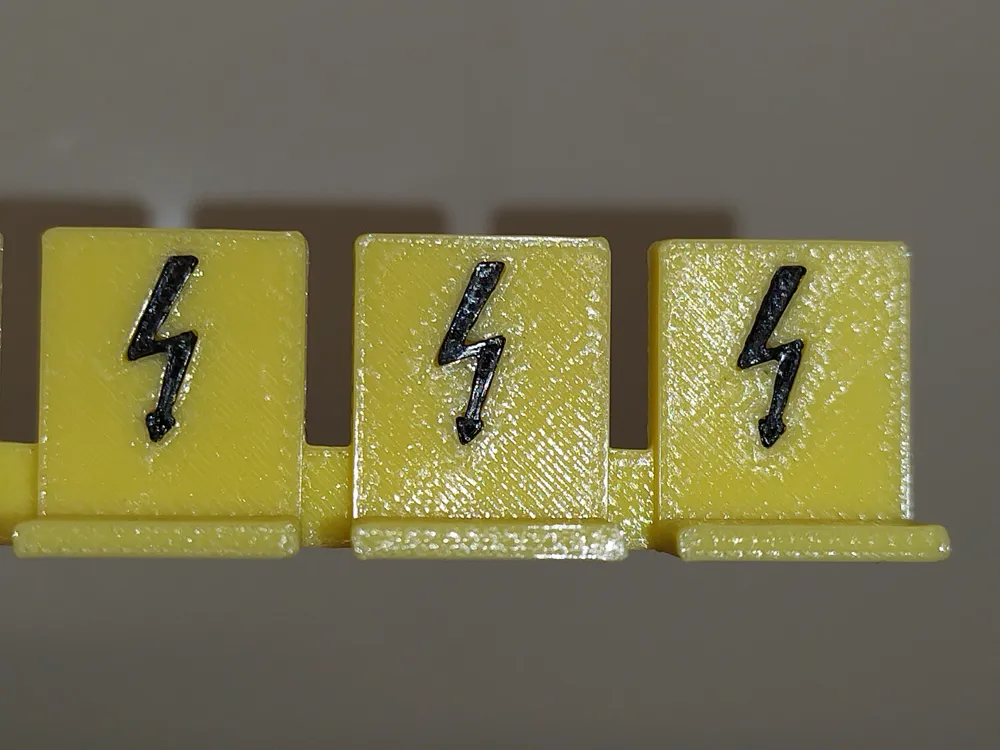

- Variant 1) 1x safety cover (strip of 5) with lightning bolt symbol = 5 pieces
- Variant 2) 1x safety cover (strip of 5) without lightning bolt symbol = 5 pieces
- Variant 3) 5x safety cover (strip of 5) with lightning bolt symbol = 25 pieces
- Variant 4) 5x safety cover (strip of 5) without lightning bolt symbol = 25 pieces
Note:
Please note that this protective cover does not offer 100% protection. Use at your own risk.
