Talaria XXX model bike
Print Profile(2)
Description
Boost Me (for free)
Boost so i can buy a p1s
⚠️ YOU HAVE TO DOWNLOAD THIS ON THE MAKERWORLD WEBSITE! it will not work on the bambu handy app!⚠️

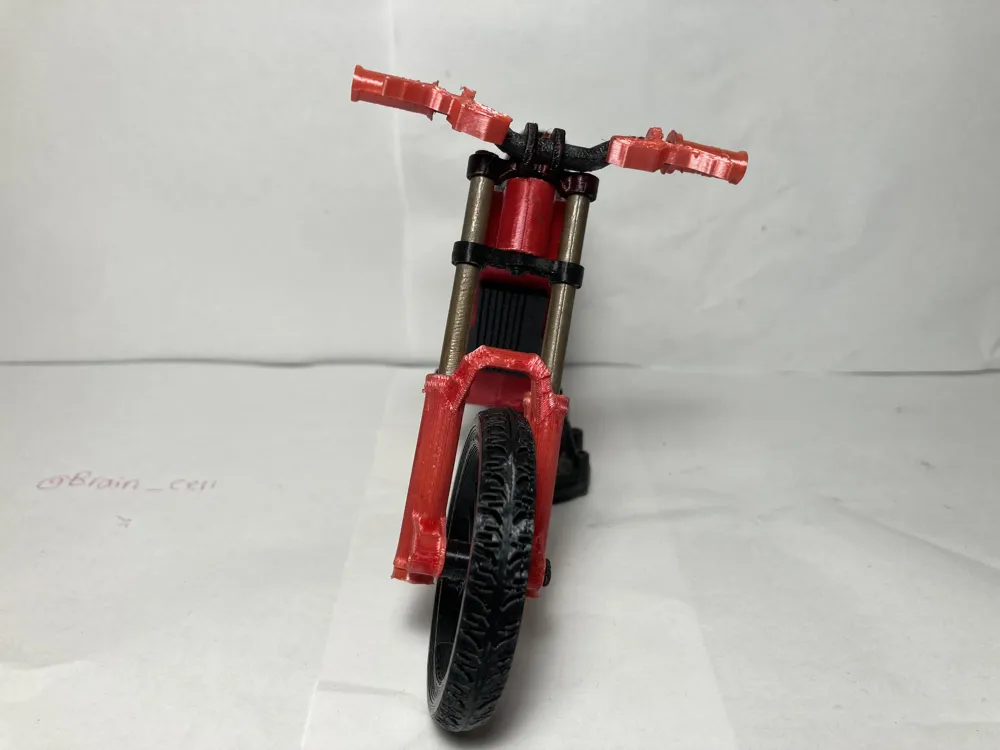

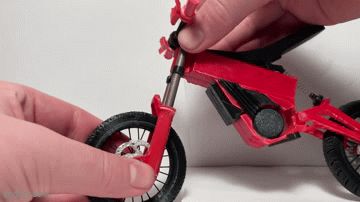

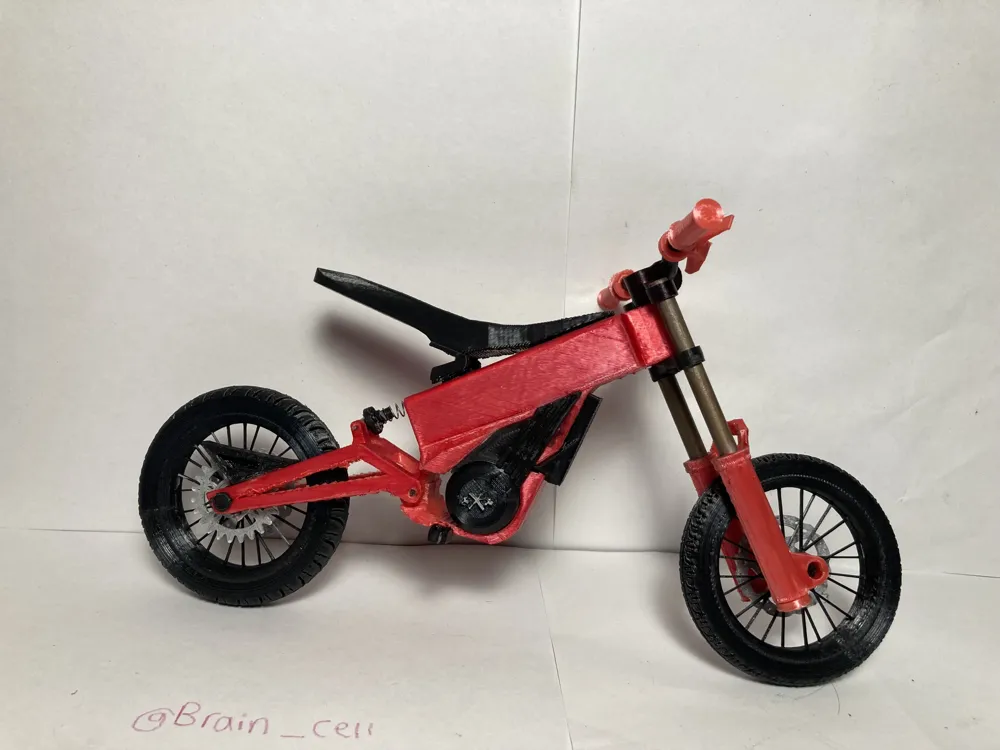

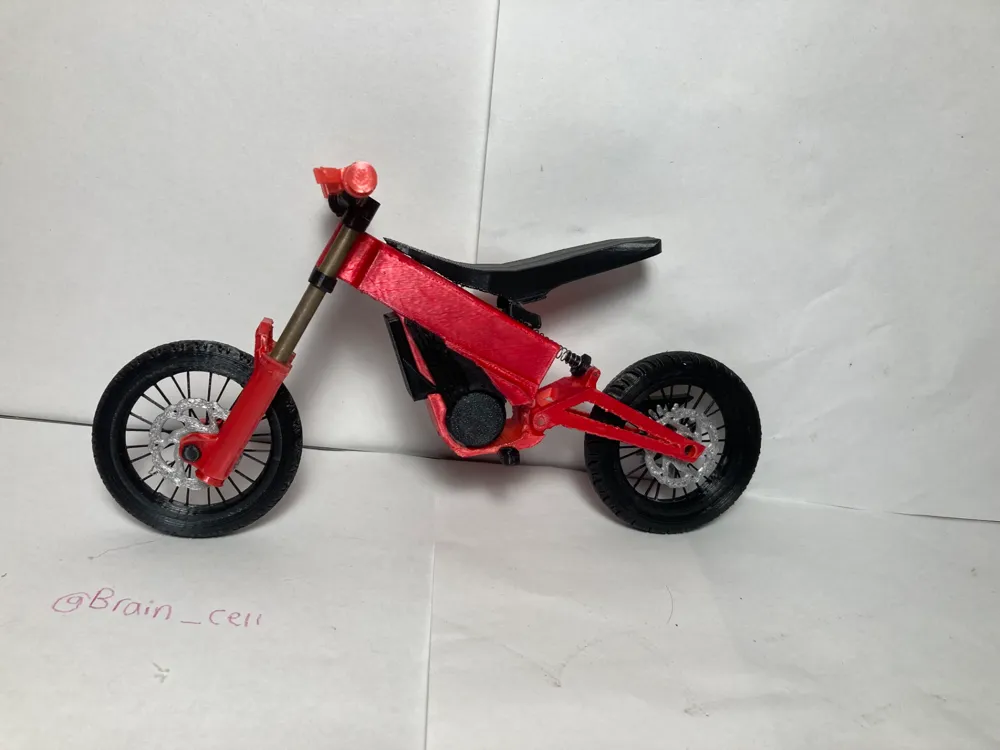

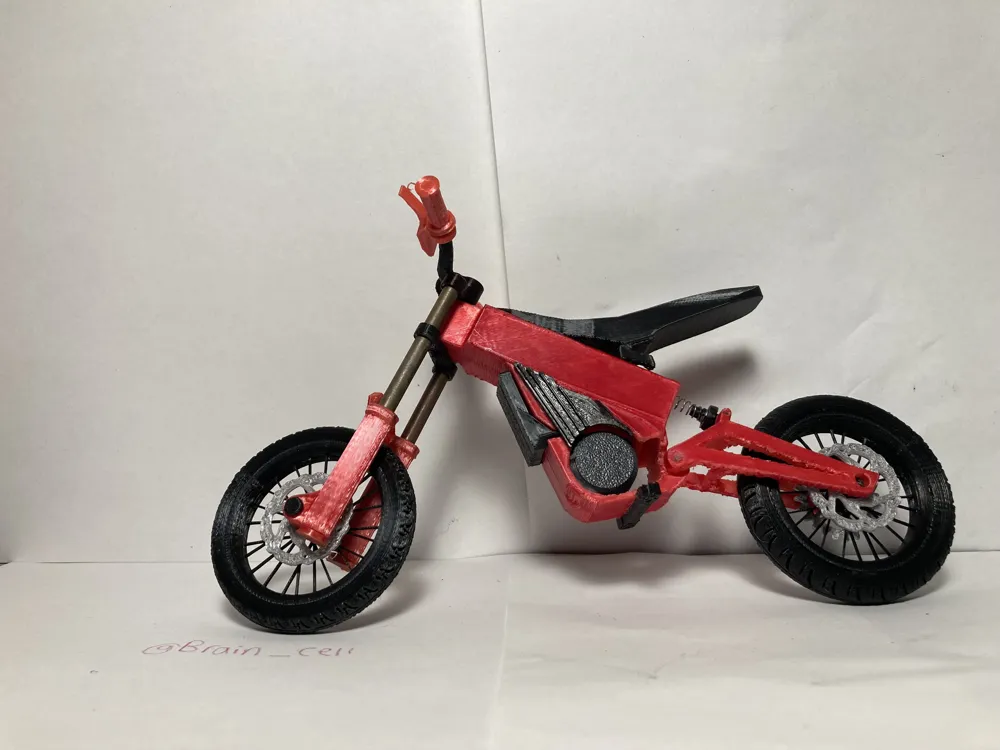

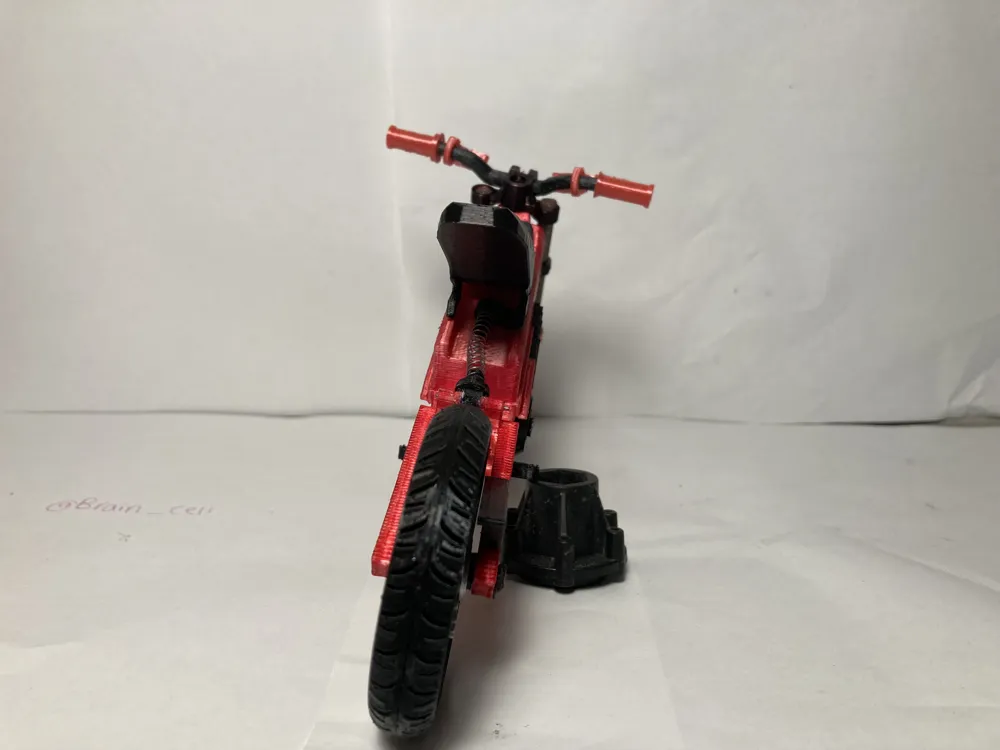

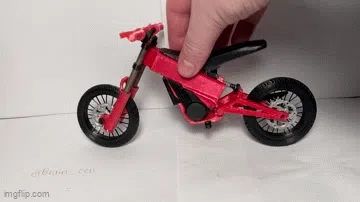

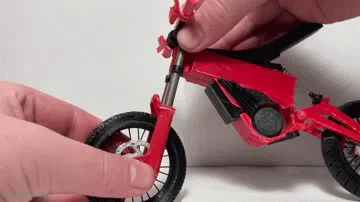

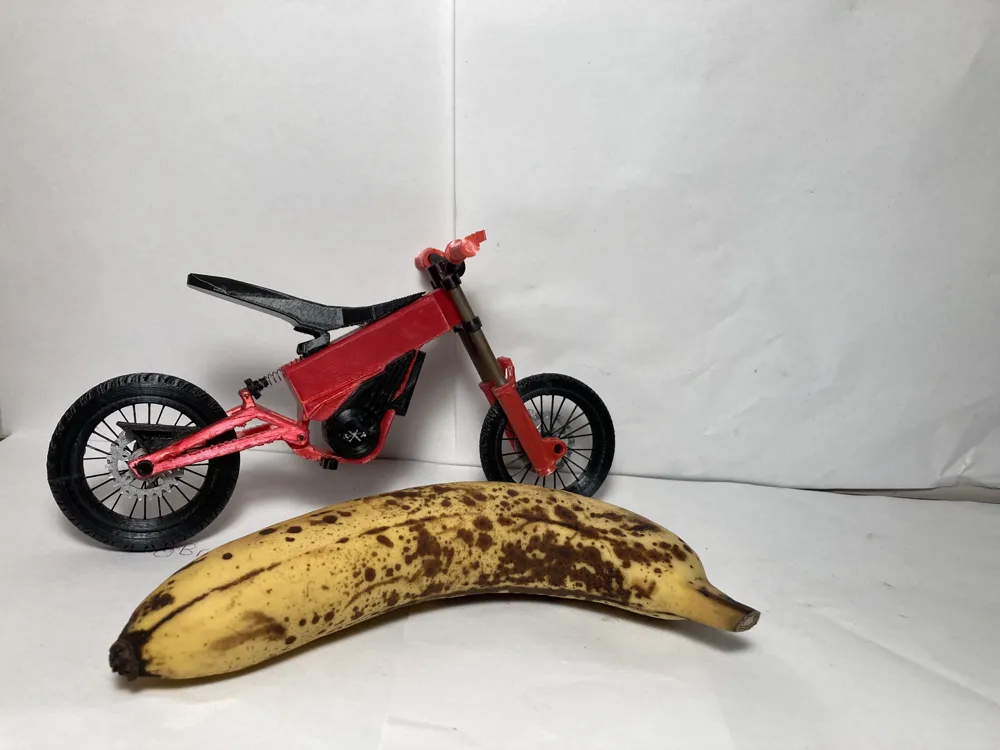

This is a 1:9 scale Talaria X3 model which has working front and rear suspension, and wheels that spin. Its designed to be easy to print and assemble. Everything is 3D printed except two springs for the suspension and a paperclip for the swingarm.
---------------------
This is one of my most detailed models ever.
---------------------
The forks and wheels are made by @How2Random
PLease like and post your prints!
⚠️ you need glue to put it together (Preferably Superglue or other liquid glue)
Wash your build plate and add glue-stick before you print
You need two pen springs for the suspension
INSTRUCTIONS
Grab two halves of the rear wheel (The wider one) and put the wheel guides in, the small curved pieces and glue one side of the wheel. Put the two pieces of the wheel together and clamp them together until the glue dries
Align the keyhole and put the sprocket on one side and the brake rotor on the the other side.
Repeat with front wheel, put the rotor on the side with the keyhole bump
FORK ASSEMBALY
1. Slide the fork stanchion into the lowers. Make sure they are the same as picture.
a. (the circular side goes in first from the bottom of the fork body).
b. Slide stanchions back and forth a few times make them smoother.
2. Press stanchions into the bottom triple clamp until about 16mm of the stanchion is above the triple clamp (refer step 3 picture) (DONT glue yet)
3. put the 30mm spring into one of the holes in the fork lowers
4. put glue on the fork caps and press them into the fork body
5. Put the front wheel (the thinner one) in between the lowers and slide in one of the axles
