Description

Hello creatives! 👋

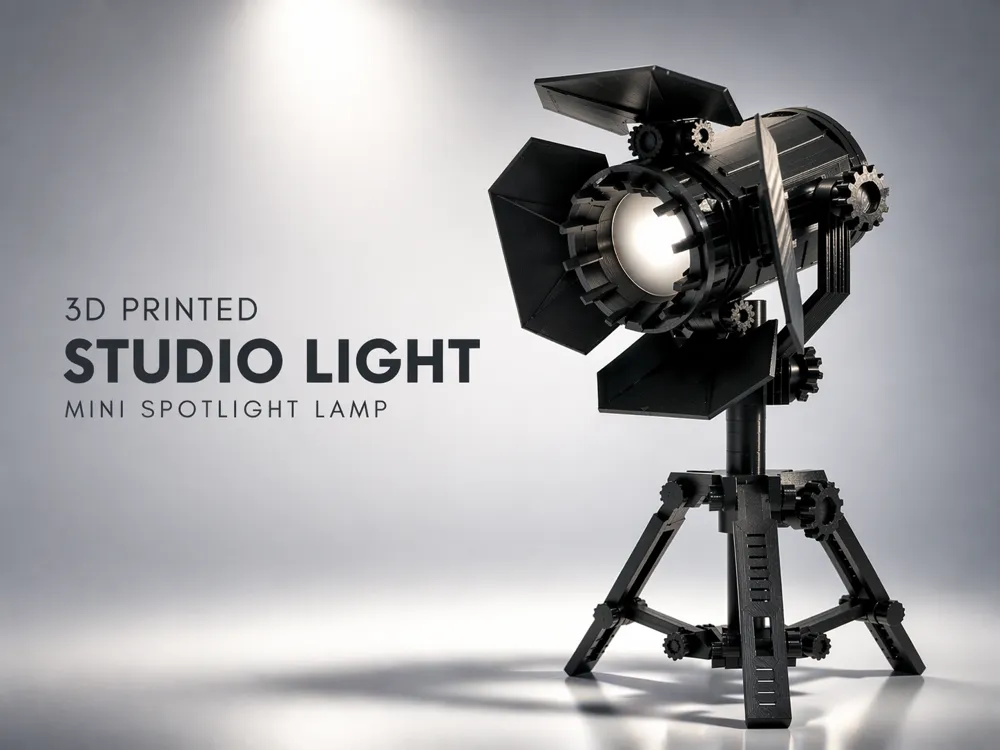

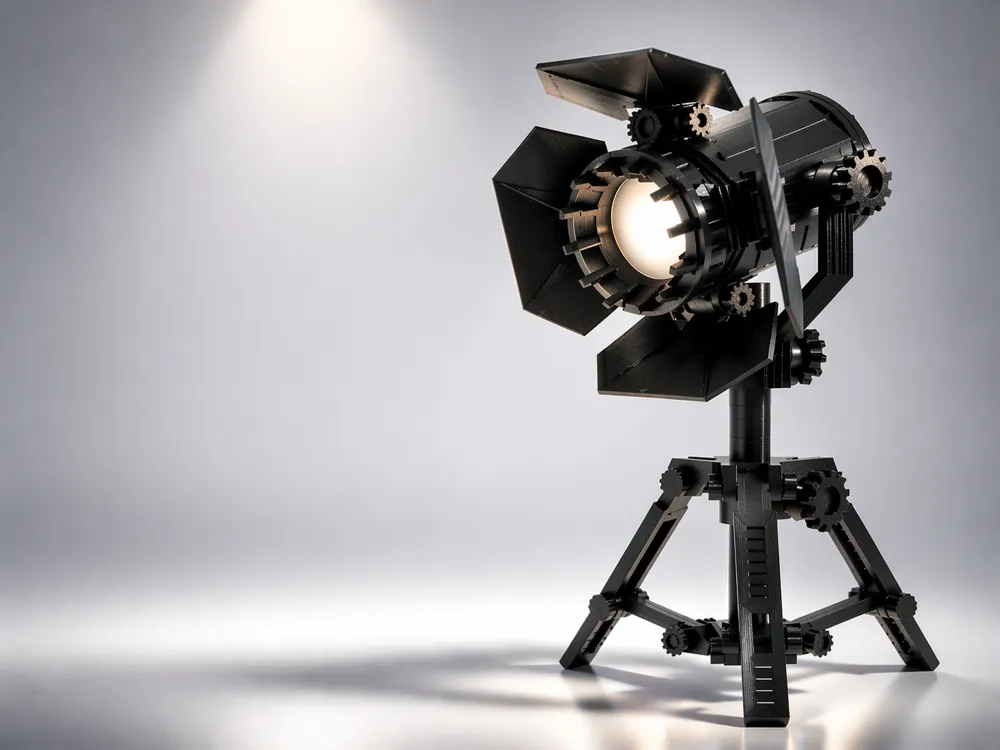

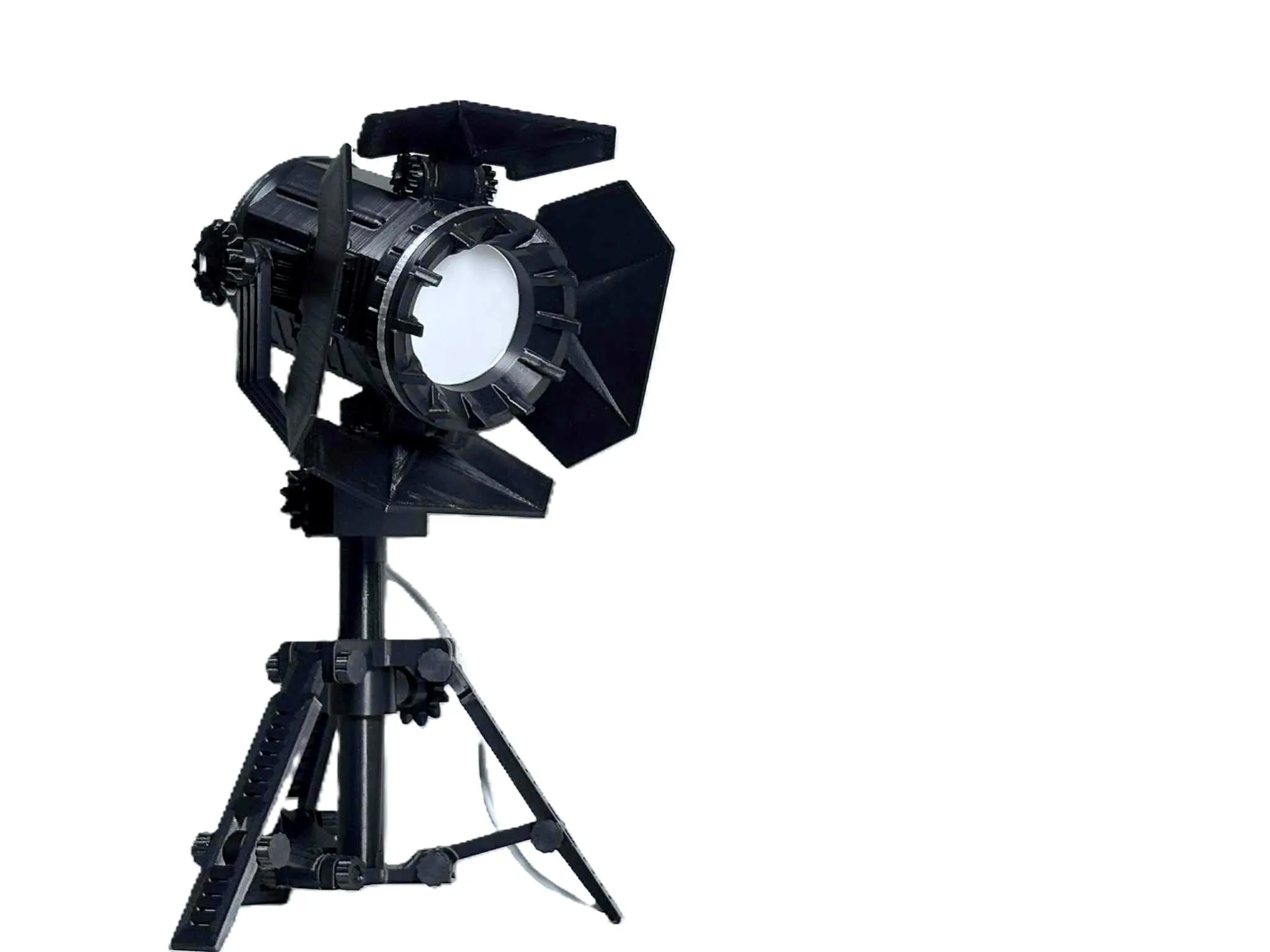

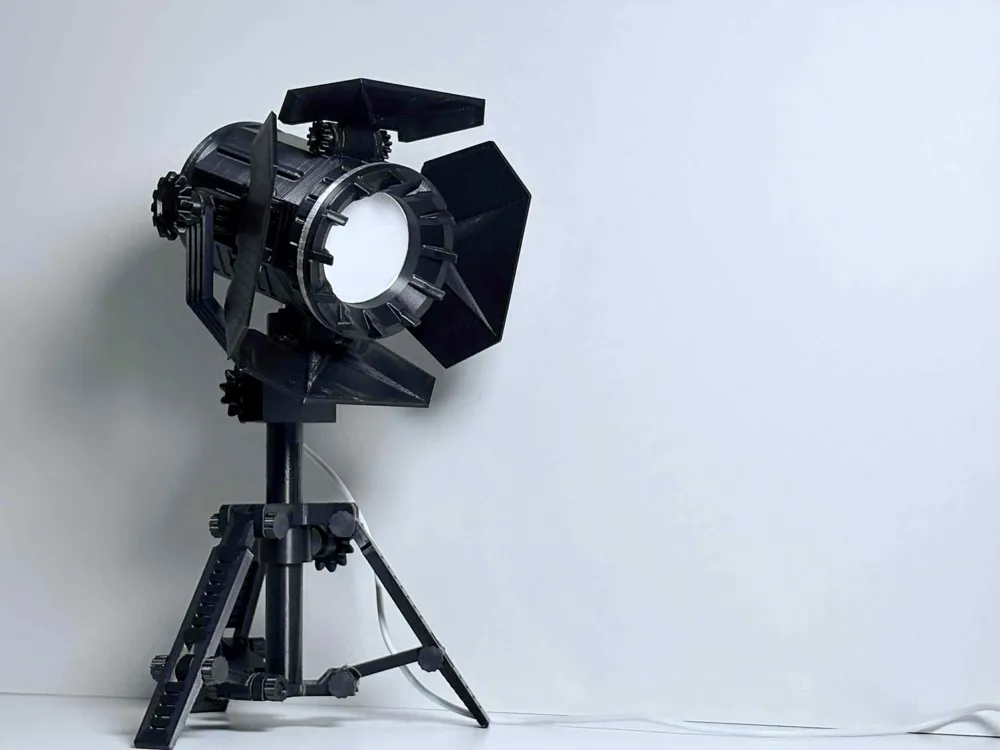

Introducing the model: 💝 LED Studio Spotlight Lamp with tripod 💝. The model is designed for ✨ LED KIT 001 from Bambulab✨ .

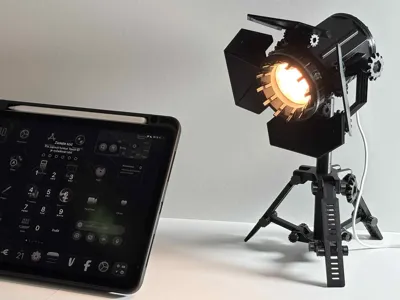

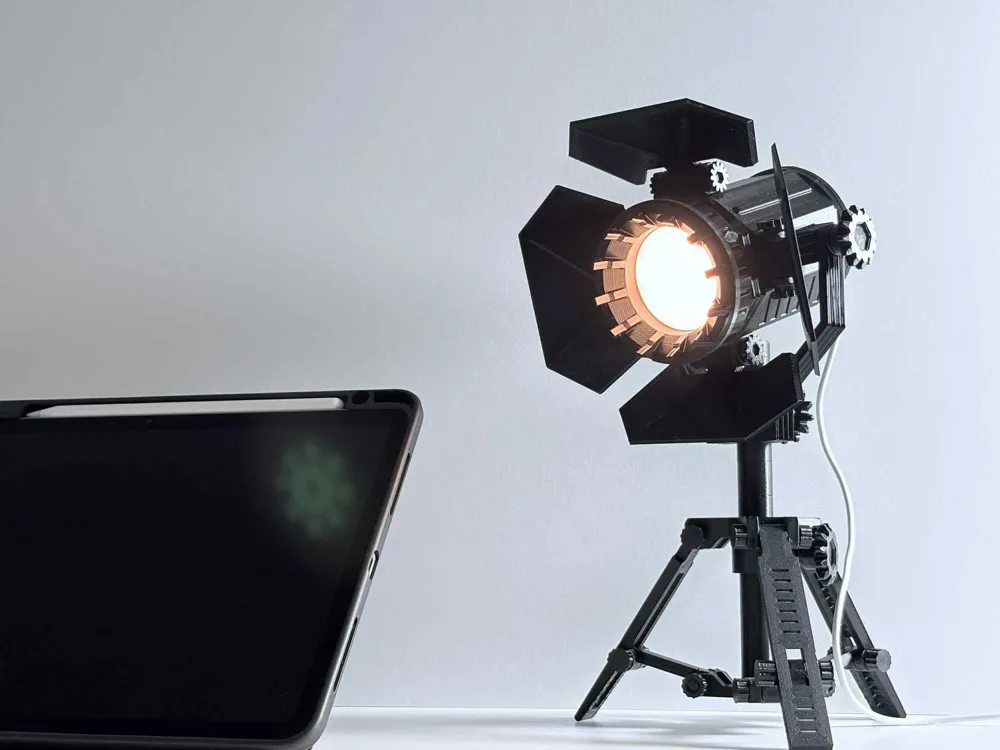

✨✨✨ This model can be used as a decorative lamp on a work desk, to illuminate design objects in the interior or as a studio light for illuminating models ✨✨ Height of the built model including tripod cca. 34cm✨.

UPDATE 1.1.2026:

https://www.obi.cz/instalace-svitidel/kompletni-sada-pro-osvetleni-e14-bila/p/5585344?wt_mc=gs.pla.Technika.Elektroinstalace.Instalacesvitidel&wt_cc1=20798671390&wt_cc4=c&wt_cc9=156054659659&gad_source=1&gad_campaignid=20798671390&gbraid=0AAAAADk-hbF_NBmWE7OQgoUwLihjOQH28&gclid=CjwKCAiA09jKBhB9EiwAgB8l-NFL70bfOB9xLsLELcxeJvclJHZPlCaEnNxTJmlO7bZ6eF9-9QnfKhoCwjcQAvD_BwE

If you really loved my work, you can always get me a coffee :)

🔩 Assembly instructions 🔩:

1🔩) Print both print profiles - the first print profile contains only the lamp, the second print model contains a height-adjustable stand for the lamp.

2🔩) insert the LED light source from Bambulab (led kit 001) into the largest part - the base body

3🔩) insert the decorative ring into the front cover of the light and screw it into the base body.

4🔩) screw the back cover into the base body, pull the USB cable with the switch through the hole, click and insert the cover that hides the hole through which you pulled the cable.

5🔩) attach the screen to the base body of the lamp using two screws, repeat 4x

6🔩) attach the tripod holder using two screws

This completes the LED Studio Spotlight Lamp setup

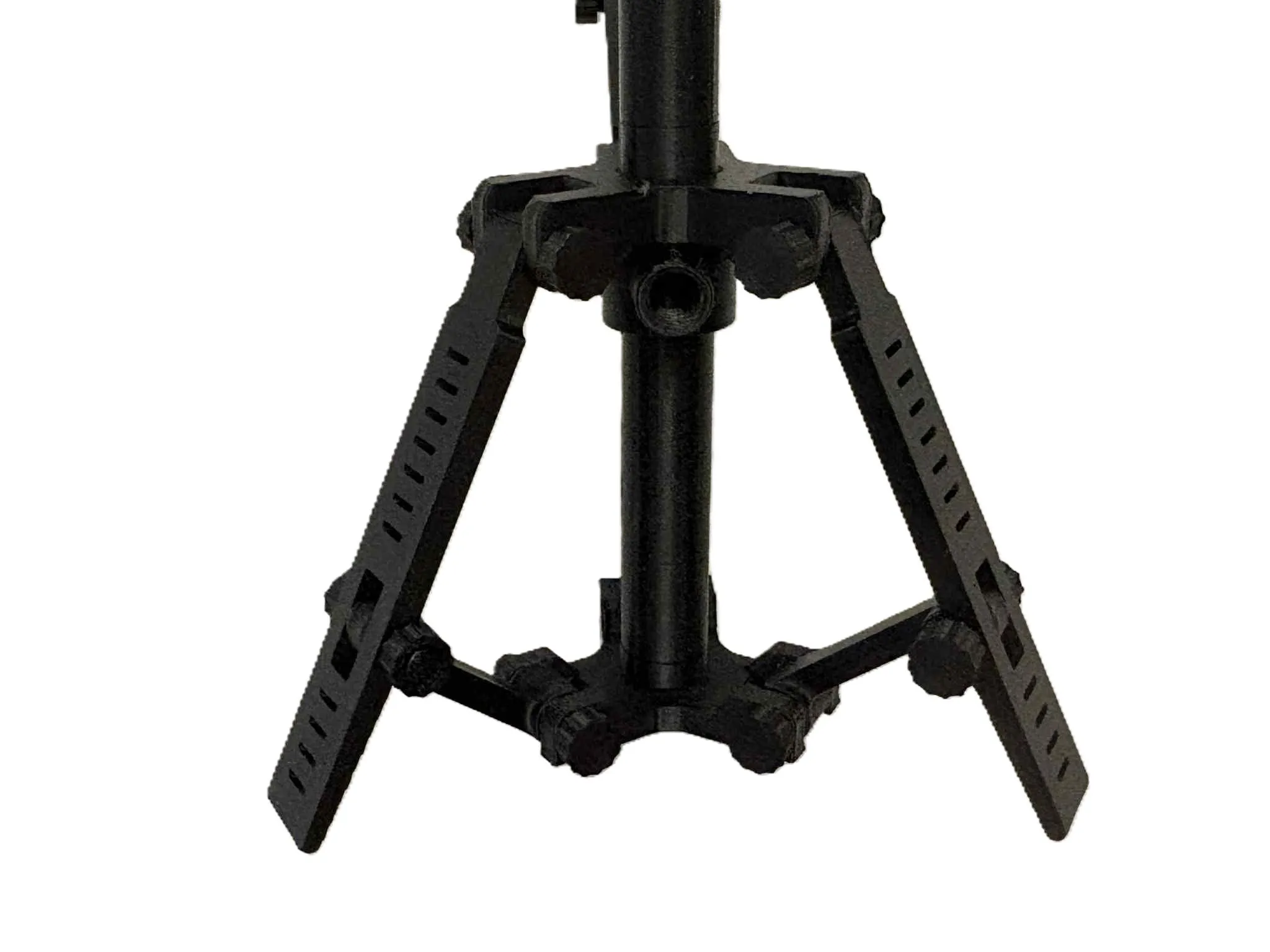

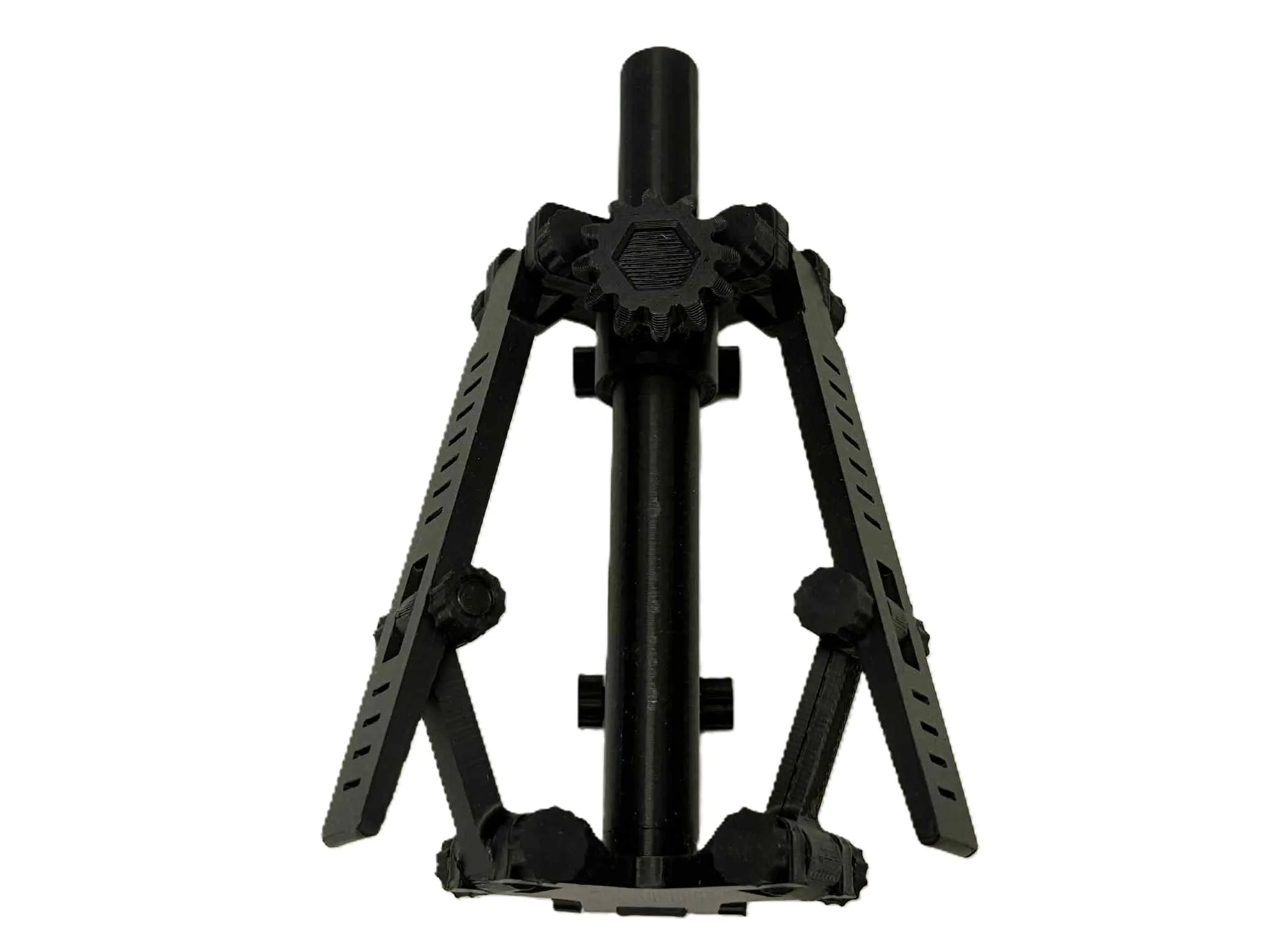

Tripod assembly procedure:

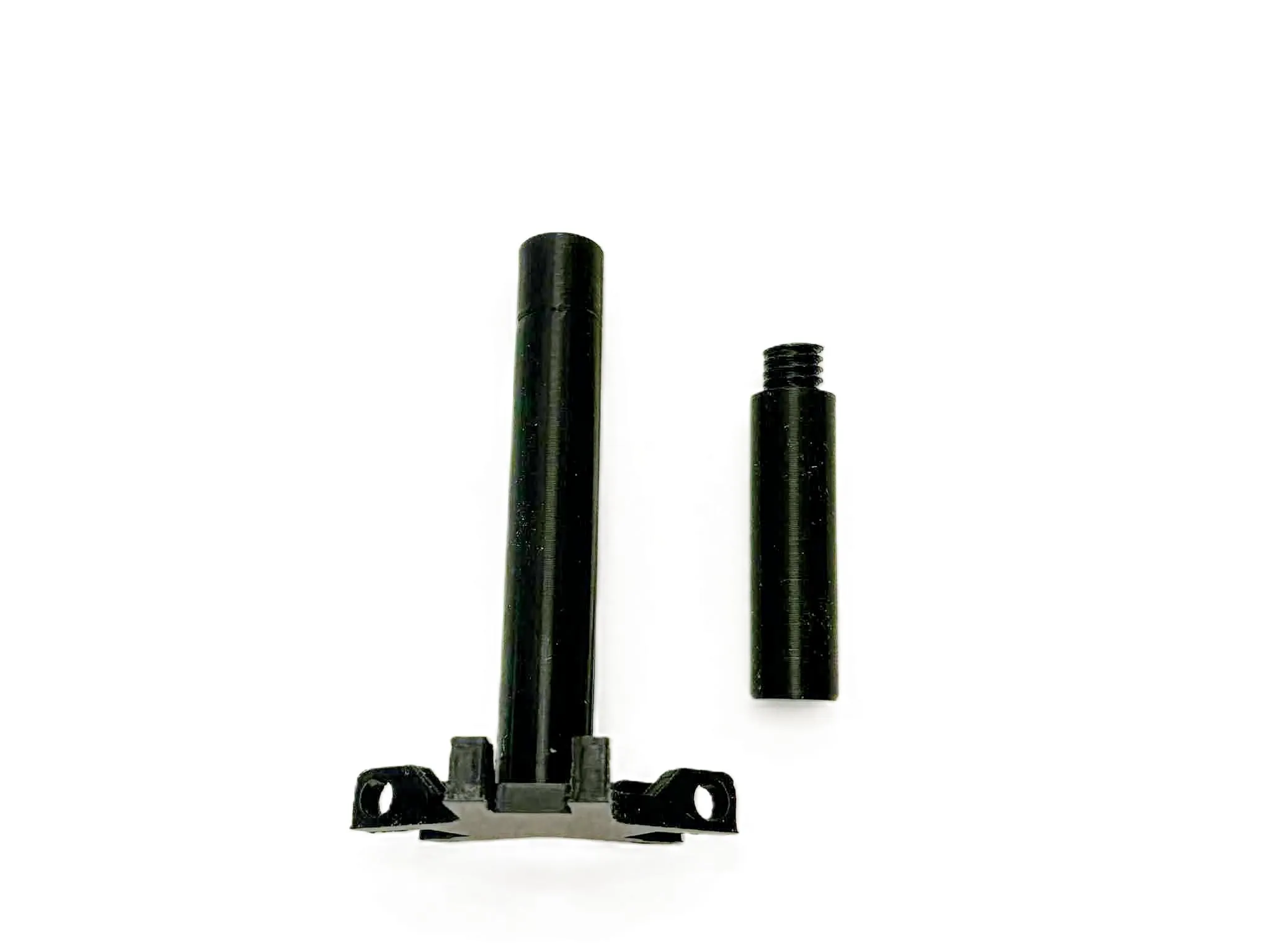

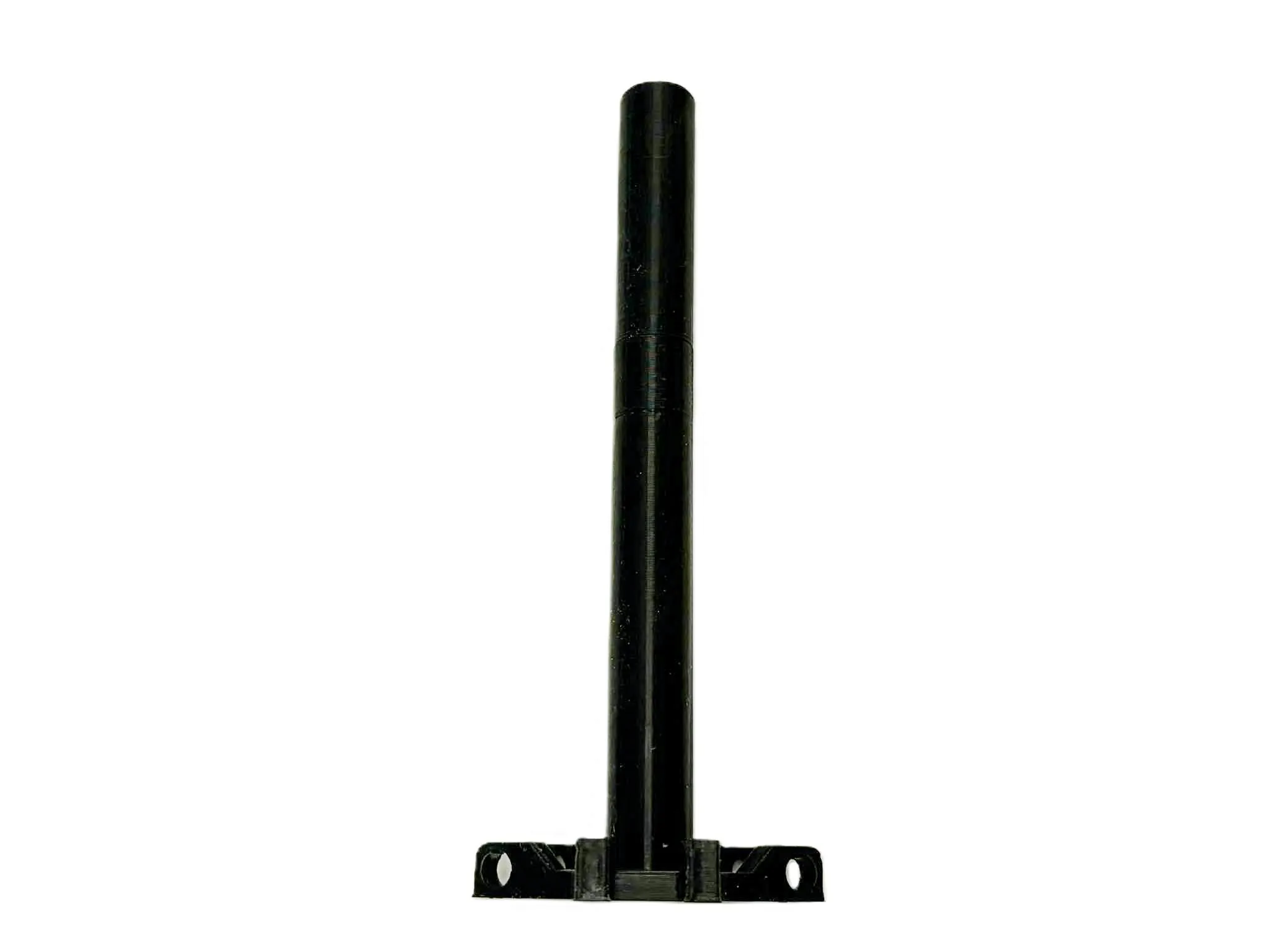

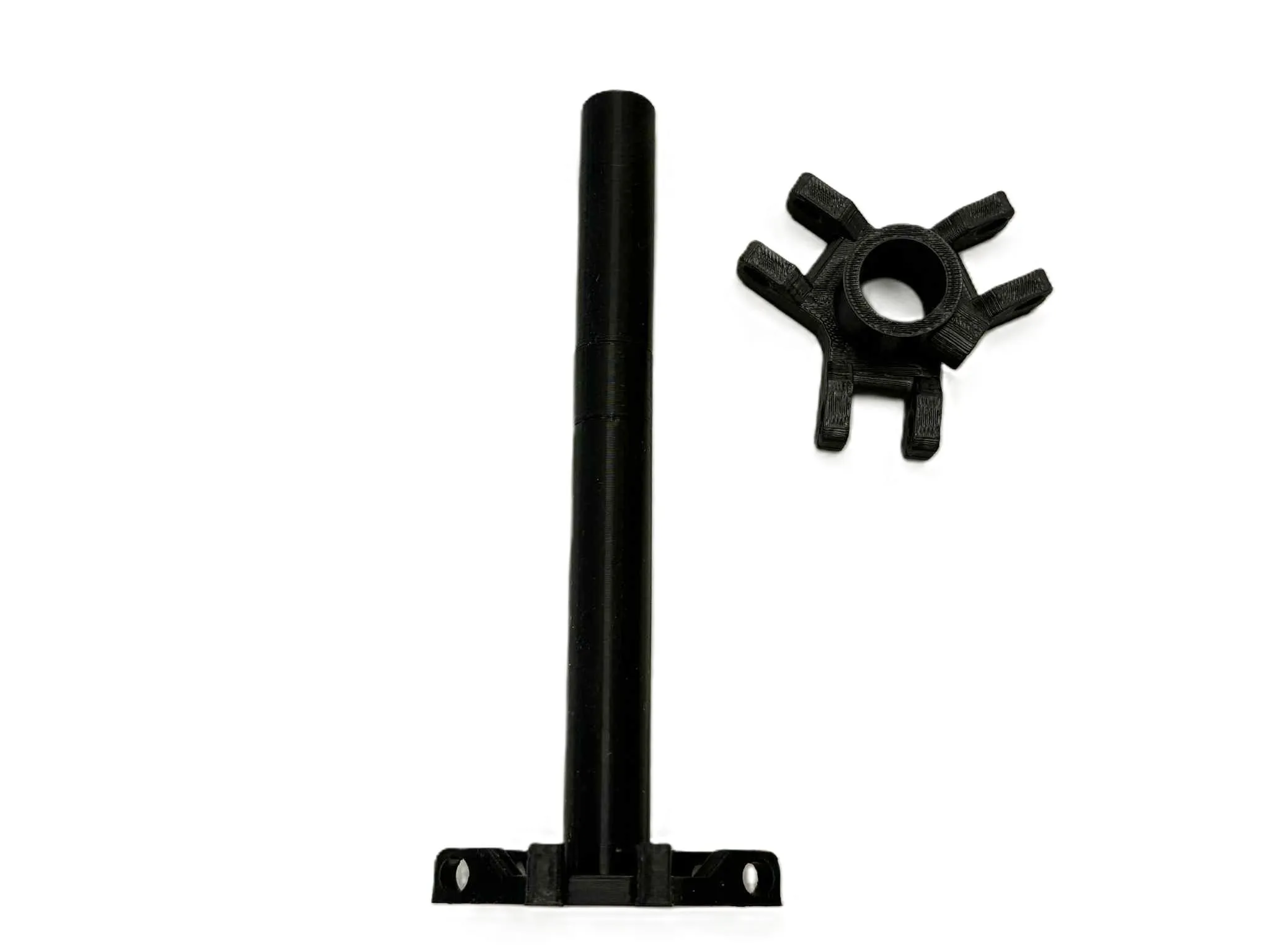

7🔩) screw the extension to the base of the tripod

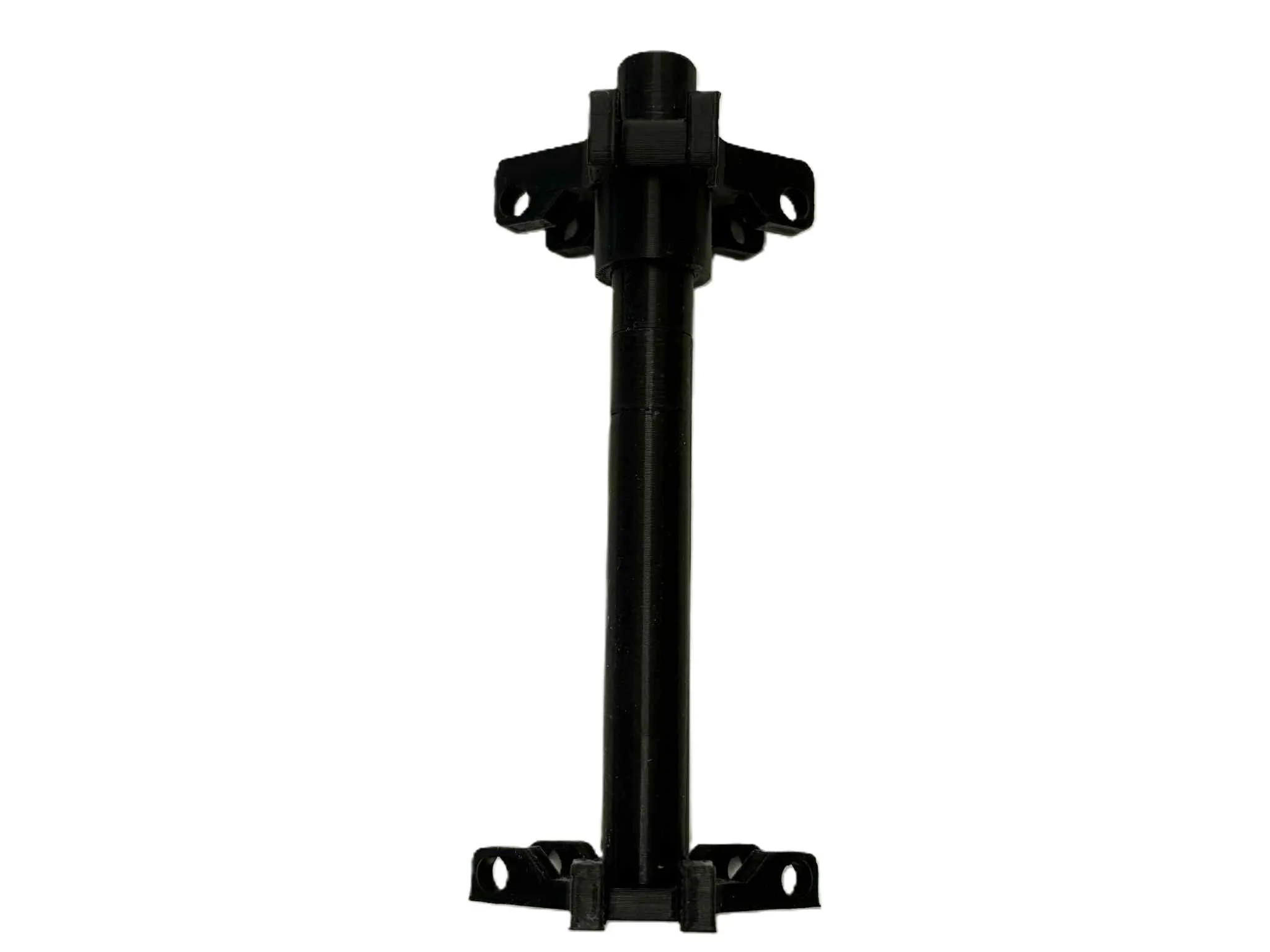

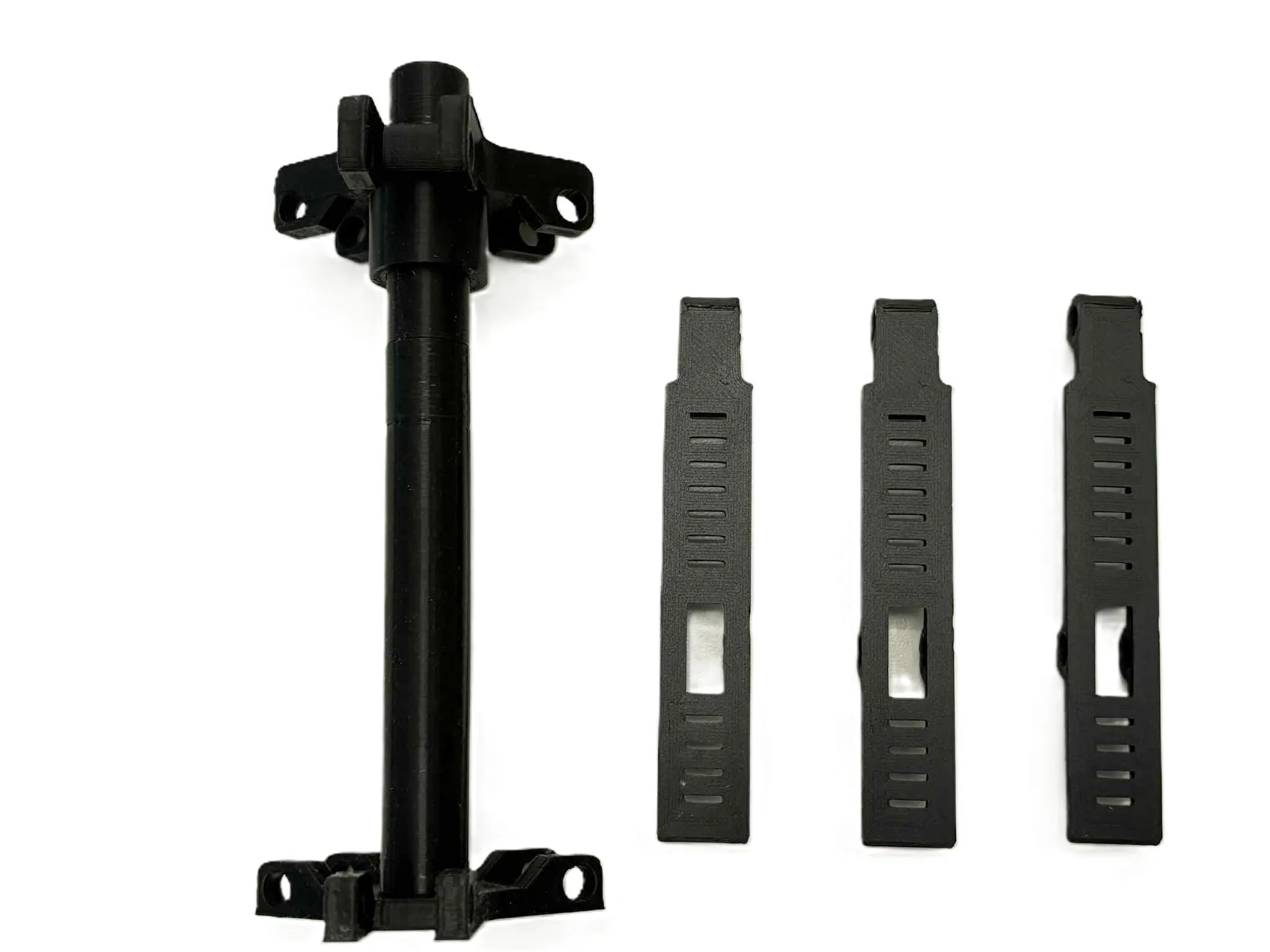

8🔩 ) slide the support leg holder onto the base of the tripod

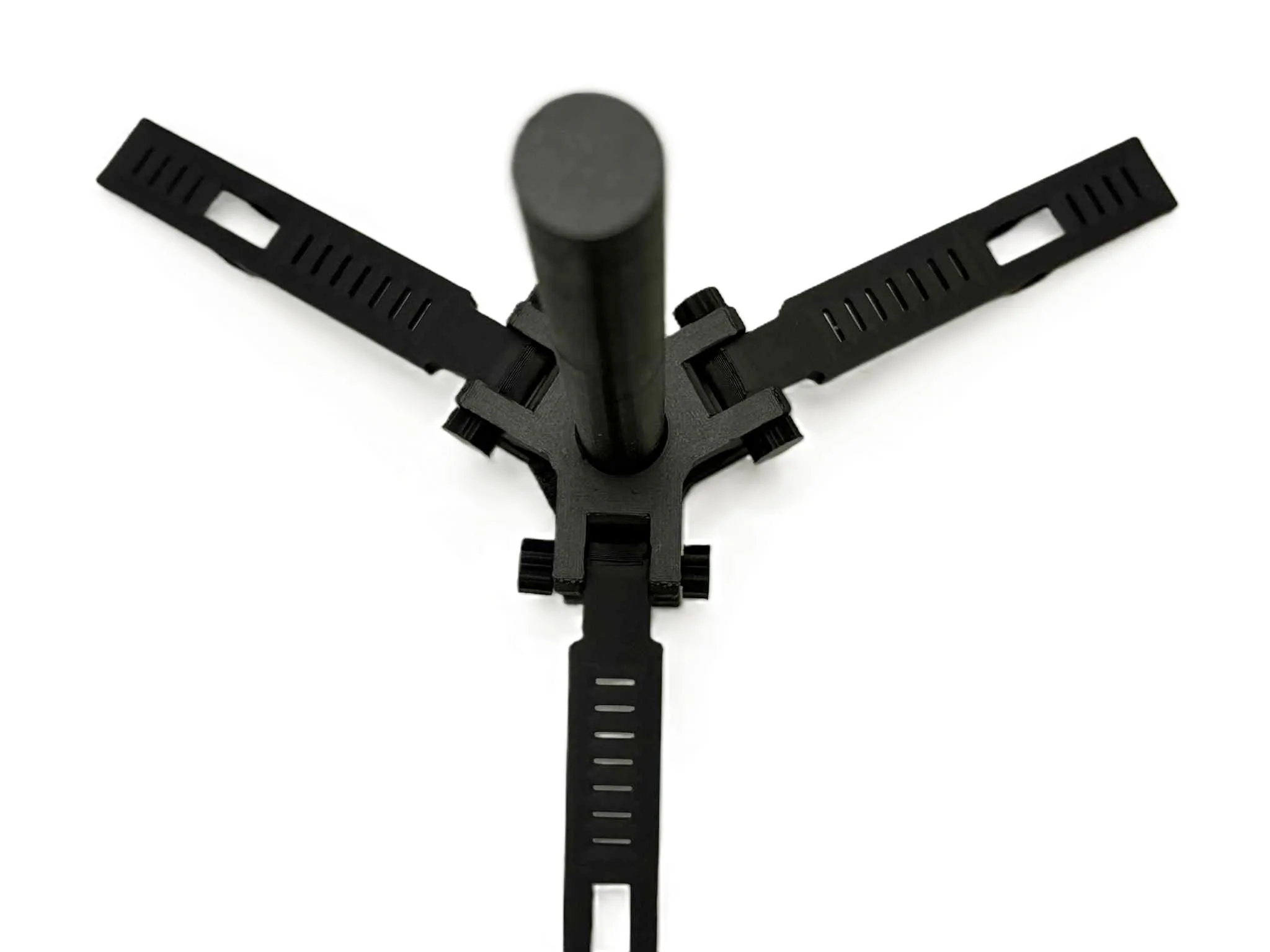

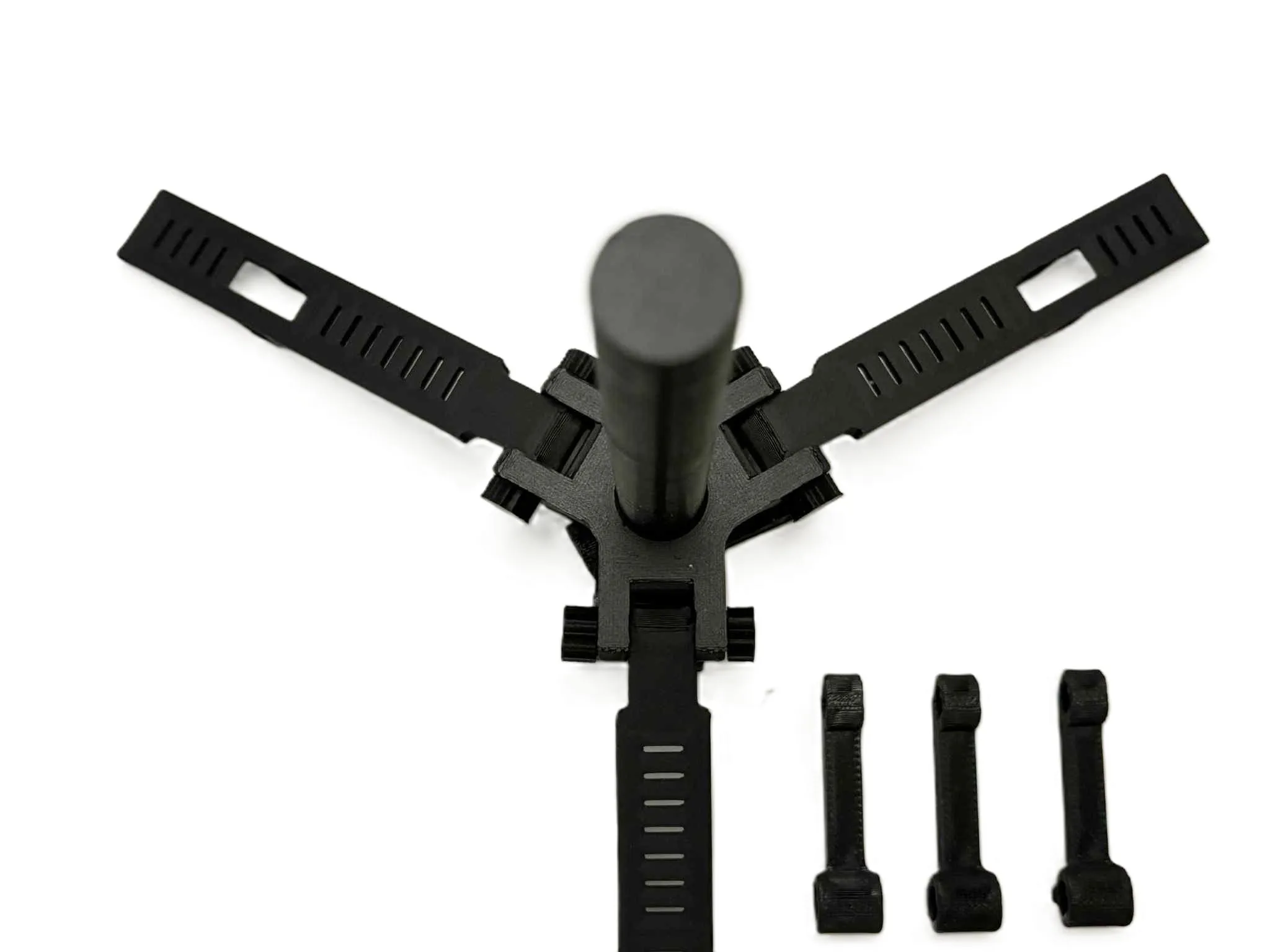

9🔩) use long screws to connect the legs to the slide-in part and tighten with nuts

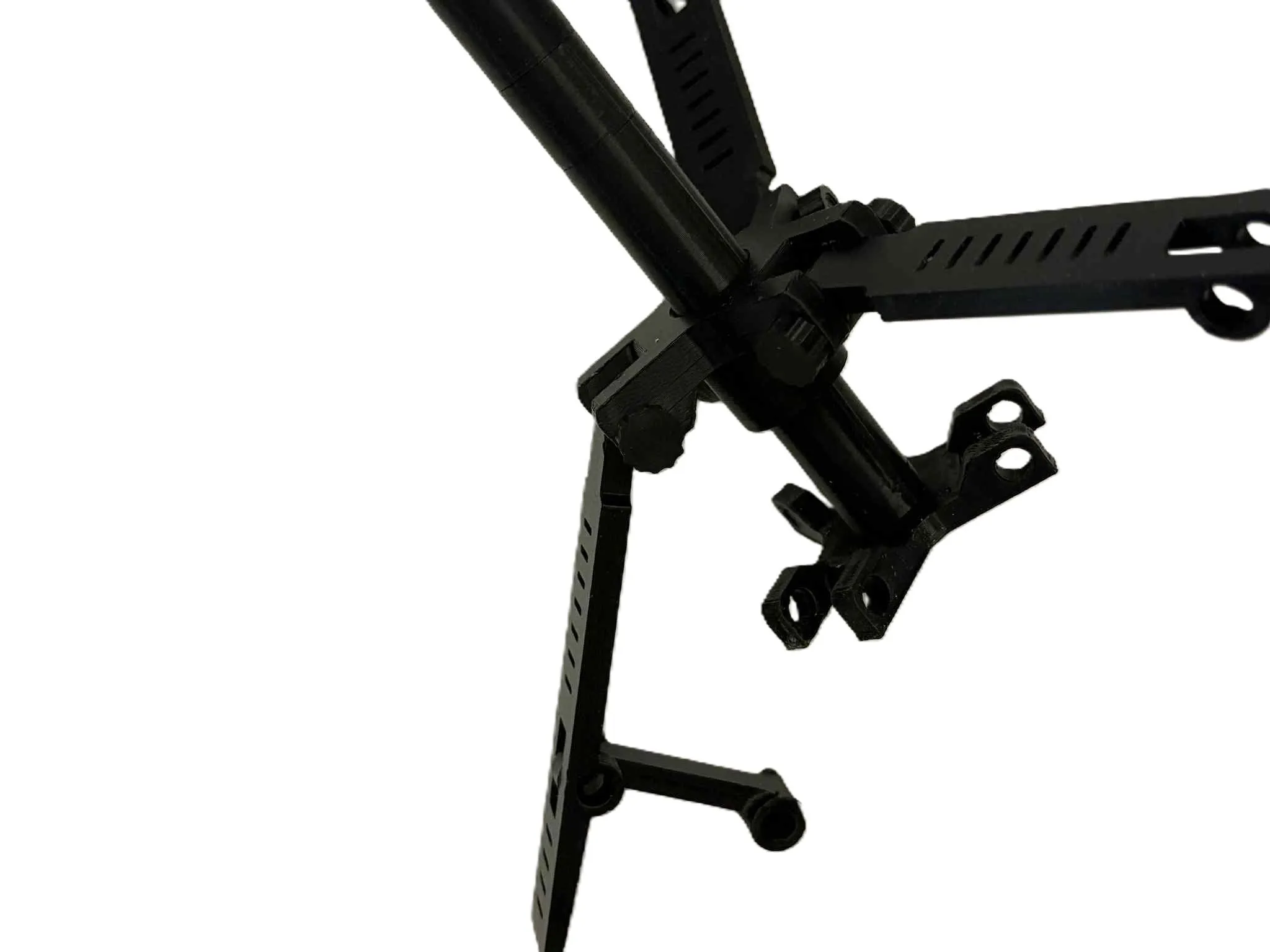

10🔩) use short screws to connect the arms to the legs and tighten with nuts

11🔩) use screws to connect the arms to the base of the tripod

12🔩 ) screw the largest screw into the sliding part of the tripod

💝 I hope you will like LED Studio Spotlight Lamp with tripod too! 💝

Boost Me (for free)

💝 I will be very pleased for your support.

Comment & Rating (45)

@kitemonkey

Print Profile

Spotlight Lamp

This came together really well, looks great! I subbed in a Strala IKEA fixture and used a Philips Hue bulb

The profile uploader has replied

@user_506781369

nice work🥰🥰🥰

(Edited)

@kitemonkey

Replying to @user_506781369 :

ya, there ya go :)

(Edited)

@user_506781369

Replying to @kitemonkey :

in the third print profile, the LED Studio Spotlight Lamp update is uploaded. This update consists of modifying the rear part of the reflector body into which an E14 lamp holder can be inserted. The complete set that I used was purchased at OBI and I am attaching a link to this set: https://www.obi.cz/instalace-svitidel/kompletni-sada-pro-osvetleni-e14-bila/p/5585344?wt_mc=gs.pla.Technika.Elektroinstalace.Instalacesvitidel&;wt_cc1=20798671390&wt_cc4=c&wt_cc9=156054659659&gad_source=1&gad_campaignid=20798671390&gbraid=0AAAAADk-hbF_NBmWE7OQgoUwLihjOQH28&gclid=CjwKCAiA09jKBhB9EiwAgB8l-NFL70bfOB9xLsLELcxeJvclJHZPlCaEnNxTJmlO7bZ6eF9-9QnfKhoCwjcQAvD_BwE

(Edited)

@user_3392653841

excellent technically and aesthetically work!!! could you please add a modification for E14 or GU10 lamp, because I need more light?

The designer has replied

@user_506781369

This idea came to me too when I was playing around with it. I was trying to find a solution for the E14 socket a while ago. It has to be universal for the whole world so that everyone can buy it and found this: https://www.ikea.com/cz/cs/p/strala-kabel-se-zastrckou-bila-20366404/ What do you think?

@user_3392653841

Replying to @user_506781369 :

clever, thank you very much!

@kitemonkey

Replying to @user_506781369 :

Is there an alternative version of the back piece that fits the strala cable available? Thanks, love this design!

@tagazou81

beautiful project but the led lamp 001 does not want to fit into the projector body

The designer has replied

Show original

@user_506781369

Thank you for your comment. Can you send - insert a photo of how the LED light doesn't fit in there? Do you have any idea how long it takes to develop such a light? I model, print the lamp and do everything to make sure the light doesn't fit in there.... it really doesn't work!

@tagazou81

Replying to @user_506781369 :

hello, I can't get the led lamp bambulab kit 001 in any further I had printed one that I filed down to try to get it in, but it still blocks and I can't screw on the crown that goes with it

Show original

@tagazou81

Replying to @user_506781369 :

I'm sorry for the info, I'm on an A1mini bambulab

Show original

@DoitUrDamnSelf

Boosted

Absolutely Love this design thank you so much

The designer has replied

@user_506781369

Thank you for the nice comment and sending the photos. The model looks great.

@Mammut

Boosted

Print Profile

TRIPOD

The profile uploader has replied

@user_506781369

thank you for the comment. Very nice color combination. I'm pleased

(Edited)

@OLLI_5150

Boosted

A beautiful model 👍 This is my new bedside lamp. Thank you very much for it This is a boost worth my greatest pleasure 😊

Show original

@user_767764172

Print Profile

TRIPOD

Print turned out amazing, couldn’t be happier! Thank you for such a great model

@algu

are there any usage examples?

The designer has replied

@user_506781369

What can such a lamp be used for? What is the lamp used for? For example, for lighting - a bedside table, a lamp on a work desk, lighting a sculpture, a design object ..... is this enough?

@algu

Replying to @user_506781369 :

The question was regarding examples... I know bambu led is a crap.... that's why I asked for an example

@PeterSchneider

Boosted

Genial!

@kitemonkey

Print Profile

TRIPOD

Really fun to print this one. I modded the back plate to accept a Strala E12 with no issues and dropped a Philips Hue in for colour fun!
