ThermoWorks Smoke X4 Gridfinity Case

what's this

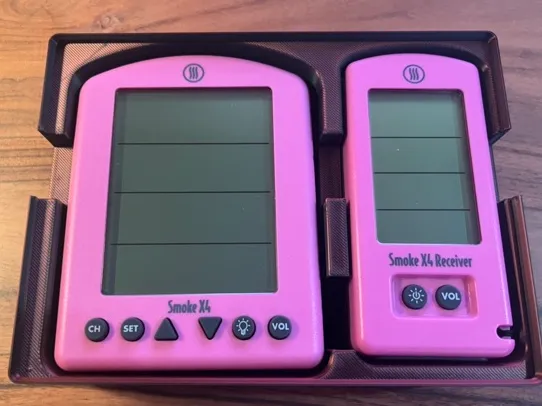

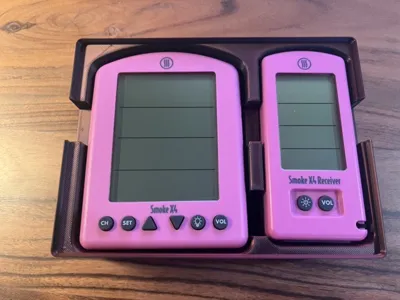

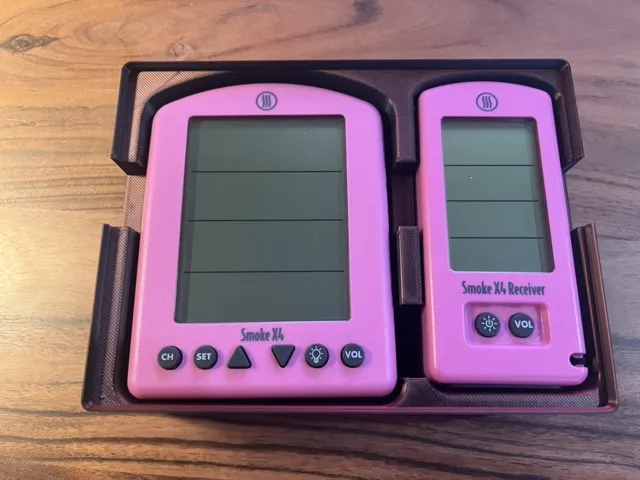

A 3x4 gridfinity bin for holding the ThermoWorks Smoke X4 base and receiver.

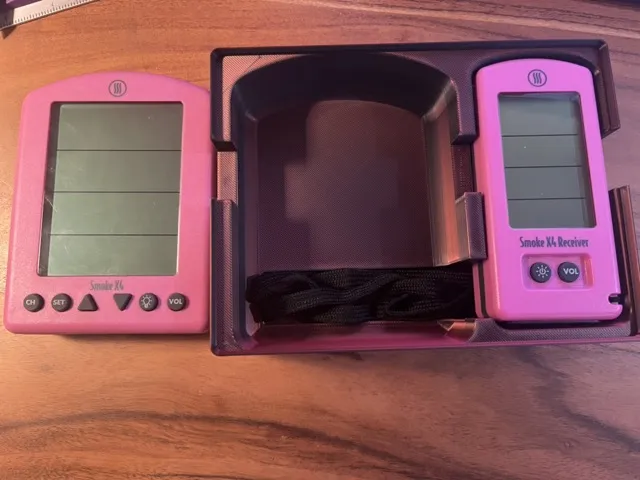

This was created by adding a gridfinity bin to Autodesk Fusion that is 3x4 and 6 units high, and stackable, and extruding the basic shapes of the base and receiver, and then adding some cutouts to hold the included lanyard and slots to grip.

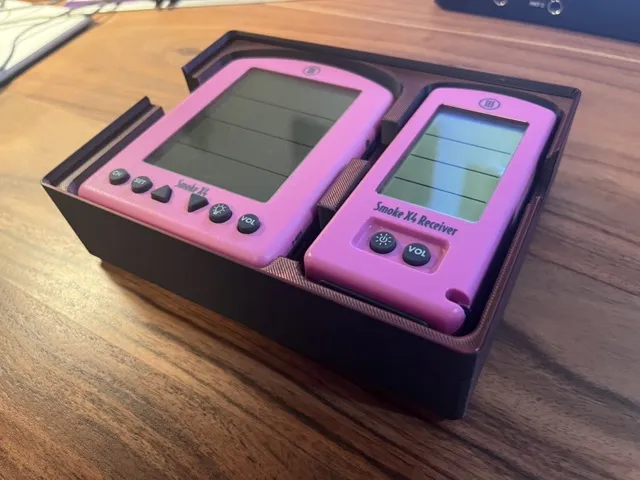

The base and receiver should fit flush with the top surface so it stacks nicely.

There are two other excellent ThermoWorks cases on Maker World, https://makerworld.com/en/models/1108285-thermoworks-smoke-case-gridfinity-compatible?from=search#profileId-1104398 and https://makerworld.com/en/models/241008-thermoworks-smoke-case-storage-box?from=search#profileId-257000

printing

default settings worked fine for me, mine is printed in Bambu PLA Silk Multi-Color, https://us.store.bambulab.com/products/pla-silk-multi-color?id=43097174704264. It is recommended to dry the filament first, and print at slow speeds, I did neither.

future improvements / todos:

Make a larger bin that holds the spools and temperature probes. My X4 came with 3 meat probes and one air temp probe, and it would be nice to store them all in one place.

Make the edges less sharp with some fillet or chamfer.
