QuadCortex Mounting System-RockBoard EPC 01 Case
Print Profile(1)
Bill of Materials
- RockBoard MOD x 1: https://www.thomann.de/de/rockboard_mod_1_v2_trs_xlr_patchbay.htm?gad_source=1&gad_campaignid=1576042963
- Rockboard EPC-01 x 1: https://www.thomann.de/de/rockboard_pedal_case_epc_01_black.htm?srsltid=AfmBOooTZpSnnN1HUpRu4n19PX-ngmZJNpvqwDRRvSRegBYpUU38Wfw2e8M
- Midiparts x 1: https://www.thomann.de/de/rockboard_pedal_case_epc_01_black.htm?srsltid=AfmBOooTZpSnnN1HUpRu4n19PX-ngmZJNpvqwDRRvSRegBYpUU38Wfw2e8M
Description

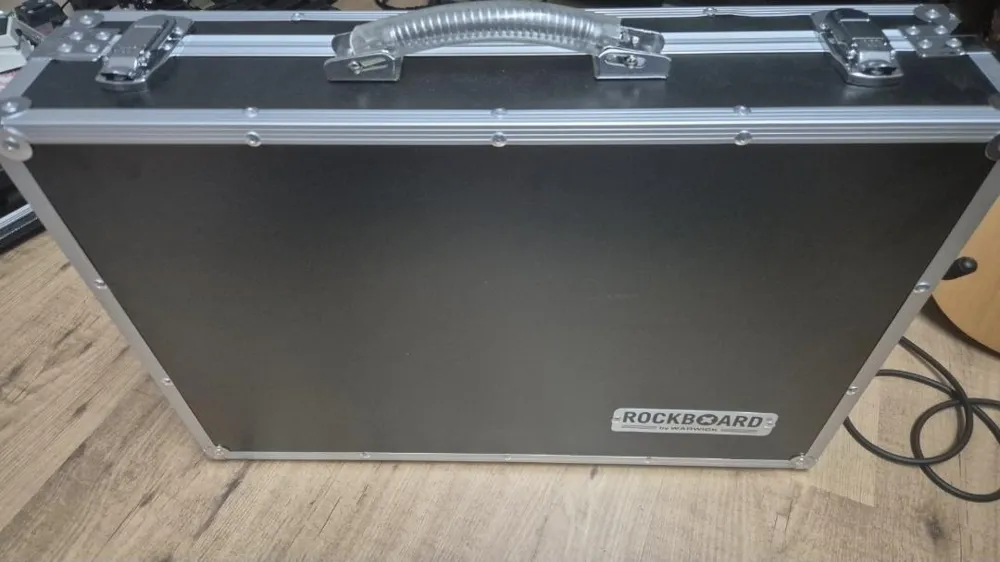

QuadCortex Mounting System-RockBoard EPC 01 Case

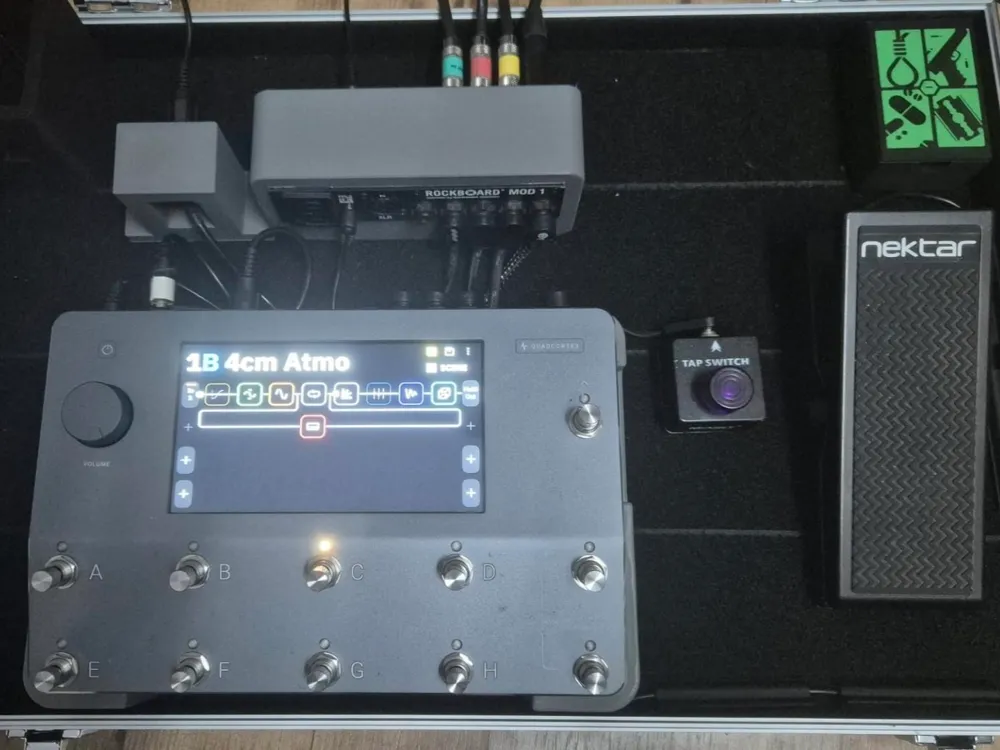

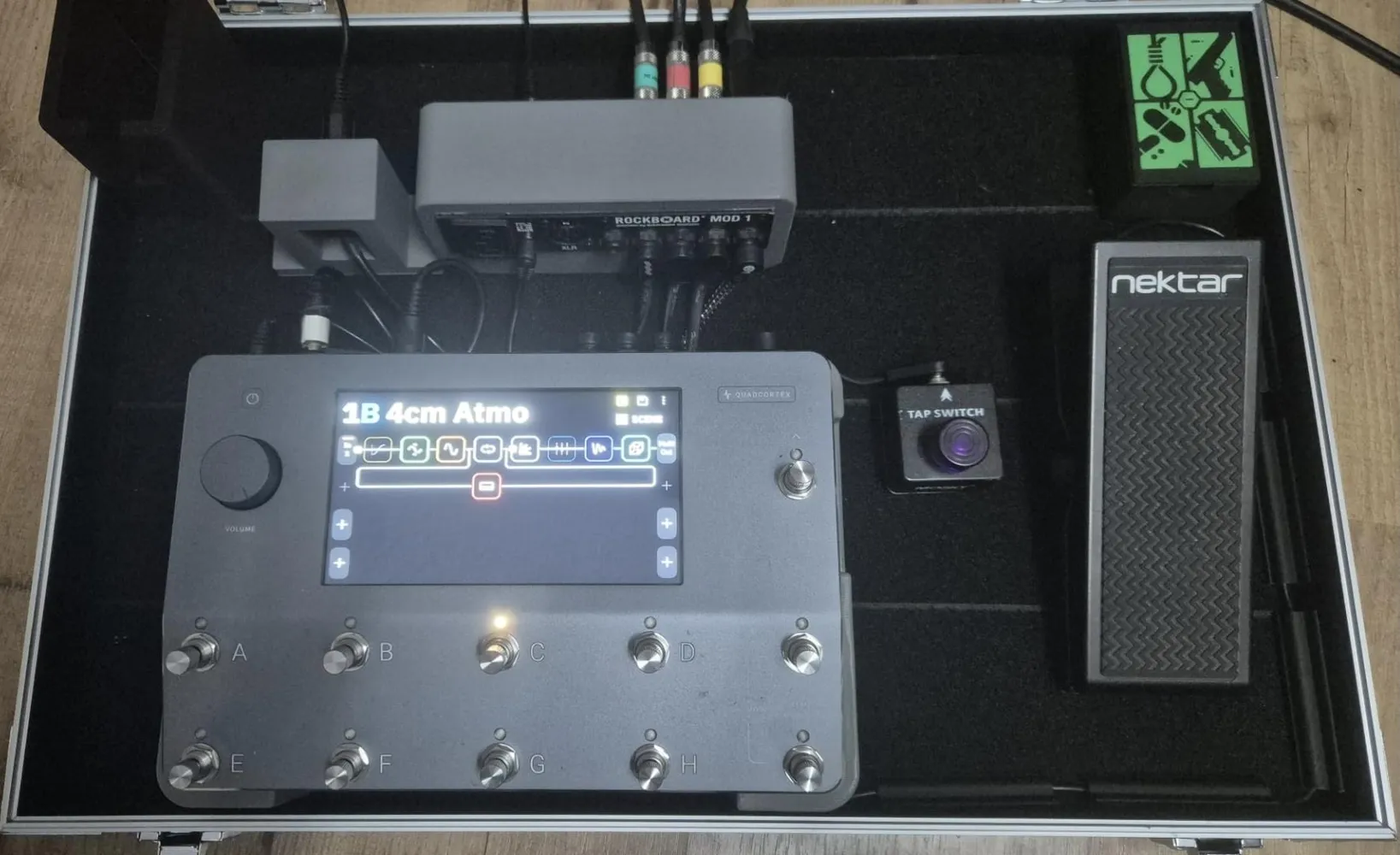

Most commercially available Quad Cortex cases are very expensive, so I decided to design a cost-effective DIY solution that keeps the device permanently wired, well protected, and easy to set up on stage.
Key Features

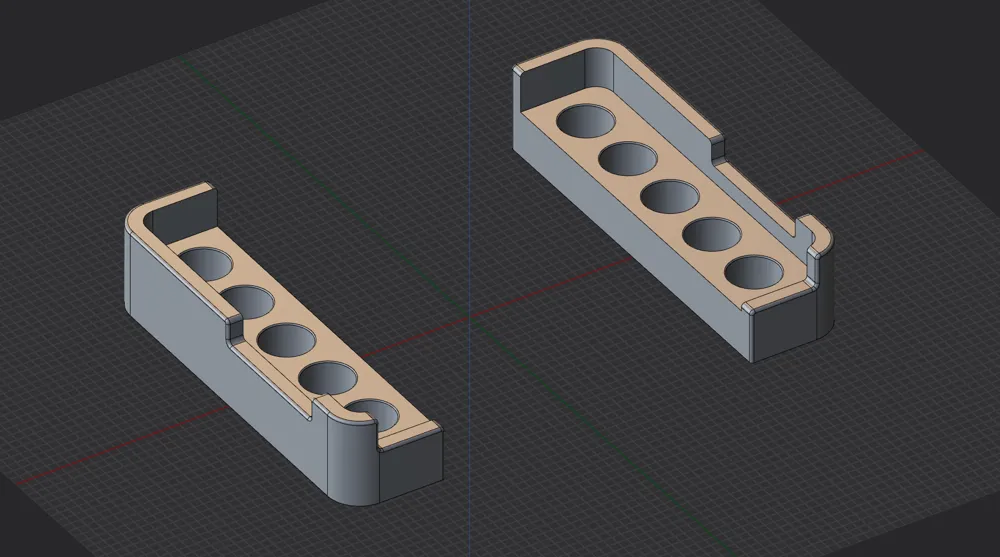

- Quad Cortex mounting brackets

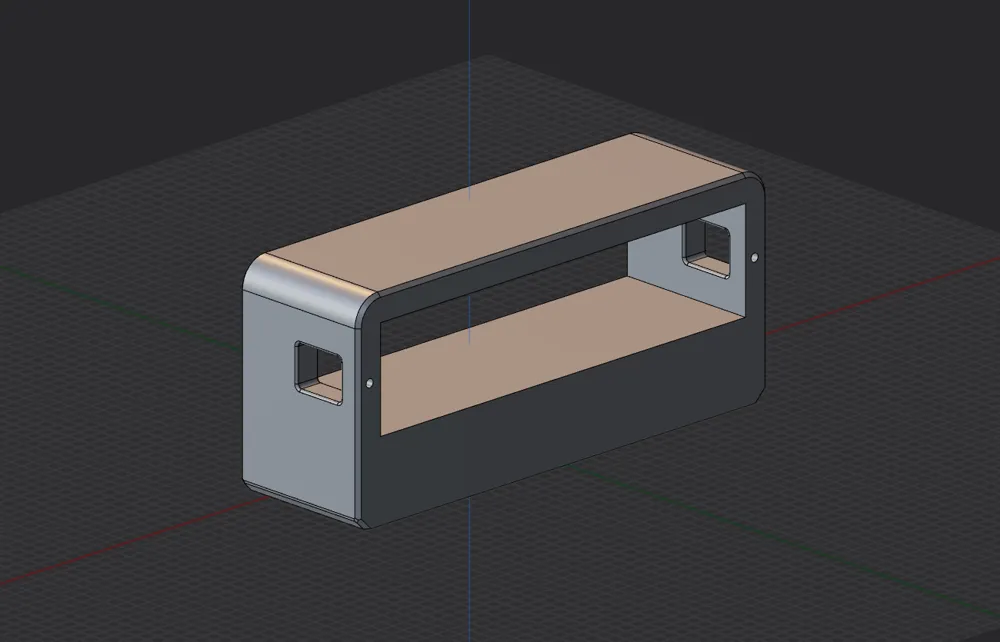

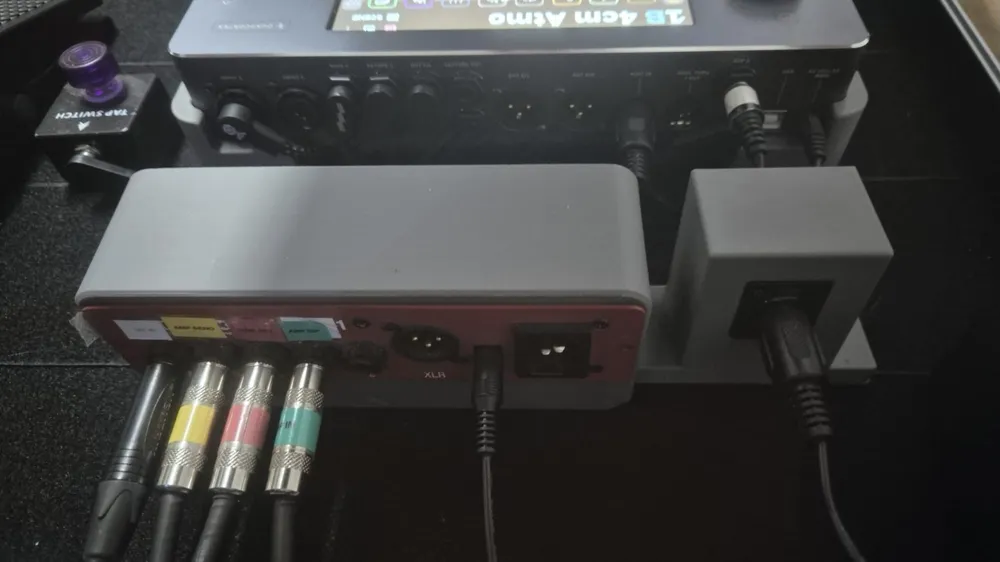

Securely hold the QC inside the RockBoard EPC 01 case without any drilling or permanent modifications. - RockBoard MOD mount (Breakout box)
Allows all audio, MIDI and power connections to be handled externally.
This prevents wear on the Quad Cortex’s own connectors and makes setup and teardown much faster. - Dedicated MIDI jack mount

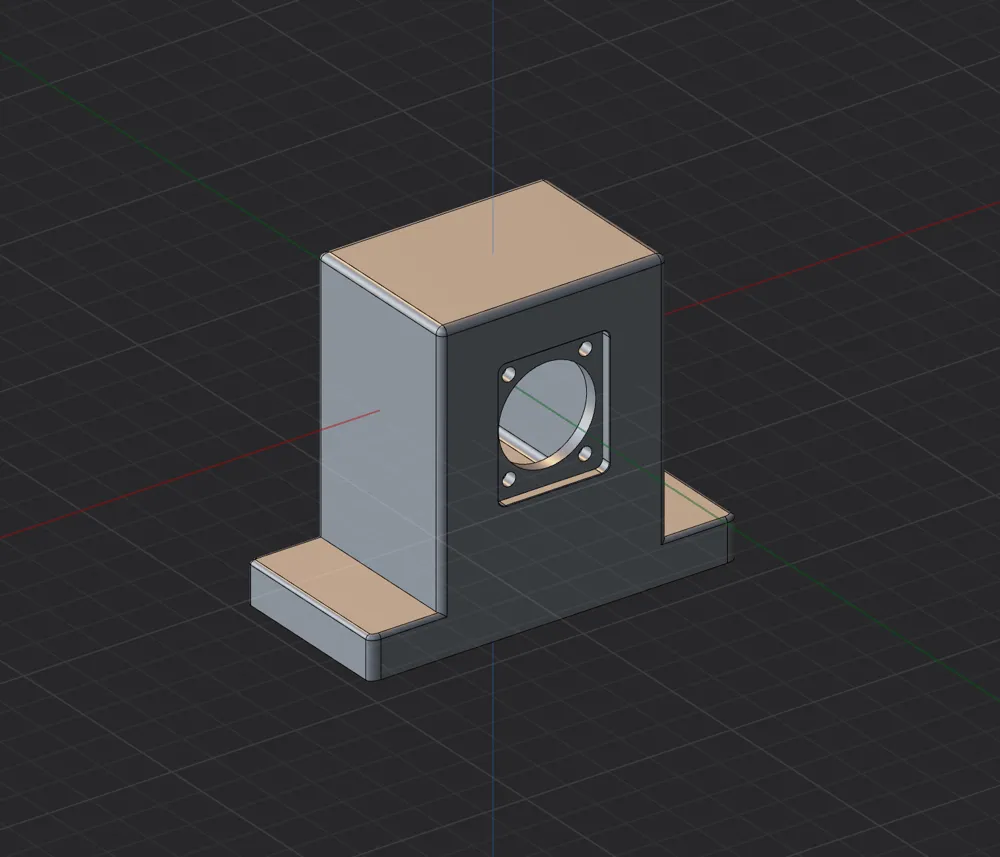

Clean and solid integration for external MIDI control via the breakout panel. - Power supply transport holder
Custom holder for the original Quad Cortex power supply, keeping it safely fixed during transport. - Expression pedal cable guides (8 cm length)
Discreet cable routing to keep expression pedal cables tidy and mostly invisible inside the case.
Mounting & Stability
All parts are attached using Velcro, which perfectly matches the factory-installed Velcro inside the RockBoard EPC 01.
Despite using Velcro only, everything holds extremely solid and transport-safe, even during regular gigging.
Why This Setup?
- No repeated plugging directly into the Quad Cortex
- Reduced connector wear
- Faster setup and teardown
- Clean internal wiring
- Much cheaper than dedicated QC flight cases
- Fully reversible – no drilling, no damage
