Description

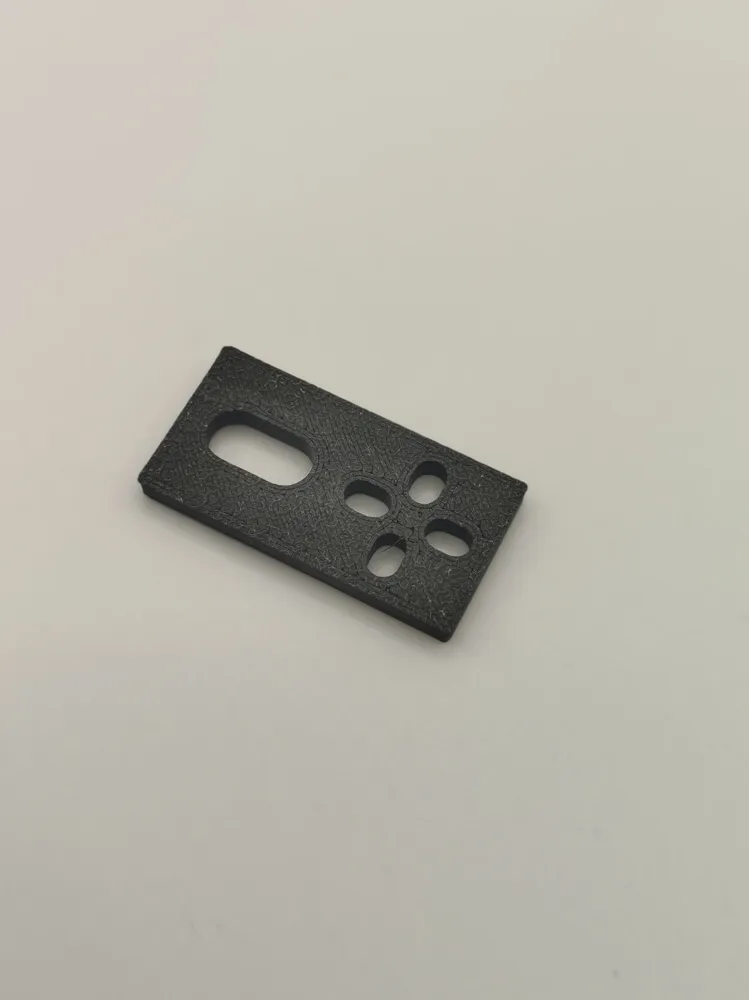

• Use these plates to mount micro limit switches to V-Slot or compatible extrusion.
• Provide multiple ways to mount and arrange your switches adjustable along the length of the extrusion.
• Adjustments are made with just one screw to allow for quick and precise switch engagement.
• There are 4 threaded M3 mounting holes to mount a micro limit switch in either vertical or horizontal position and a elongated M5 hole for mounting and adjusting the plate to the extrusion
