1100W automatic buck-boost mini charger
Print Profile(1)
Description

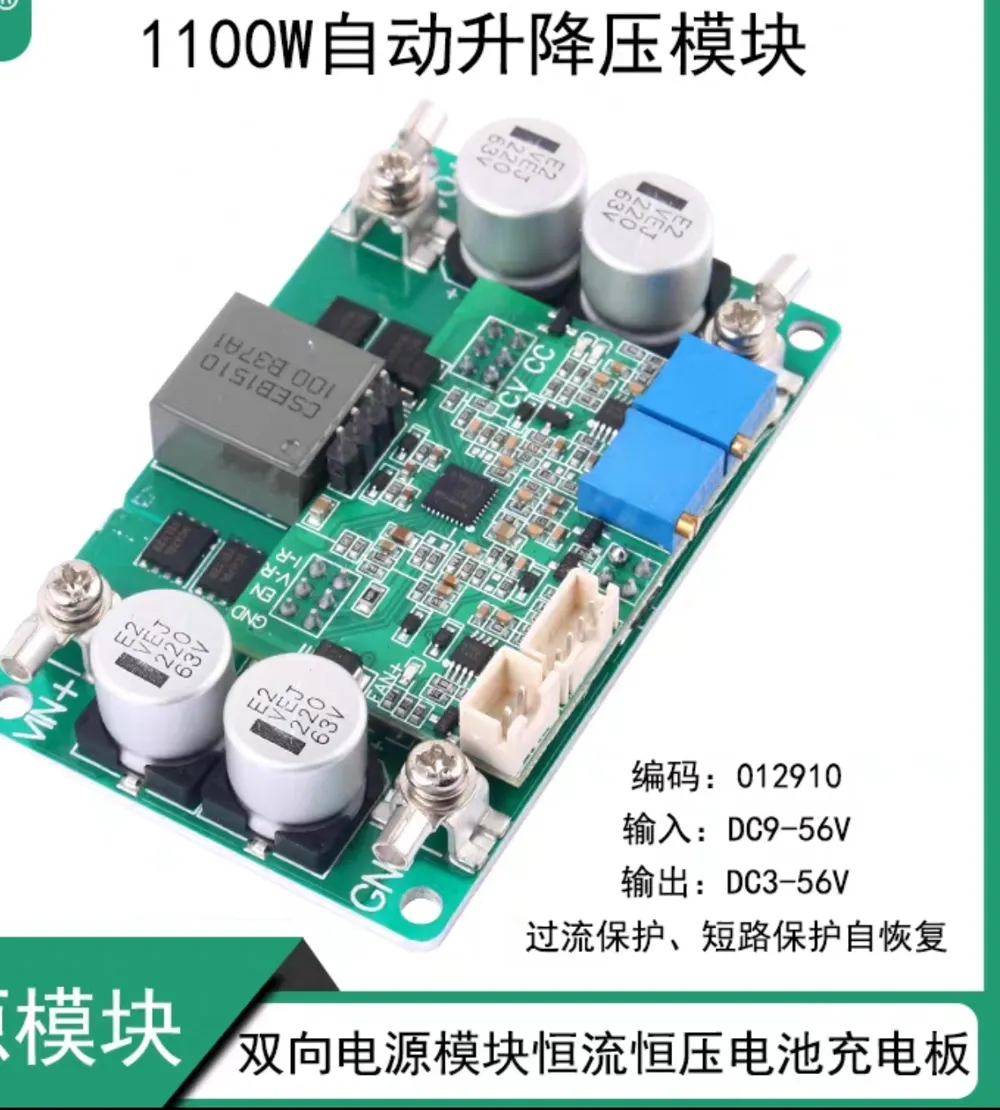

1100W high-power mini adjustable charger, DC 9-56V input, buck-boost adjustable output.

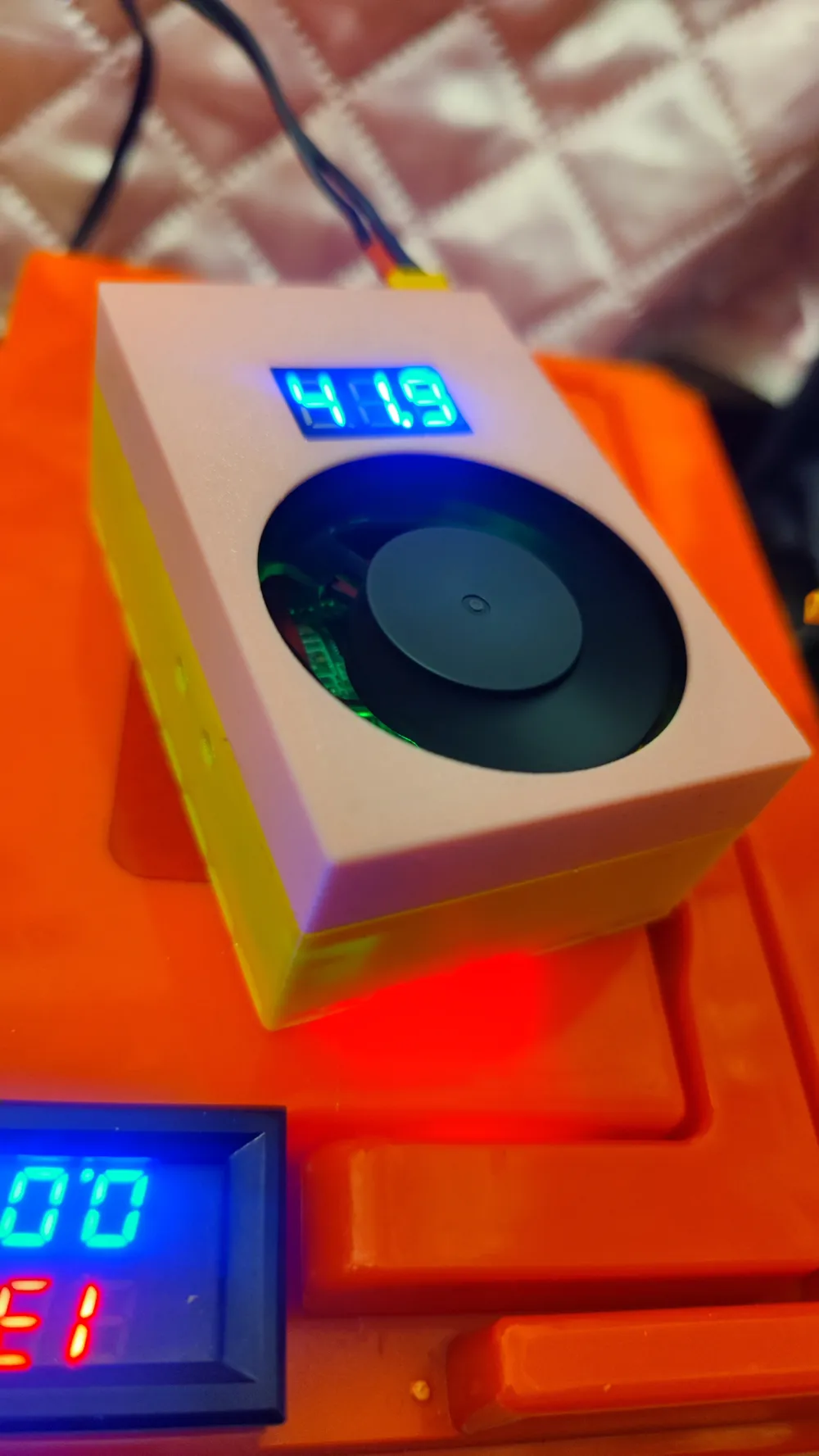

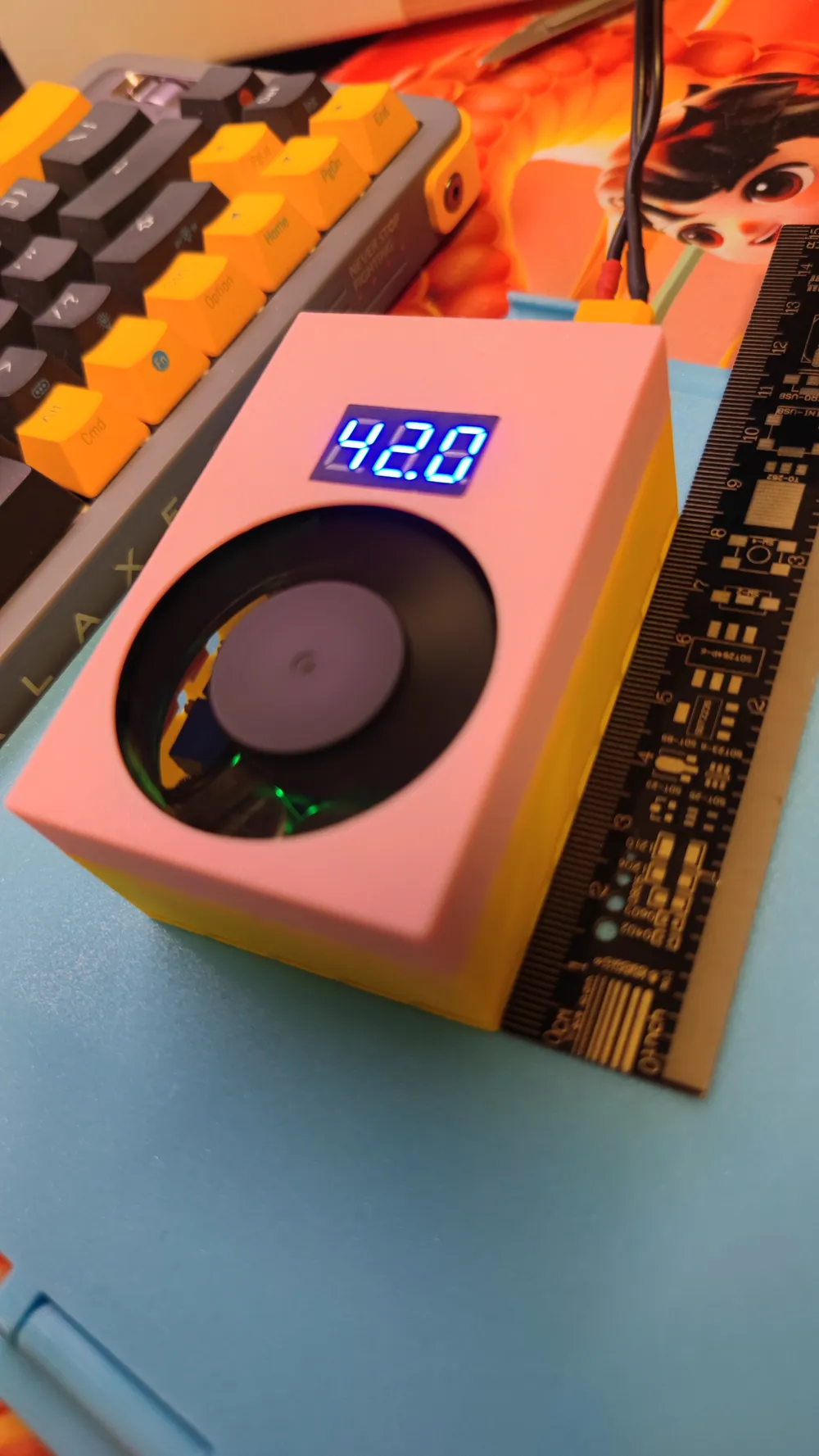

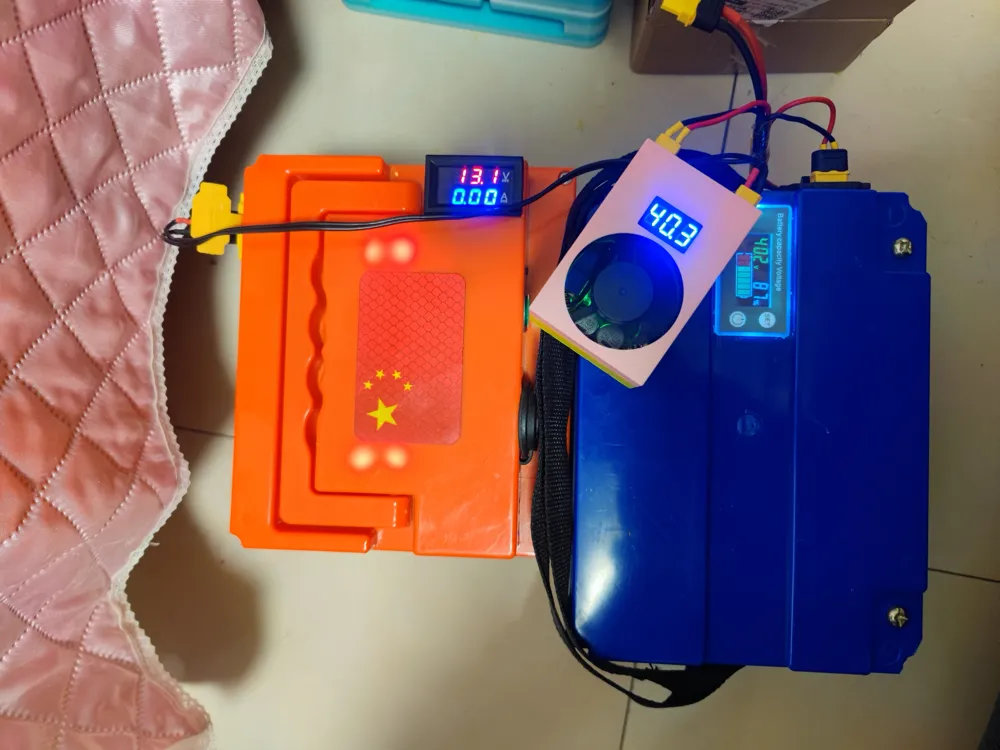

Mini charger made for electric scooters, convenient for charging scooters when traveling in a car. The external battery made is 30Ah, providing about 120km range with two batteries. The scooter's original 1.7A charger is slow.

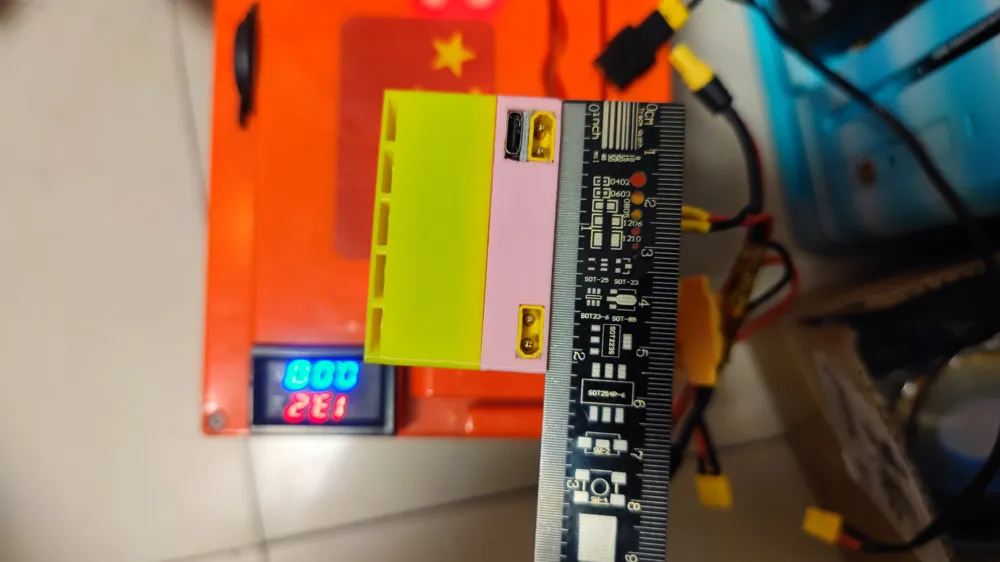

Features: XT30+Type-C input (or XT30 input only), XT30 output.

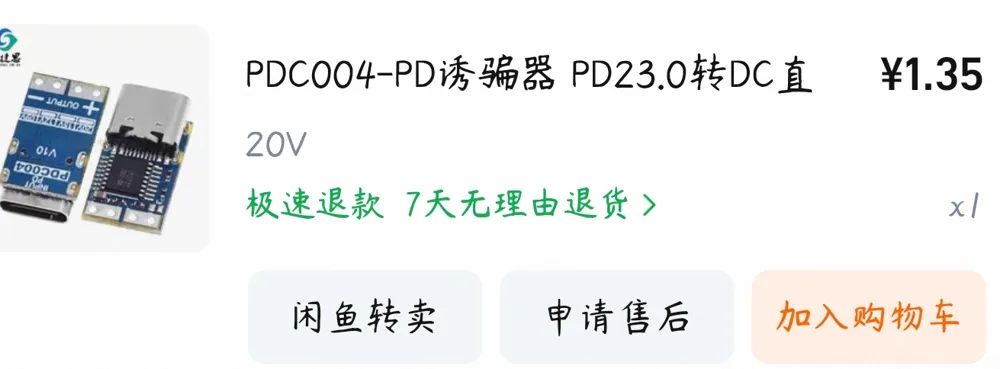

If the charging power is close to or greater than 100W, do not use a Type-C decoy, as it won't be able to handle it.

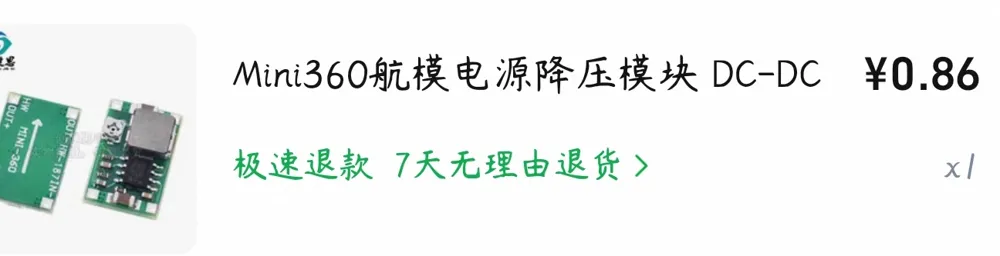

If using a buck module for the fan, ensure the input voltage is within the buck module's range! You need to purchase its small board separately for this module for the fan interface on the module to be active.

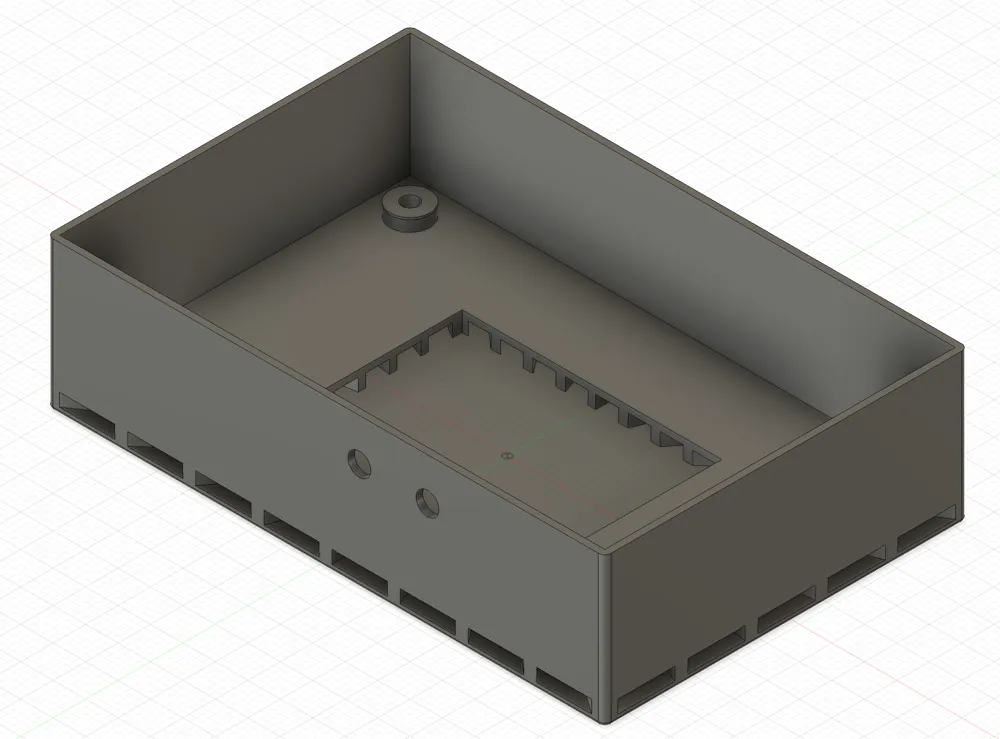

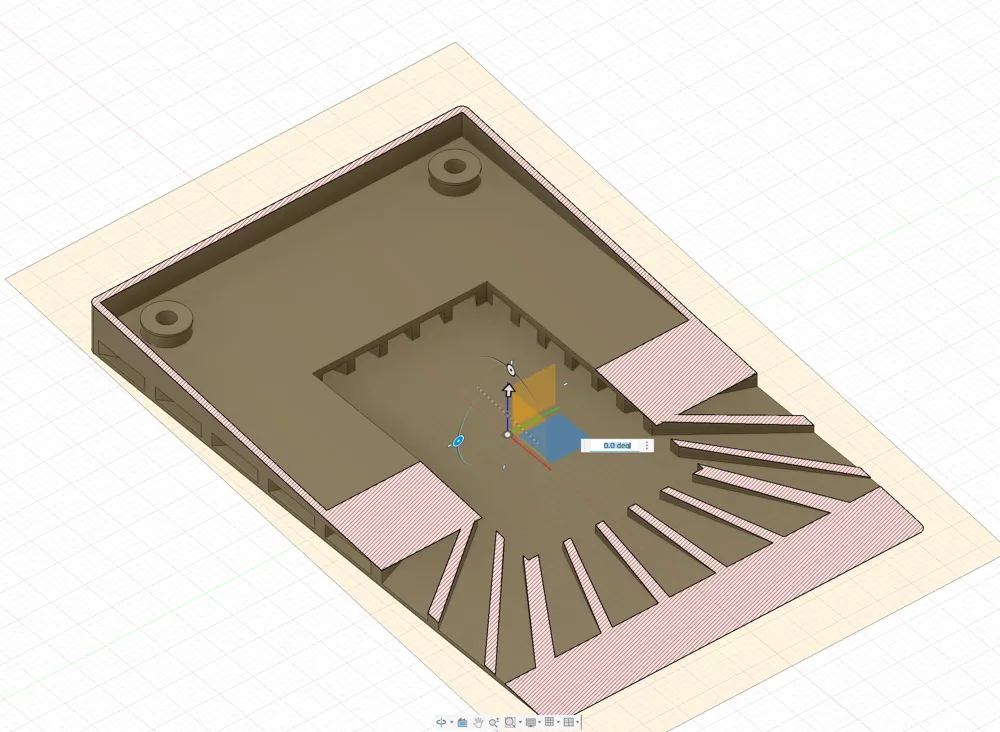

If you want to enhance heat dissipation, raise the model's bottom shell appropriately to increase the ventilation area of the bottom heat dissipation holes.
