THIS MODEL IS PURELY A TOY

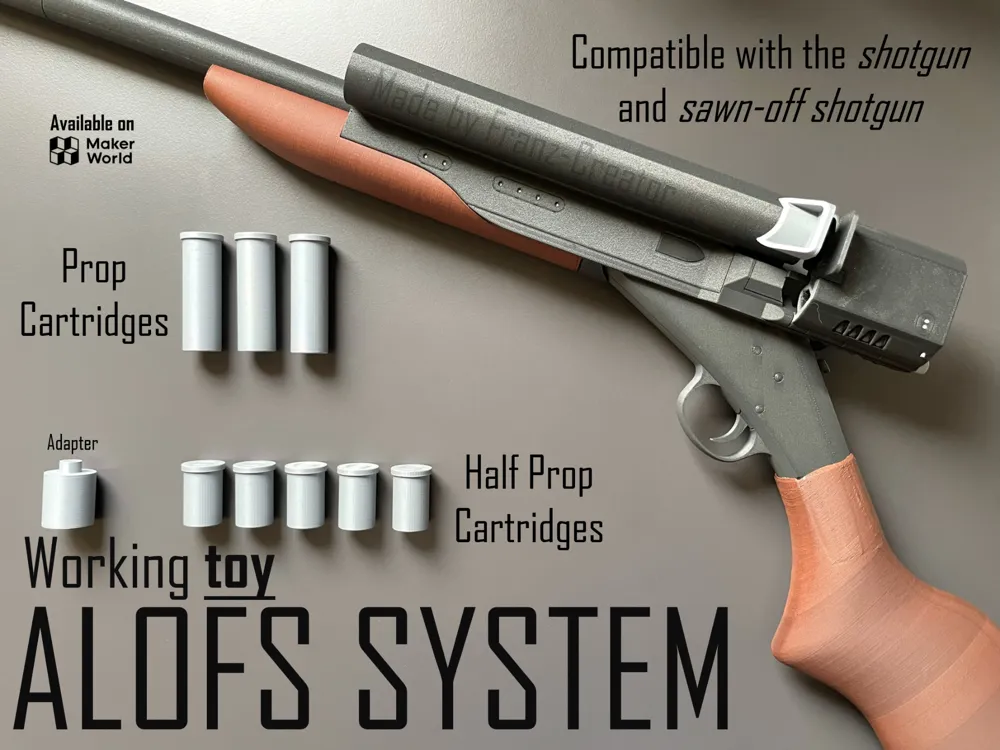

After numerous requests, I'm happy to announce the arrival of a new model: the ALOFS SYSTEM
The model is a redesign of the original Hermann Alofs version, specifically designed to be compatible with the Sawn-off Shotgun - Working Toy - 100% 3D Printed by Franz-Creator MakerWorld: Download Free 3D Models and the Working Toy Shotgun - 100% 3D Printed by Franz-Creator MakerWorld: Download Free 3D Models
The mechanism is 99% 3D printable, with the exception of 4 rubber bands.

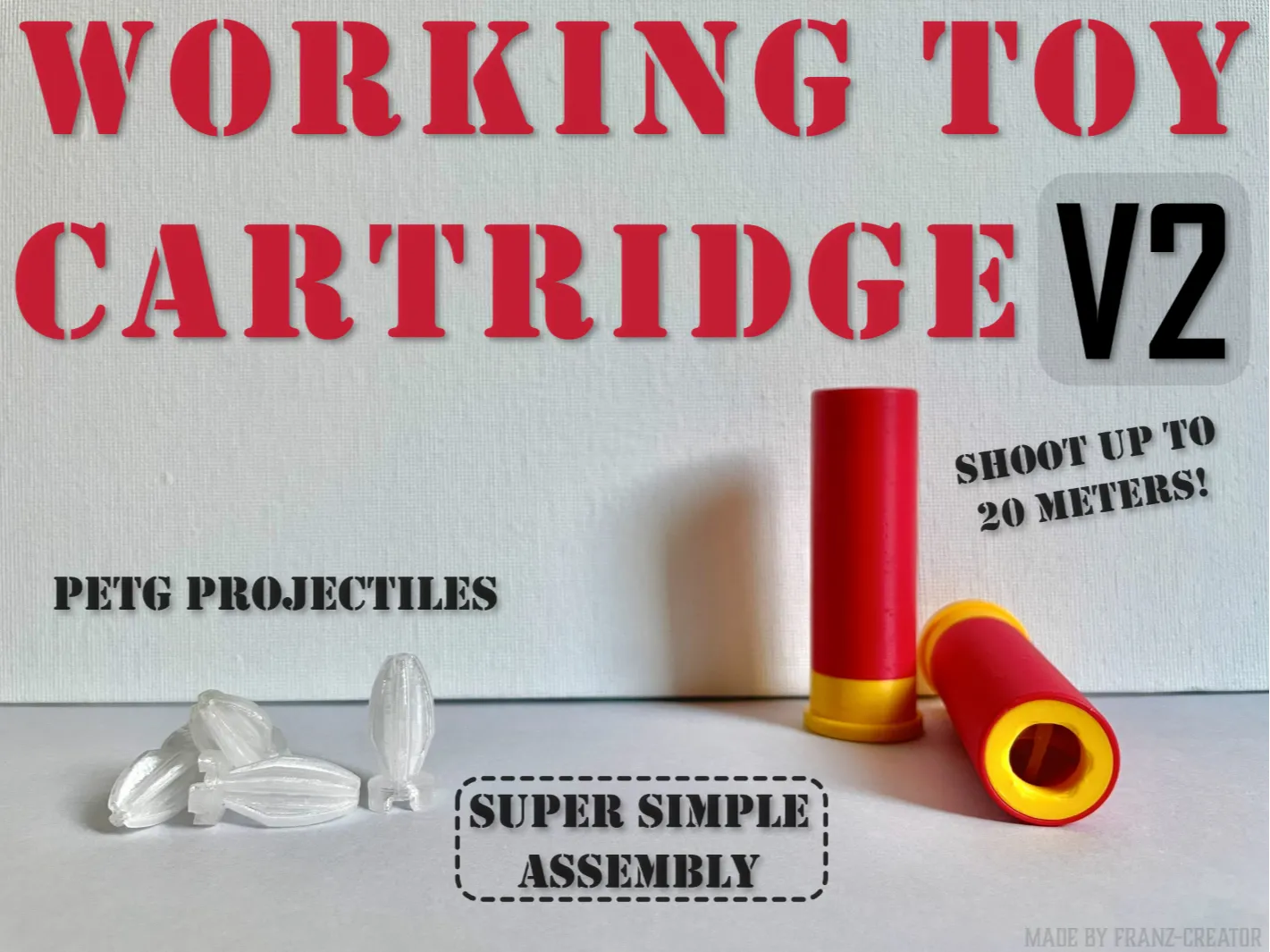

The Alofs System is compatible with the Working Toy Cartridge V2 - Free 3D Print Model - MakerWorld.
 |
The cartridge requires slightly more pressure to fire, so I highly recommend adding a shim to the hammer spring so that it is more compressed and therefore more powerful.
Printing and Assembly
The model was tested and printed using PETG CF, PLA Matte and PLA Wood for the handle. Therefore, these materials are highly recommended. Unlike the previous shotgun models, however, it should also work with other materials such as PETG, PLA, and ABS (not tested).
For those not using the print profile, it is necessary to set the X-Y Contour Compensation of the handle to -0.12.
To assemble the model, a video tutorial is available on YouTube:
