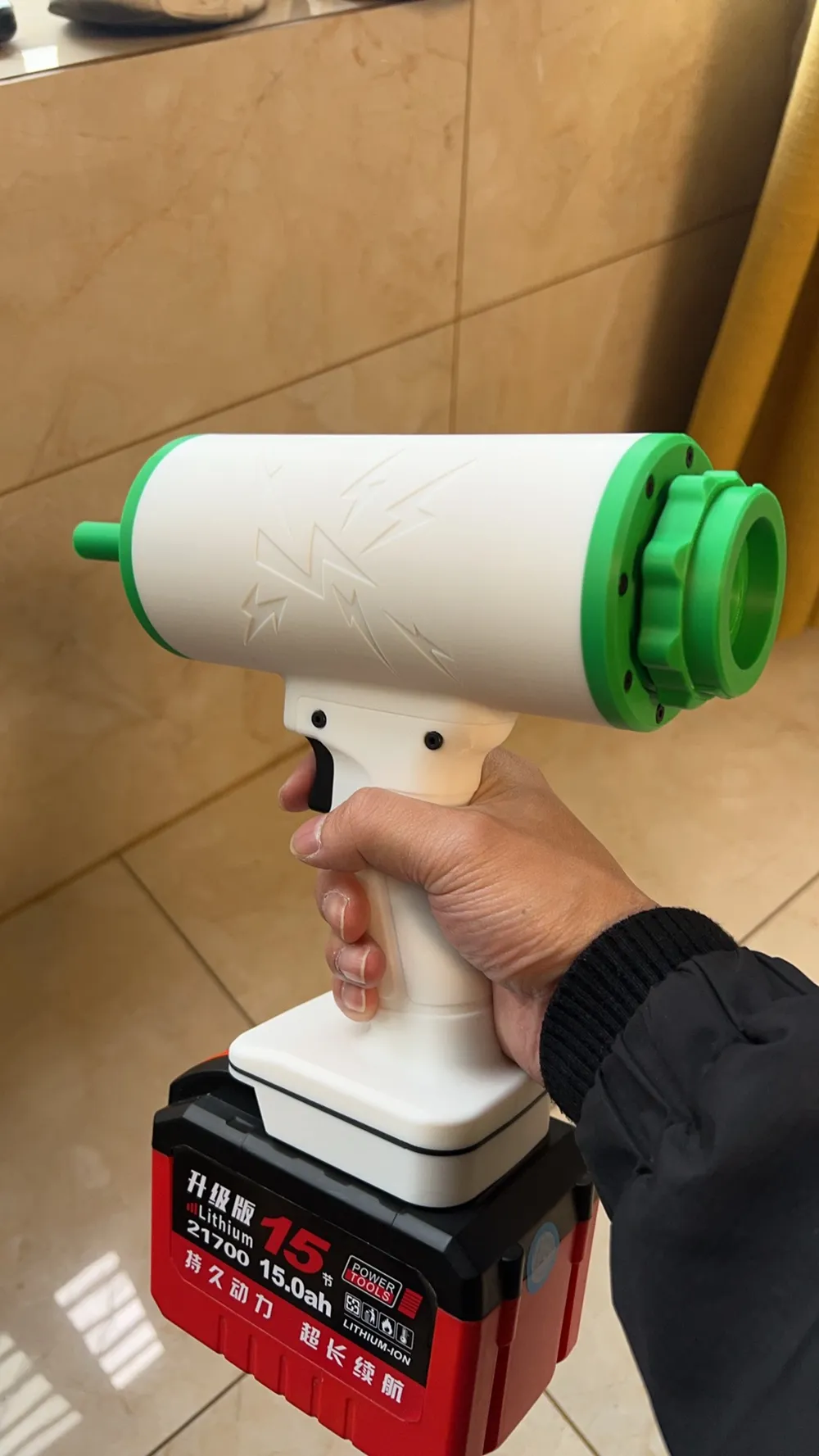

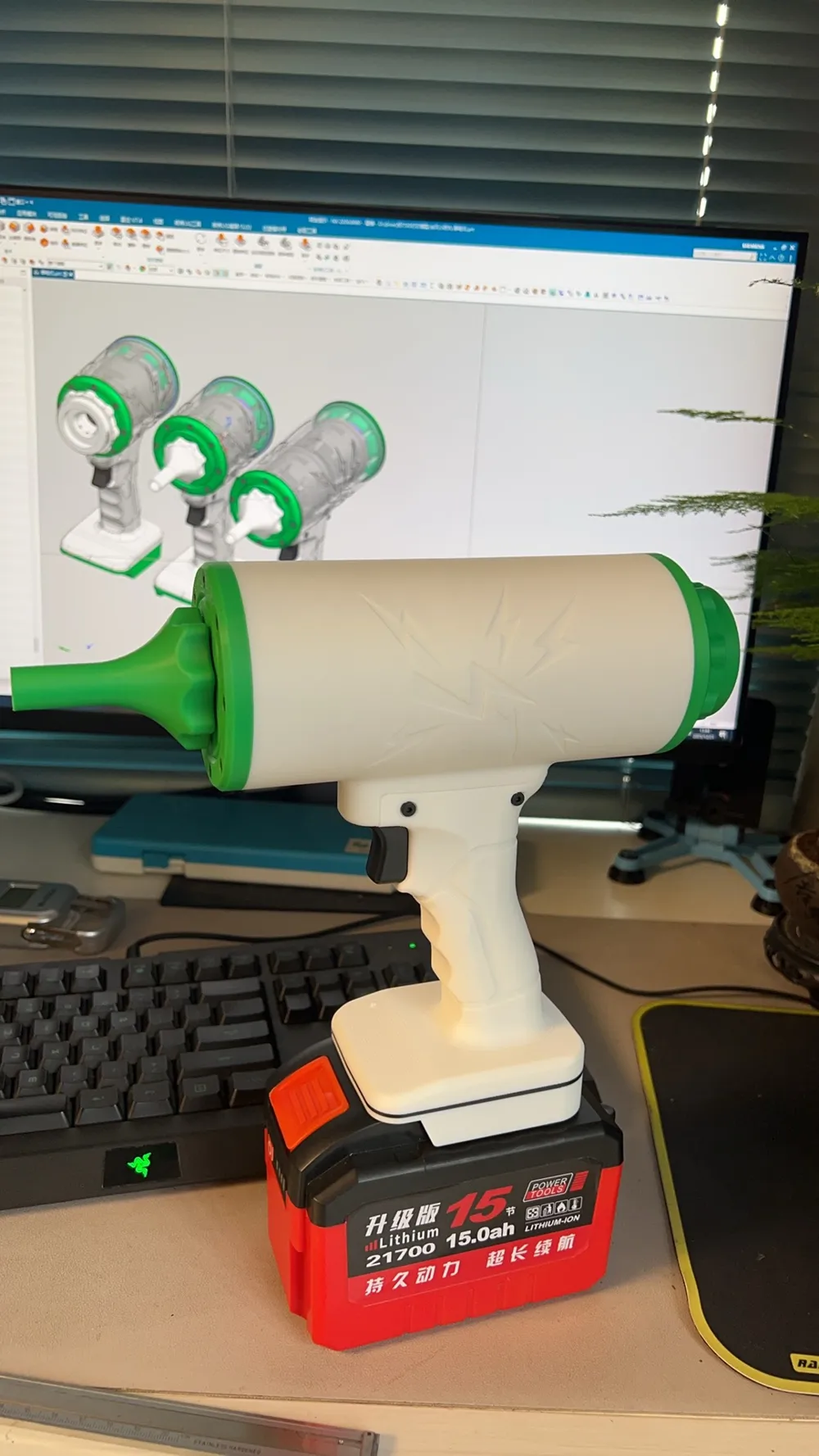

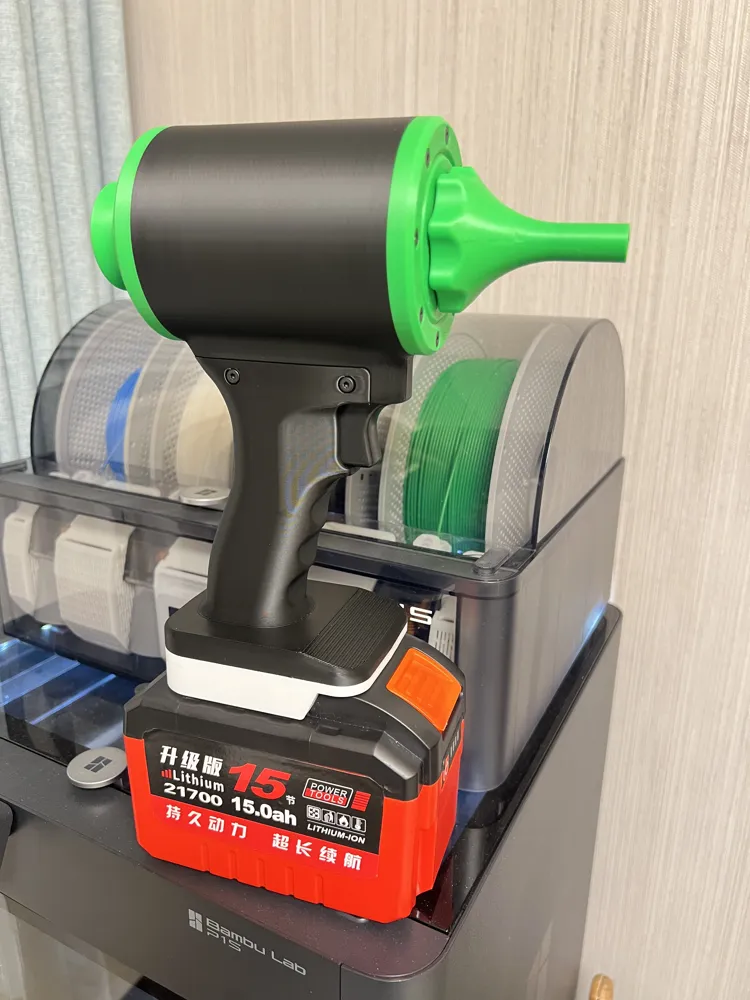

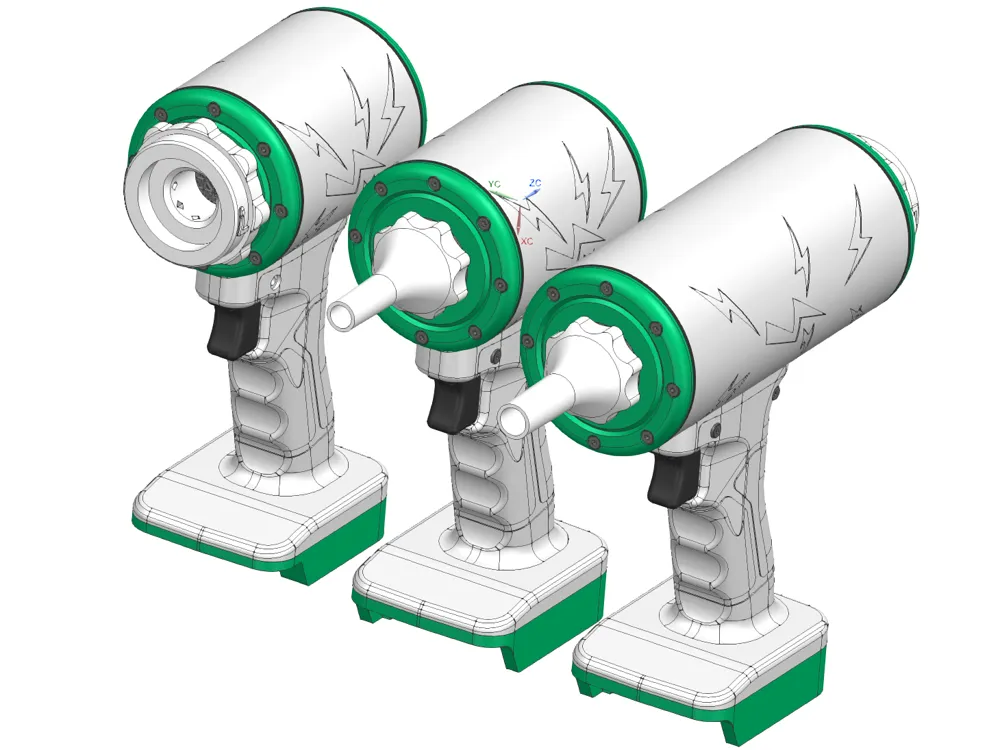

Handheld version Dyson V8 single and dual motor -High-power fan- dual motor suction can reach 3kg (Typhoon small pill)

Click here to jump to "Second-generation Modular Handheld Version - Dyson V8 Single/Dual Module Motor - Dual Motor Suction up to 3kg"

Friendly reminder: the motor current is high. When wiring, you must absolutely ensure to double-check that the positive and negative poles are not reversed and there are no short circuits. Thoroughly check before powering on!!!!!!!! Currently, the power adapter only supports Dayi A3 and Makita. Other types are not supported because I do not have matching batteries. I have uploaded the STP source file for the power adapter; those who need to modify it can download it themselves. Note: The appearance of the handle and battery pins refers to and learns from @狼族小辈

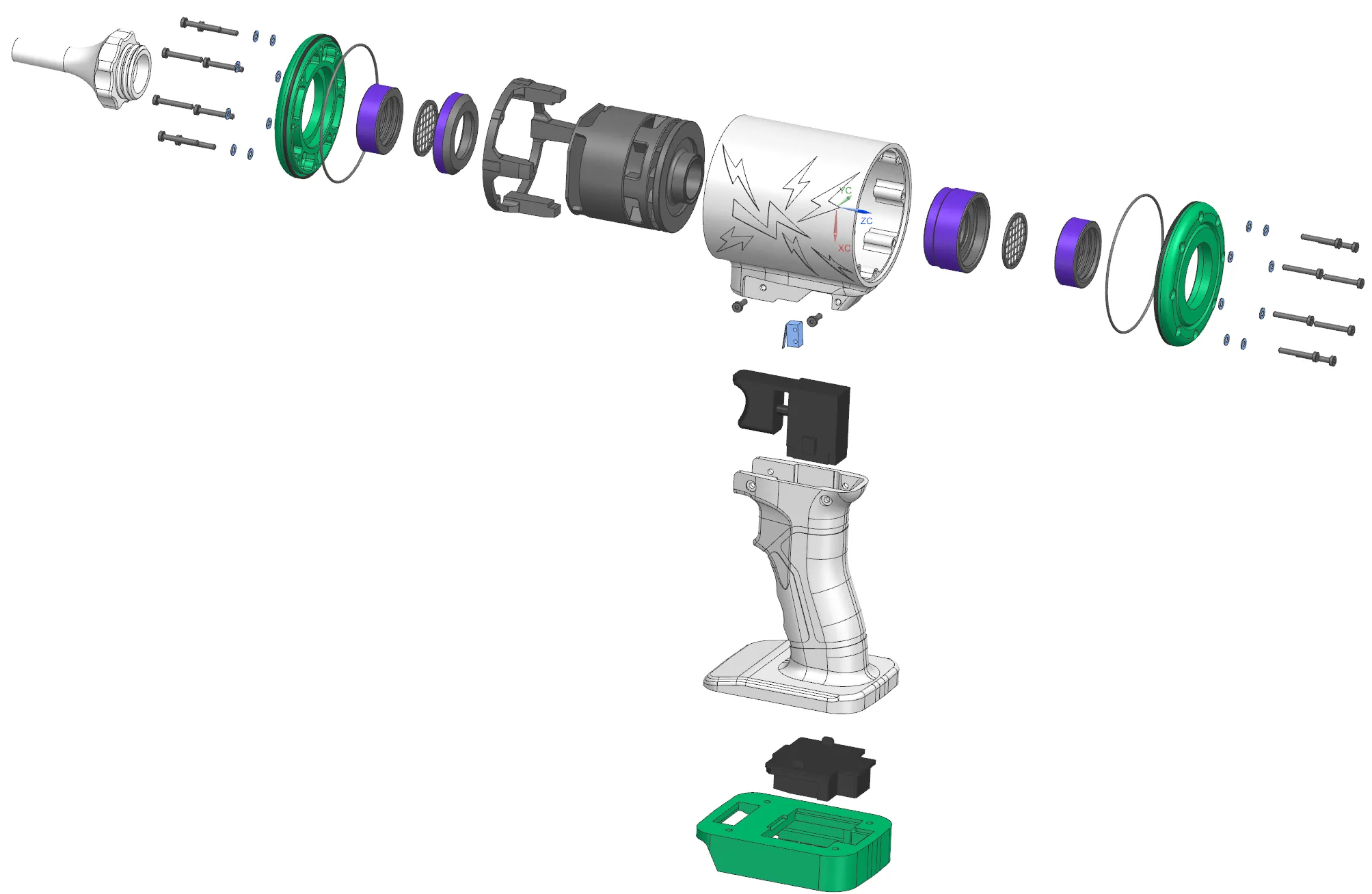

1. I've compiled some installation pictures. They're a bit messy due to time constraints, but it's very simple and easy to understand. The method for single and dual motors is the same. The battery I used in the pictures was bought on Pinduoduo for 88 yuan, the purchase link is below. The single motor can run for 20 minutes at high speed, while the dual motor runs for 9-10 minutes. Low speed was not tested, conservatively estimated to be over 1 hour

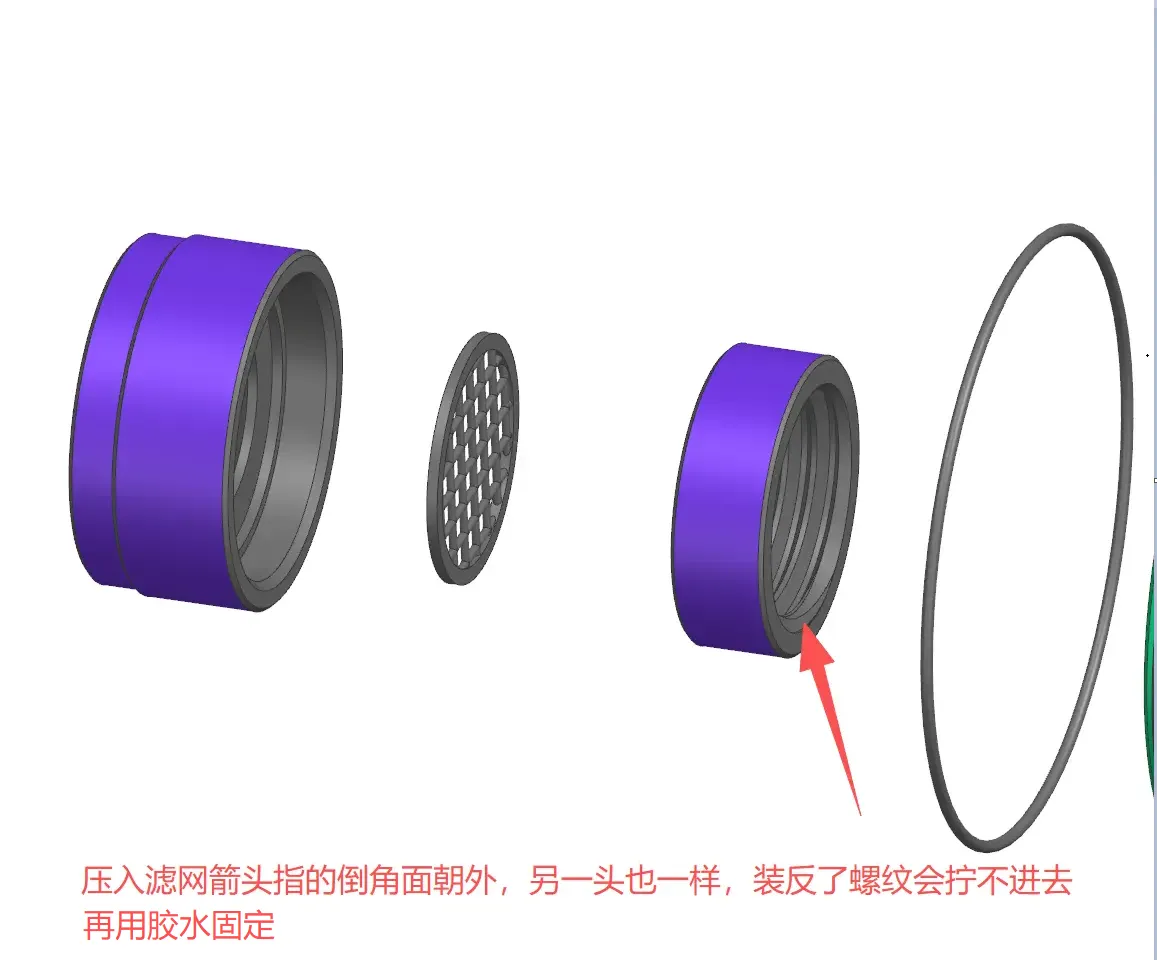

2. The original file for the vacuum cleaner connector can be downloaded for personal modification and addition. The blow/suction connection thread is M30*3.5

3. Installation pictures and video

https://app.yangsifa.cn:5001/photo/mo/sharing/sEYVozoht

4. Accessory purchase information (Search for Dyson V8 motor on Xianyu, about 55 yuan each)

https://app.yangsifa.cn:5001/d/s/16vsyfpXzC83YgJsLAbjw51Pi8cDTV8H/J7RR1WRv3zcBrbSjAODGEqL9c3DTw0Sd-IbggkfBA8ww

5. My tool battery

https://mobile.yangkeduo.com/goods1.html?ps=Cag9h7UFea

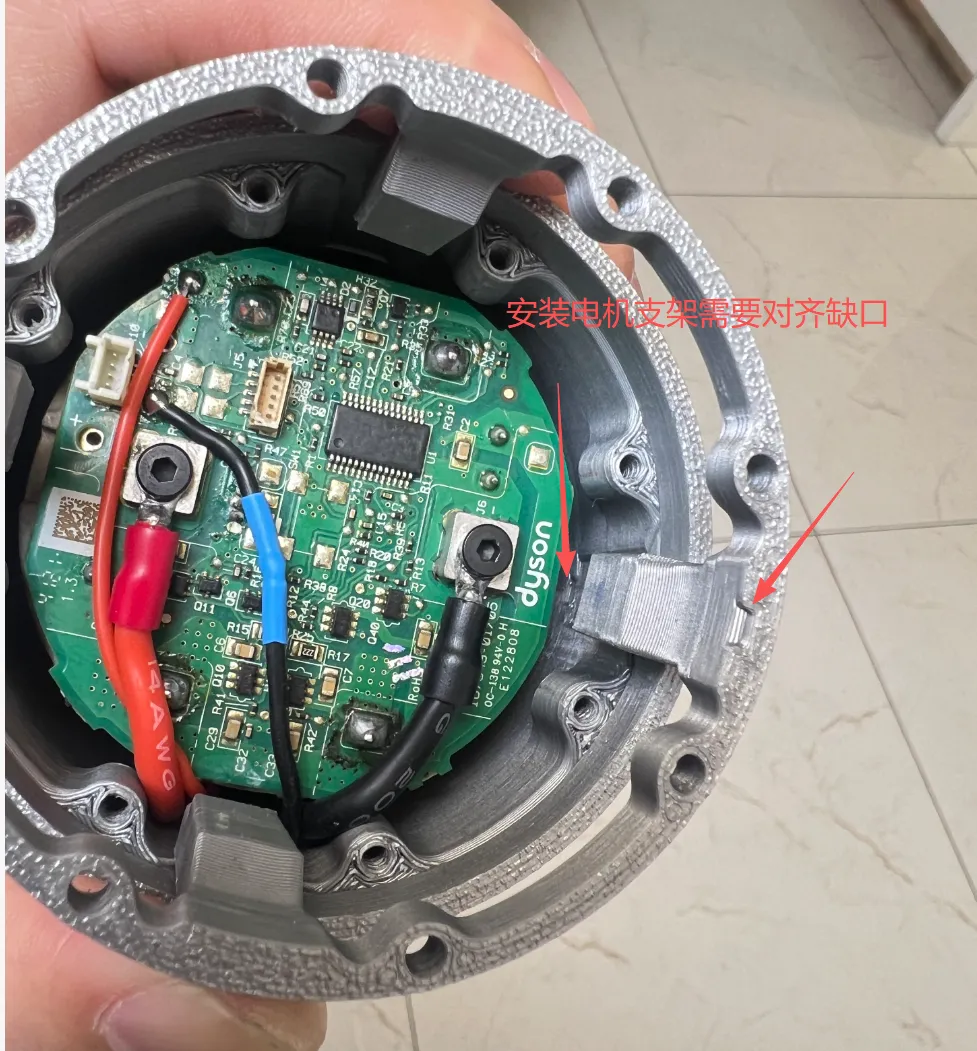

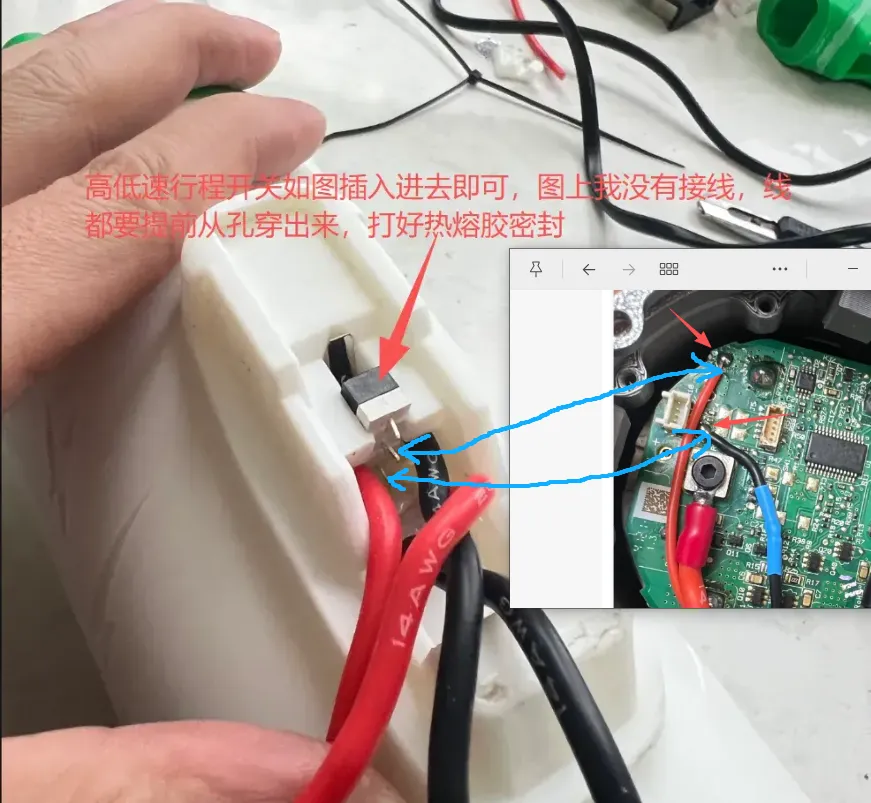

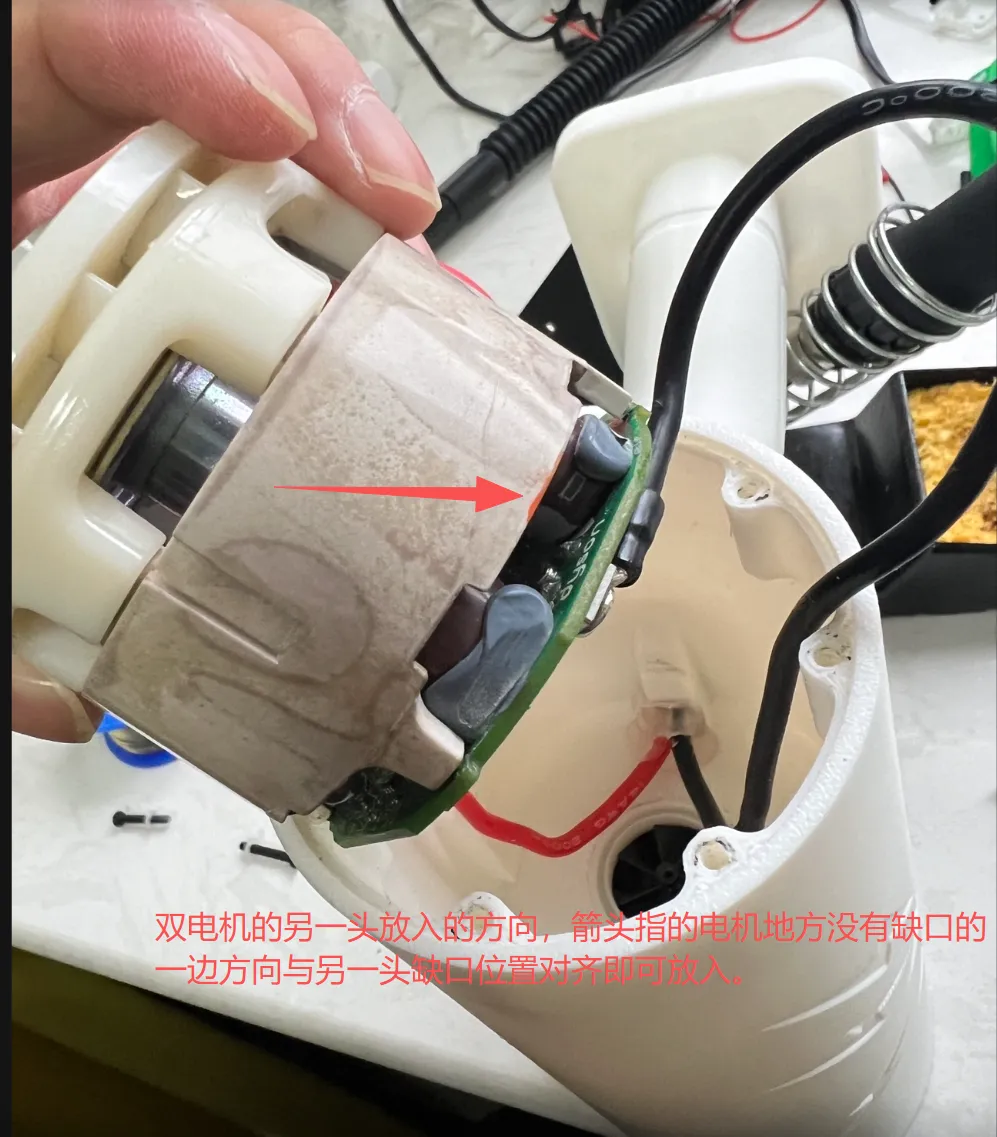

6. Installation details
