Bathroom Air Freshener Spray Button

This is a manual push button for bathroom spray air fresheners, designed to fit standard aerosol bottles. The bottle is held securely using a click-fit system, providing enough grip to keep it in place while pressing the spray.

Compatibility

Compatible with standard air freshener spray cans ,e.g. Glade (SC Johnson)

Bottle height: 64 mm
Bottle diameter: 22.2 mm

Printing recommendations

Material: PETG (strongly recommended)
⚠️ PLA may not be suitable due to:

• The pressure required for the click-fit bottle holder
• The force applied when pressing the button

Nozzle: 0.4 mm.

Recommended Layer height: 0.08 mm. This is important for:

• The internal hole
• The interface that connects with the bottle stem

Supports are required, but any surface roughness caused by them will be hidden inside the model and not visible in the final assembled part.

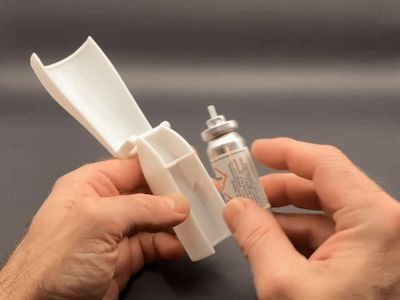

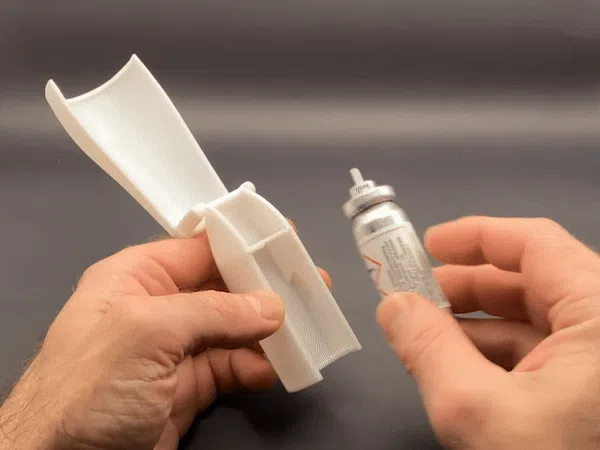

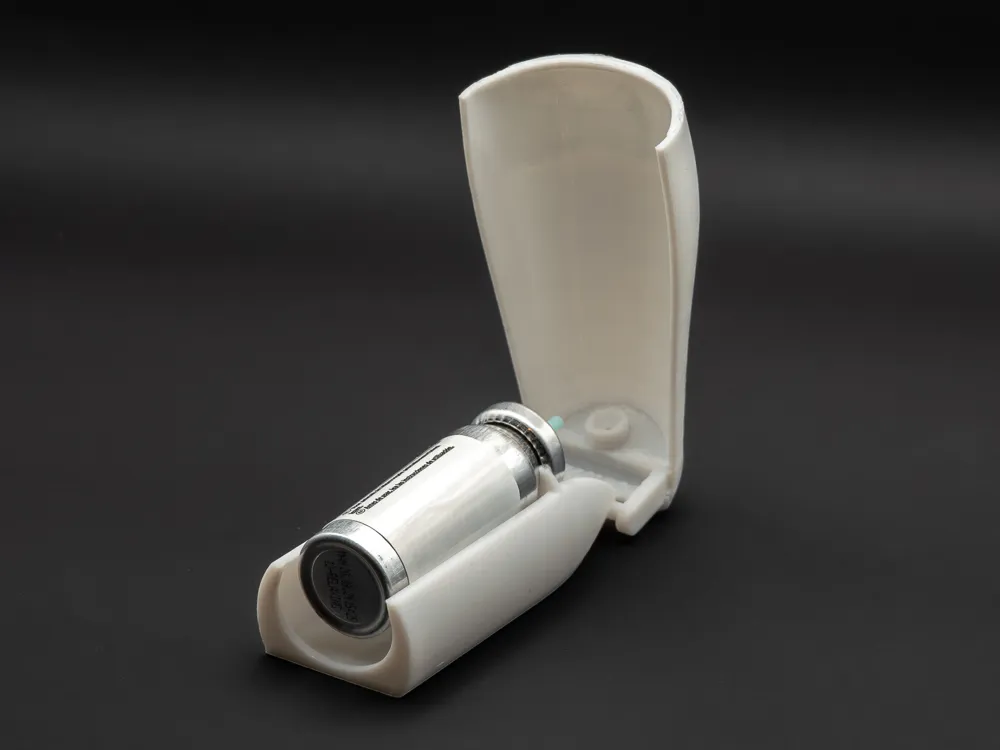

The sample shown in the photos was printed at 0.08 mm layer height with a 0.4 mm nozzle.

NOTE: Glade and SC Johnson are trademarks of their respective owners. This is an independent, third‑party accessory and is not affiliated with, endorsed by, or sponsored by them.

Update V2

This version includes reinforced geometry in the most stress‑prone areas to improve durability and long-term performance. The recommended printing parameters have also been adjusted specifically to improve layer adhesion and overall strength.
