ARCTIC Liquid Freezer III Pro LGA2066 Adapter
Print Profile(1)
Description

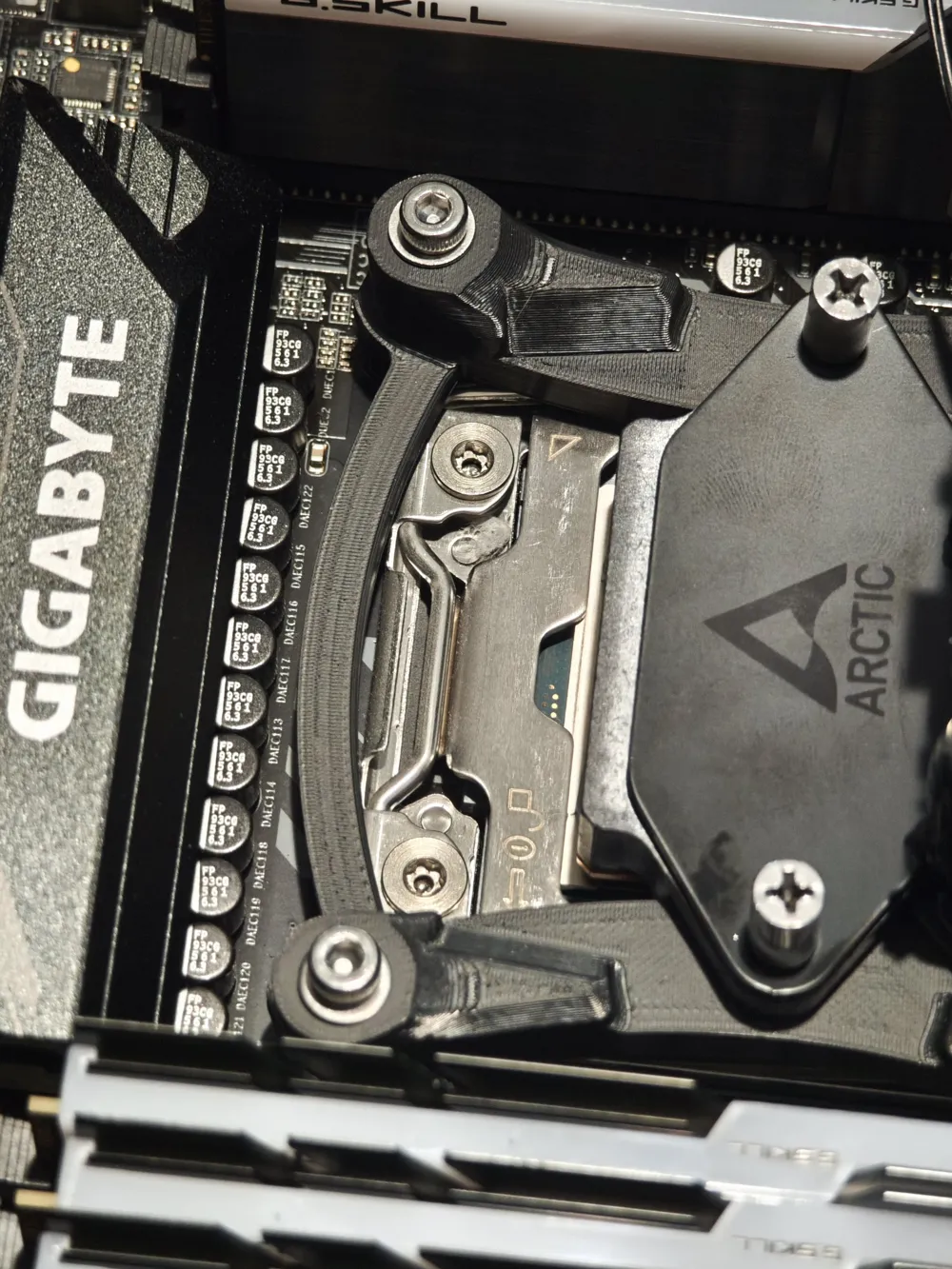

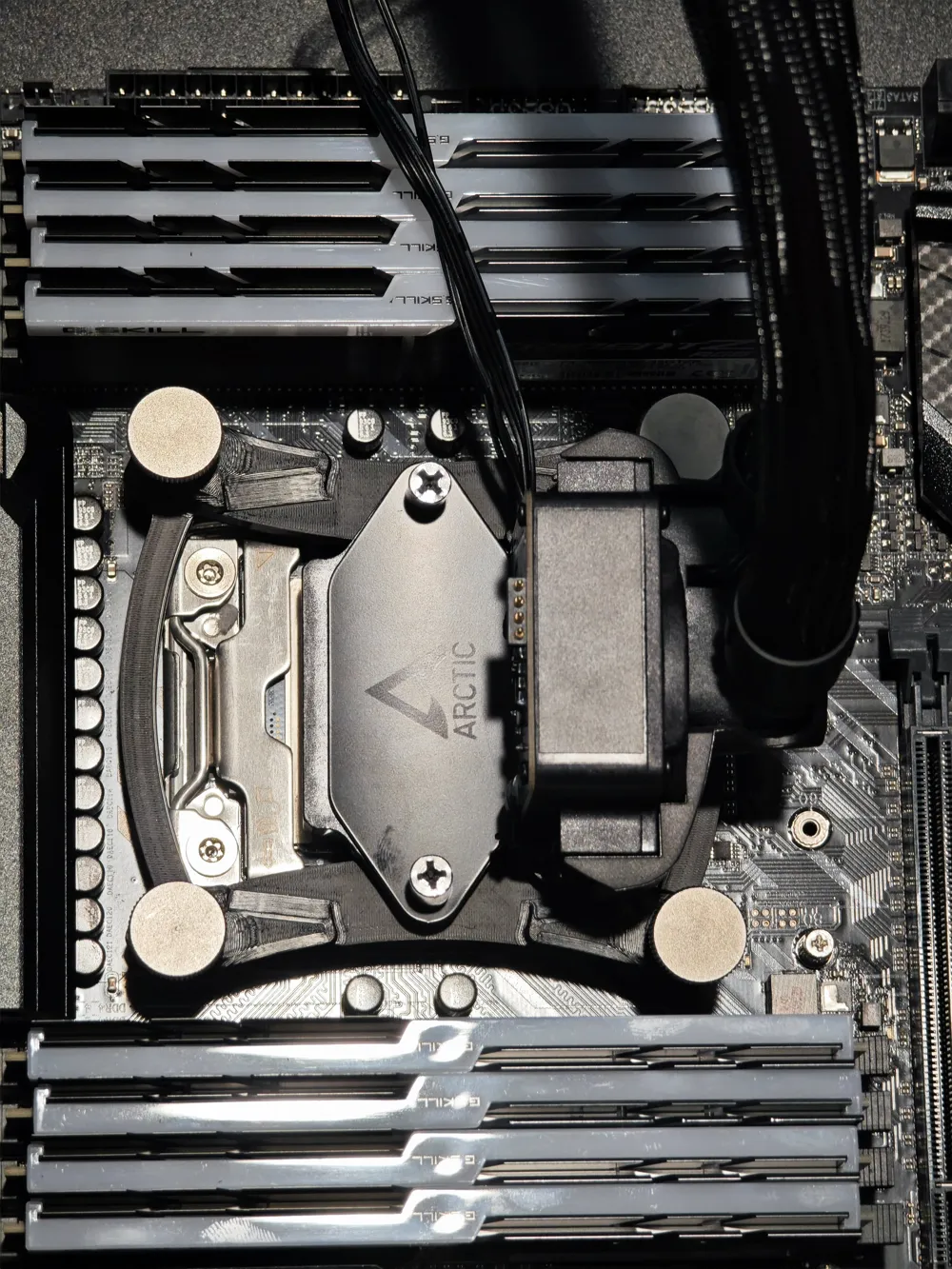

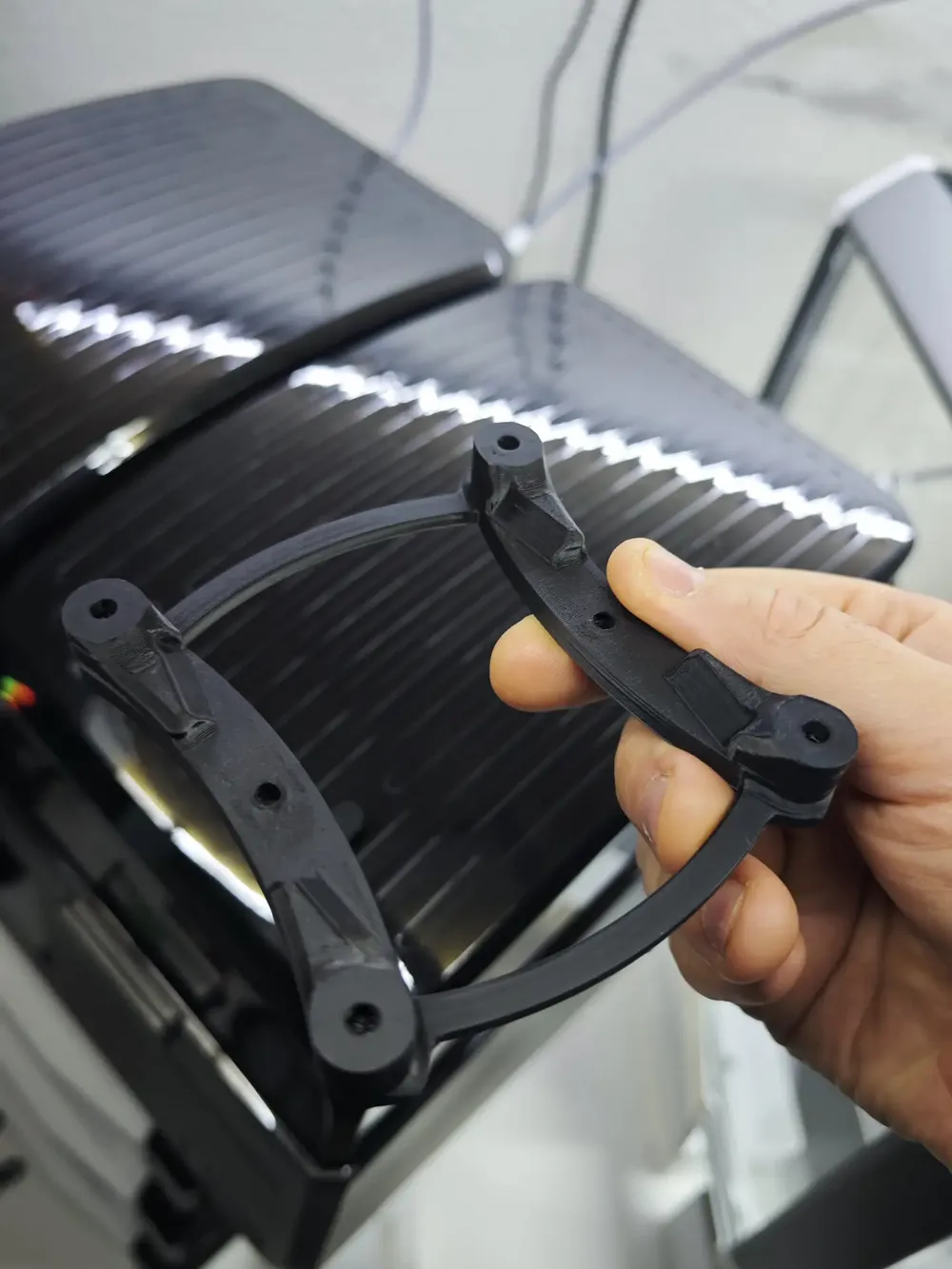

This is an adapter I made for the water cooler ARCTIC Liquid Freezer III Pro for LGA2066 systems. The brackets included are only for LGA1700/1800 and AM4/AM5. LGA2066 is similar to LGA2011 and LGA1366 but i only tested this on LGA2066.
You NEED to print this using PC, NYLON, or PC+ABS. I printed in PC+ABS (if you do fiber fill, ONLY do GLASS, do NOT do carbon fill).
You CANNOT print this from ordinary filaments like PETG, PLA, TPU. ASA is pushing it and I only prototyped it in ASA before printing the final version in PC+ABS. PC+PETG should be OK. I did not test filaments besides PC+ABS

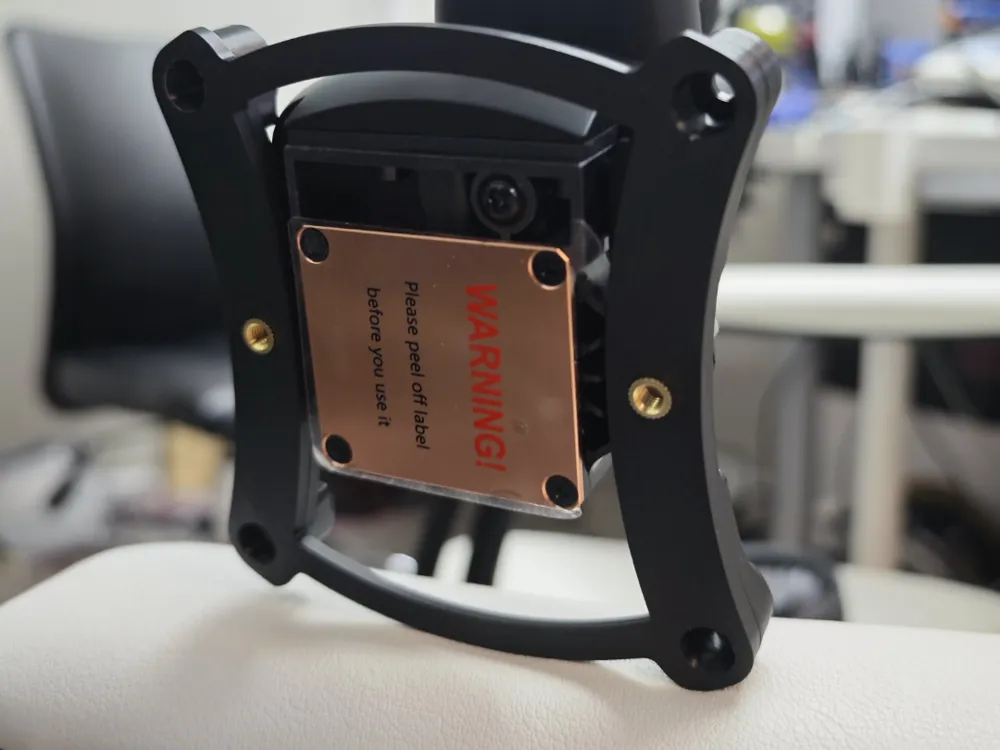

BOM is M4 x 6 x 6 brass threaded heat-set insert. I used 14mm M4 hex standoffs on the motherboard.
