🛠️ Ultra-Low-Cost JBC 245 Sleep Stand (DIY Brass Bushing Solution)

This project is designed specifically for DIY enthusiasts using JBC 245 handles. Addressing the high cost of original stands and the bulkiness of third-party alternatives, this solution utilizes the conductive contact principle paired with affordable industrial standard parts. The result is a highly responsive, durable sleep induction module costing less than $1.50 (¥10).

✨ Project Highlights

• Extreme Cost Control: The core sensing component costs only ~¥2, with the total BOM kept under ¥10.

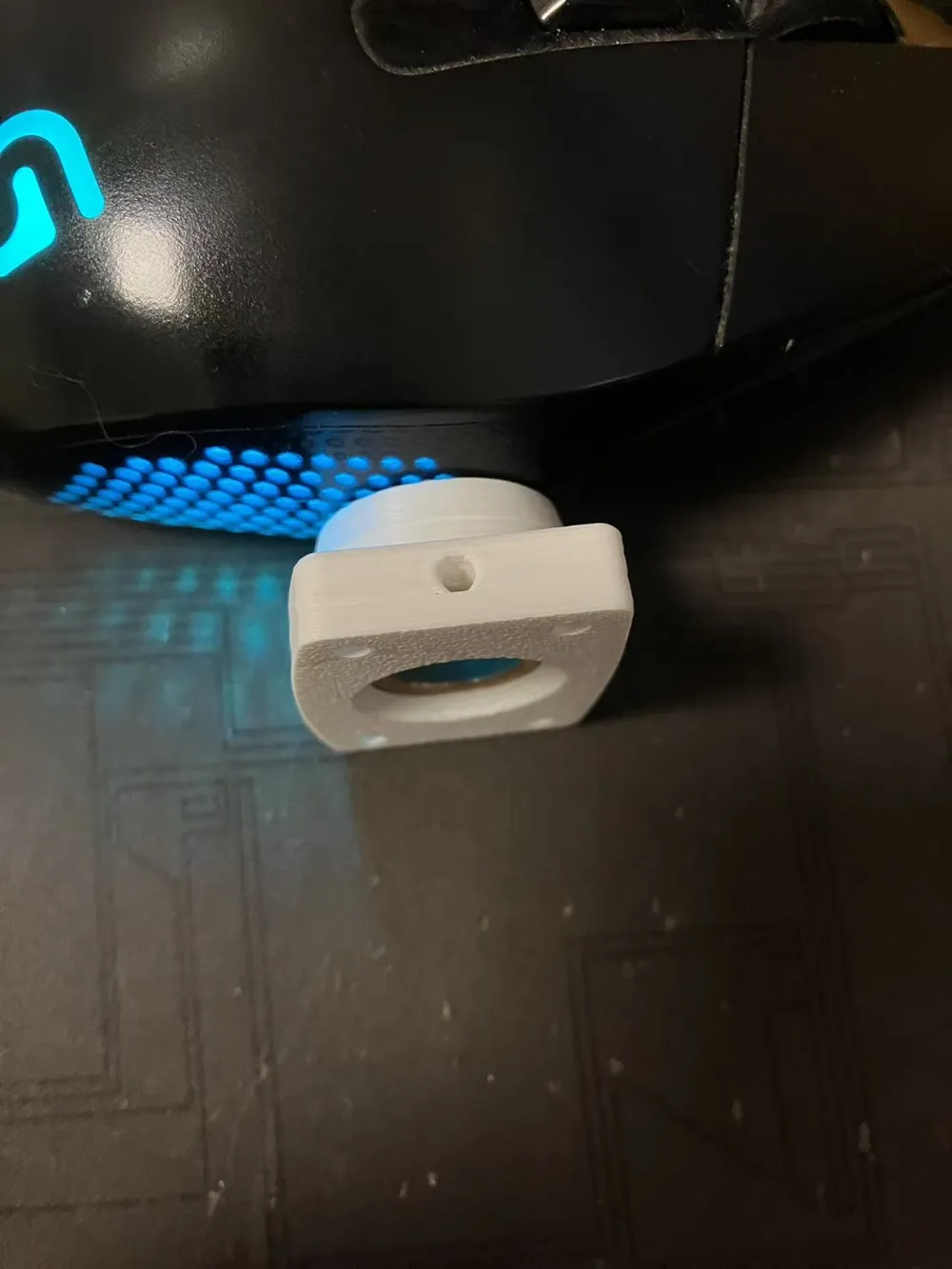

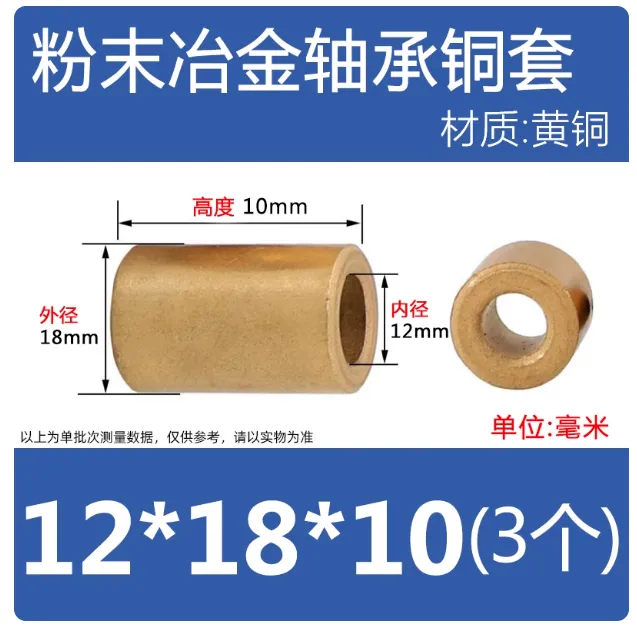

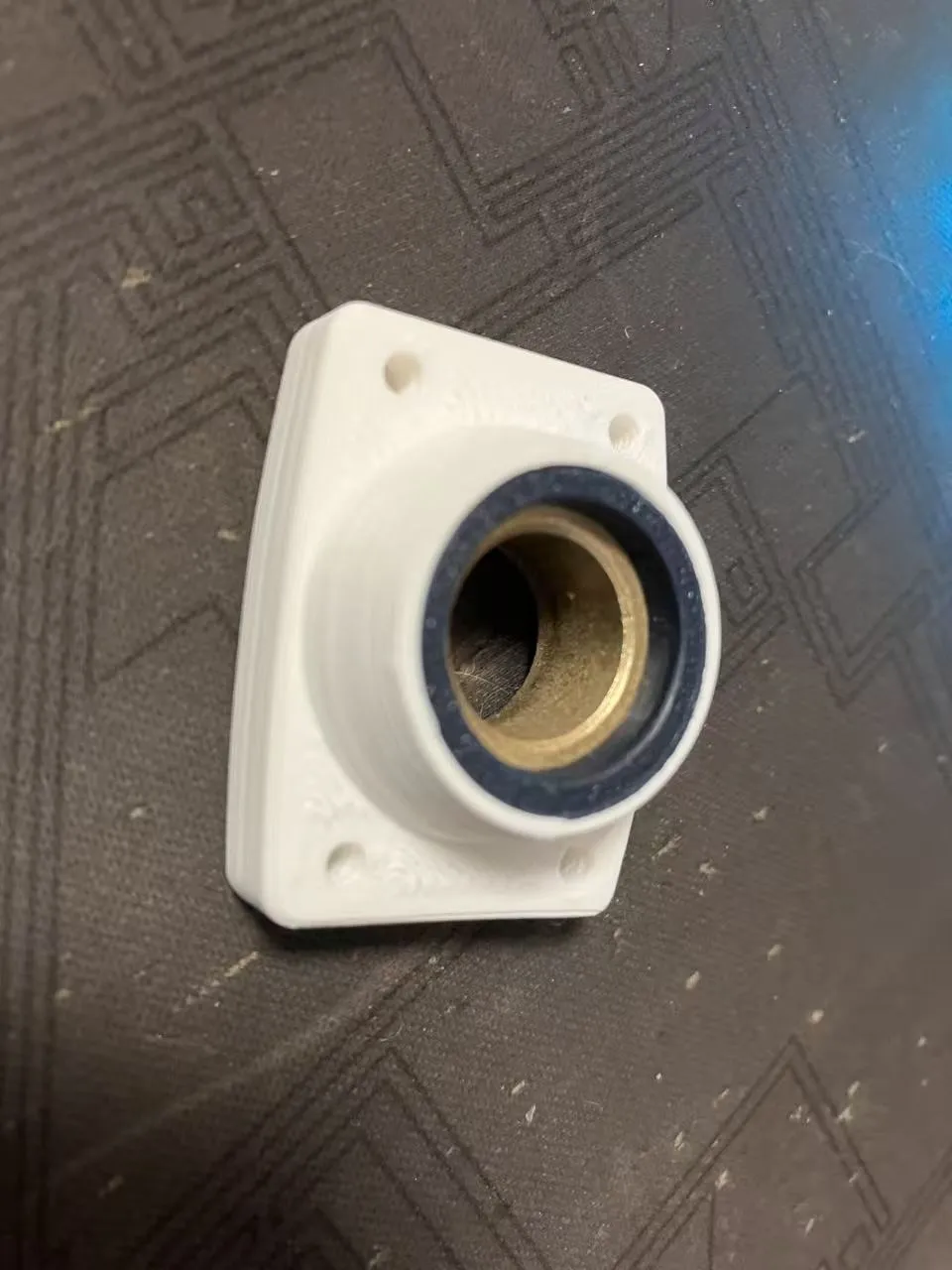

• Industrial Brass Bushing: Uses a 12x18x10mm Brass Bushing as the contact medium. Brass offers excellent conductivity and wear resistance, ensuring stable signal triggering without scratching the handle’s metal ring.
• Zero-Latency Response: Direct physical contact between the handle's metal ring and the bushing enables "instant sleep upon docking," eliminating the lag often found in software-based detection.

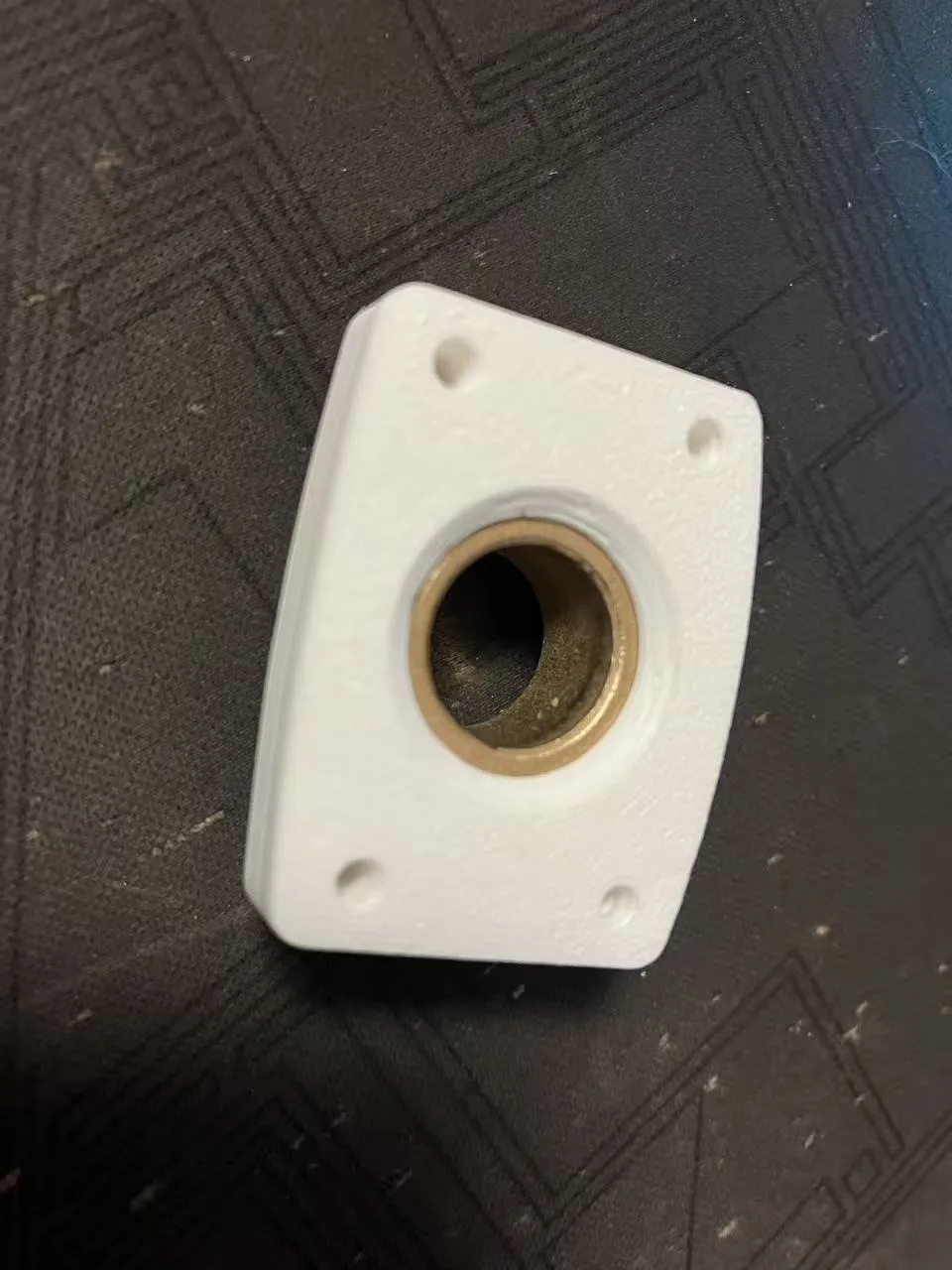

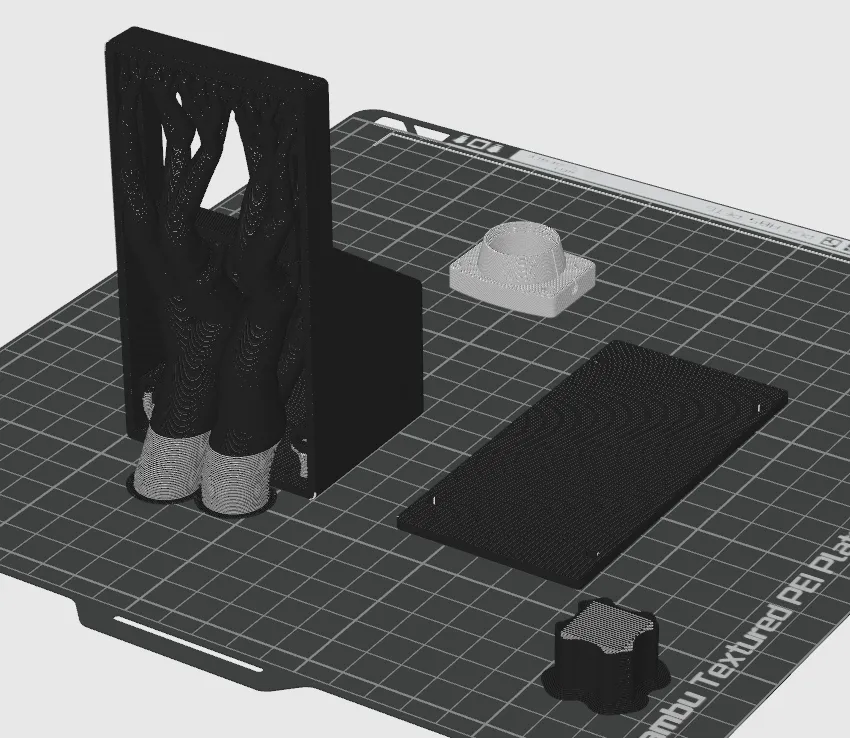

• Highly Customizable: Includes Standard STEP files, allowing makers to modify the housing design to fit their specific workbench layout or 3D printing tolerances.

💡 Working Principle

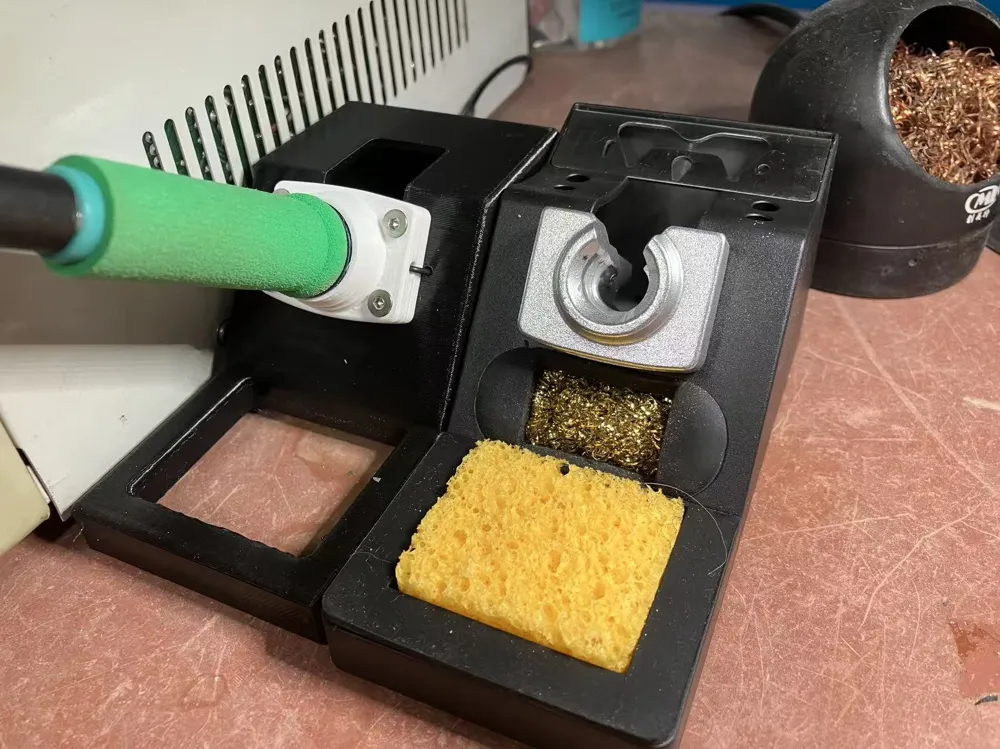

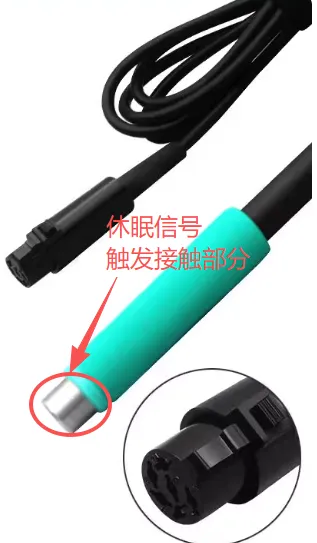

The JBC 245 handle features a dedicated metal ring near the tip for standby detection.

• Wiring Logic: Simply connect the controller's Sleep Signal wire securely to the brass bushing.
• Trigger Process: When the handle is inserted, the metal ring contacts the bushing to complete the circuit. The system immediately receives the signal to enter sleep mode. Removing the handle breaks the contact, instantly restoring work temperature.

📋 Bill of Materials (BOM)

📥 File Information

• Format: .step (Universal 3D CAD format)
• Editing Advice: Recommended for use with SolidWorks, Fusion 360, or Rhino. We suggest measuring the actual outer diameter of your purchased bushing to adjust the interference fit in the CAD model for a perfect press-fit.

==========================================================================
