Servo mount Emax ES3352
Print Profile(2)
Description
I have modeled and am using this Emax ES3352 servo mount.
I didn't want to glue the servo directly with hot melt glue, I like clean technology and the servo fixed in this way in the box can be removed at any time without peeling and cleaning...

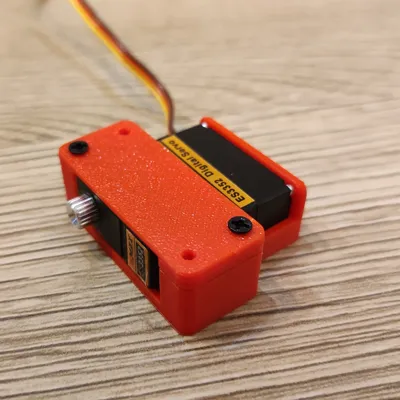

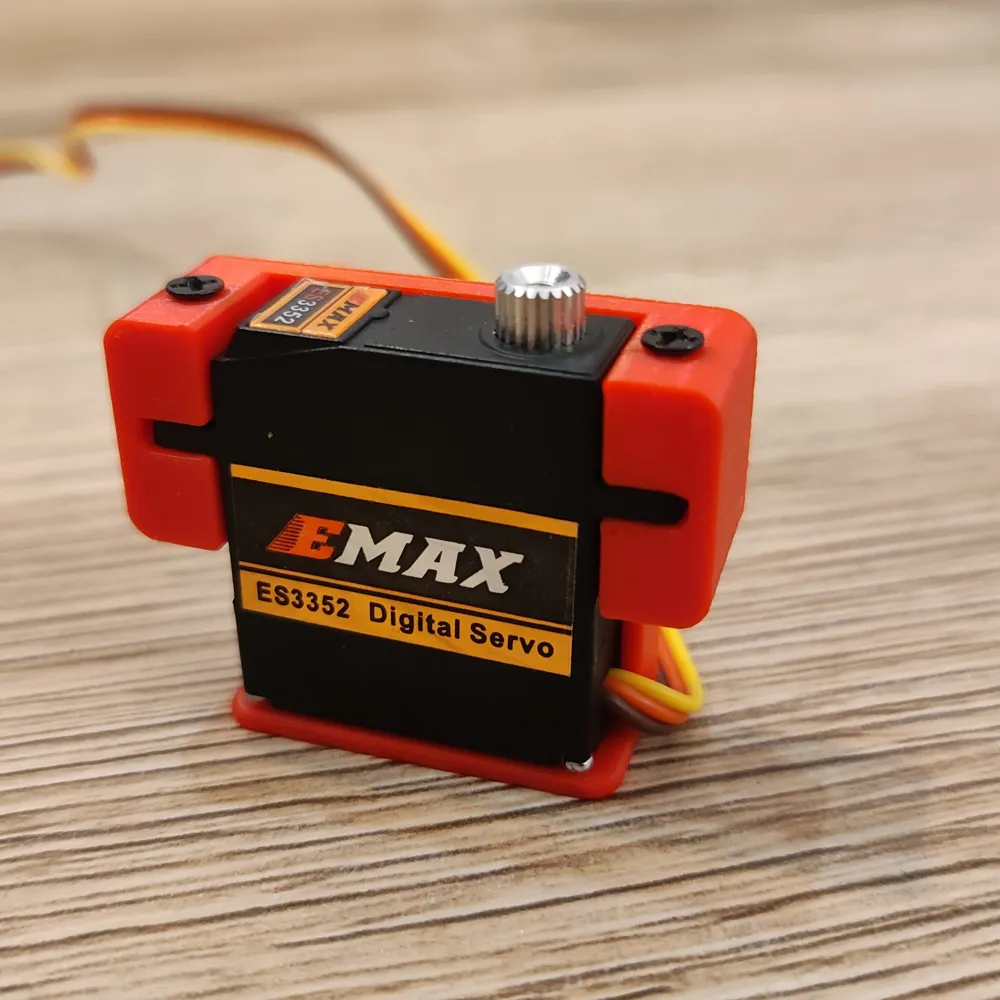

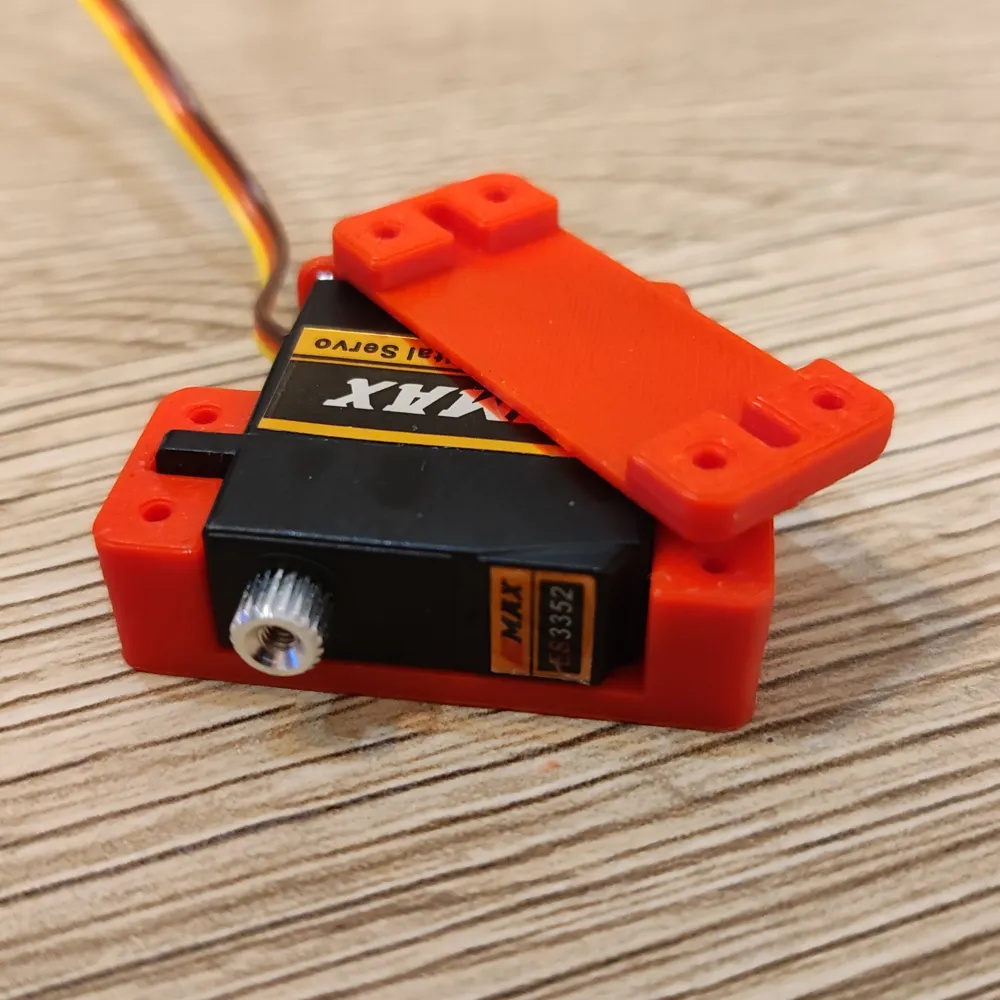

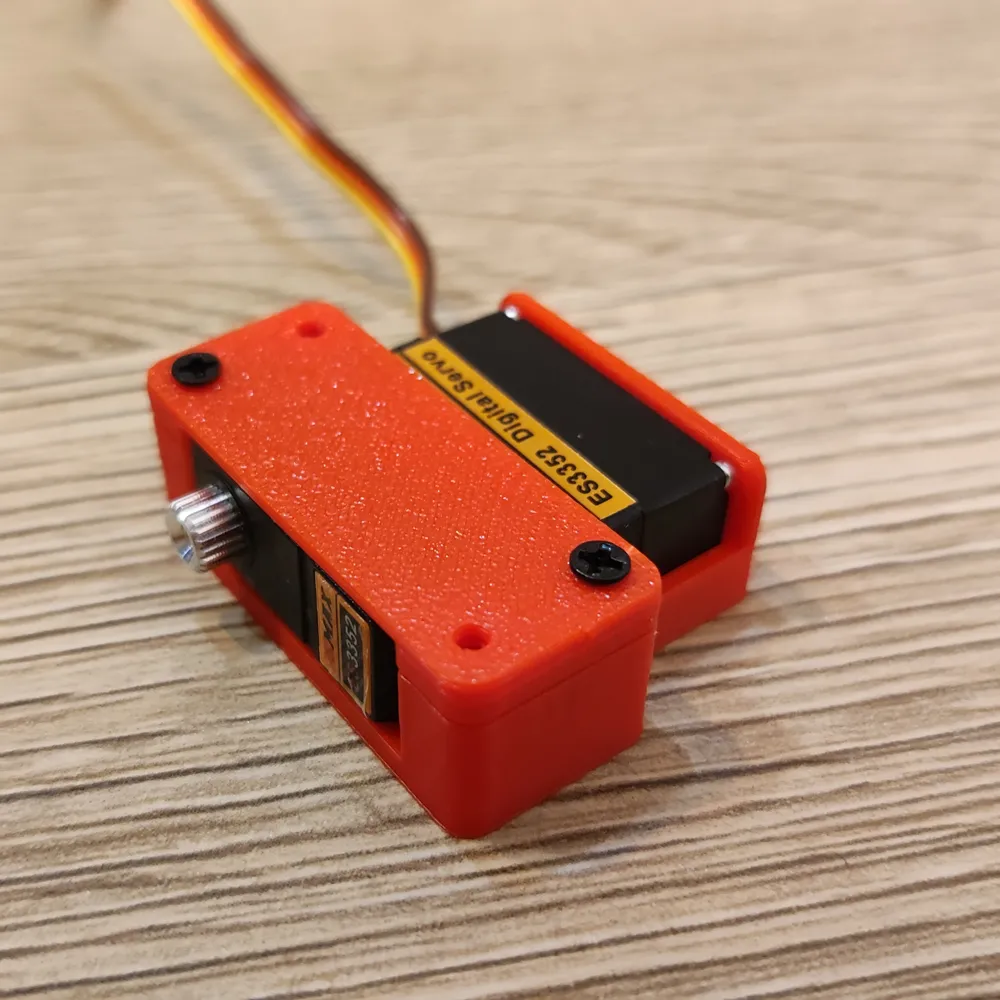

Glue the holder, insert the servo into it, which fits perfectly and securely.

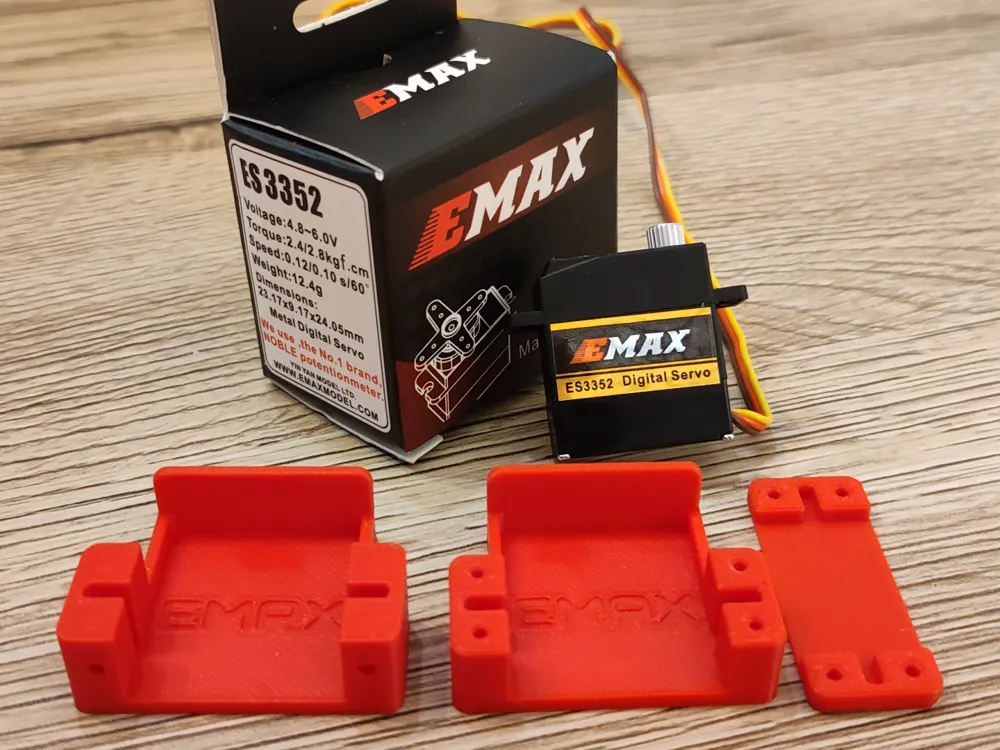

The package contains two types of mounts:
1. Horizontal
2. Vertical
Don't forget to secure with small screws, e.g. M2
Print yours according to the type of use....
Let it serve!
Layer height: 0.16 mm
Number of top layers - 6
Number of bottom layers - 5
3 perimeters
15% infill
Material: PLA,PETG...
