TRYEE – External Radiator Stand for TRYX Panorama
Project Philosophy
TRYEE interprets the contest theme from a different perspective:
not a case that contains TRYX Panorama, but a structure that puts it on display.
By separating the radiator from the main system, TRYEE turns the cooling hardware into a visible design element, giving Panorama more presence and visual importance within the setup.
Concept & Design

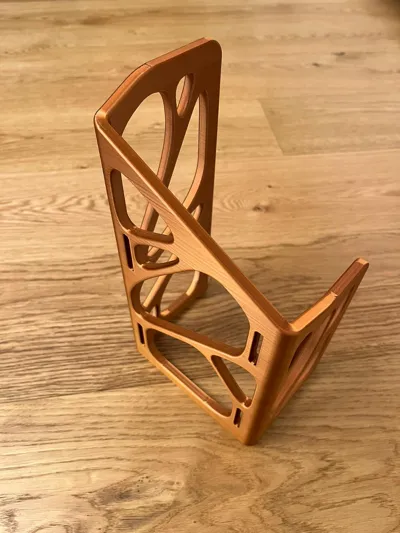

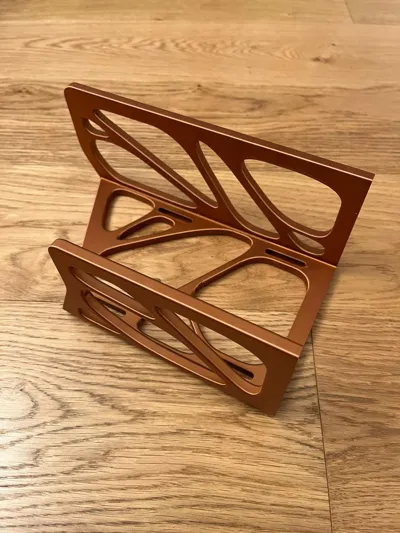

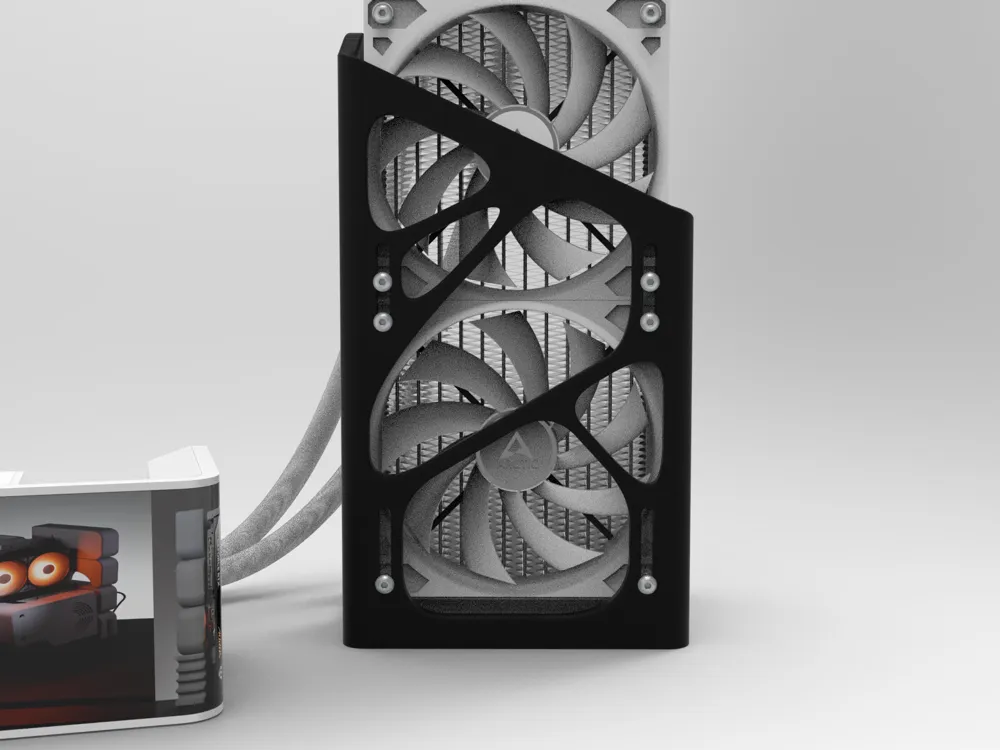

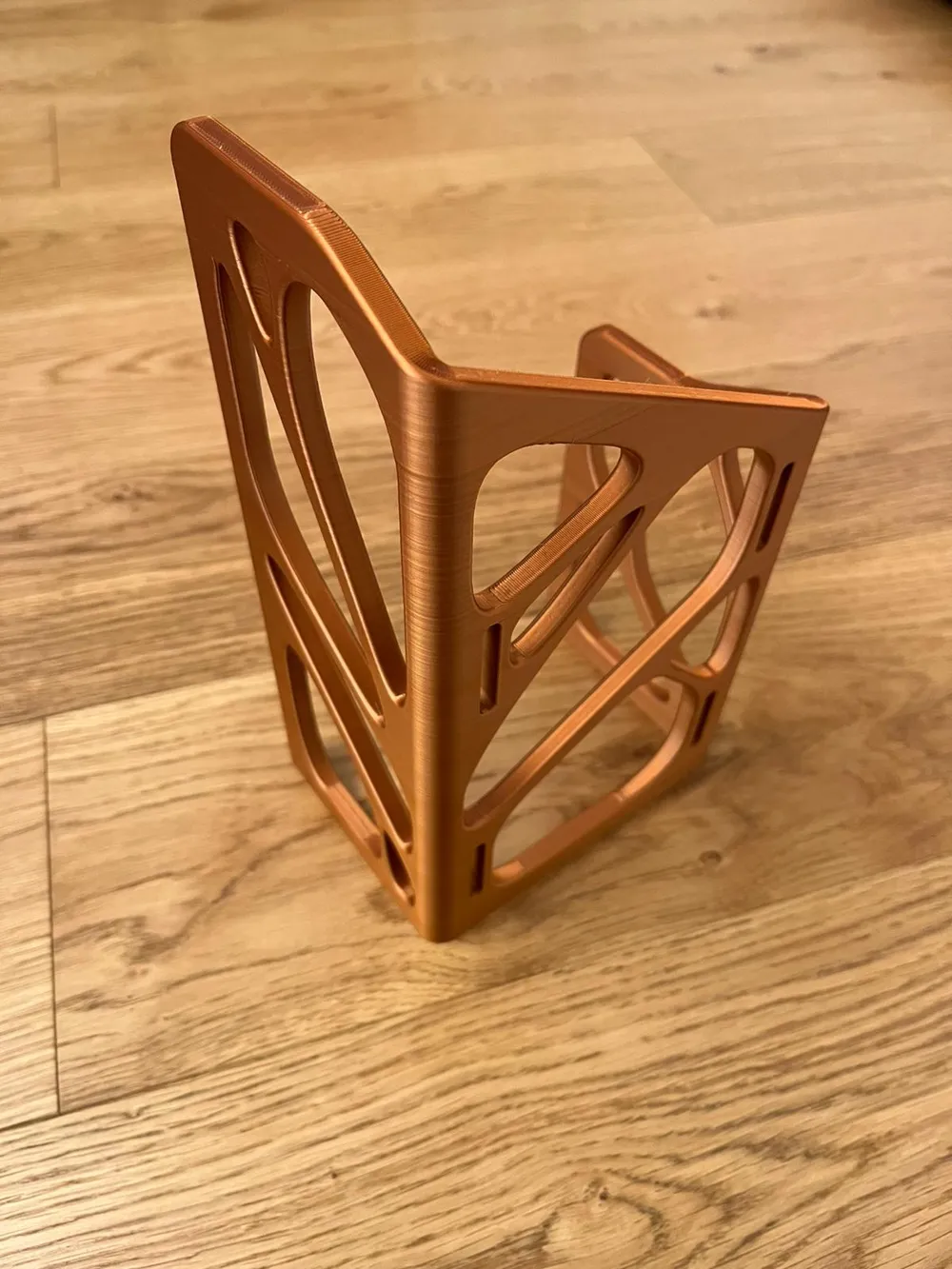

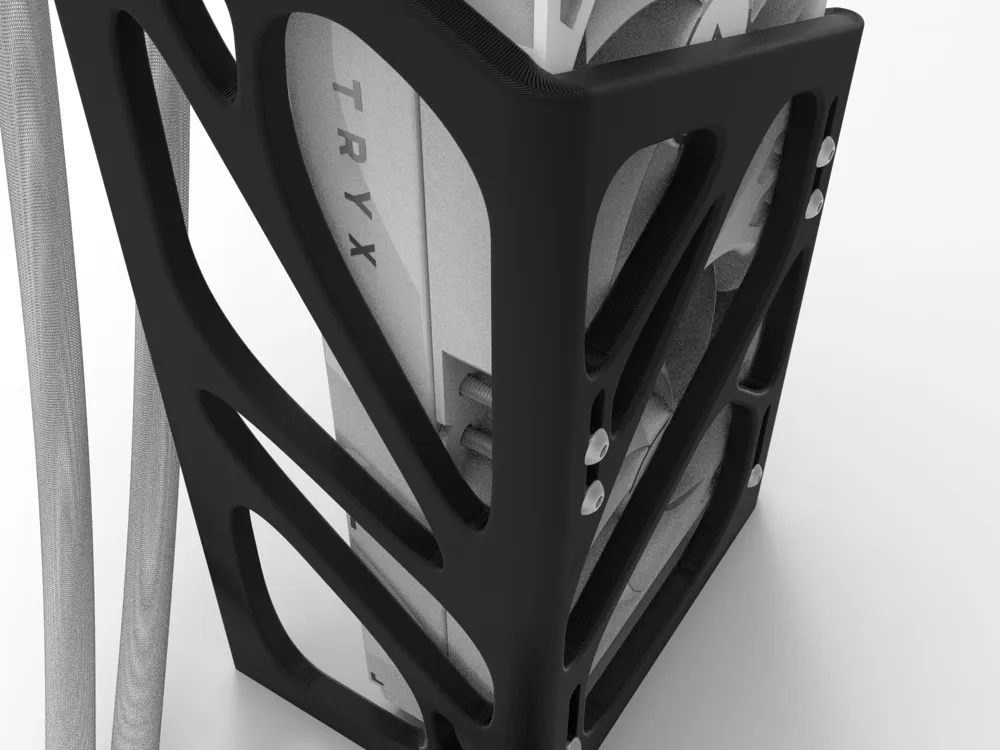

TRYEE is a minimal external radiator stand designed to showcase TRYX Panorama with a clean and modular approach. The radiator is moved outside the case to improve visual impact, layout freedom, and airflow.
The stand is designed as a single monolithic piece, fully printable on one build plate with no assembly required.
Key Features
- One-piece design, single build plate
- No assembly: print and mount
- Minimal, modern aesthetics for open-frame and showcase builds
- Designed to complement Panorama without overpowering it
Functionality & Compatibility
- Supported radiator sizes: 240 / 360 / 480
- Radiator orientation: tubes up or tubes down
- Multiple fan mounting orientations
- Increased modularity and cleaner cable management

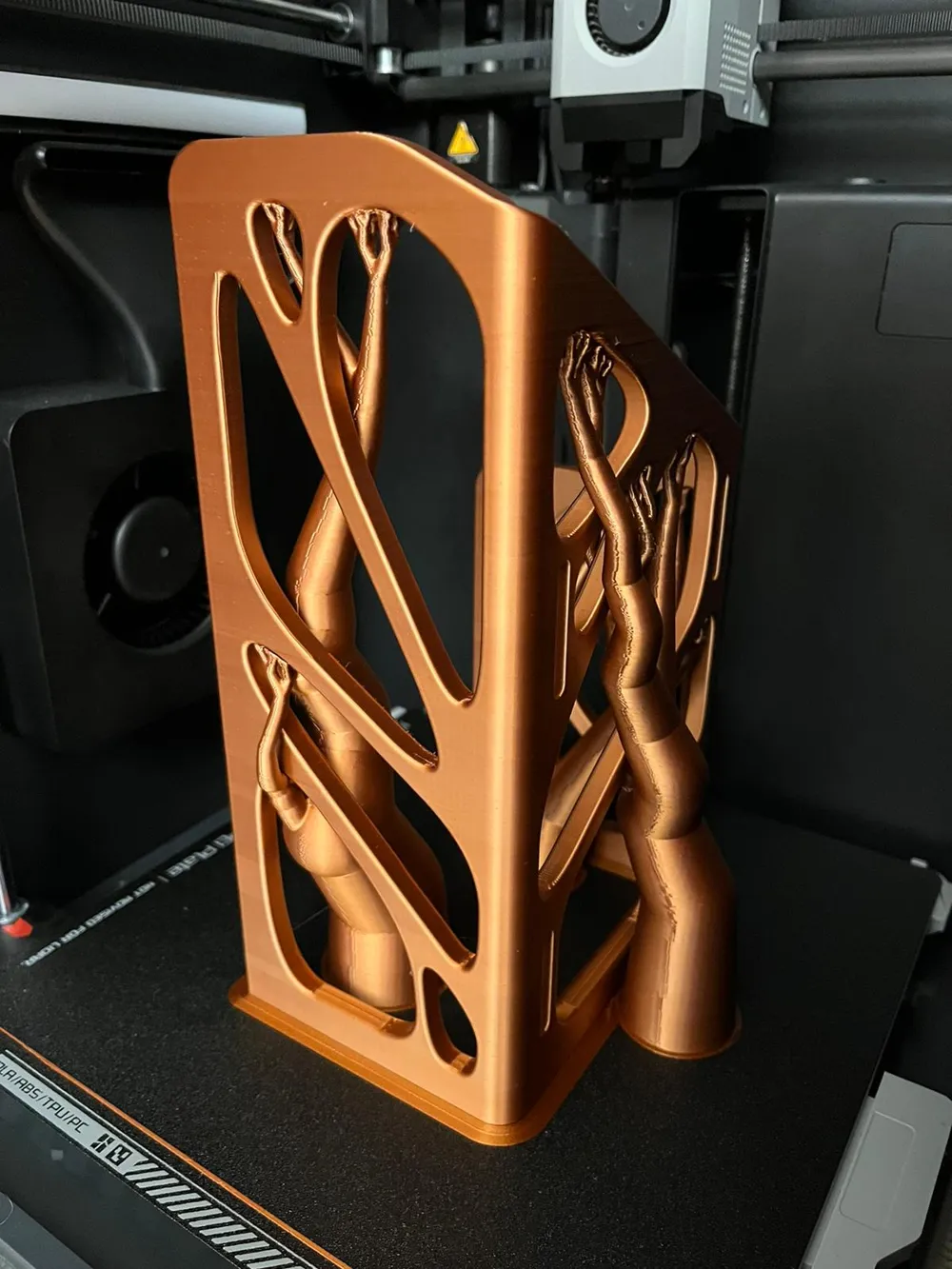

3D Printing Profile
- Single-piece print
- Layer height: 0.2 mm
- Infill: 15% gyroid
- Walls: 4 perimeters for stiffness
- Tree (organic) supports required (may print without, at your own risk)
- Brim recommended
- Compatible with all non-flexible materials
