Tripod Quick Release Plate with Picatinny Rail

Here you can print a quick-release plate with a Picatinny rail for the Rollei Compact Traveler No. 1 tripod.

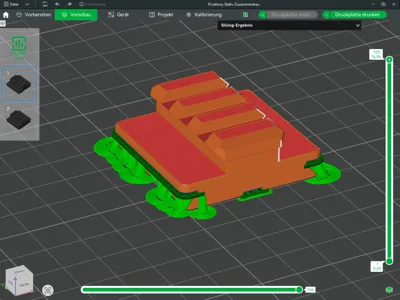

Two versions of the model are available in the print profile.
One has a core hole (Ø2.5mm) for M3 locking screws on the underside.
I used socket head cap screws (M3x8) according to ISO 4762 / DIN 912.
The other version is without holes.

I printed the model with Eryone PETG-CF.
Accordingly, the print profile has been tested for PETG-CF.
For stability reasons, I do not recommend printing it in PLA.

Important:
Remember to dry the PETG-CF beforehand.

Optional:
2x socket head cap screws (M3x8).

Info:
For those interested, the action camera pictured is a Replay XD PrimeX and
the mounting ring is a UTG Ø30mm quick-release mounting ring.
